Adjustable Length Polyurethane Ceiling/Wall Panel Production Line For Office

5 0 Reviews
This model of PVC ceiling panel making machine has the characteristics of high output, low sheering force, long life service. Most important of all, after simple changing of the die mold and screw, this machine can also produce the foam profiles. What's more this machine is reliable quality, very cheaper price, complete turnery solution including supplying machine, installation, training supplying raw materials and all others you need!
Availability:
Quantity:

Product Description

This model of PVC ceiling panel making machine has the characteristics of high output, low sheering force, long life service. Most important of all, after simple changing of the die mold and screw, this machine can also produce the foam profiles. What's more this machine is reliable quality, very cheaper price, complete turnery solution including supplying machine, installation, training supplying raw materials and all others you need!

This line is also used to produce the PP hollow profile sheets, also called PP fluted sheet, PP corrugated sheets, PP hollow cross section board, PP coroplast sheet, which are featured with non-toxic, 100% recycled, light weight, low temperature resistance, waterproof and moisture proof, corrosion resistance, impact resistance, energy absorption, noise blocking effect. Widely used in architecture for light partitions, building material protection boards, turnover box, packing boxes etc. Instead of cartons for packing, and also can be used for printing and advertising. In addition, PP hollow sheet are colorful, printable, and machinable that are also widely used in stationery, Card supplies, etc.

Features

1) Mainly used to produce the PVC window profiles, plastic decorative plates and PE foam profiles
2) Use frequency conversion for speed regulation
3) Has super-taper twin-screw extruder with temperature controlling instrument in the screw core
4) Saves power by 30% - 40%
5) The rigid gear surface of the reducer can be operated continuously for a long time without trouble
6) Operation and mold changing are smooth and steady
7) Long usage life
8) Can produce steel plastic profiles by changing the wood imitation foaming profile mold, combines with one set of steel liner conveying devices

Main Parameter

Model

Width

Extruder model

Motor power

Output

WS-600

400-600mm

65/132

37kw

220kg/h

WS-1200

600-1200mm

80/156

55kw

400kg/h


Pictures for Reference

PVC-board_01

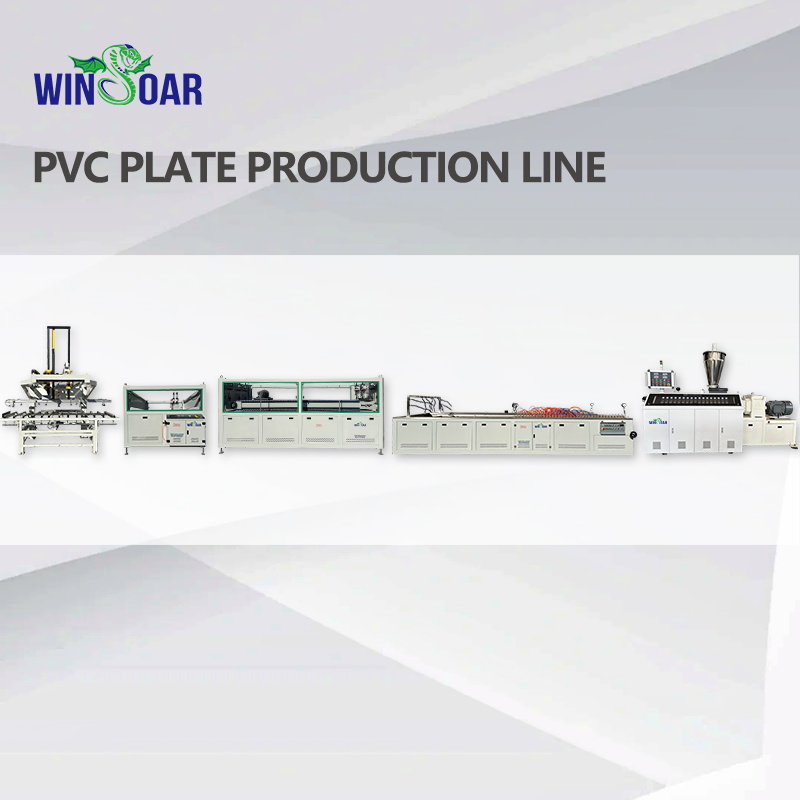

PVC PIATE PRODUCTION LINE

The production line adopts automatic control,with high degree of automation, stable equipment easy operation and high production efficiency.


p2PVC-board_04

PVC-board_05

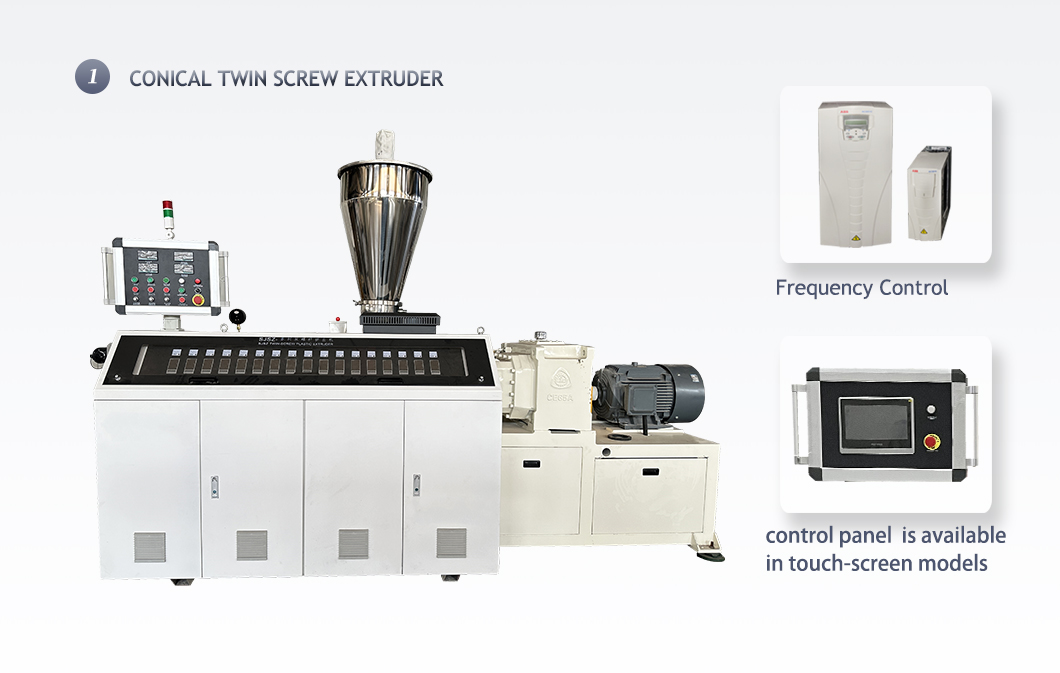

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-board_06

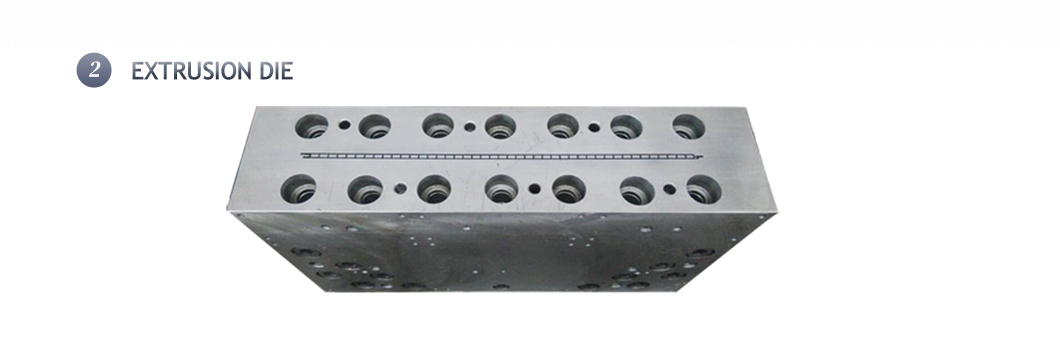

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.


PVC-board_07

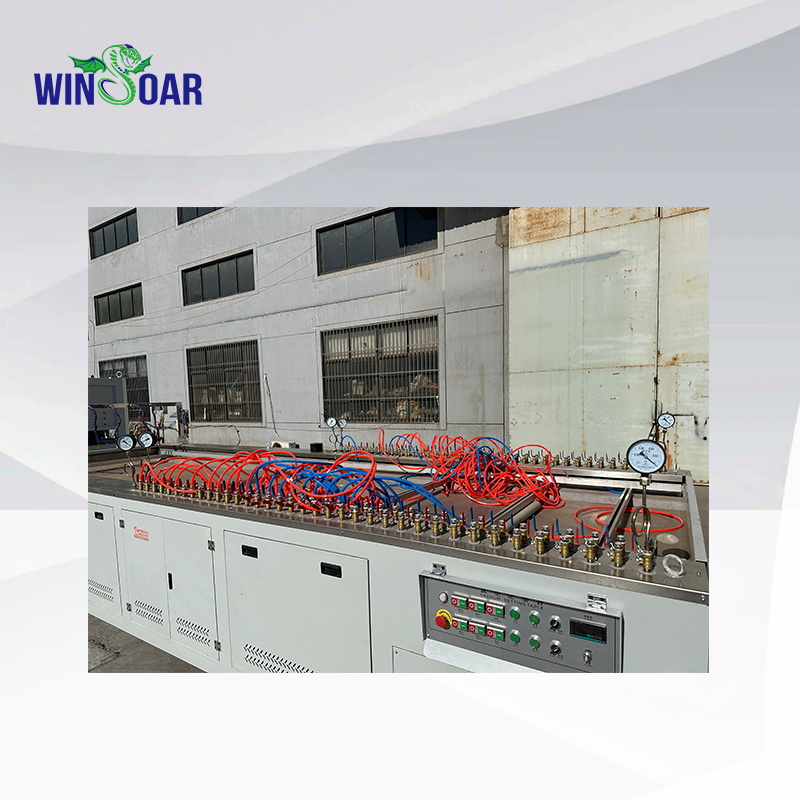

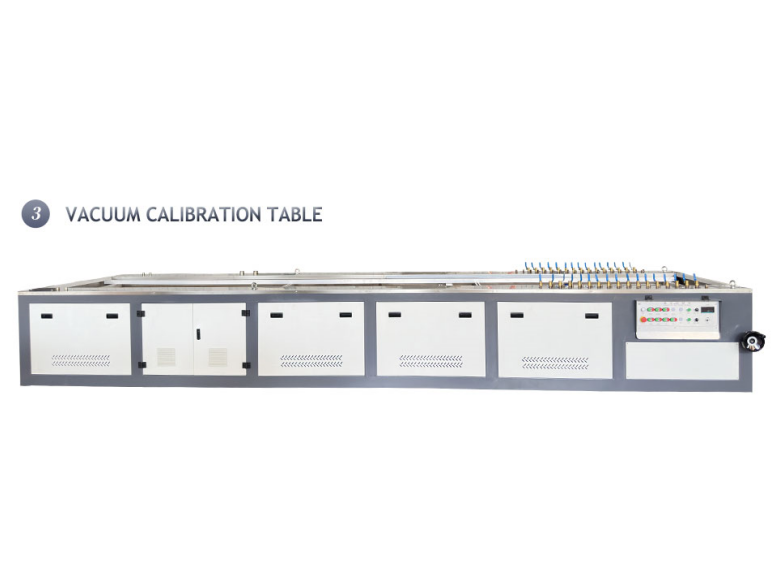

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.


PVC-board_08

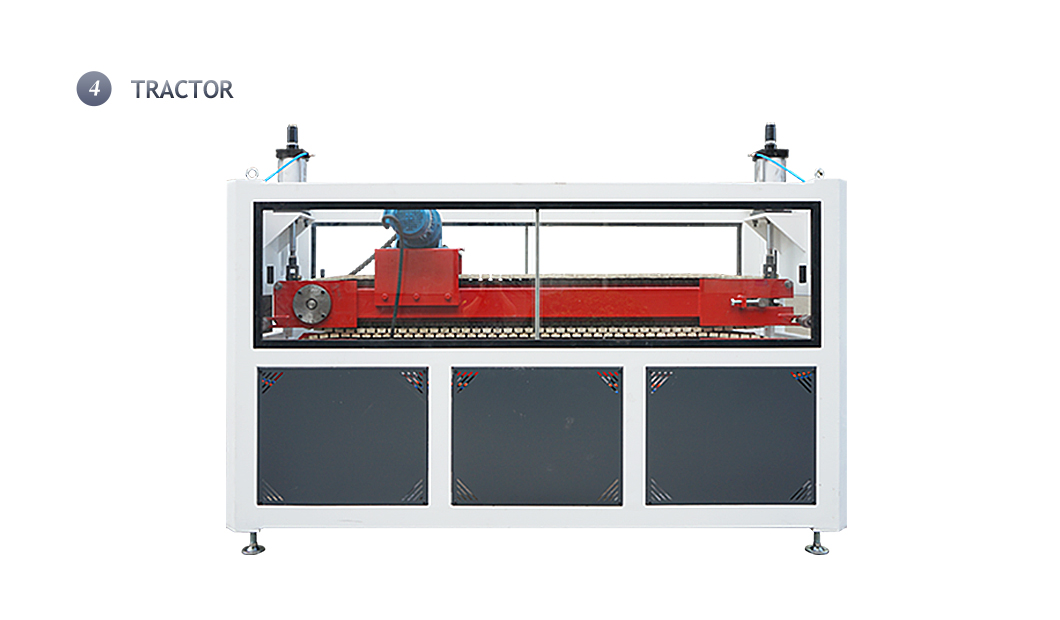

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.


PVC-board_09

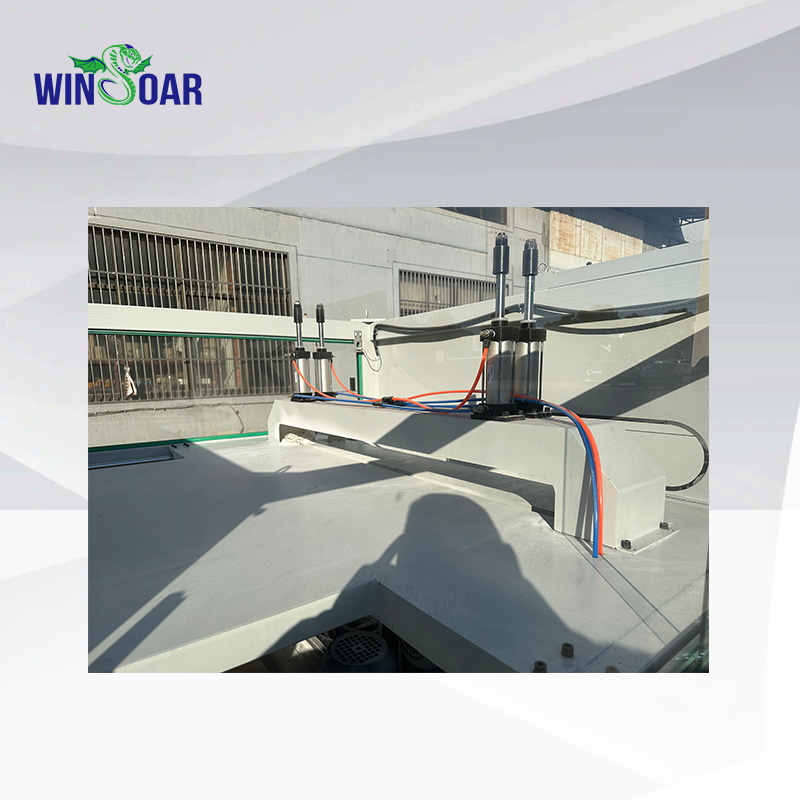

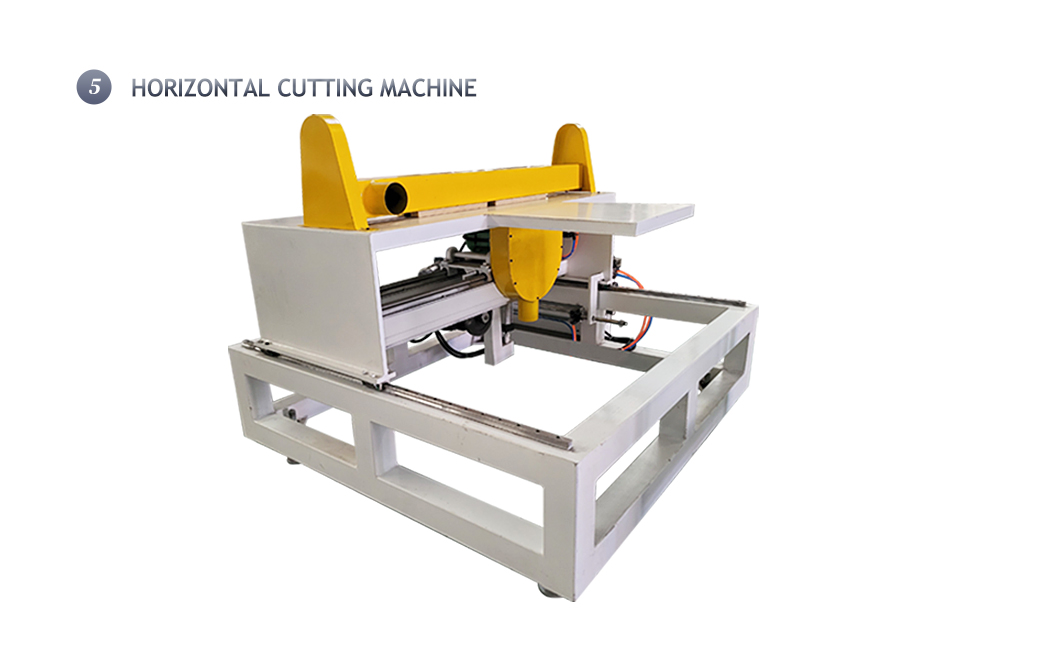

HORIZONTAL CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Automatic pressing, sawing, hidden saw blade, low noise and high safety.


PVC-board_10

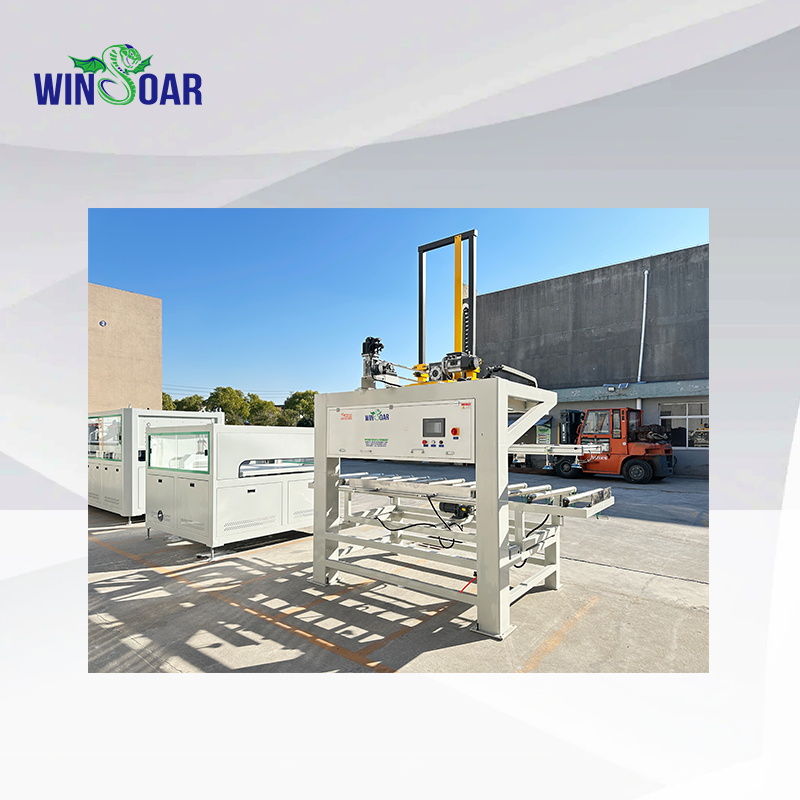

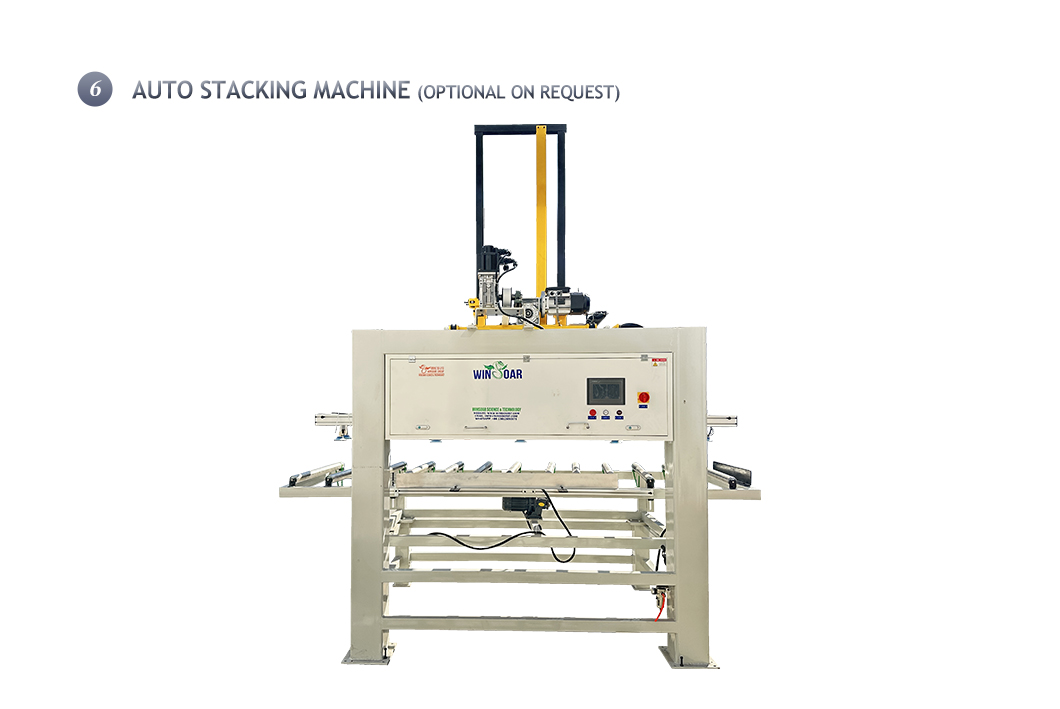

AUTO STACKING MACHINE (OPTIONAL ON REQUEST)

It can automatically receive and stack plates, saving personnel time for plate placement.


PVC-board_11


PLATE STACKER (OPTIONAL ON REQUEST)

Receive finished product and unload.


p12p13p14


FAQ

  1. What is the main use of PVC ceiling panel making machine?

    This line is mainly used to produce PVC ceiling and wall panels, but it can also produce foam profiles.


  2. What are the characteristics of the PVC ceiling panel making machine?

    It features high output, low shear, long life and the flexibility to produce different products by changing molds and screws.


  3. Are installation and training services included?

    Yes, a complete turnkey solution is provided, including machine supply, installation, training and supply of raw materials.


  4. What other products can be produced on this PVC ceiling panel making machine?

    In addition to PVC ceilings and wall panels, this line can also be used to produce PP hollow core panels for applications such as lightweight partitions, protective panels for building materials, crates, and more.


  5. Is it possible to adjust the width of PVC ceiling panel making machine?

    Yes, the two models offered, WS-600 and WS-1200, support the production of products of different widths, covering the ranges of 400-600mm and 600-1200mm respectively.
