Product Description
PP-R hot and cold water pipe production line is mainly used in the production of residential water supply system, industrial water transportation, compressed air transportation and other widely used pipe diameter, wall thickness. In the history of international pipe development, PP-R is the most new products, with cheap price, non-toxic, no corrosion, high temperature resistance, easy installation and other characteristics. This production line is a new product successfully developed by our company by introducing and absorbing foreign advanced technology. The key components such as screw and head are specially designed according to the characteristics of PP-R. Control electrical appliance adopts frequency conversion speed regulation, main electrical components adopt imported famous brand products; The whole production line has the characteristics of high yield, stable quality and small product error. It is the first-class equipment in today's plastic machinery industry.
Features
1. The production speed is fast, which is twice that of similar manufacturers.
2. Advanced formula technology, low cost and high quality.
3. The whole machine runs smoothly and has the advantages of high reliability.
Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker
Technical Parameter
Classical Seriers:
Production Line | Diameter Range (mm) | Extruder Type | Max. Capacity(kg/h) | Max. Haul Off Speed (m/min) | Extrusion Power(KW) |
WS-63（single） | Ф20-63 | SJ65/33 | 180 | 10 | 55 |
WS-110（single） | Ф20-110 | SJ65/33 | 180 | 10 | 55 |
WS-160（single） | Ф50-160 | SJ75/33 | 300 | 6 | 110 |
WS-250（single） | Ф90-250 | SJ75/33 | 300 | 4 | 110 |
High Speed Seriers:
Production Line | Diameter Range (mm) | Extruder Type | Max. Capacity (kg/h) | Max. Haul Off Speed(m/min) | Extrusion Power (KW) |
WS-63（single） | Ф20-63 | WSD60/38 | 280 | 20 | 90 |
WS-63（dual） | Ф20-63 | WSD60/38 | 360 | 18X2 | 110 |
WS-110（single） | Ф20-110 | WSD60/38 | 280 | 20 | 90 |
WS-110（dual） | Ф20-110 | WSD75/38 | 450 | 18X2 | 160 |
WS-160（single） | Ф40-160 | WSD60/38 | 360 | 12 | 110 |
WS-250（single） | Ф50-250 | WSD75/38 | 450 | 10 | 160 |
Pictures for Reference

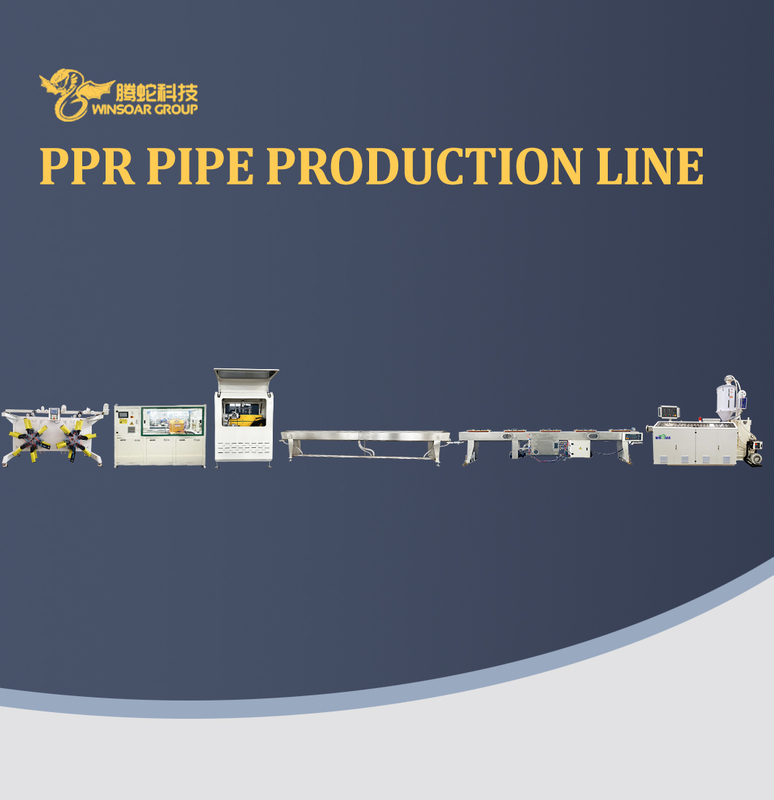

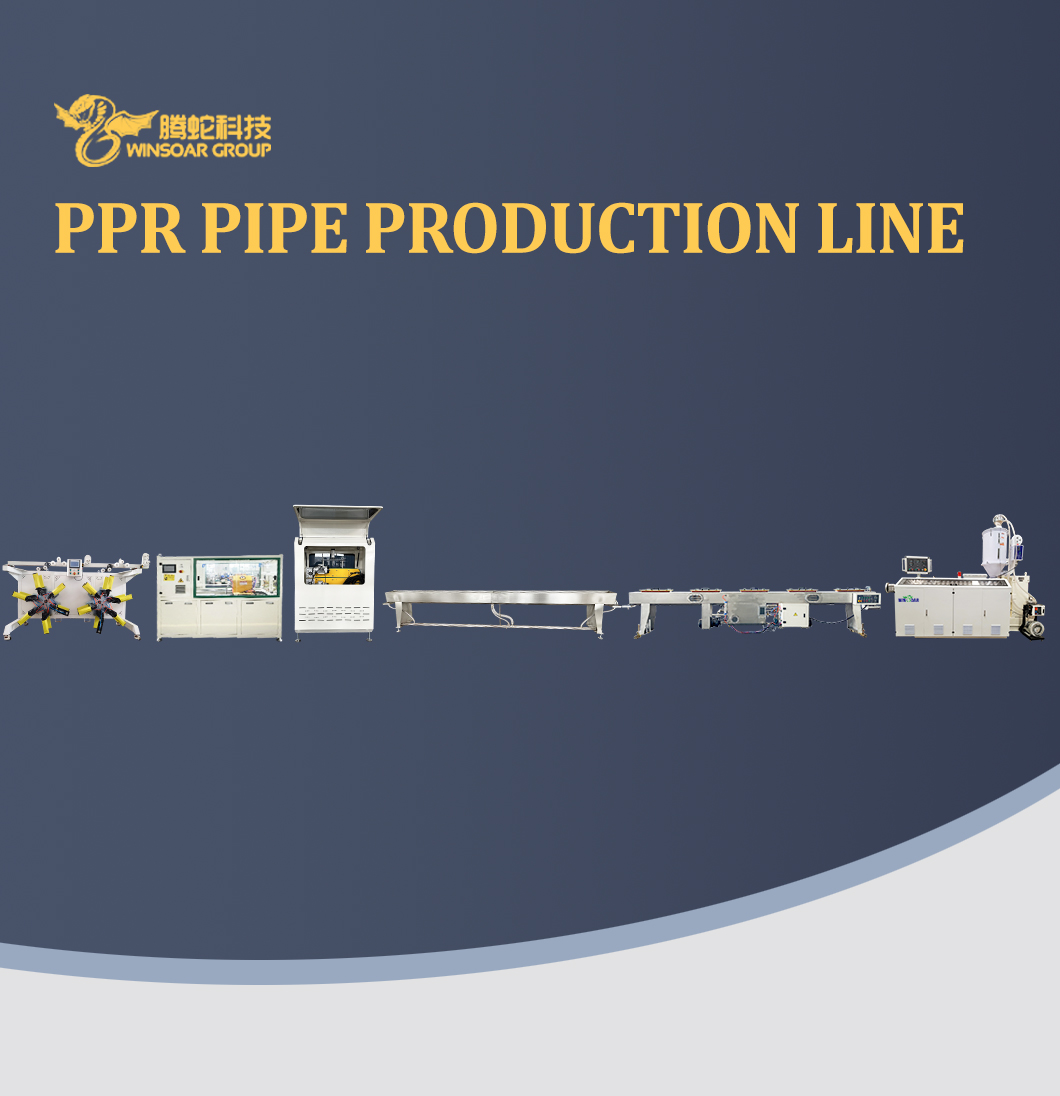

PPR PIPE PRODUCTION LINE
It is mainly used to produce PPR pipes for hot and cold water. It adopts PLC control system and HMI for whole extrusion line.

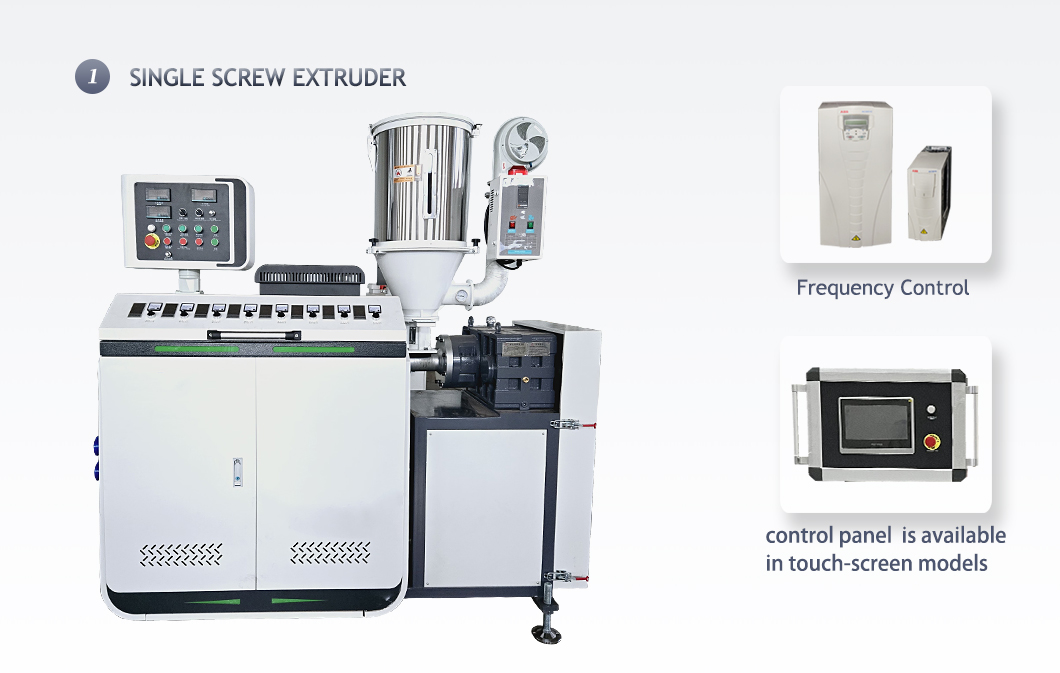

SINGLE SCREW EXTRUDER
The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.

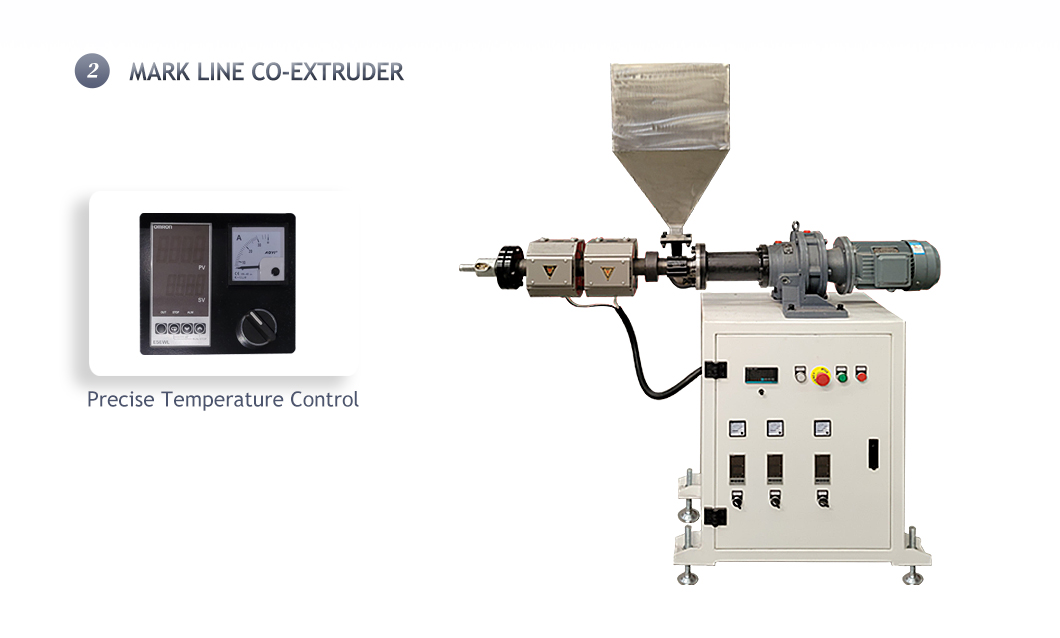

MARK LINE CO-EXTRUDER
The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.

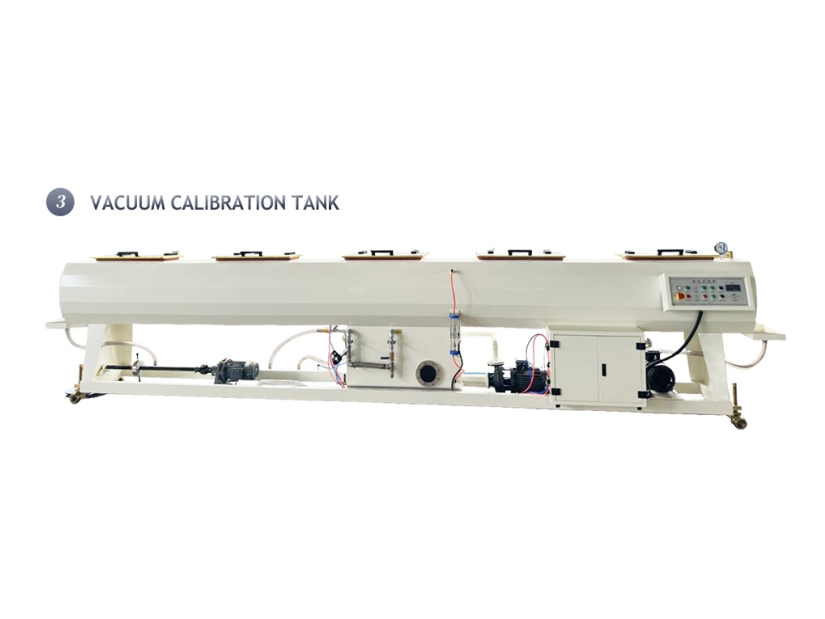

VACUUM CALIBRATION TANK
Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

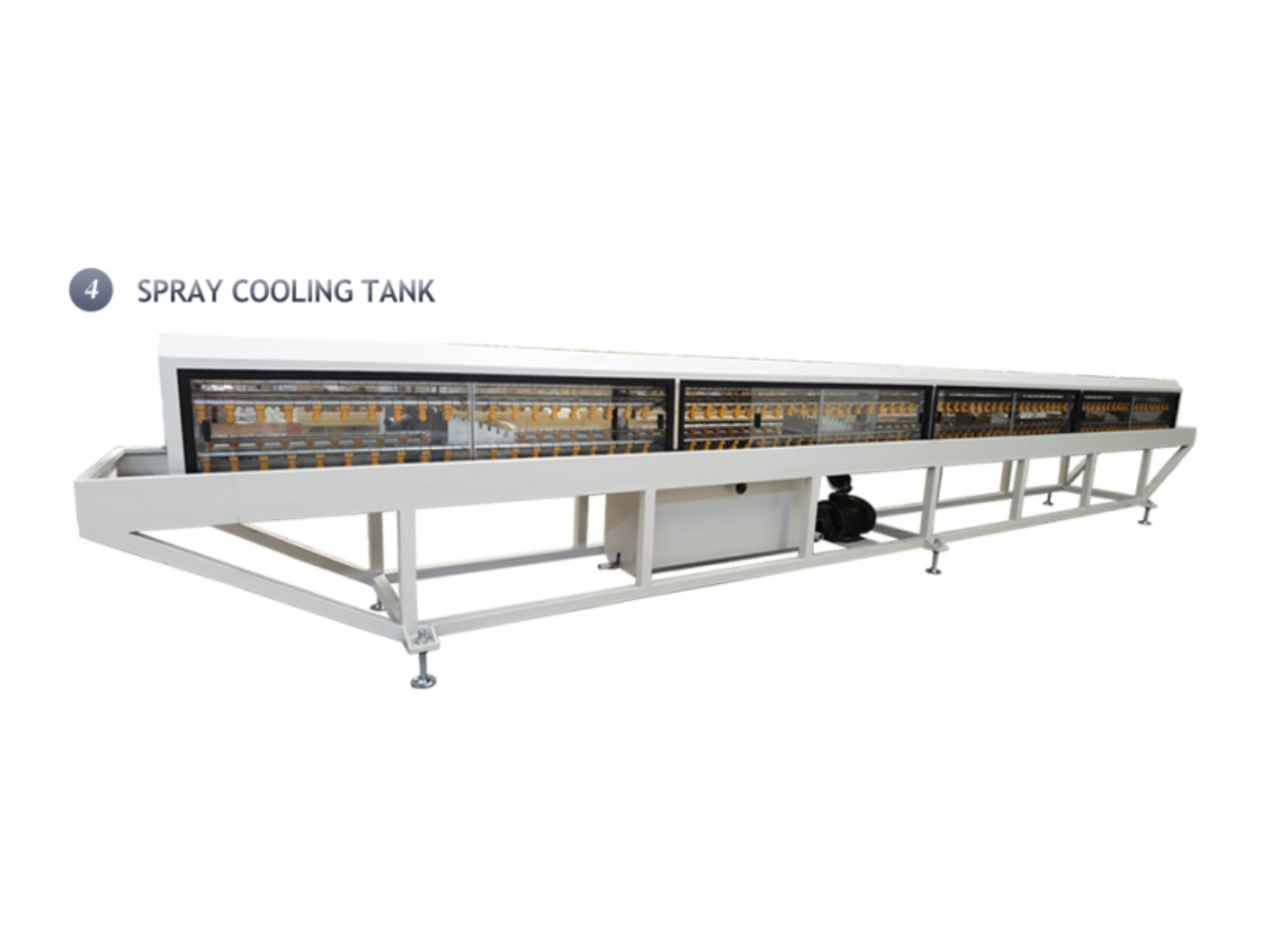

SPRAY COOLING TANK
The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.

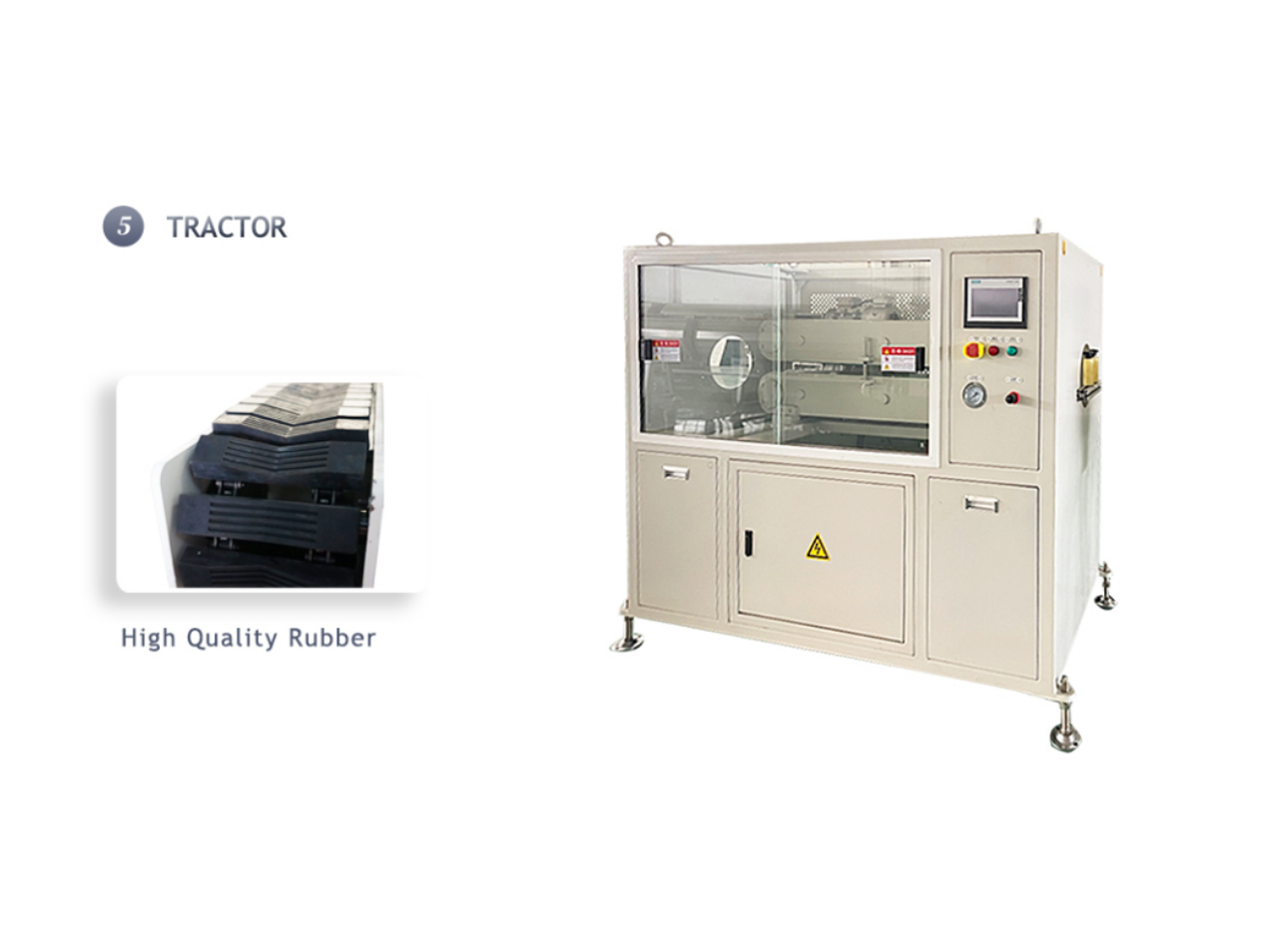

TRACTOR
It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.

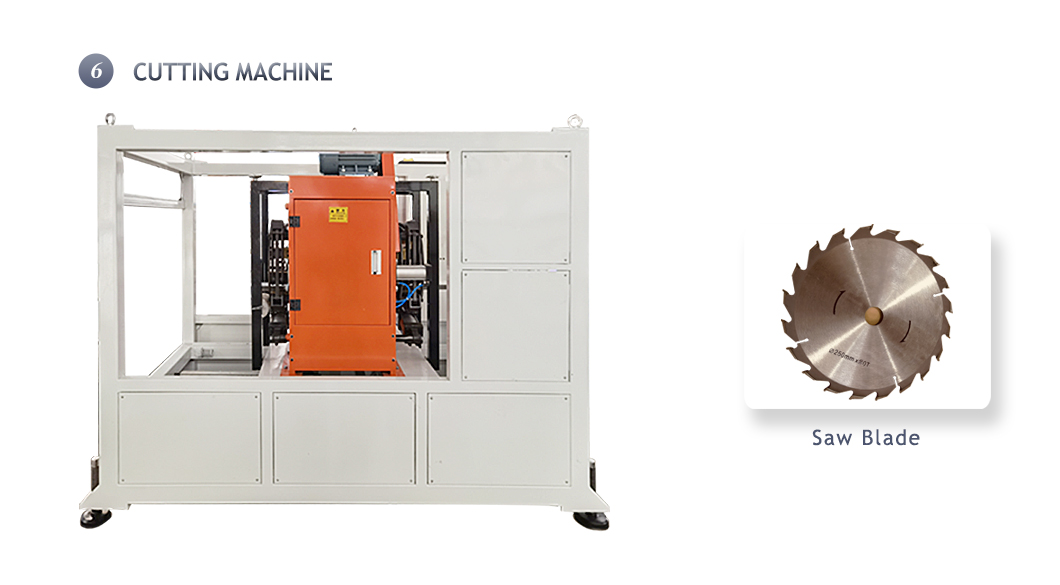

CUTTING MACHINE
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

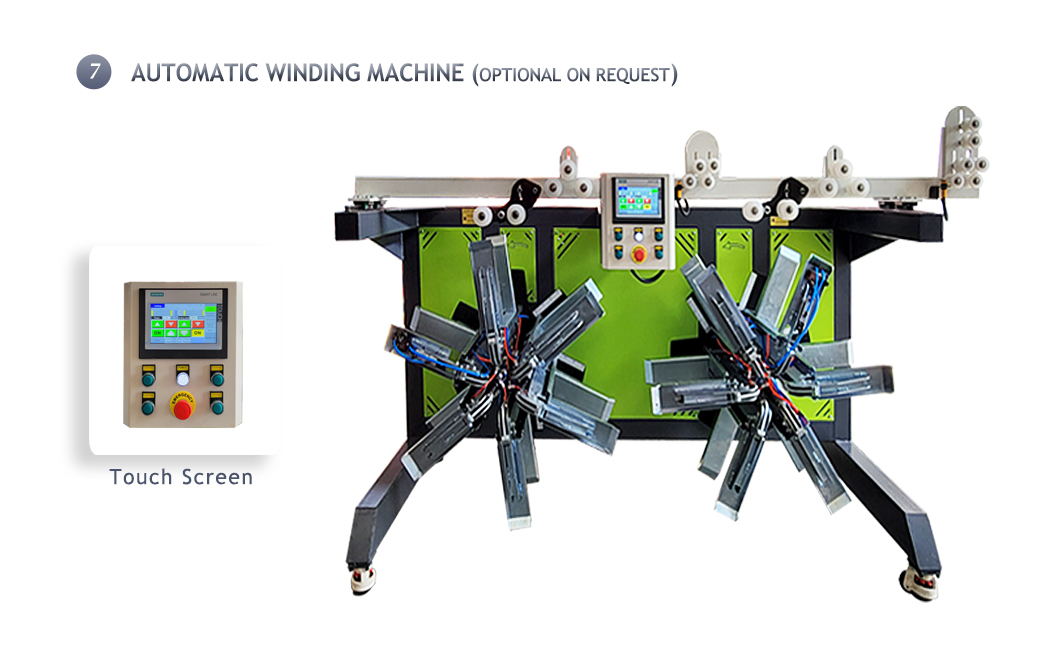

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)
This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging,automatic rewinding, and easy operation.
TURNOVER RACK (OPTIONAL ON REQUEST)
Accept finished products and automatically turn over.
