Product Description
The unit adopts the designed conical twin-screw extruder, adopts imported frequency converter for speed regulation, and uses RKC temperature control instrument. It has the advantages of wide adjustment range, high temperature control accuracy, convenient and reliable operation. The auxiliary machine consists of a vacuum setting table, a tractor, a cutting machine and a pusher frame. Equipped with a large forced cooling device to ensure the effect of door panel shaping. The crawler tractor adopts reducer motor and frequency converter, which has the advantages of reasonable structure, large traction and stable traction. The cutting machine has the advantages of reliable and accurate work and high cutting precision. The stacker is equipped with a movable pusher and a special rubber protective layer, which has the advantages of no damage to the material and easy use. The auxiliary machine unit adopts a programmable computer control system, and the control of the whole machine is reliable and stable.
Features
The core part of screw adopts auto circular water cooling system in order to raise efficiency. According to customer's material formulation, we choose the screw with most reasonable structure, with the aim of reaching the best plasticizing status, as well as good material floating quality.
The reduction box and distribution case adopt imported bearings and oil seals. Gearwheel is made of 38CrMoALA, with nitriding treatment specially for PS foam profile producing machine.
Temperature control system adopts imported temperature gauge and contactor, with the controlling precision reaching 1 cent degree.
Driving motor adopts AC or DC motor, with motor speed controlled separately by imported inverter. Electric system is equipped with error alarming device, as well as current overload protector.
Main Parameters
Model | Width | Extruder model | Motor power | Output |
WS-600 | 400-600mm | 65/132 | 37kw | 220kg/h |
WS-1200 | 600-1200mm | 80/156 | 55kw | 400kg/h |
Pictures for reference

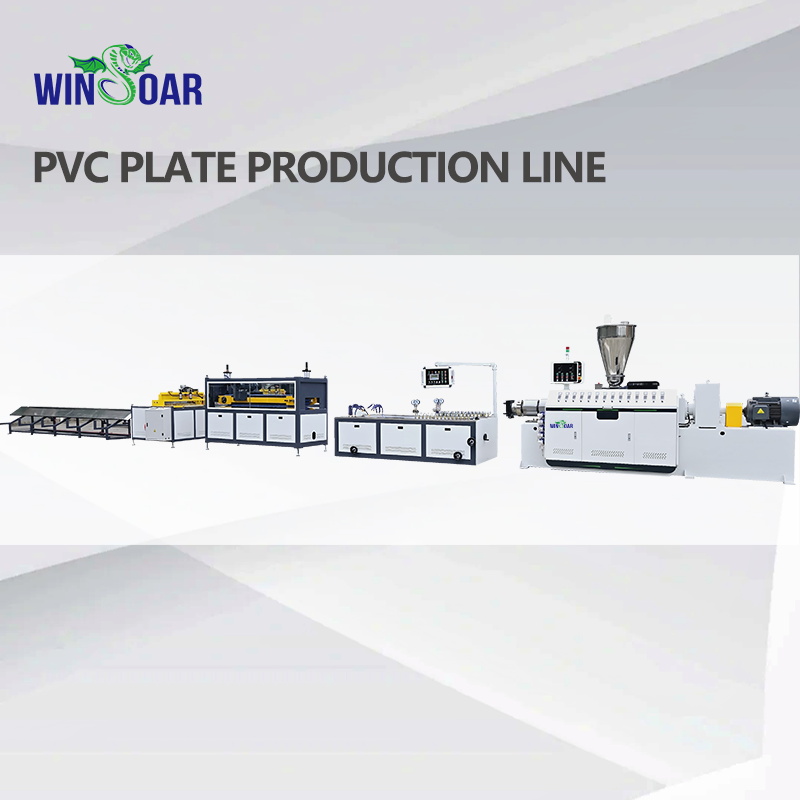

PVC PIATE PRODUCTION LINE
The production line adopts automatic control,with high degree of automation, stable equipment easy operation and high production efficiency.
CONICAL TWIN SCREW EXTRUDER
This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

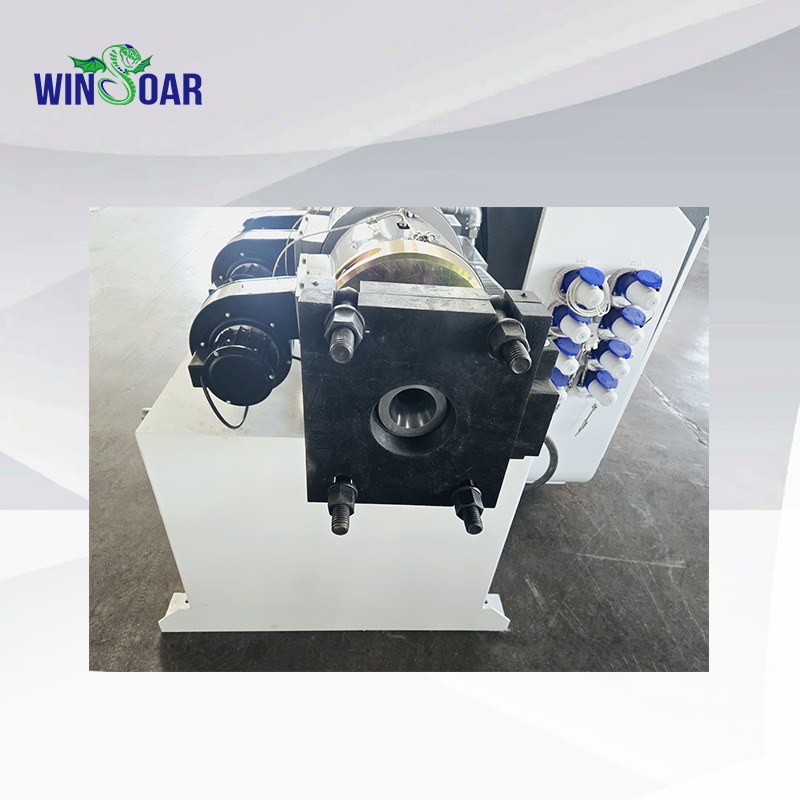

EXTRUSION DIE
After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.

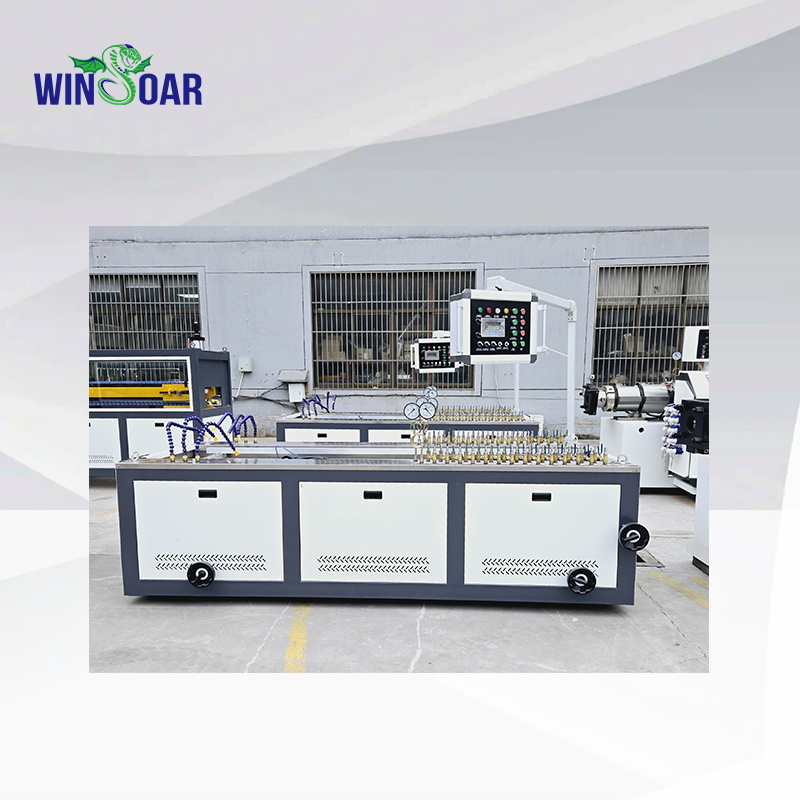

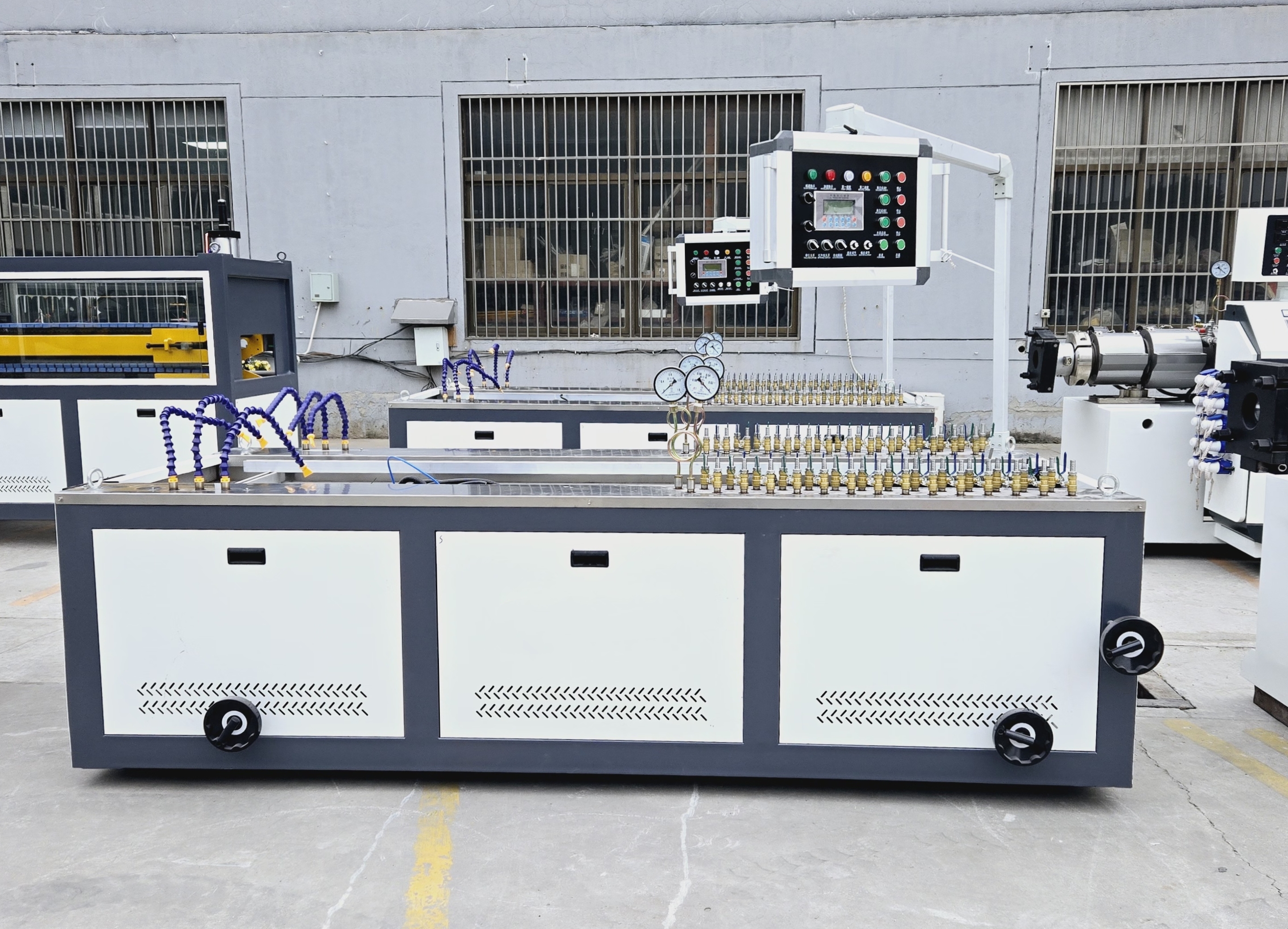

VACUUM CALIBRATION TABLE
Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

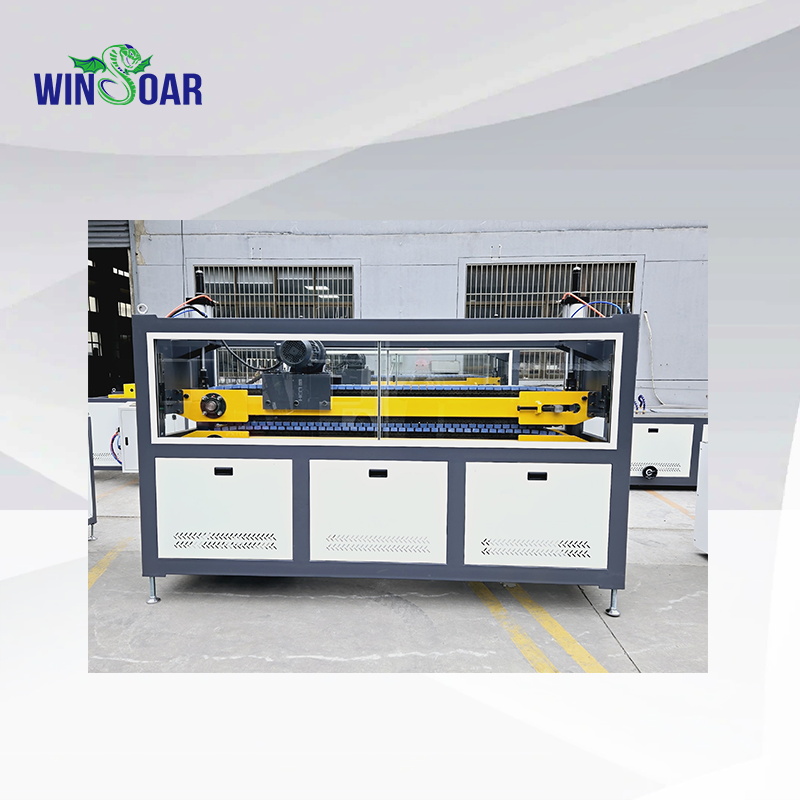

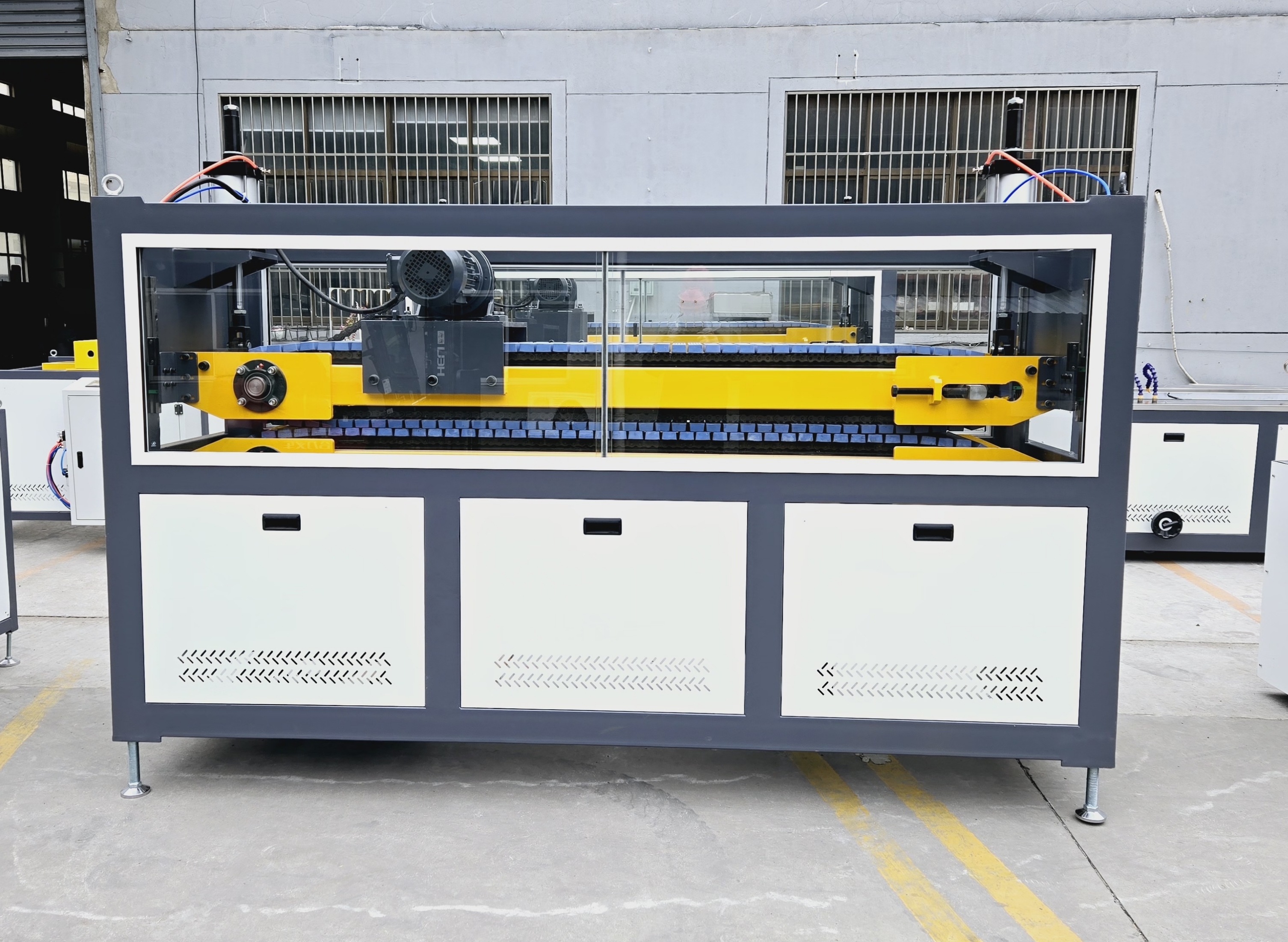

TRACTOR
It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.

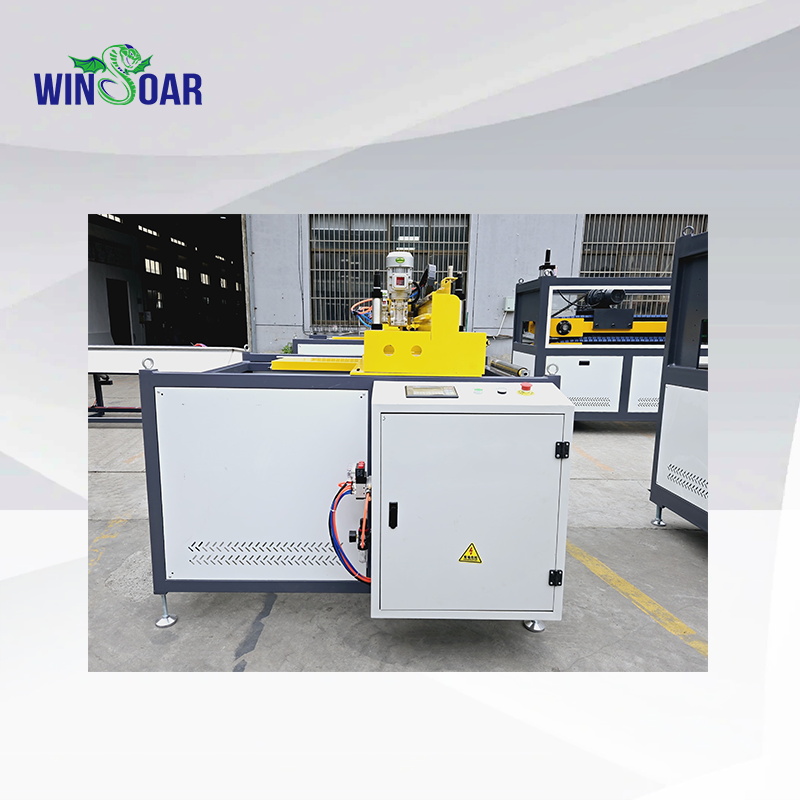

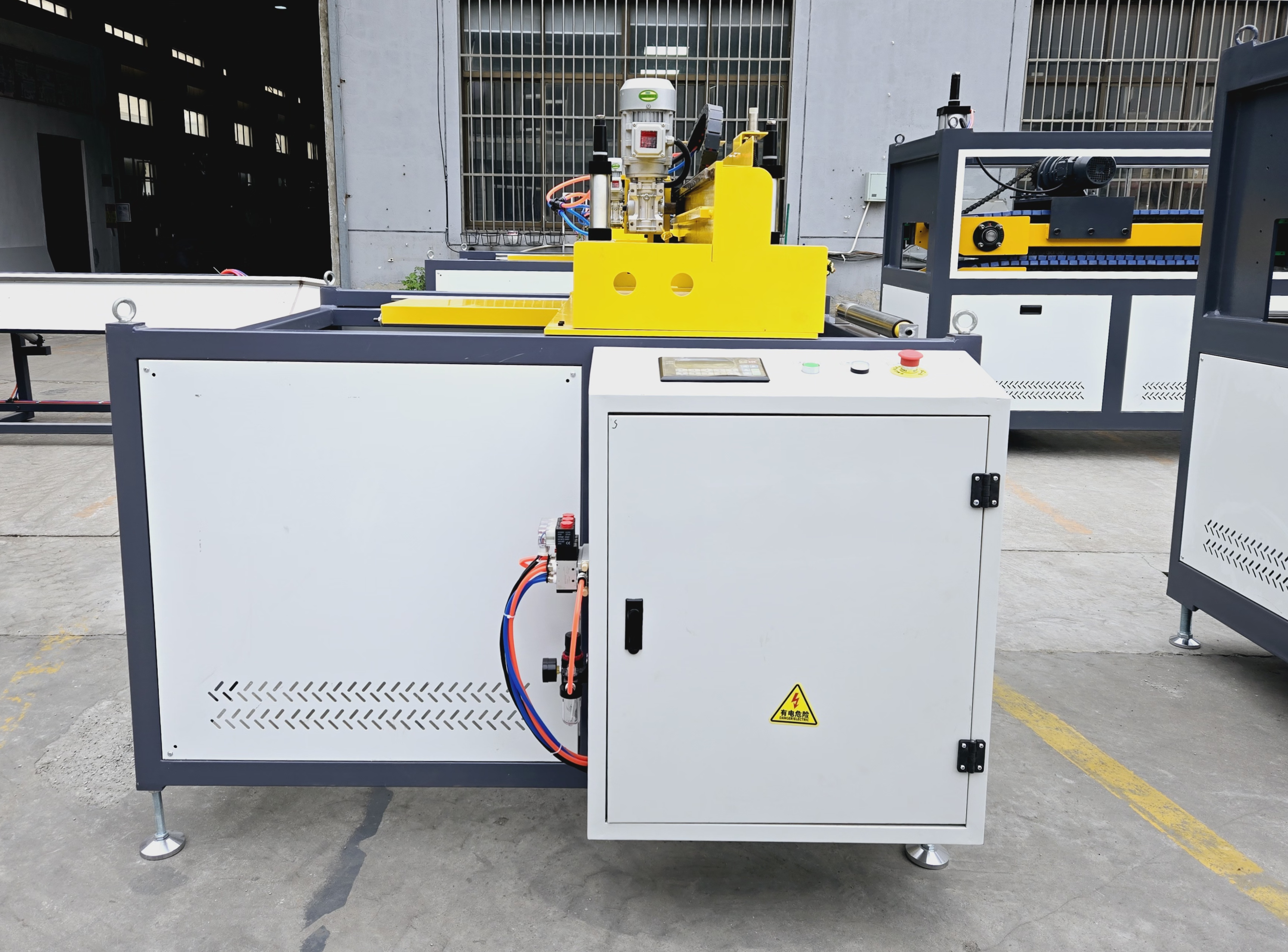

HORIZONTAL CUTTING MACHINE
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.
Automatic pressing, sawing, hidden saw blade, low noise and high safety.

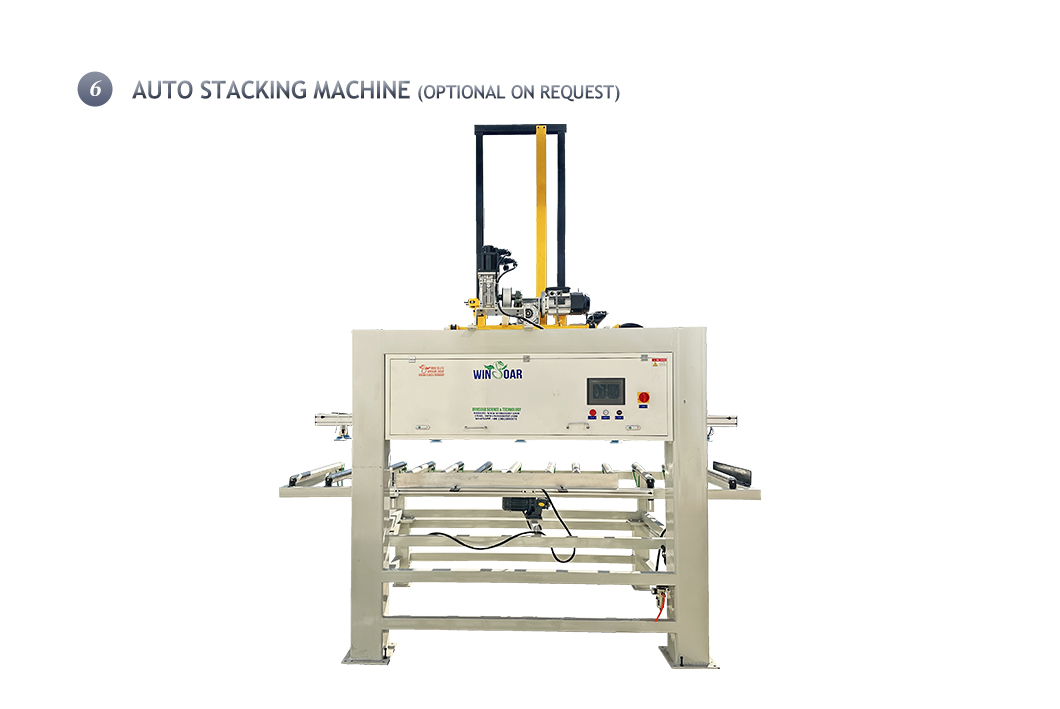

AUTO STACKING MACHINE (OPTIONAL ON REQUEST)
It can automatically receive and stack plates, saving personnel time for plate placement.

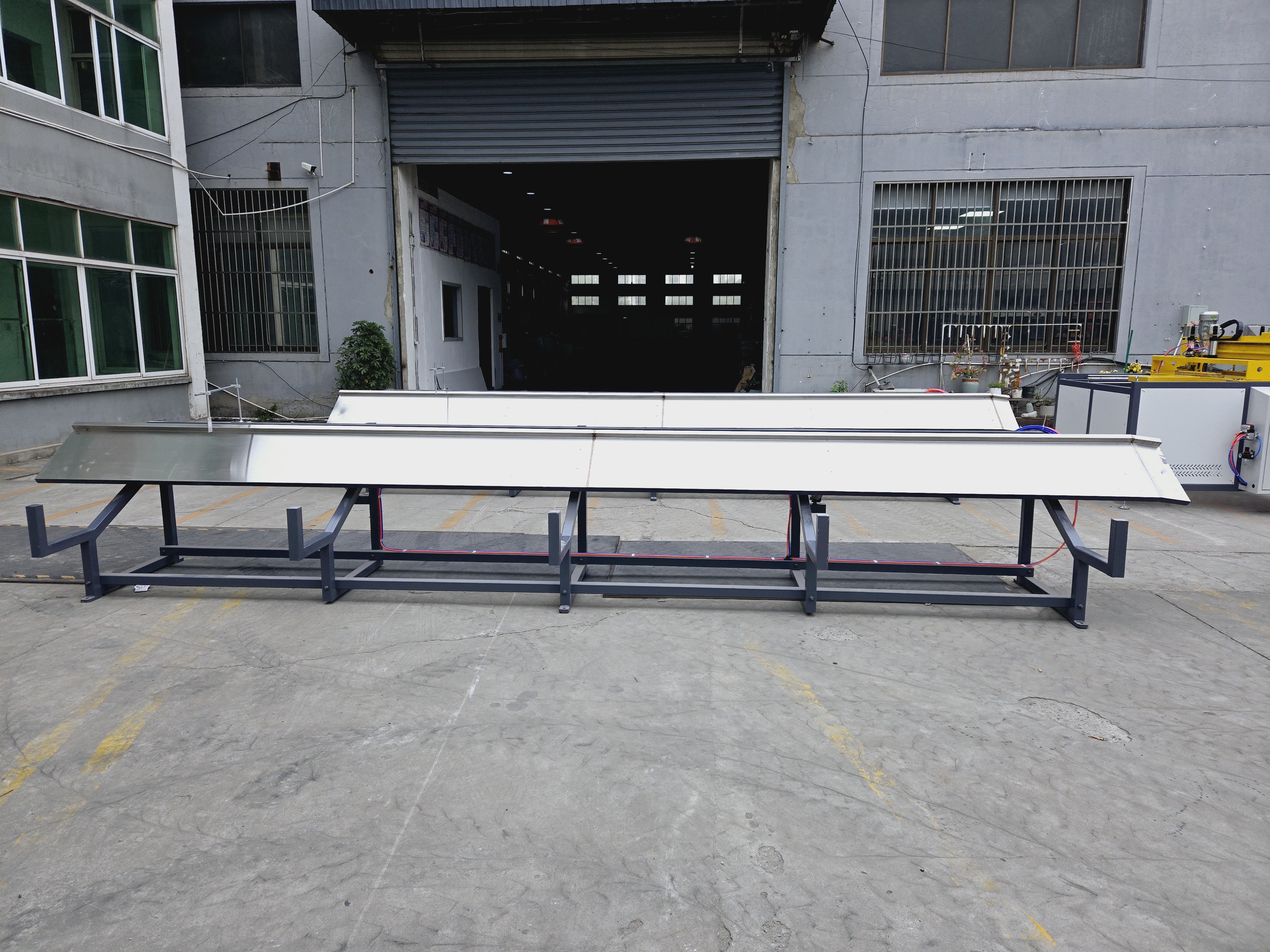

PLATE STACKER (OPTIONAL ON REQUEST)
Receive finished product and unload.
