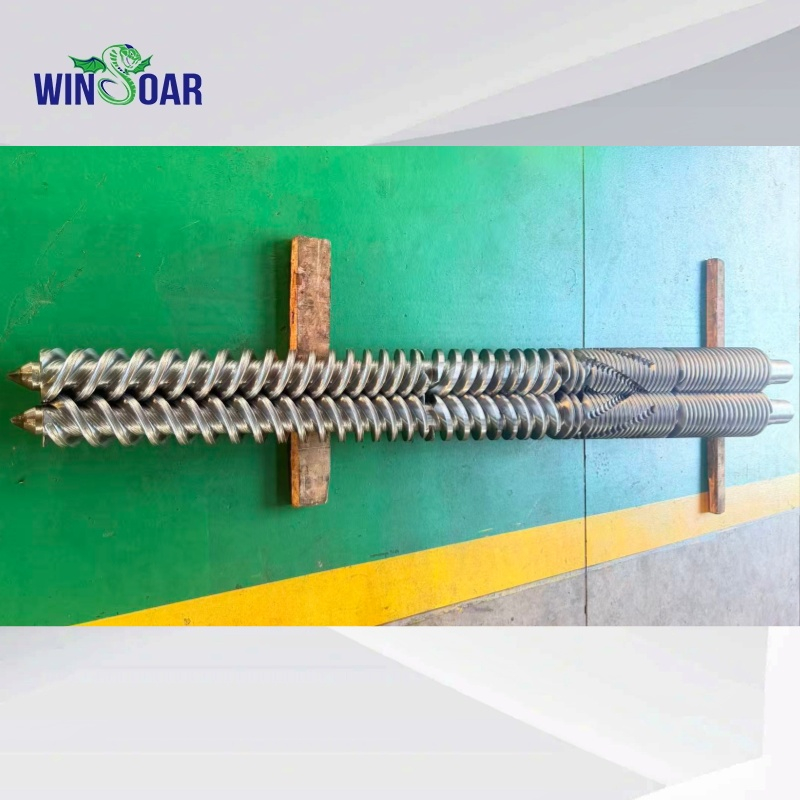

Main Description
A bi-metallic screw and barrel is an industrial component featuring a dual-layer metal composite structure. The base material primarily consists of SKD61 alloy steel, though other materials such as SACM645 and 38CrMoAlA are also utilized. The surface layer is bonded to the substrate using metallurgical bonding techniques, incorporating self-fluxing alloy materials—such as tungsten carbide (WC/Co), nickel-based alloys (Ni+B/Cr), and cobalt-based alloys (Co+Ni/Cr)—with alloy compositions that include 88WC/12Co. This product is manufactured using processes such as centrifugal casting, bi-metallic sintering, and PTA spray forming; additional processing steps include heat treatment, bi-metallic alloy spraying, and hardfacing.
The surface alloy layer of the bi-metallic screw and barrel achieves a hardness of HRC 60–65°, offering a service life 3 to 5 times longer than that of standard nitrided screws. It features a surface roughness of Ra 0.4 and a straightness tolerance of 0.015 mm. Primarily utilized in equipment such as injection molding machines, extruders, and thermoset molding machines, these screws are specifically designed to process highly abrasive and corrosive special engineering plastics—including glass fiber-reinforced plastics, PPA, PO, PPS, LCP, PC, ABS, and PA. They are particularly well-suited for processing materials containing over 40% glass fiber content, as well as halogen-free materials. Furthermore, the bi-metallic screw effectively eliminates the issue of chrome-plating detachment commonly associated with chrome-plated screws.
Direct answer: A bi-metallic screw and barrel combines a compatible alloy-steel base with a bonded working layer designed for the buyer's plastic material and wear or corrosion conditions. The correct replacement is selected from the extruder dimensions, polymer, filler level, temperature range, output target and required surface treatment.
The screw conveys, melts, mixes and builds pressure in the extruder. The barrel provides the heated and cooled working chamber around the screw. A bi-metallic construction is considered when the process requires a balance of mechanical strength, wear resistance and corrosion resistance.
PVC pipe, profile, sheet and board extrusion after the screw geometry is matched to the formula.
PE and PP extrusion projects where the material and output requirements suit the selected design.
Filled, glass-fiber-reinforced or abrasive compounds when the working-layer specification is confirmed for the application.
Replacement or upgrade projects where the original screw and barrel drawing, sample or machine data is available.
Buyer Input | Why It Matters |
|---|---|
Extruder model and screw diameter | Defines the installation envelope, center distance and connection details. |
Polymer and additive formula | Determines plasticizing behavior, corrosion risk and abrasive loading. |
Filler or glass-fiber content | Helps select the working-layer material and surface treatment. |
Output target and operating temperature | Helps confirm screw geometry, cooling arrangement and process stability. |
Existing drawing or worn sample | Reduces dimensional risk during replacement and quotation. |
For a precise quotation, send the extruder brand and model, screw diameter and length, barrel dimensions, material being processed, filler ratio, operating temperature, target output, surface-treatment requirement, delivery destination and available drawing or photographs. Do not select only by screw diameter; the screw flights, feed section, compression or mixing sections, barrel bore and connection details must be compatible.
It can combine a strong base structure with a working layer chosen for the process wear and corrosion conditions. The actual benefit depends on the material, formula, surface treatment and operating conditions.
It may be suitable when the working-layer material, screw geometry and barrel design are confirmed for the actual glass-fiber content and polymer. Send the formula and machine data before ordering.
The most useful information is the extruder model, screw diameter and length, barrel drawing or sample, processing material, filler content, output target and photos of the existing parts.
See the Extruder Screw and Barrel category, Plastic Extruder category, conical twin screw and barrel and single screw and barrel pages for related selection references.
A bi-metallic screw and barrel combines a structural base material with a harder or more chemically resistant working layer. The base supports the mechanical load and installation dimensions, while the working layer is selected for the actual abrasion, corrosion, temperature and polymer conditions. The screw and barrel must still be designed as a matched set for the extruder and product.
Process condition | Bi-metallic selection focus |
|---|---|
PVC and corrosive additives | Review corrosion resistance, temperature control, clearance and surface treatment. |
PE, PP and general thermoplastics | Match screw geometry, output, polymer temperature and required wear life. |
Calcium carbonate or mineral filler | Review abrasive loading, working-layer hardness and flight or bore wear. |
Glass-fiber or reinforced compound | Confirm filler percentage, fiber length, process temperature and suitable surface material. |
Bi-metallic construction is considered when the process needs a balance between mechanical strength, wear resistance and corrosion resistance. It may be suitable for replacement or upgrade projects where the existing standard parts wear too quickly, output becomes unstable or the material formula contains abrasive or corrosive components. The actual service-life improvement depends on the material, geometry, clearance, temperature and maintenance conditions.
Working-layer options can include tungsten-carbide-based or chromium-carbide-based systems and other materials selected for the process. The correct option should not be chosen only by a hardness number. Polymer, filler, corrosion risk, operating temperature, screw geometry, barrel bore and target output all need to be reviewed together.
Base material: supports torque, installation dimensions and mechanical strength.
Working layer: addresses the process-specific wear or corrosion condition.
Surface treatment: affects the expected service life and compatibility with the polymer.
Clearance: must be controlled between screw flights and barrel bore for stable plasticizing.
A matched bi-metallic screw and barrel may be considered for PVC pipe, profile, sheet and board extrusion, PE or PP pipe and profile production, filled compounds, reinforced engineering plastics and replacement projects. The final design depends on the extruder type, screw diameter and length, product section, die resistance, output and processing formula.
Inspect the screw flights, barrel bore, feed section, compression or mixing sections, metering section, connection ends and cooling or heating zones. Unstable pressure, lower output, poor mixing, higher energy consumption, surface defects and abnormal leakage can indicate wear, but the cause should be confirmed by dimensional measurement and process review. Replacing only one part may not solve the problem if the mating clearance is already outside the required range.
Buyer information | Why it is needed |
|---|---|
Extruder model and screw dimensions | Confirms installation, drive connection, centerline and working volume. |
Polymer and filler formula | Determines wear, corrosion, mixing and plasticizing requirements. |
Target output and temperature | Helps select screw geometry, cooling and working-layer specification. |
Original drawing or worn sample | Reduces dimensional and connection risk during replacement. |
Provide extruder brand, model, screw diameter and screw length.
Provide barrel bore, barrel length, centerline and connection dimensions.
State polymer, filler or glass-fiber content, additives and operating temperature.
Provide product section, die type, target output and production speed.
Describe the current wear problem and send measured photos or the original drawing.
Confirm required base material, working layer, surface treatment and delivery destination.
Winsoar can review these details and recommend a bi-metallic screw and barrel set matched to the actual extruder and process rather than a generic alloy component.
Structural Design
Dual- alloy screw and barrel are manufactured using materials such as 88WC/12Co, CrC/25NiCr, and XaloY108. Subjected to a comprehensive through-hardening treatment, these screws are suitable for processing a wide range of materials, including plastics reinforced with glass fibers, as well as specialized engineering plastics such as PPA, PO, PPS, LCP, ABS, flame-retardant compounds, phenolic molding compounds, magnetic powders, PC, and hard calcium carbonate fillers. Dual-alloy screws are categorized into various types based on their alloy composition, including tungsten carbide, chromium-tungsten carbide, and nickel-chromium-tungsten carbide variants.
These screw and barrel feature a progressive, variable-depth screw geometry with uniform pitch. The feeding section is designed with deep flights to maximize conveying efficiency; the compression section facilitates the melting and plasticization of the material; and the metering (homogenizing) section utilizes shallow flights to ensure melt uniformity. Furthermore, the feed throat area undergoes a specialized treatment involving the application of a nickel-based alloy reinforcement layer, effectively mitigating localized wear issues typically caused by the processing of highly filled materials. These screws are utilized in a variety of manufacturing applications, including injection molding machinery, extrusion machinery, and phenolic molding machinery.
Materials and Craftsmanship
The base material selected is SKD61 hot-work tool steel, which, following quenching and tempering treatment, exhibits high strength and thermal stability. Furthermore, depending on specific application requirements, alternative base materials such as 38CrMoALA or SACM645 may also be utilized. The surface treatment process employs the following combination of technologies:

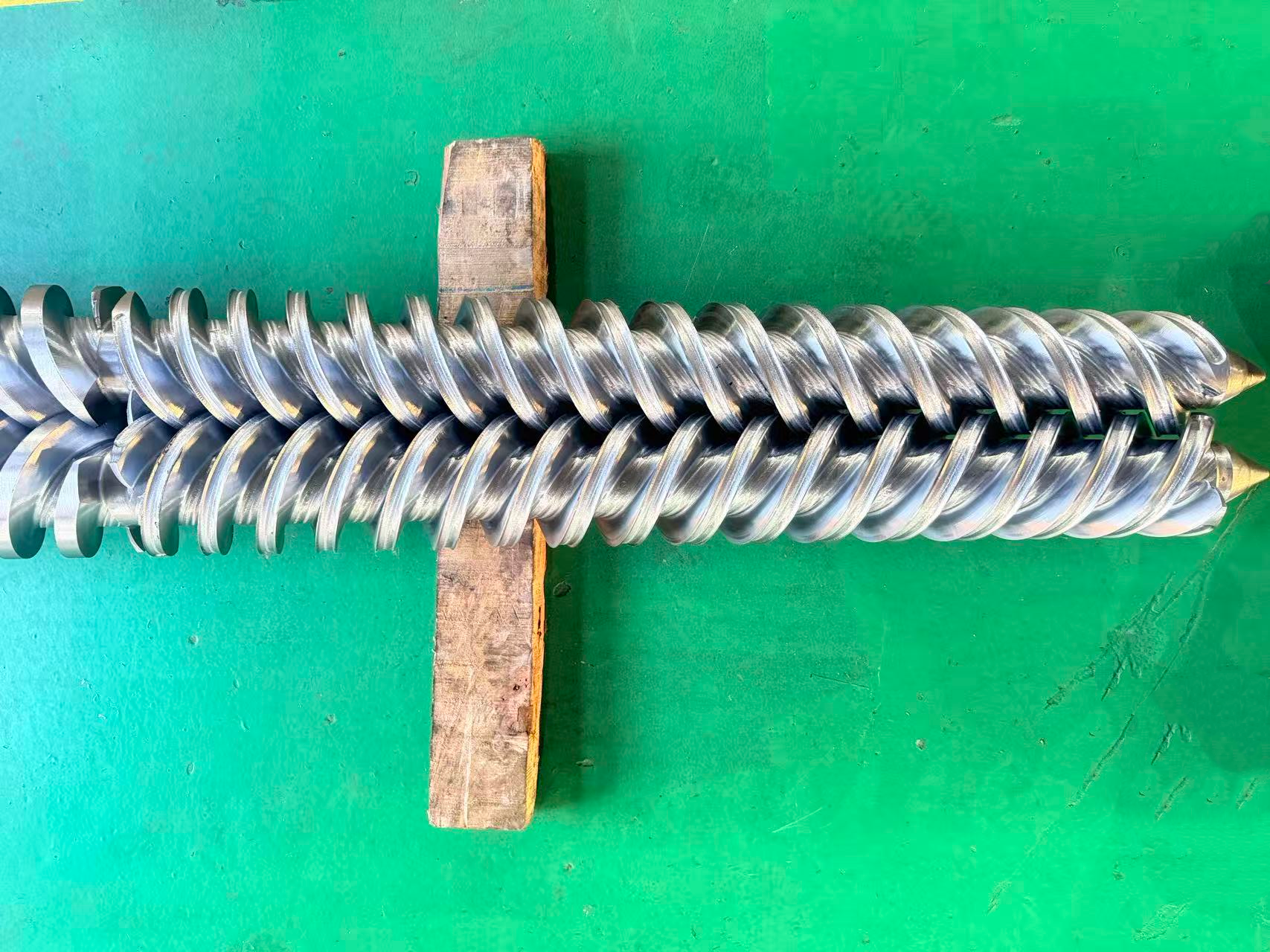

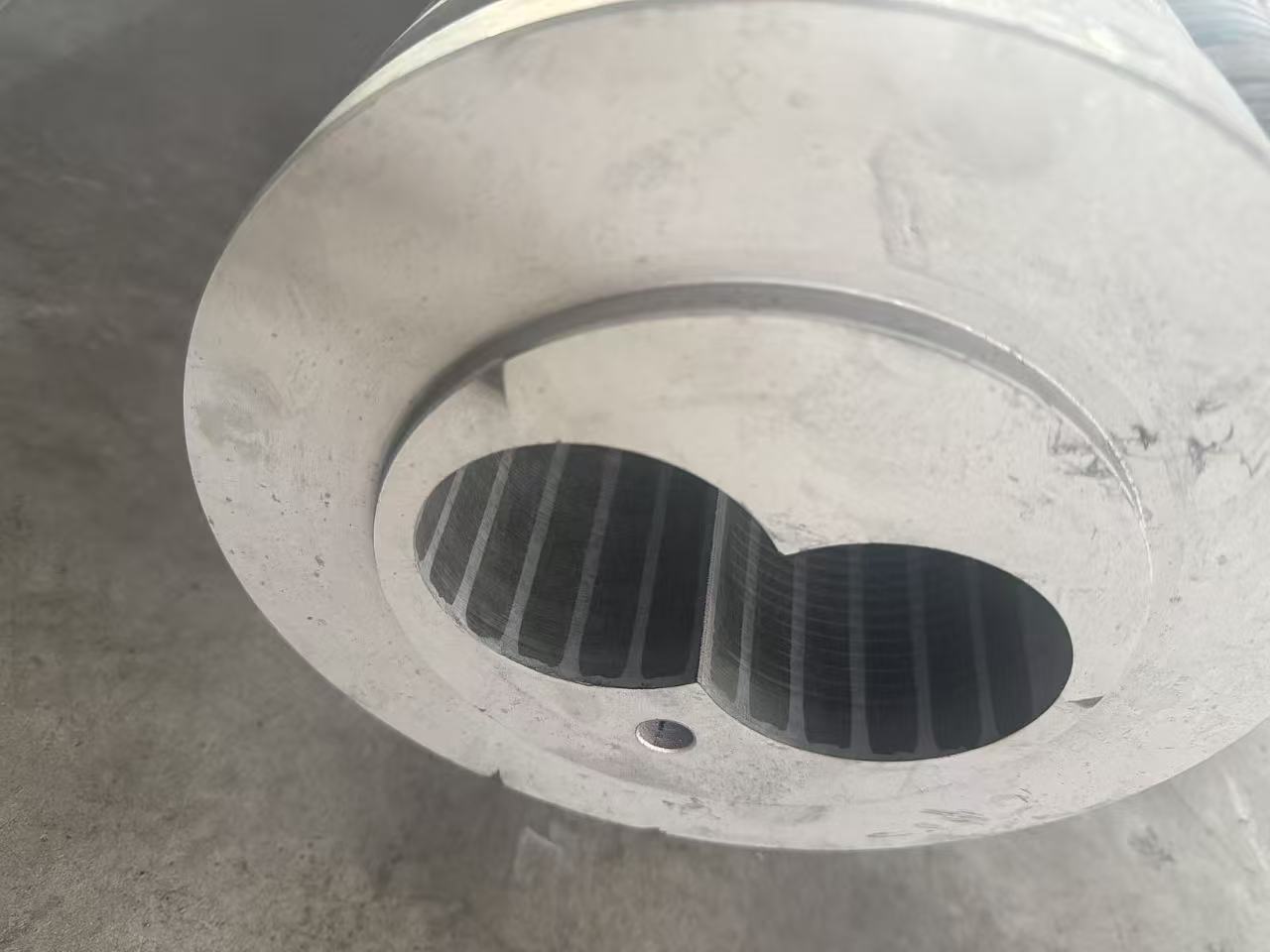

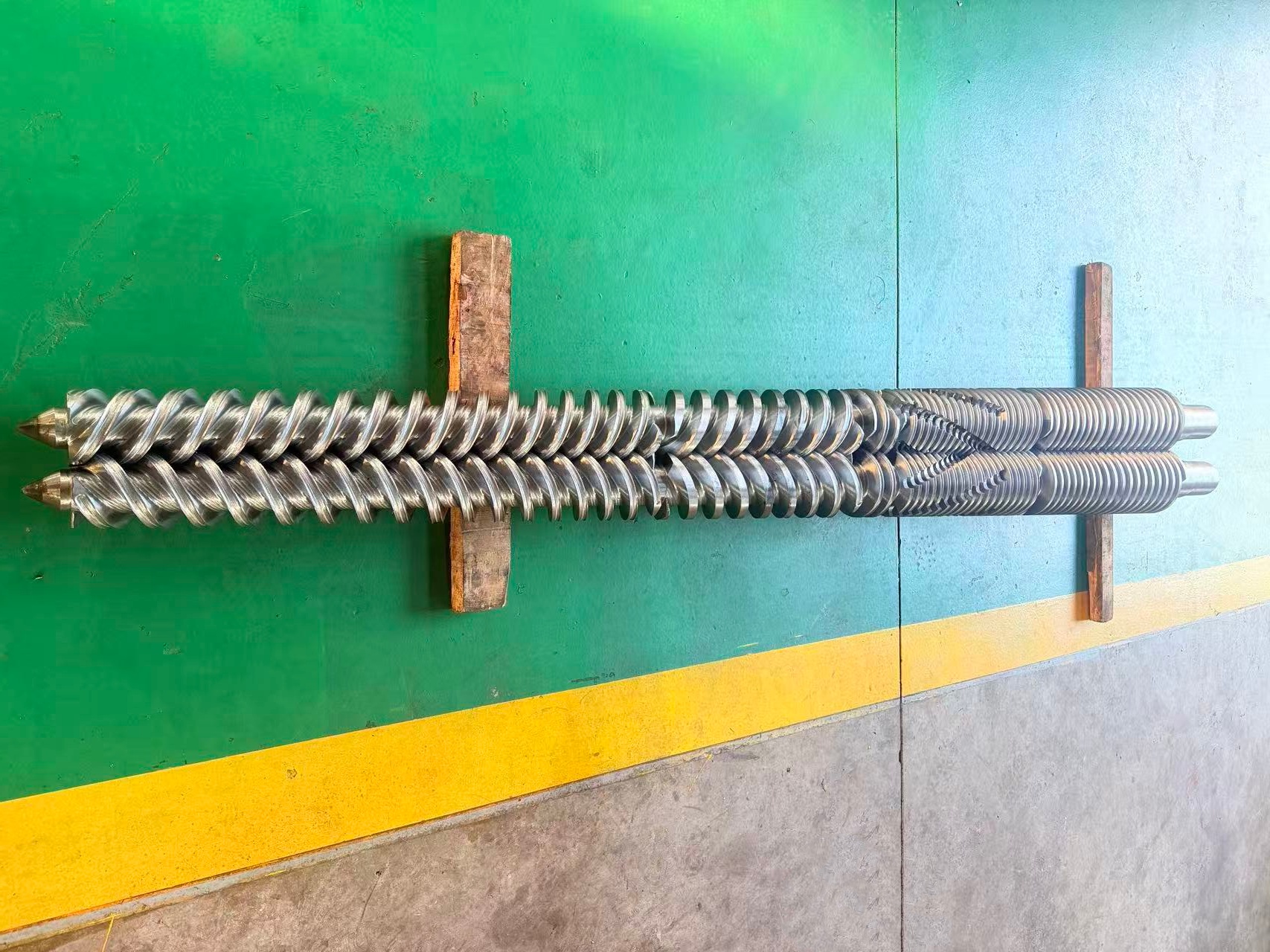

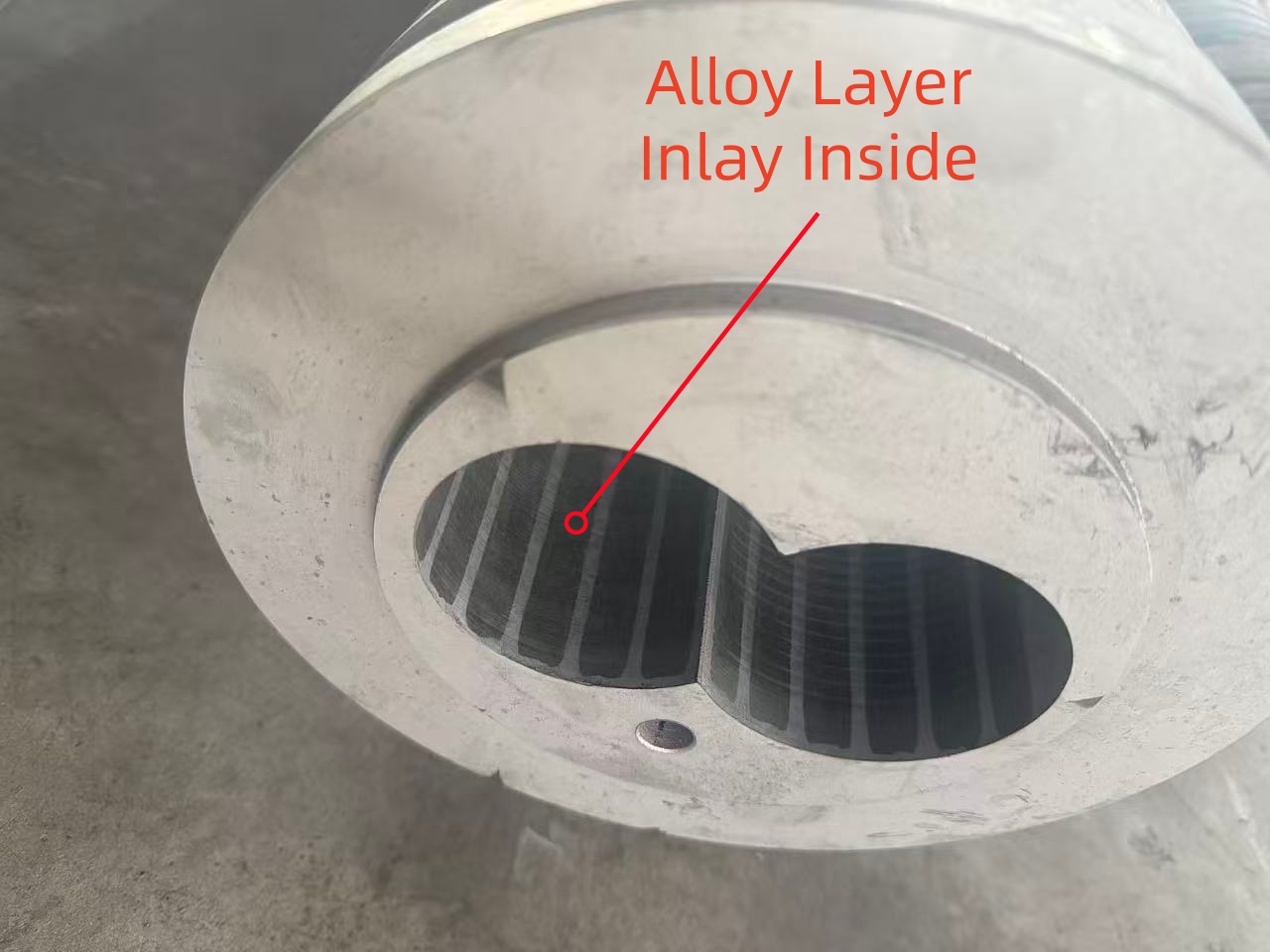

Nickel-based Alloy Powder Spray Welding: Utilizing an oxy-acetylene flame to melt and spray a Ni+B/Cr alloy powder, thereby forming a metallurgically bonded layer with a thickness of 0.5–3 mm.
Tungsten Carbide Centrifugal Casting: Achieving a uniform distribution of WC/Co alloy under high-speed rotational conditions, resulting in a 400% enhancement in wear resistance.
Cobalt-based Alloy Hardfacing: Specifically tailored for the processing of highly acidic plastics, this technique employs multi-layer hardfacing with Co+Ni/Cr alloys to provide corrosion protection.
Other critical processing techniques include heat treatment, bi-metallic alloy spraying, hardfacing, and centrifugal casting.
The composition of the surface alloy layer includes formulations such as 88WC/12Co and CrC/25NiCr.
Key technical parameters include: Alloy Hardness: HRC 60°–68°; Surface Roughness: Ra 0.4; Screw Straightness: 0.015 mm; Processing Diameter Range: Ø20 mm – Ø250 mm; and Effective Length: up to 4000 mm – 8000 mm.
Performance Advantages
Wear Resistance: The 88WC/12Co surface layer is capable of withstanding the processing of plastics with a glass fiber content exceeding 40%.
Corrosion Resistance: The Ni-based alloy layer effectively resists corrosion caused by the acidic decomposition products of materials such as PPS.
Thermal Stability: Maintains structural integrity at operating temperatures ranging from 300°C to 420°C, making it suitable for high-temperature plastics such as LCP.
Maintenance Costs: Offers a service life 3 to 5 times longer than that of standard screws.
