Full-Automatic Food-Grade PVC Transparent Milk Pipe Production Line

Application

• Dairy Plants:  Transparent pipes for milk/yogurt conveying (low-temperature 2-6℃ or normal temp compatible).

• Beverage Factories: Juice/water conveying pipes (food-grade & transparent for easy contamination checks).

• Small-to-Medium Pipe Manufacturers: Cost-effective line for food-grade PVC pipe production (no need for extra cutting machines if rolls are your main product).

Advantages

✅ Complete 5-Core Setup: Integrates extruder, forming mold, shaping table, hauler, and winder – no extra equipment needed for end-to-end production.

✅ Food-Grade Safety: All components in contact with PVC raw materials (such as extruder screw,  mold, and the contact surfaces of the forming table) are made of non-toxic and corrosion-resistant materials(304 stainless steel) and are easy to clean.

✅ High Transparency & Precision: Special mold design ensures bubble-free, smooth pipe walls; shaping table maintains ±0.2mm diameter tolerance. The light transmittance is extremely high, allowing you to clearly observe the milk flowing inside the tube.

✅ Effortless Automation: From plasticizing to winding, one-touch control reduces labor.

Equipment composition

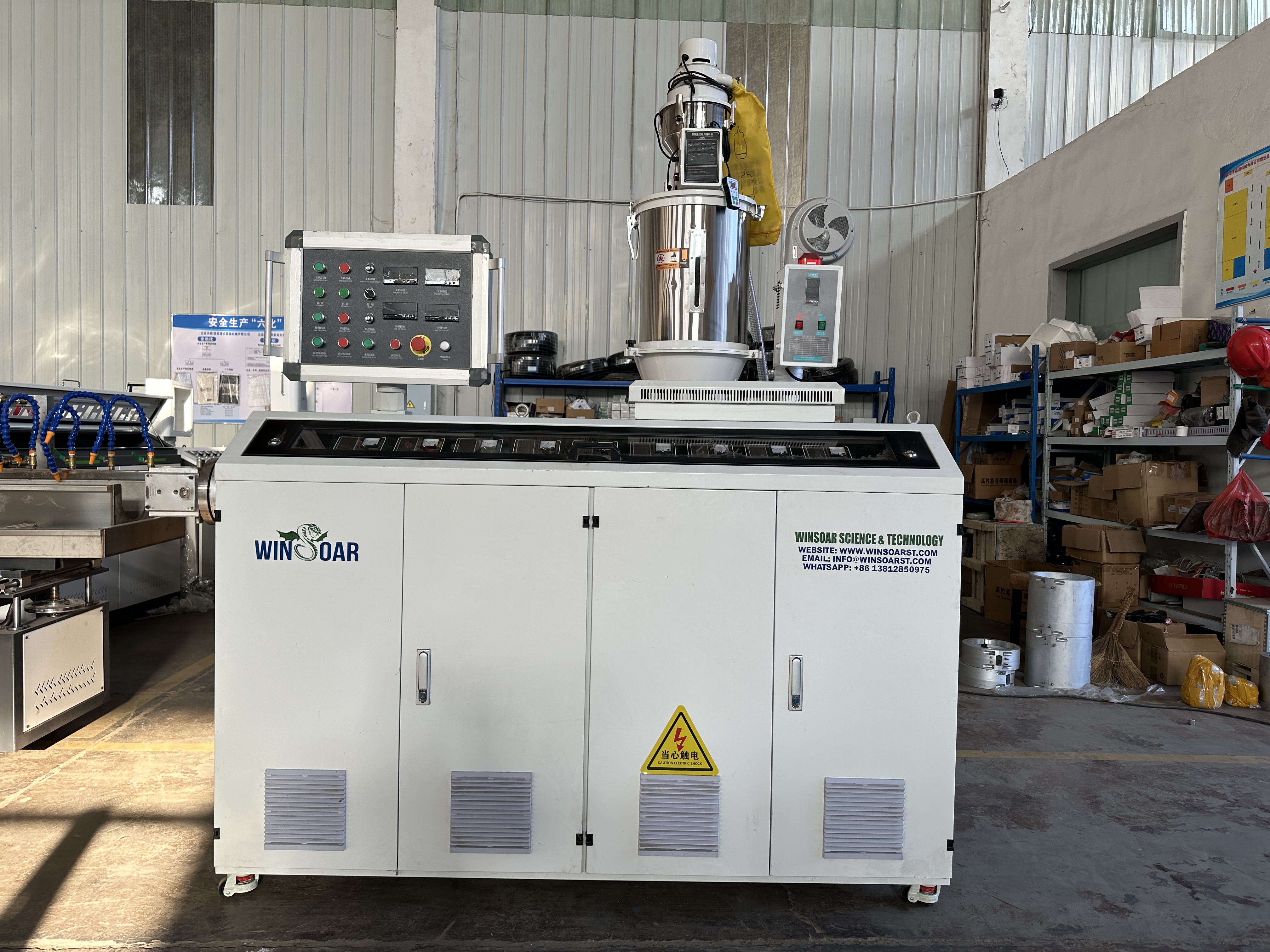

Extruder：Melts food-grade PVC dry blend into uniform viscous melt, then extrudes stably into pipe shape.

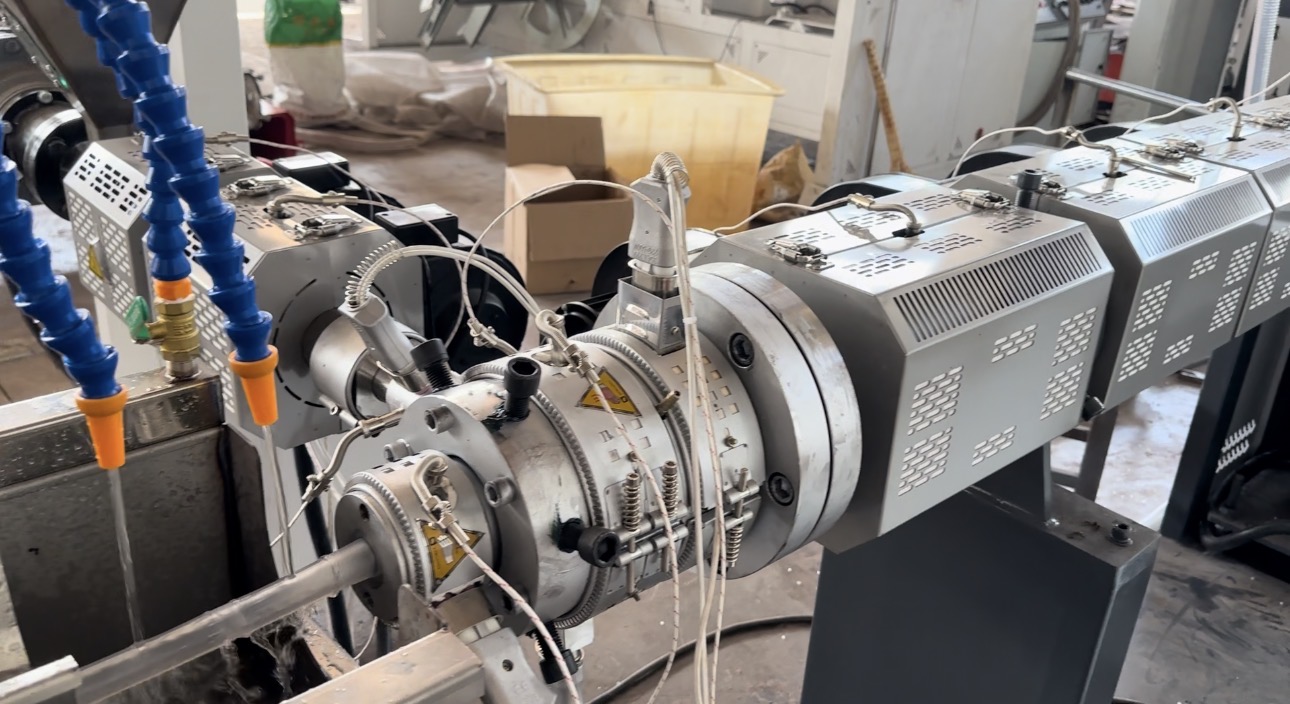

Custom Forming Mold：Control the inner/outer diameter and wall thickness of the pipe, ensure uniform melt distribution, avoid bubbles and scratches, and improve light transmittance.

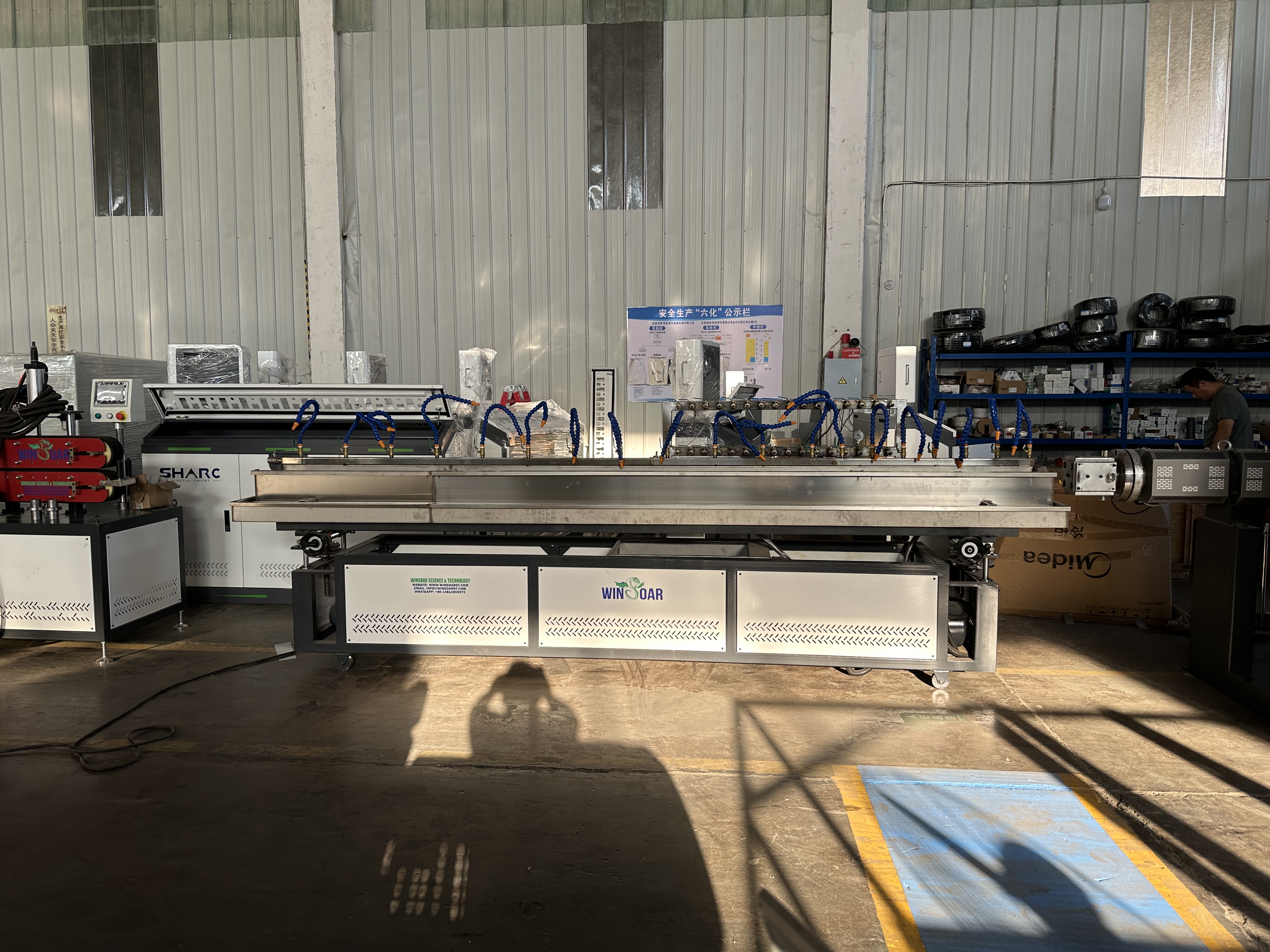

Vacuum Shaping Table：Uses vacuum suction to attach hot pipe to shaping sleeve; cools quickly to fix dimensions, preventing deformation.

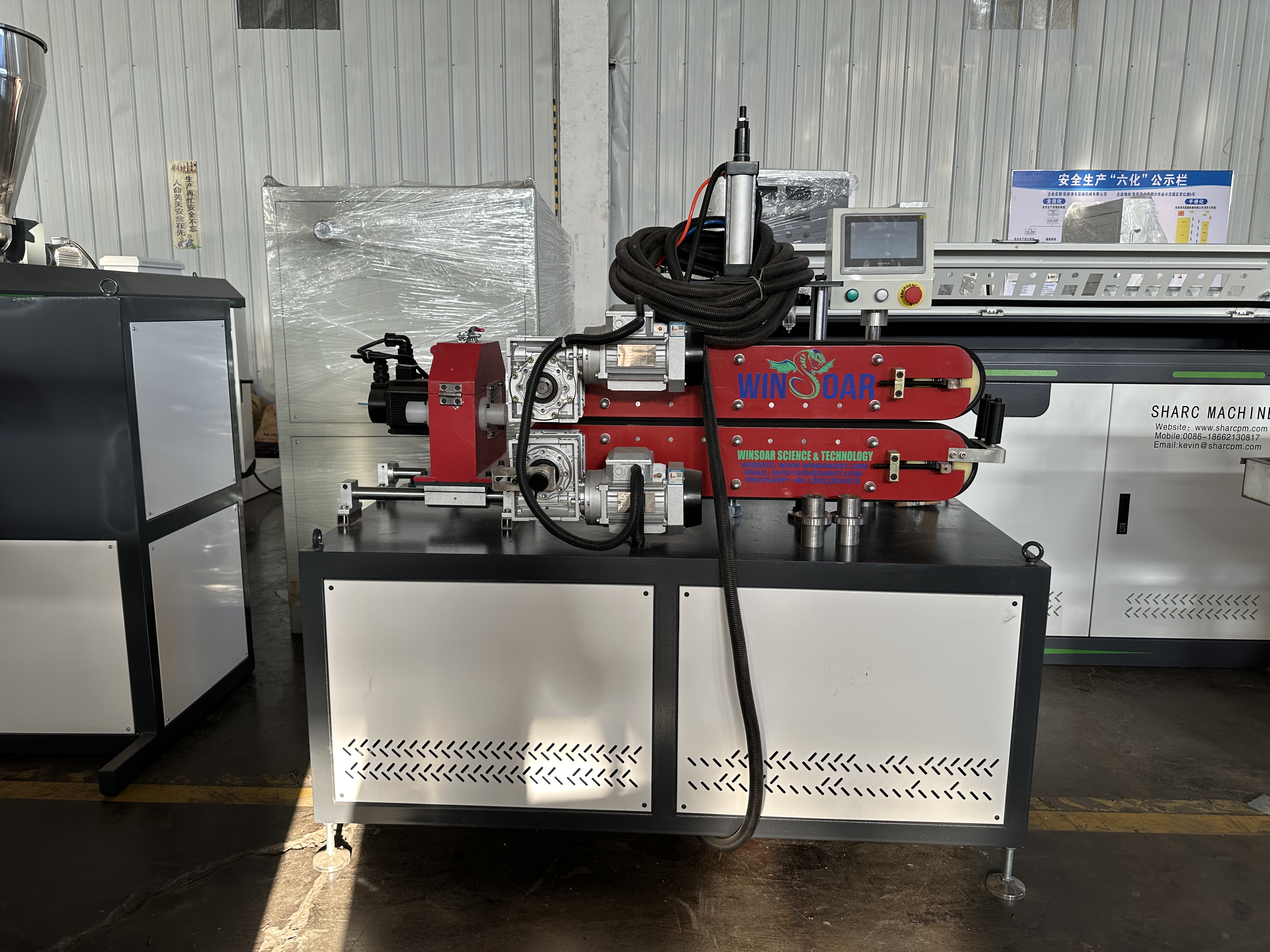

Haul-off Machine: Pulls cooled pipe at constant speed, matching extruder output to keep wall thickness uniform.

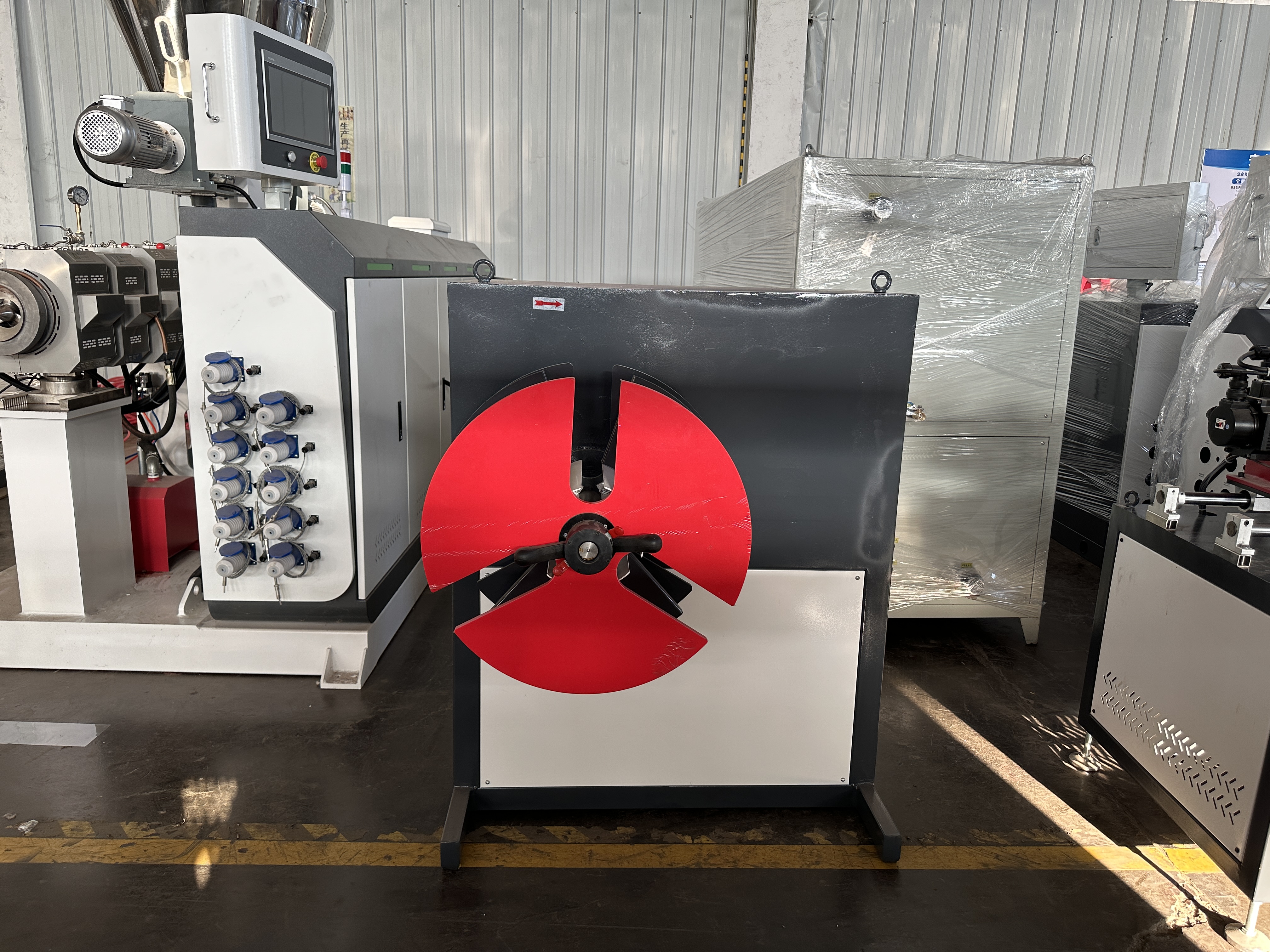

Automatic Winder: Neatly winds finished pipes into rolls; auto-stops when preset length is reached – easy for packaging.
