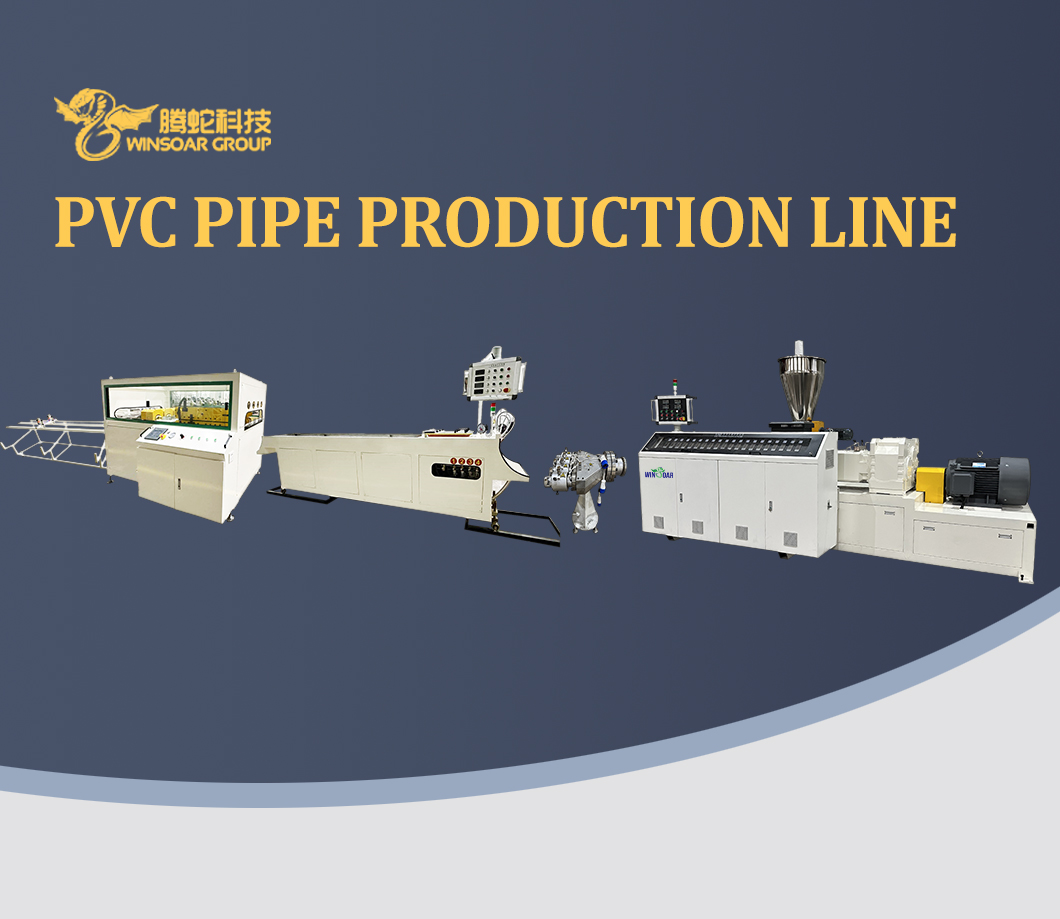

4-Cavity PVC Pipe Making Machine Four Output PVC UPVC Tube Production Line

5 0 Reviews

PVC pipe making machine is used to produce UPVC/PVC pipe with diameter from 16 up to 800mm, which is used for electric conduit, building drainage, sewage pipe, water supply pipe, well casing pipe, agricultural irrigation pipe and so on.

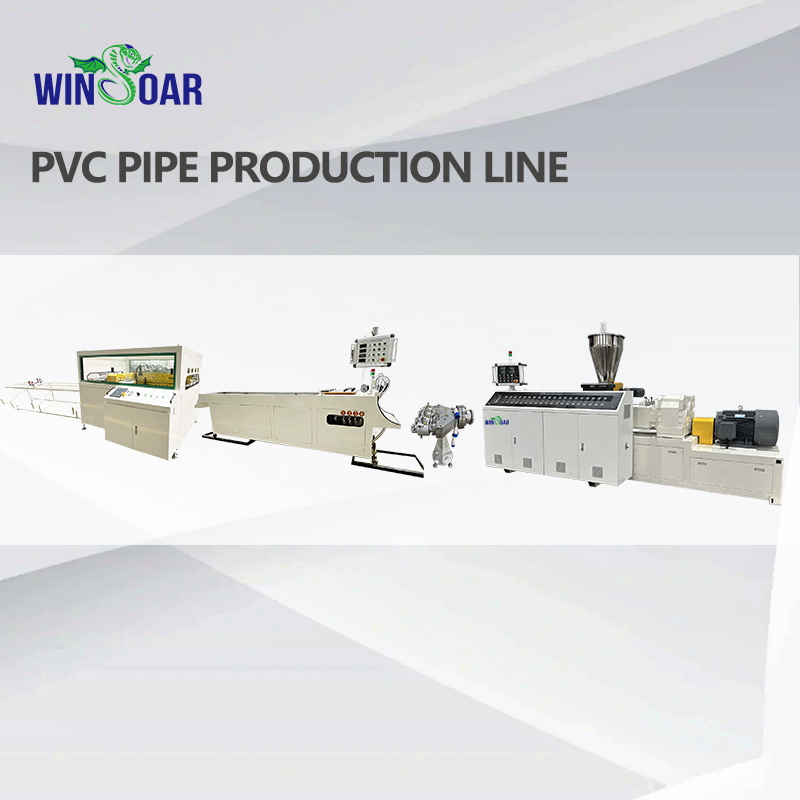

It's mainly composed by conical twin screw extruder, mould, vacuum calibration tank, haul off machine, cutting machine, stacker, belling machine.
By changing dorn or mould lip, it can produce several diameter or wall thickness on same machine.

Availability:

Quantity:



Inquire Add to Basket

Product Description

PVC Pipe Making Machine is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit etc.

Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.

It's mainly composed by conical twin screw extruder, mould, vacuum calibration tank, haul off machine, cutting machine, stacker, belling machine.

PVC Tube Production Line is a mold output of four lines, in the premise of ensuring product quality, the equipment greatly reduces the input cost, plant input cost and production input cost, greatly improve the output, reduce the production time.

4-Cavity PVC Pipe Making Machine is an advanced production equipment, with high efficiency, high speed, high quality, high stability and other characteristics. Its key technologies and features include automated control technology, advanced production process technology, high-quality materials and components, and high production capacity and output. Through continuous innovation and optimization, this production line will bring more development opportunities and market competitiveness to the PVC products production industry.

Technical Parameter

Diameter Range

(mm)

Extruder

Type

Extrusion Power(KW)

Max. Capacity

(kg/h)

Max. Haul Off Speed(m/min)

Ф16-32 Four

SJZ65/132

37 AC

250

15

Key Components

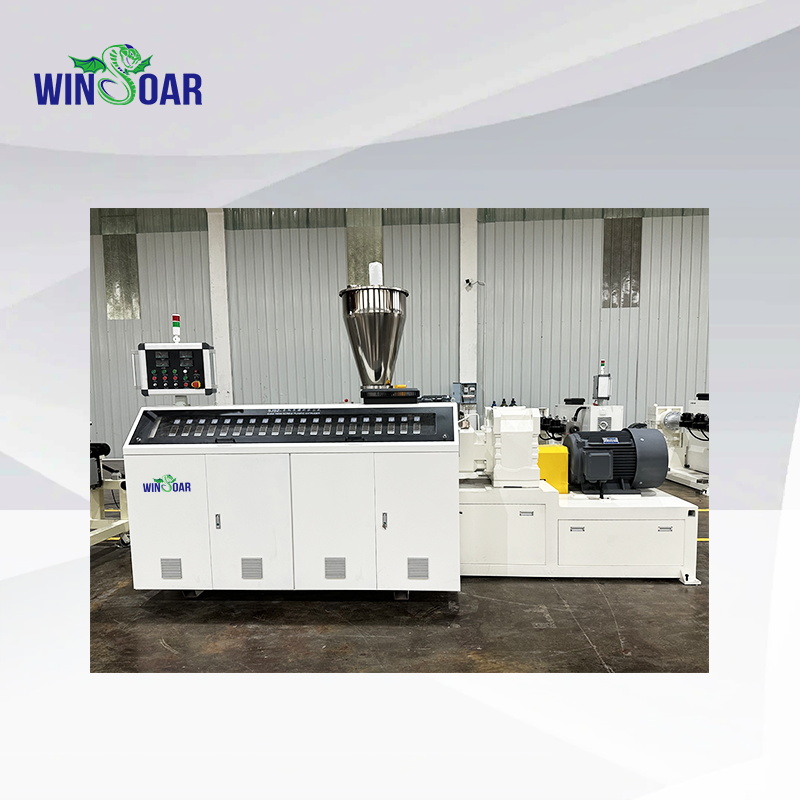

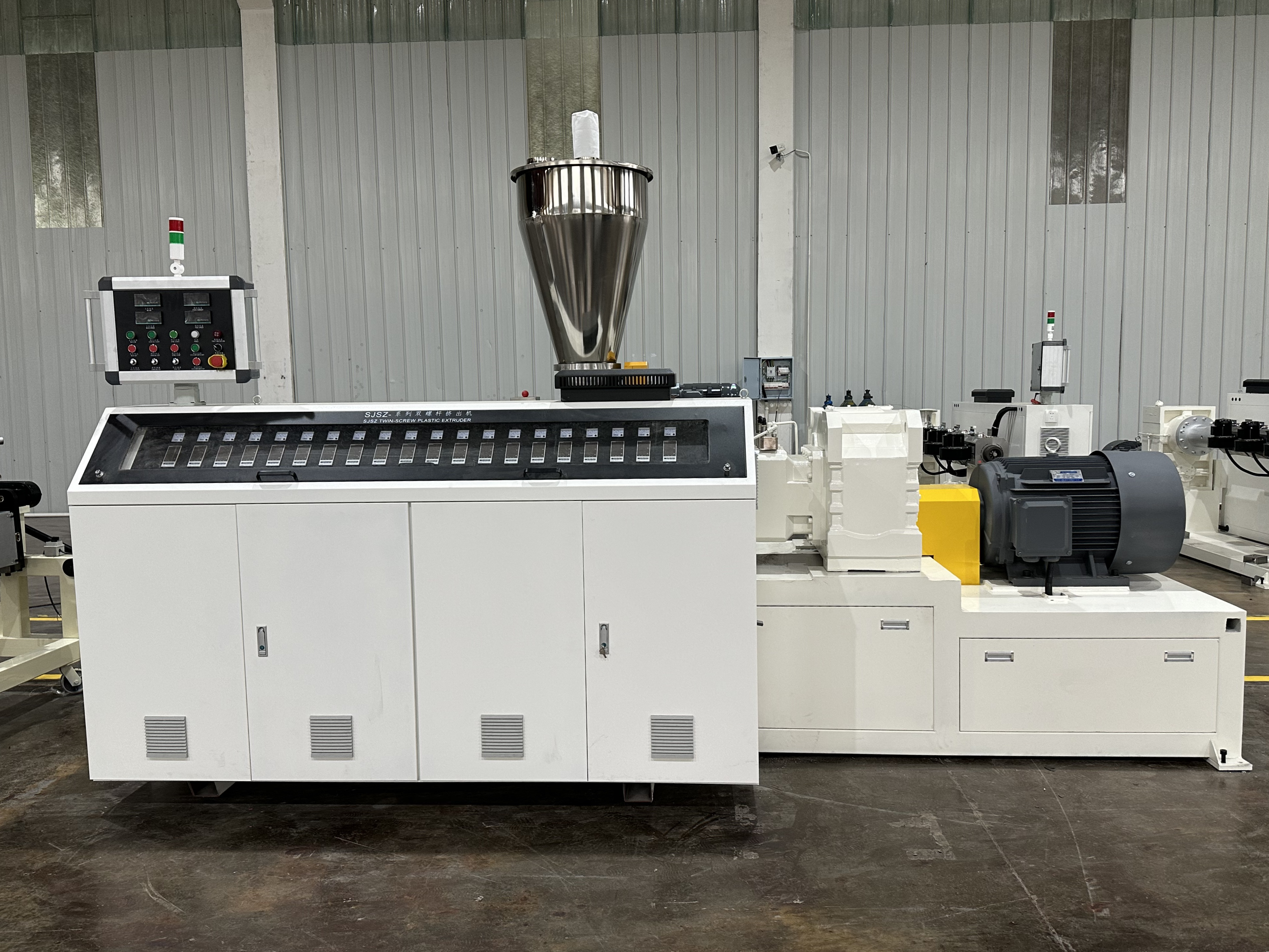

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

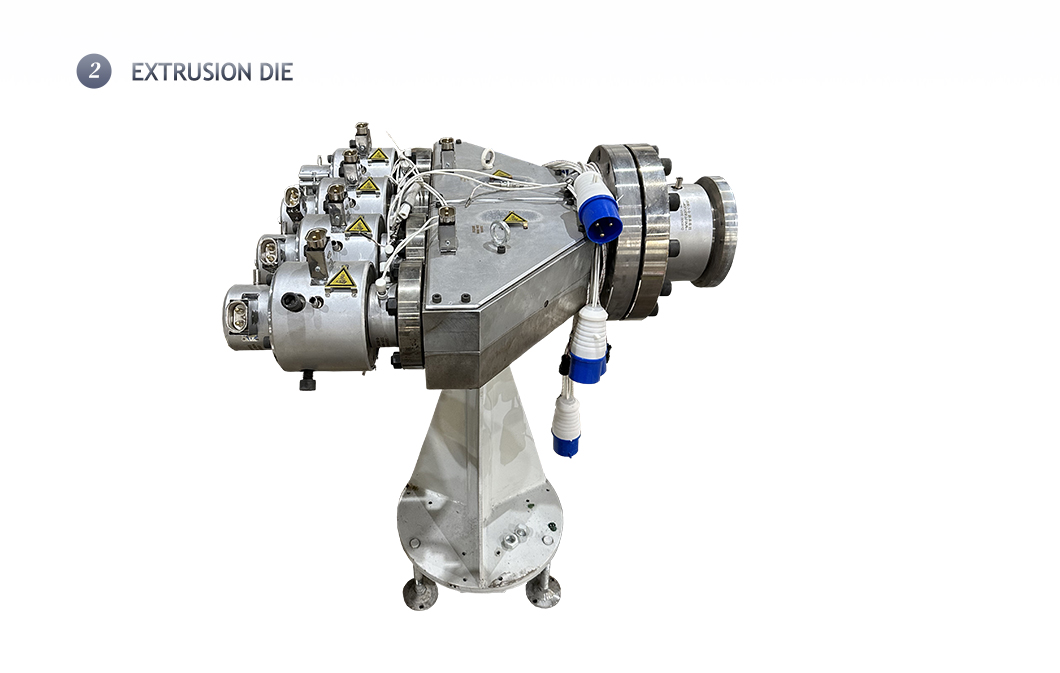

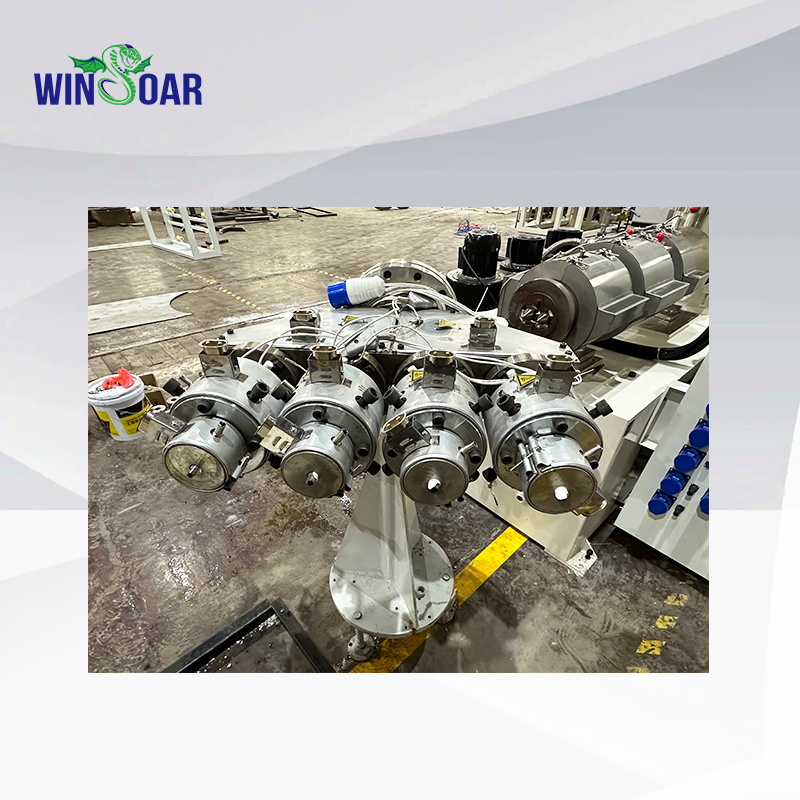

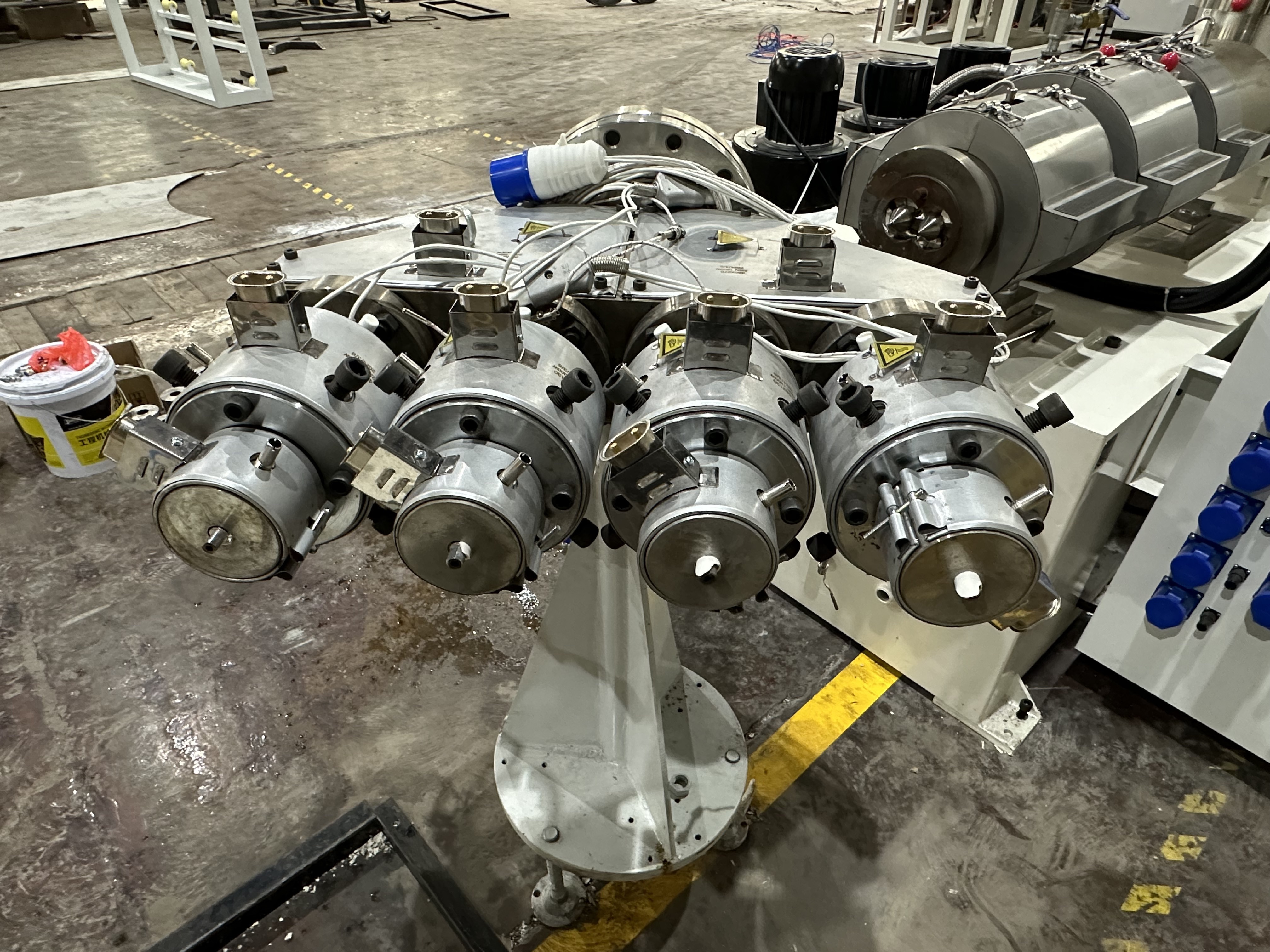

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.

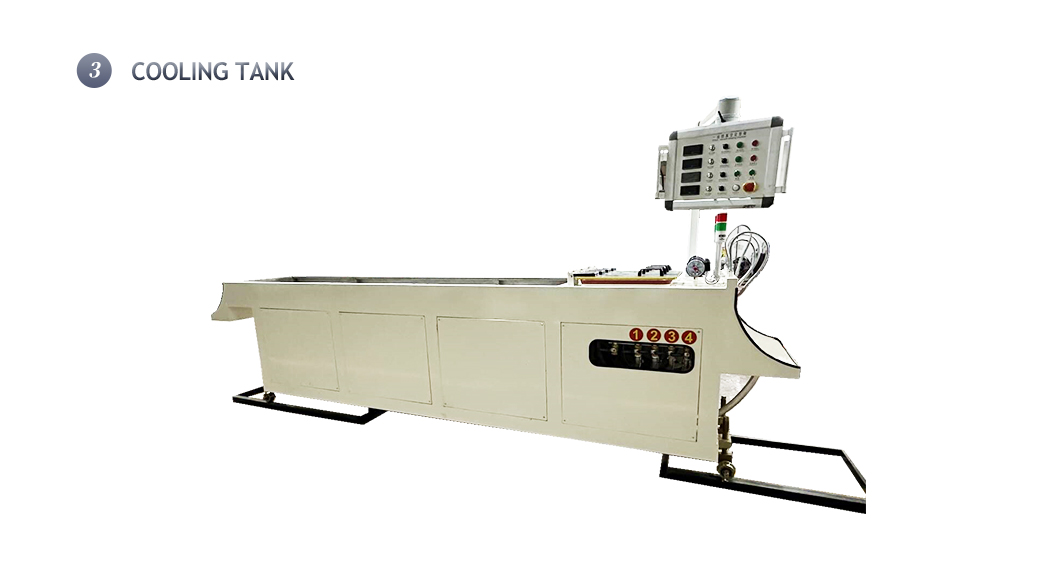

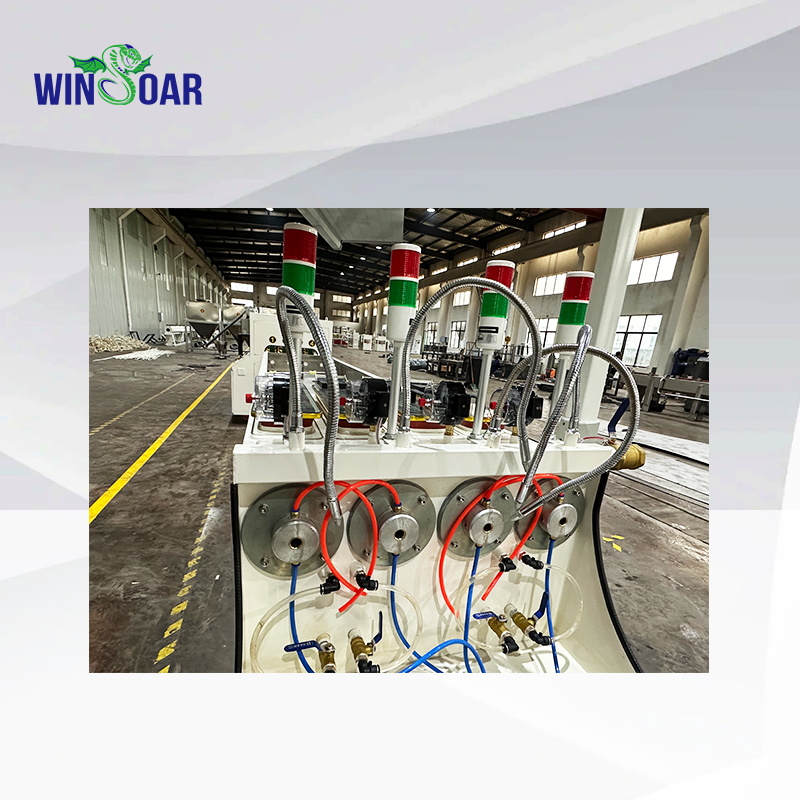

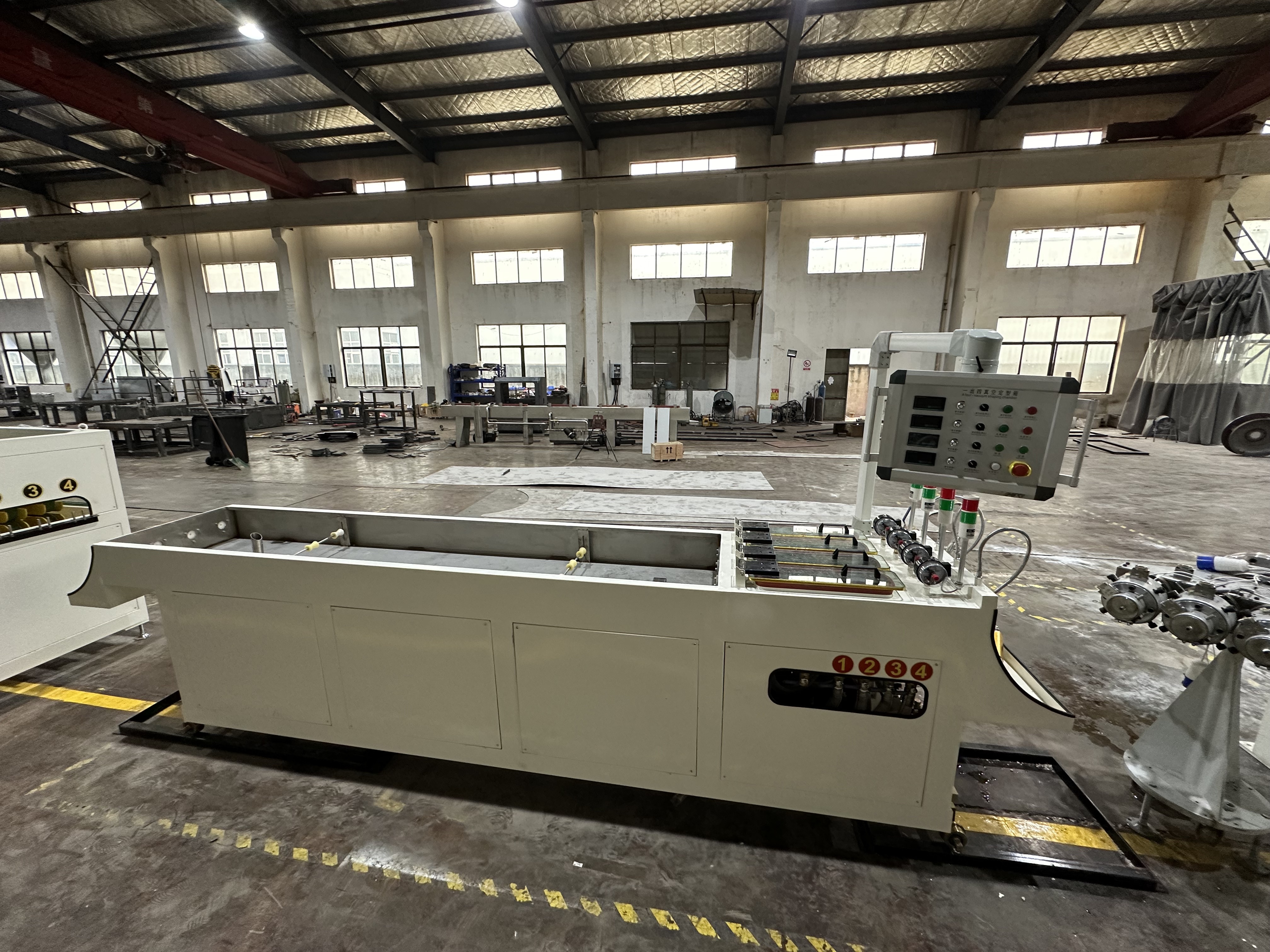

COOLING TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum calibrator, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

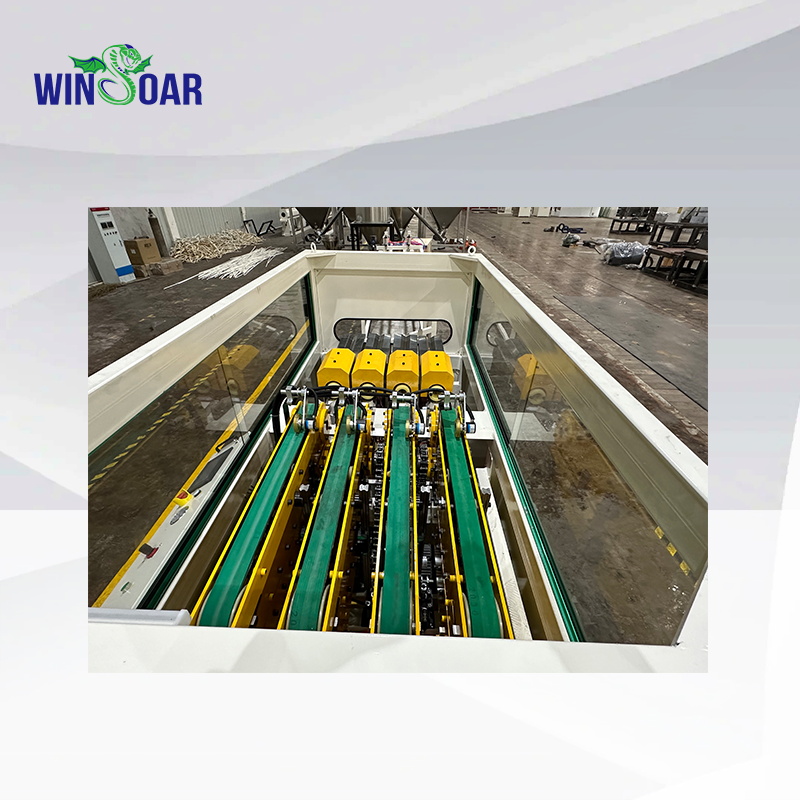

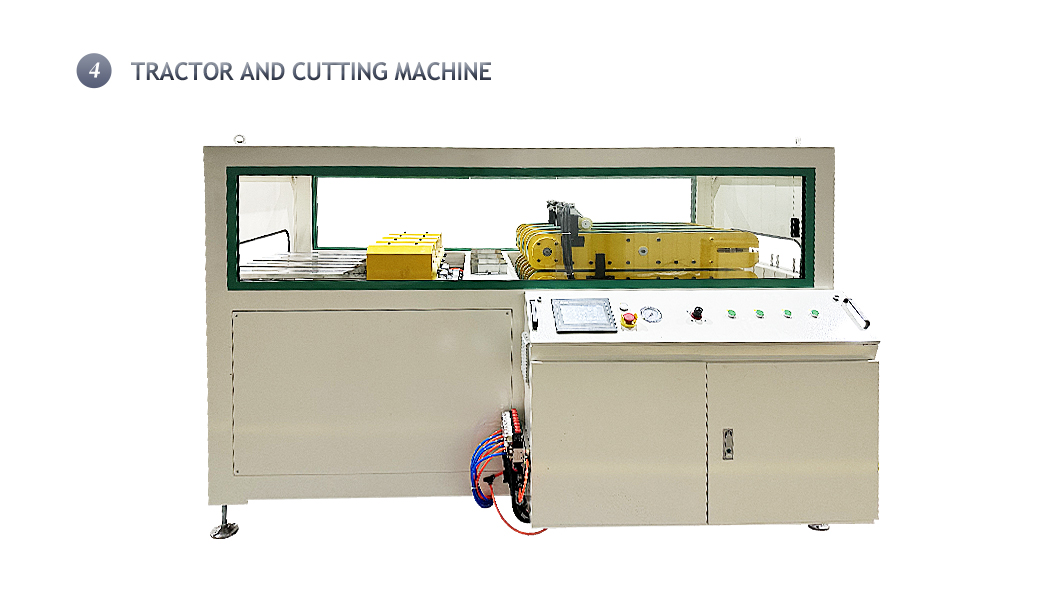

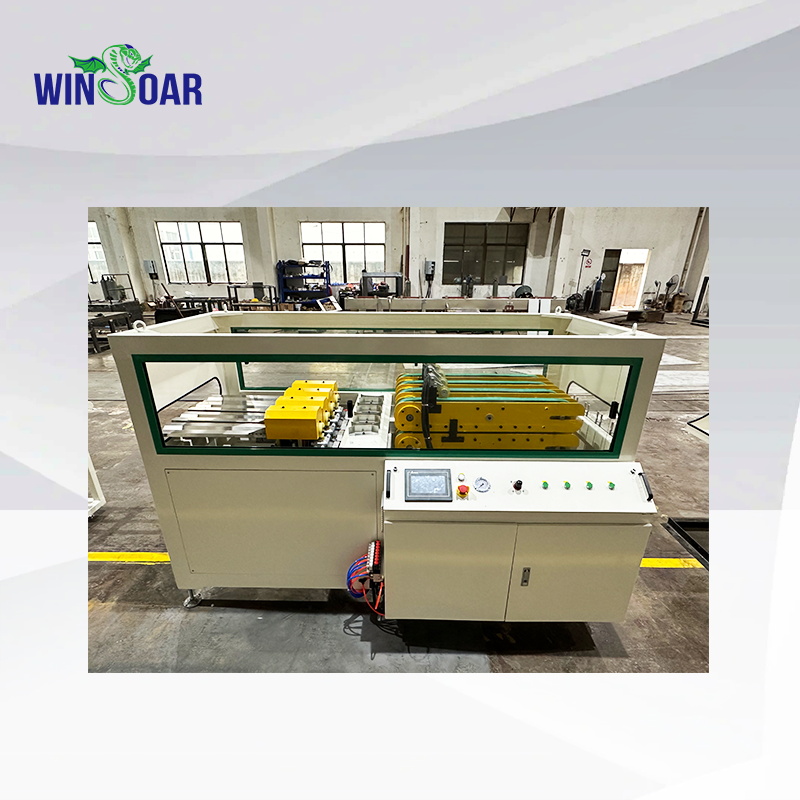

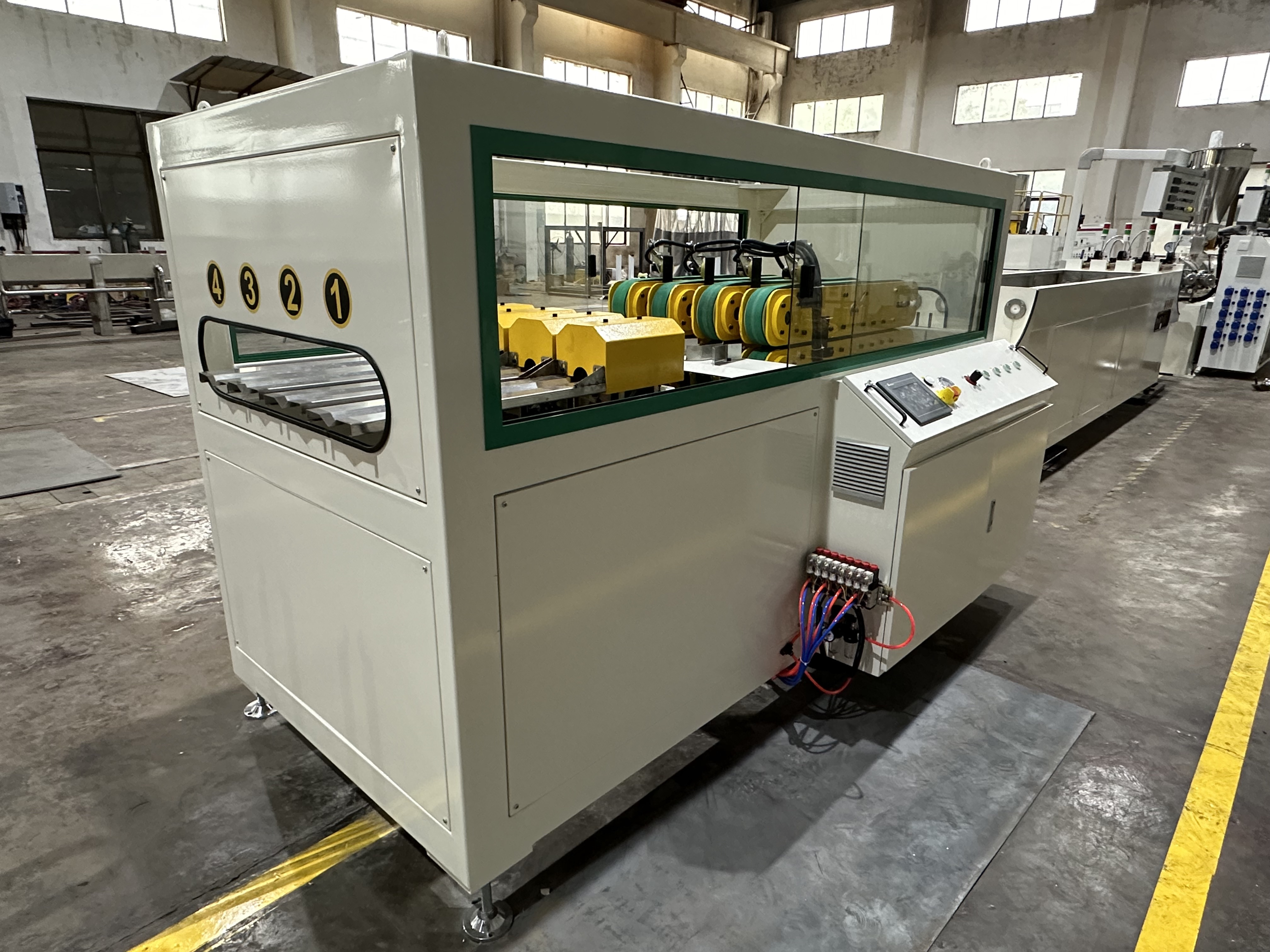

Tractor and cutting machine

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

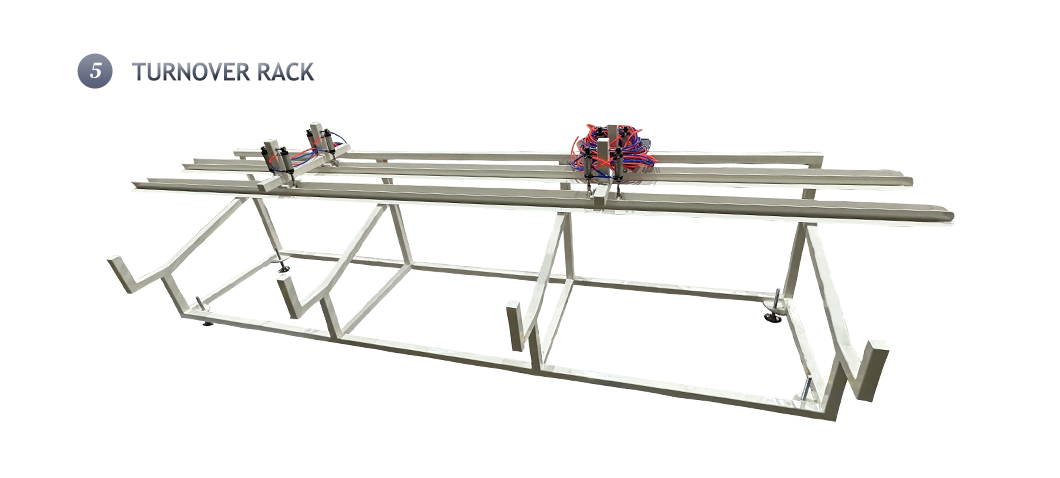

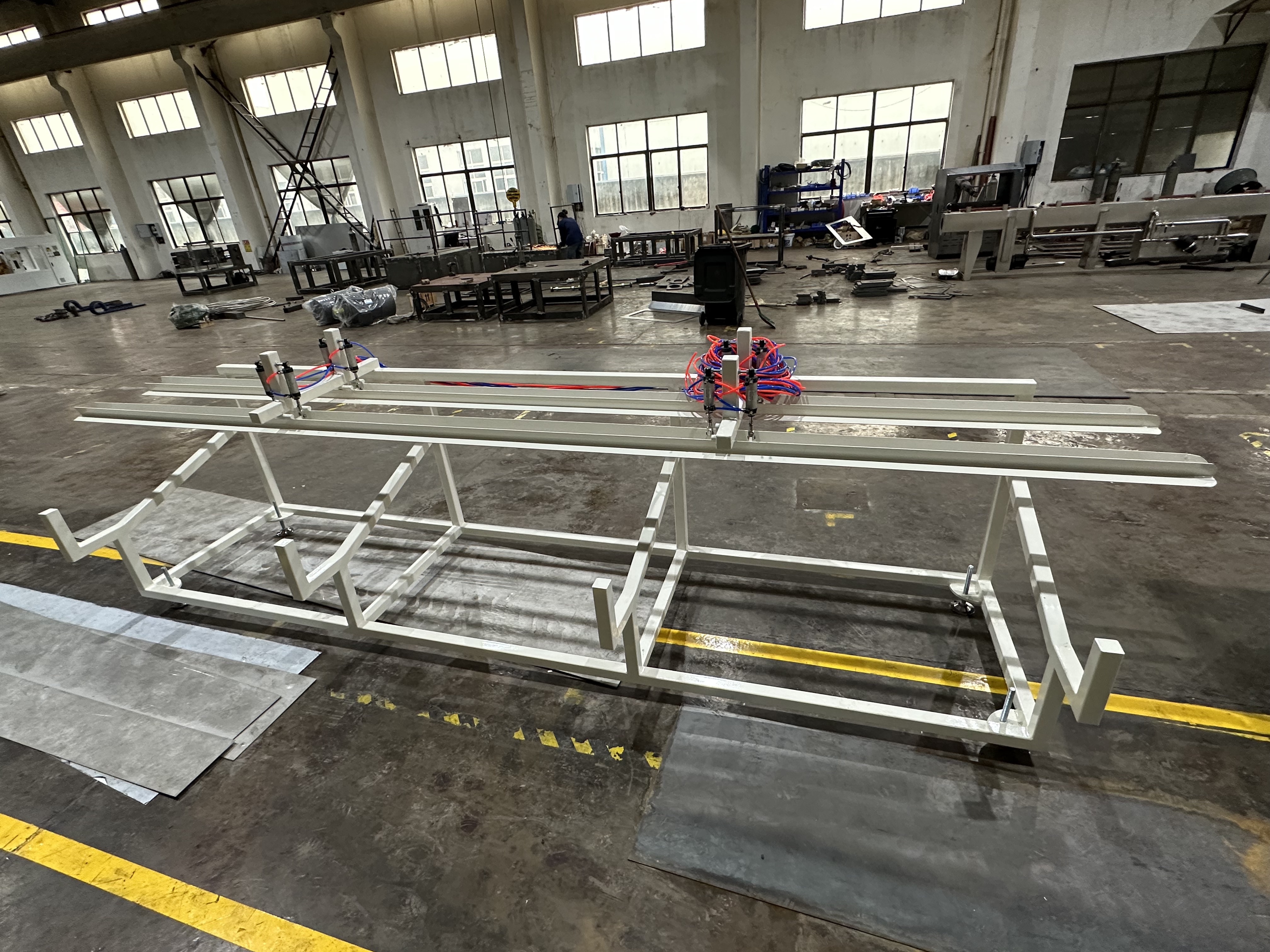

TURNOVER RACK

Accept finished products and automatically turn over.
