16-63mm PVC Pipe Production Line

5 0 Reviews
PVC series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
Availability:
Quantity:

Brief Introduction



Applications


PVC series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.



Key Components


This machine group consists mainly of twin conical screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.

The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.


Advantages


  • Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.

  • With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer pipe, etc, it can also produce PP, PE, ABS, & PPR, PEX, silicon core pipe and pipe material of other material.

  • The planet-shaped cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.


Main Technical Parameter

Diameter

Range

(mm)

Extruder

Type

Extrusion Power(KW)

Max.

Capacity

(kg/h)

Max. Haul Off Speed(m/min)

Ф16-40 Dual

SJZ51/105

18.5 AC

120

10

Ф20-63 Dual

SJZ65/132

37 AC

250

15

Ф20-63

SJZ51/105

18.5 AC

120

15

Ф50-160

SJZ65/132

37 AC

250

8

Ф75-160 Dual

SJZ80/156

55AC

450

6

Ф63-200

SJZ65/132

37 AC

250

3.5

Ф110-315

SJZ80/156

55 AC

450

3

Ф315-630

SJZ92/188

110 AC

800

1.2

Ф710-1000

WSP130/26

160 AC

1100

1.3


FAQ

16-63 mm PVC Pipe Production Line is mainly used to produce pipes for what purpose?

16-63 mm PVC Pipe Production Line is mainly used to produce PVC pipes with diameters ranging from 16mm to 63mm. PVC pipes of this specification are generally used for the following applications:

Domestic water supply pipe: 16-63mm PVC pipe is commonly used for domestic water supply system, such as cold water pipe. These pipes have good corrosion resistance and durability and are suitable for domestic tap water systems.

Building drainage pipes: in the building field, 16-63mm PVC pipes are widely used in drainage systems, including drainage pipes, rainwater drainage pipes, etc. They drain effectively and are lightweight and easy to install.

Industrial Water Supply and Drainage Piping: PVC piping of this specification may also be used in some industrial applications such as industrial water supply and drainage systems. Its corrosion resistance and chemical resistance make it suitable for a wide range of industrial environments.

Agricultural Irrigation Piping: PVC piping is used in agricultural applications for irrigation systems. Mm PVC pipe is suitable for small farm or garden irrigation systems.

Power Protection Conduit: In some cases, PVC conduit of this size may also be used to protect conduit for cables or wires, providing a layer of protection against damage or external influences.



PVC-_02

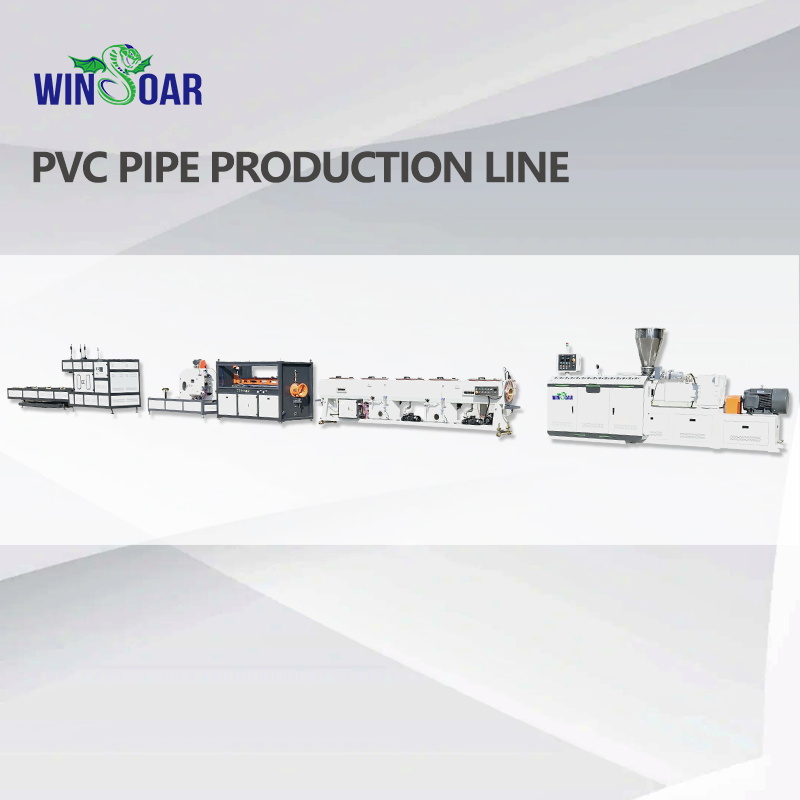

PVC PIPE PRODUCTION LINE

It consists of vacuum calibration tank, tractor, cutting machine,belling machine, etc. The equipment has a high degree of automation and is easy to operate.


p2PVC-_05

PVC-_06

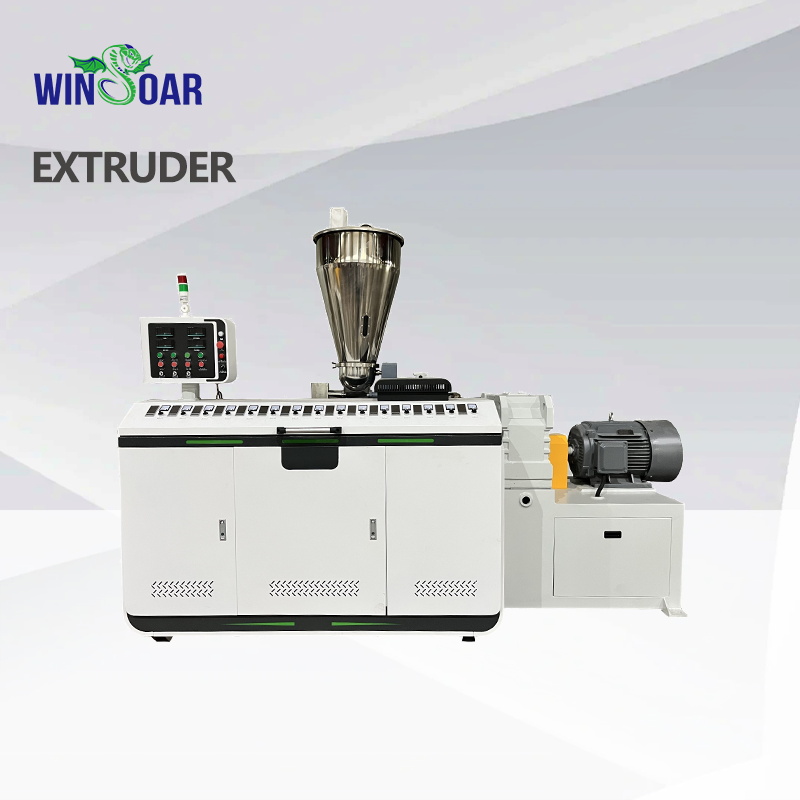

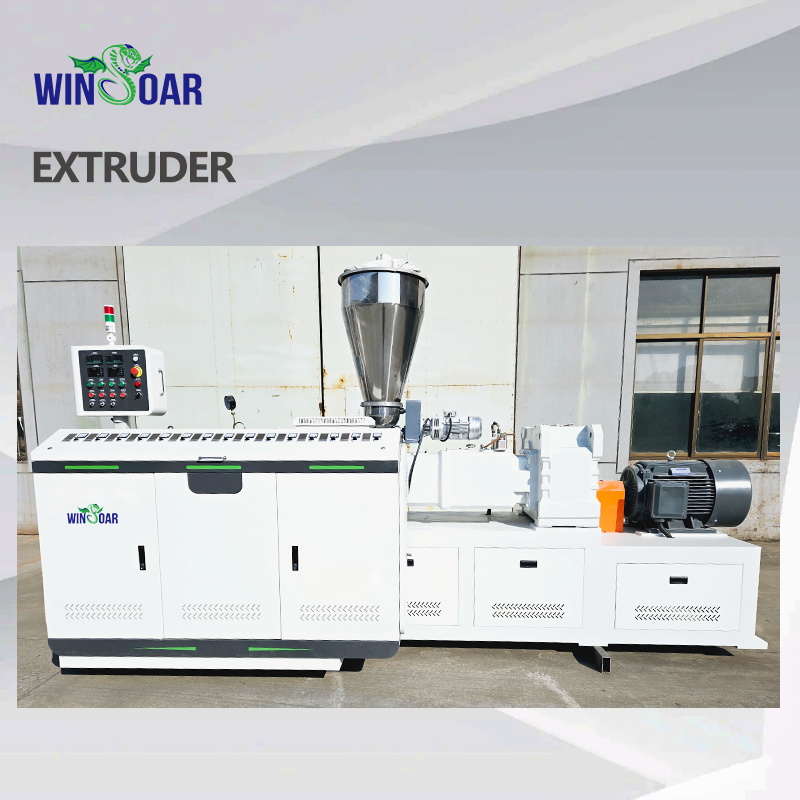

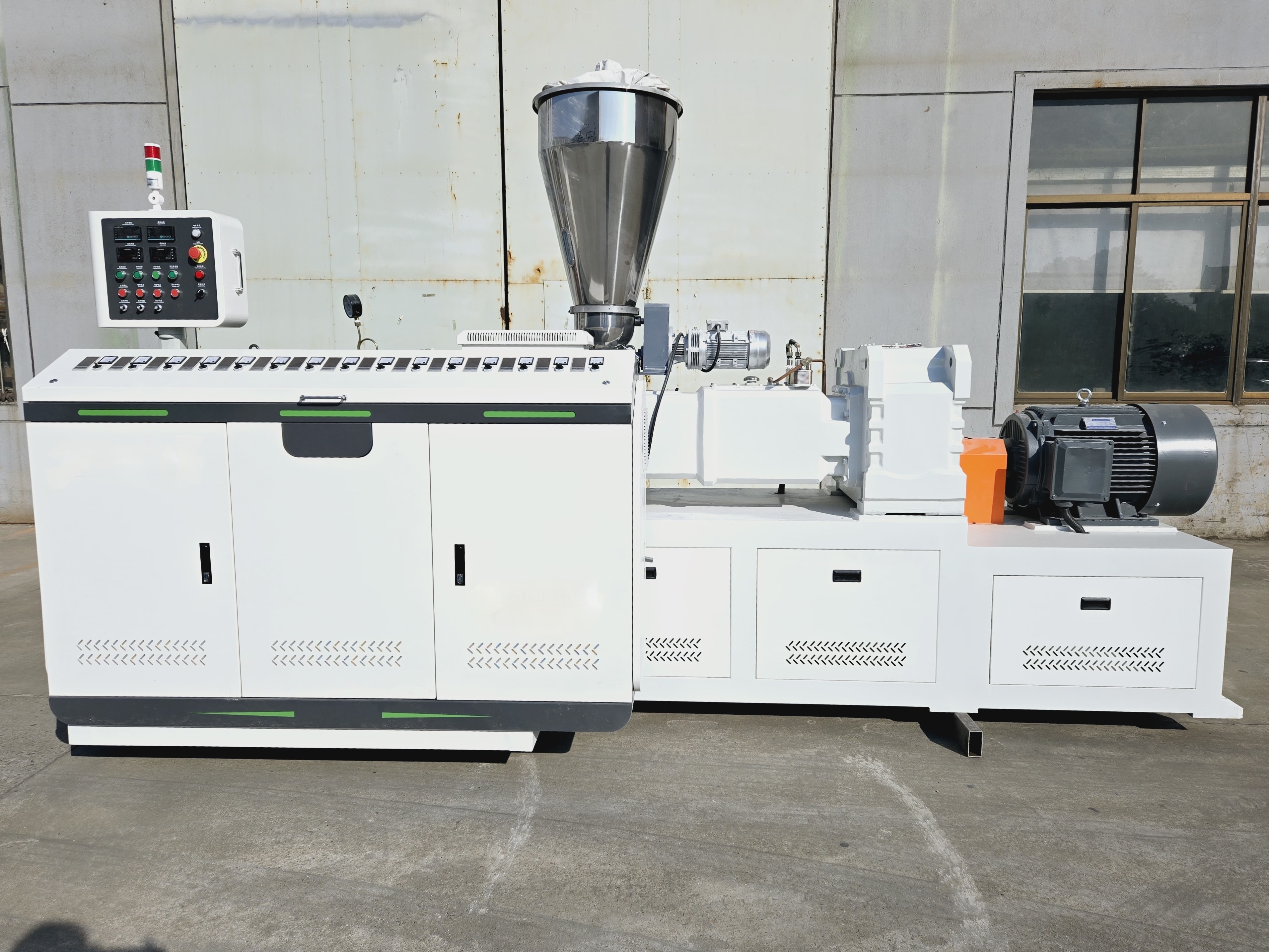

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-_07

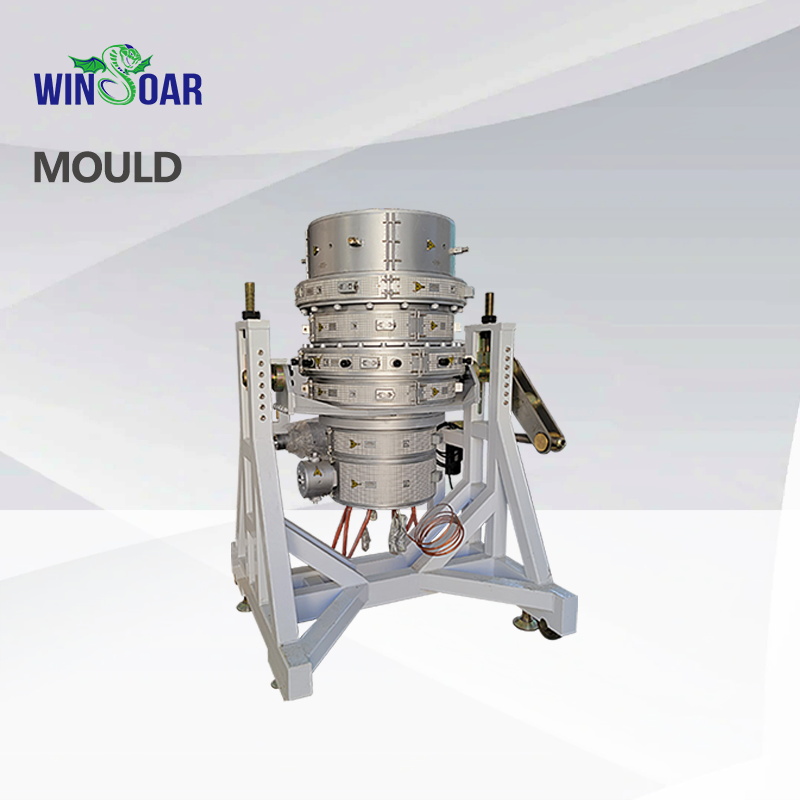

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.


PVC-_08

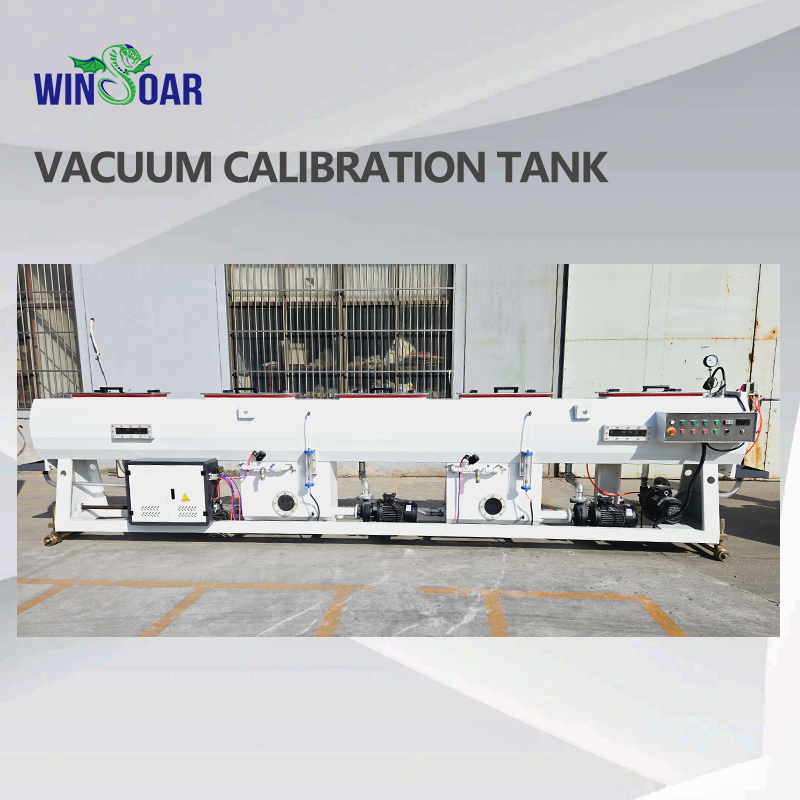

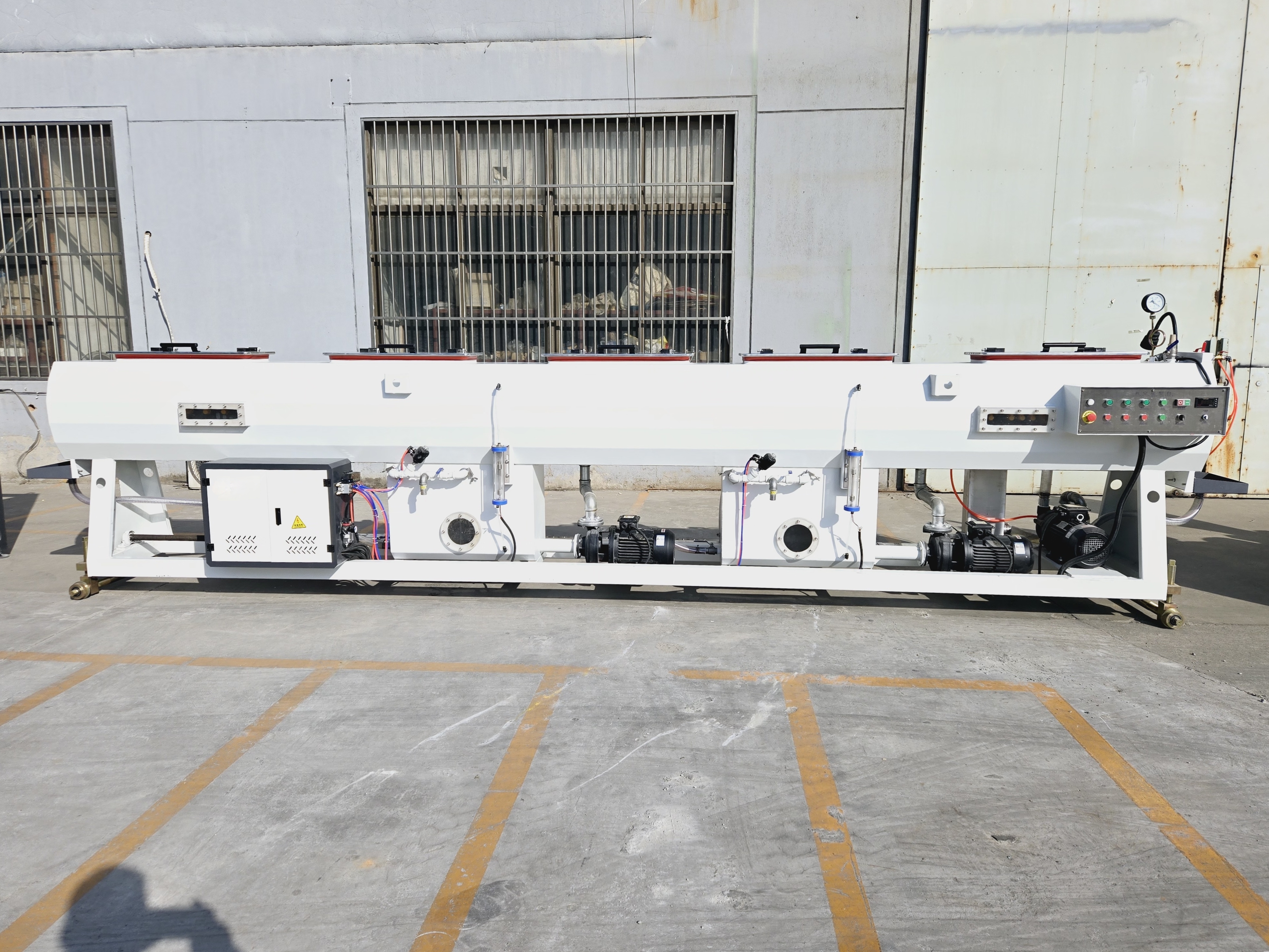

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.


PVC-_10

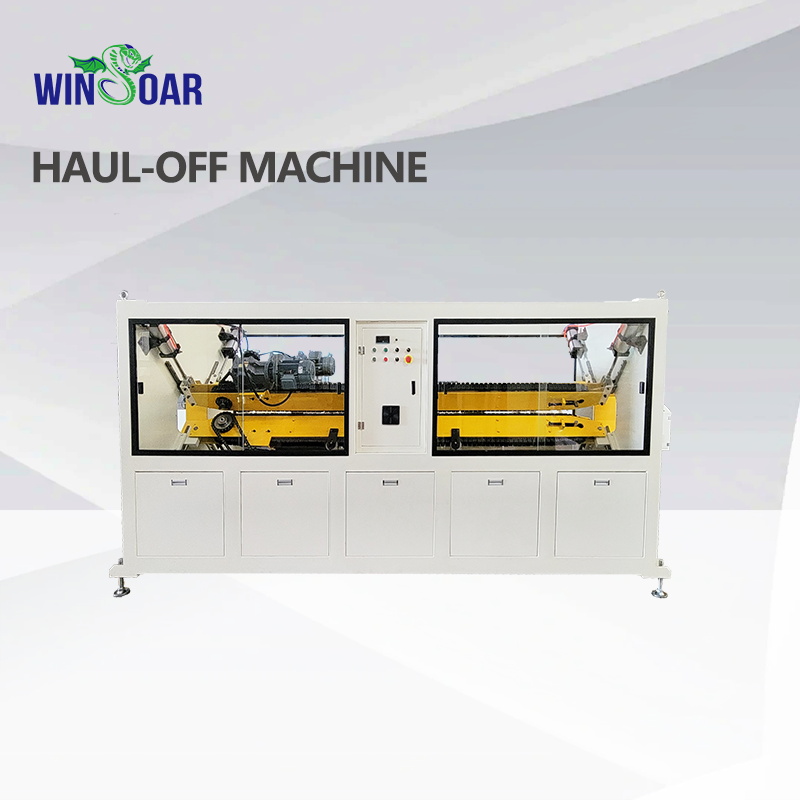

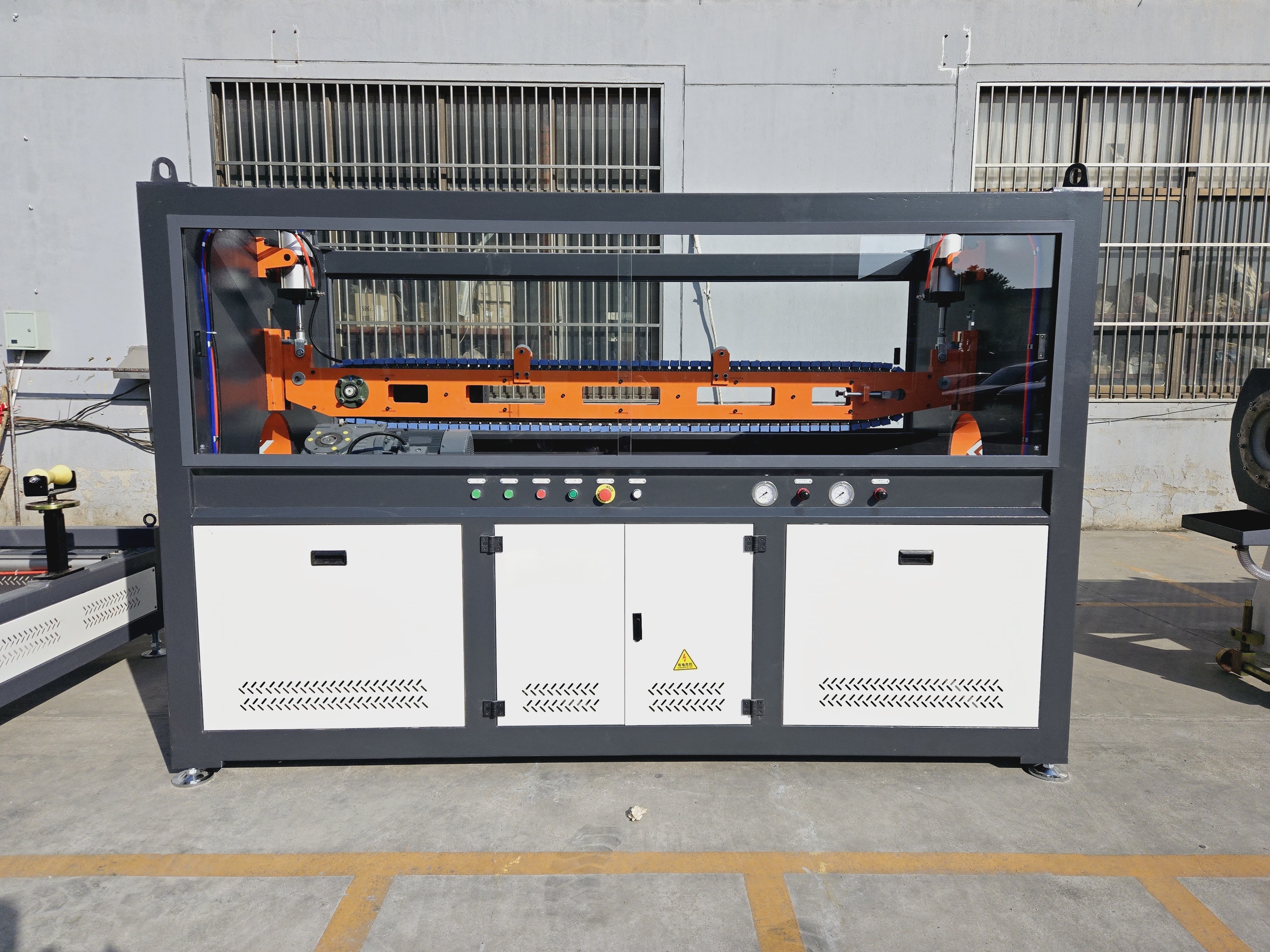

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.


PVC-_11

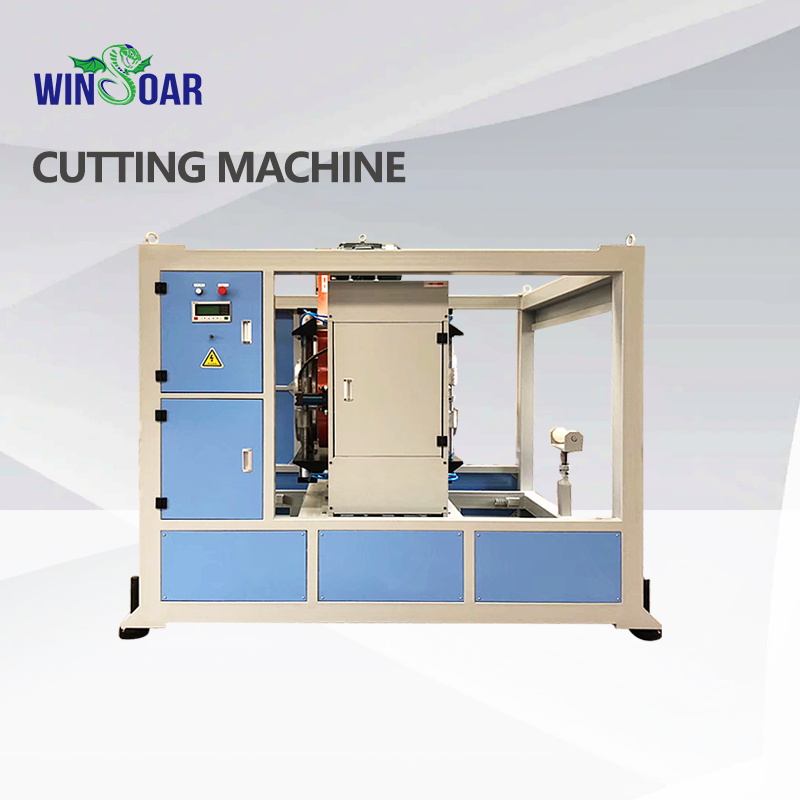

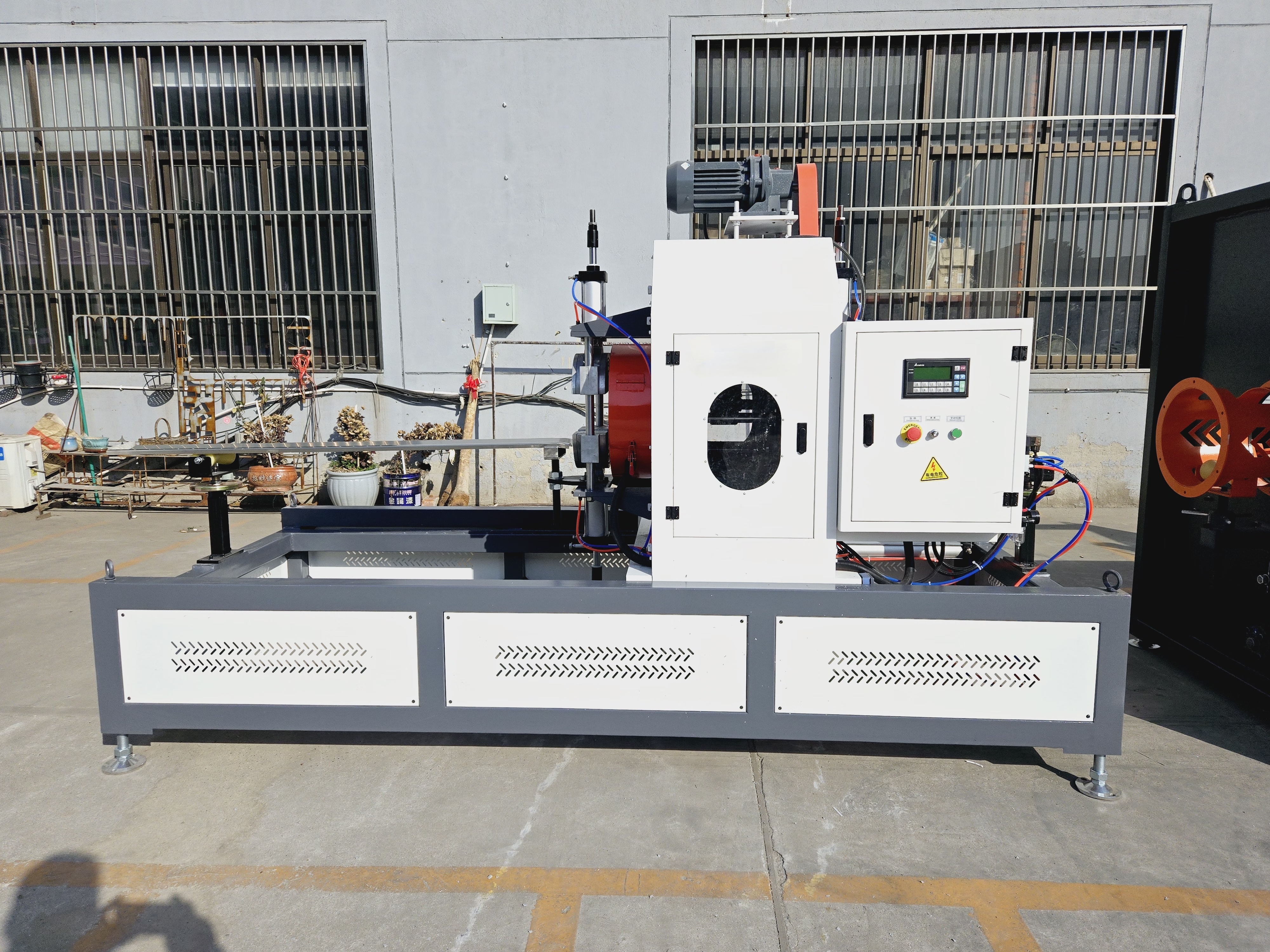

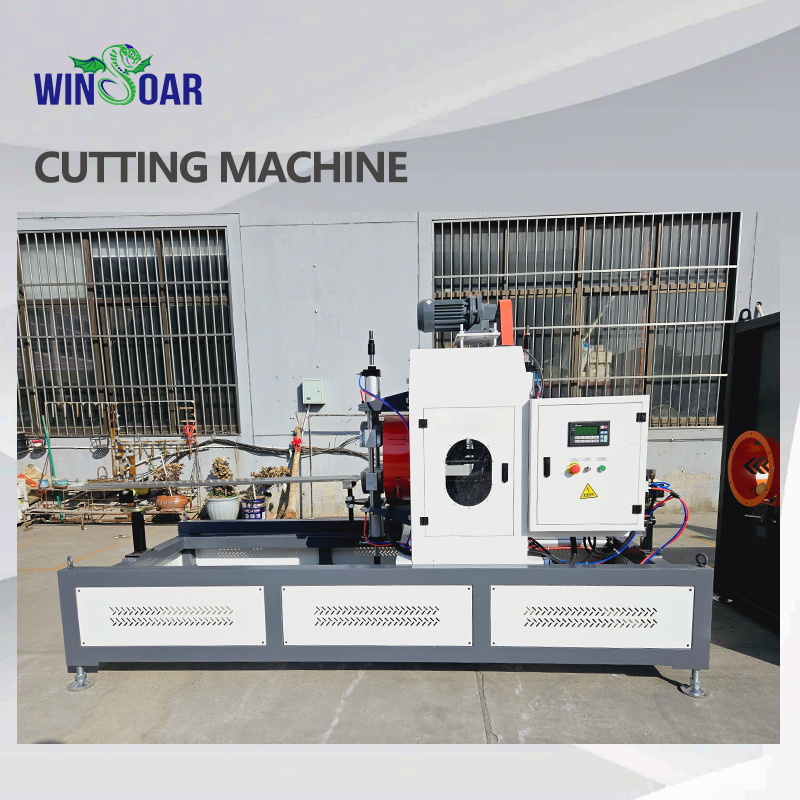

CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.


PVC-_12


TURNOVER RACK (OPTIONAL ON REQUEST)

Accept finished products and automatically turn over.


PVC-_13

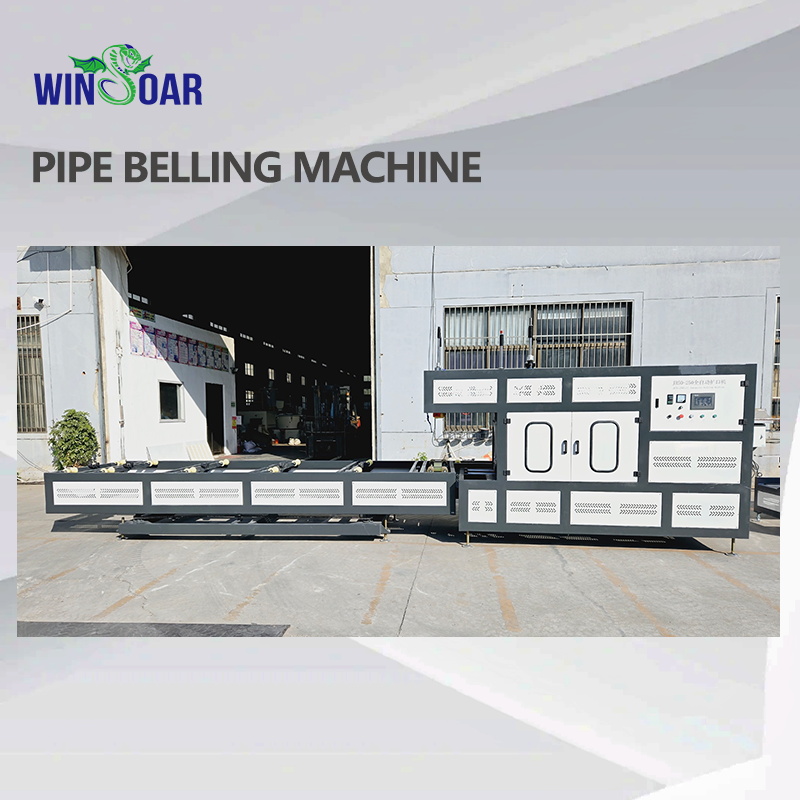

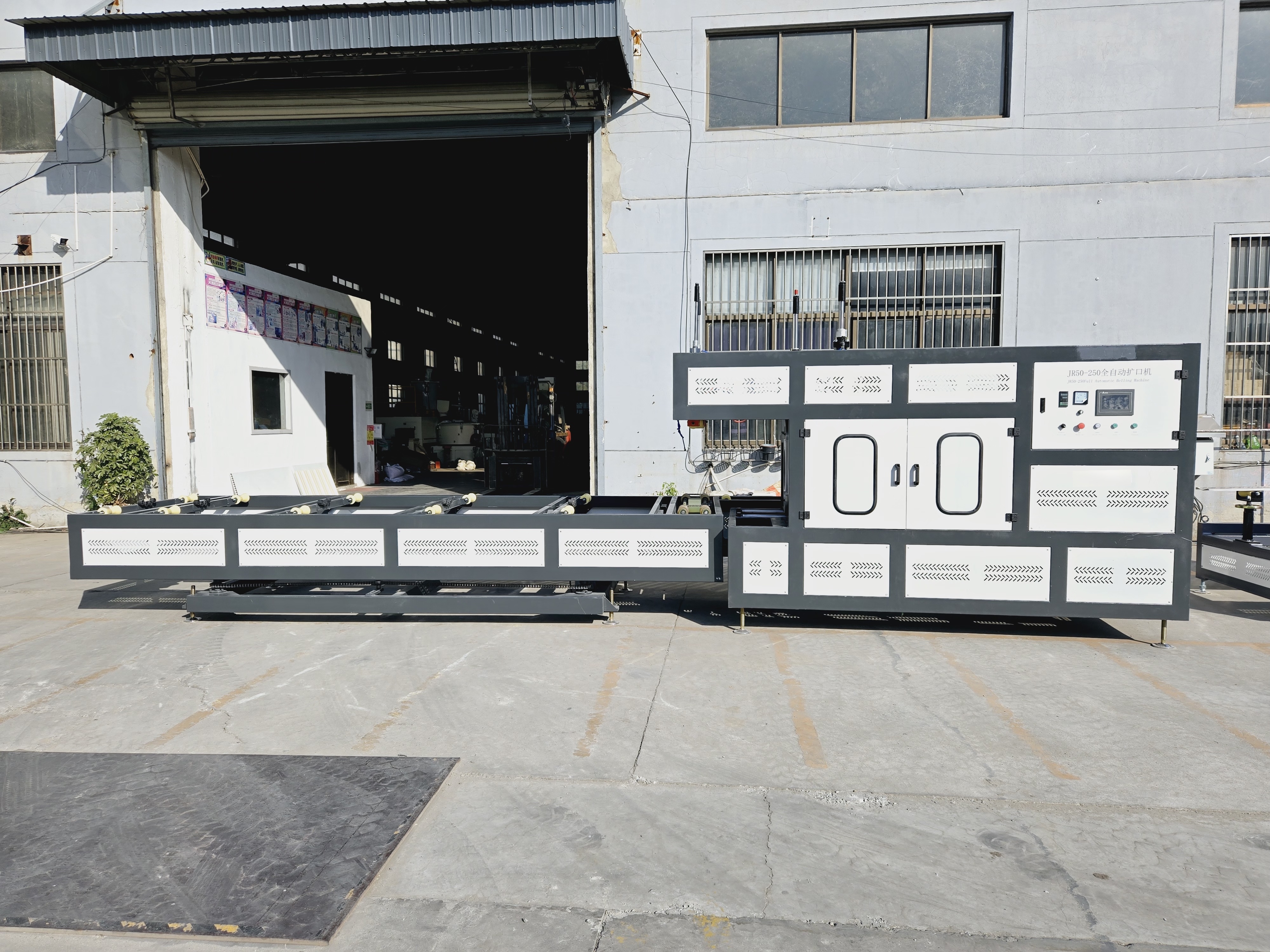

PIPE BELLING MACHINE (OPTIONAL ON REQUEST)

The automatic pipe flaring machine can cooperate with the pipe production line to expand the pipe online or expand the pipe separately.The flaring pipe is heated by an oven,and the Omron temperature control is used for precise temperature control.


p12p13p14
