Hollow PLC Controlled Ceiling/Wall Panel Production Line For Home

5 0 Reviews
The plastic ceiling panel production line can produce various kinds of decorative ceiling panel , wall panel and profiles, which are widely used for decorating and protecting the external surface of houses, office buildings, top class villas.
Availability:
Quantity:

Product Description

The plastic ceiling panel production line can produce various kinds of decorative ceiling panel , wall panel and profiles, which are widely used for decorating and protecting the external surface of houses, office buildings, top class villas. It can be laminated with PVC, ASA, PMMA material etc. on the surface. It can be used in hot or cold, dry or wet area, which can bear long period irradiation of ultraviolet radiation and bad weather such as gale and rainstorm, long life and easily to operate. And it also has the advantages of good fireproofing, high capacity, easy installation, low price and long using life.

Features:

It has the advantages of wide adjustment range, high temperature control accuracy, convenient and reliable operation. The auxiliary machine consists of a vacuum setting table, a tractor, a cutting machine and a pusher frame. Equipped with a large forced cooling device to ensure the effect of door panel shaping. The crawler tractor adopts reducer motor and frequency converter, which has the advantages of reasonable structure, large traction and stable traction. The cutting machine has the advantages of reliable and accurate work and high cutting precision. The stacker is equipped with a movable pusher and a special rubber protective layer, which has the advantages of no damage to the material and easy use. The auxiliary machine unit adopts a programmable computer control system, and the control of the whole machine is reliable and stable.

Main Parameter:

Model

Width

Extruder model

Motor power

Output

WS-600

400-600mm

65/132

37kw

220kg/h

WS-1200

600-1200mm

80/156

55kw

400kg/h


Pictures for Reference:

PVC-board_01

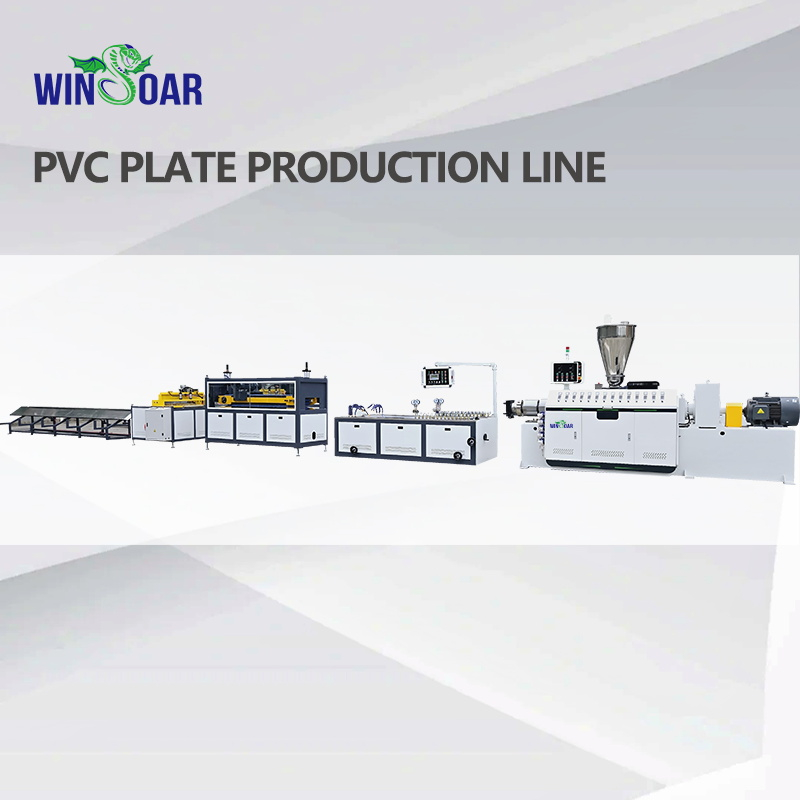

PVC PIATE PRODUCTION LINE

The production line adopts automatic control,with high degree of automation, stable equipment easy operation and high production efficiency.


p2PVC-board_04

PVC-board_05


CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-board_06


EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.


PVC-board_07

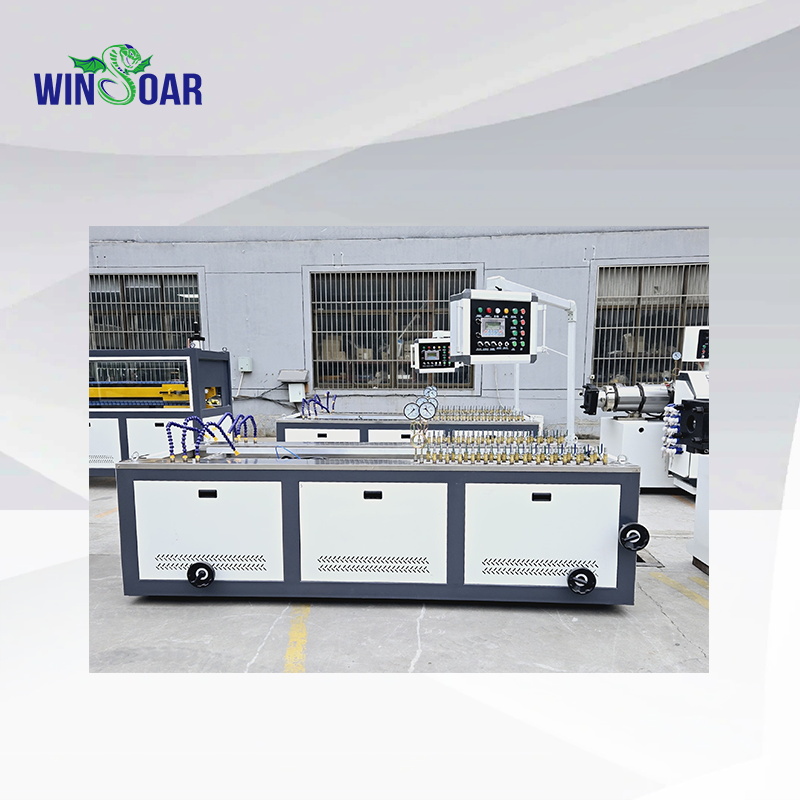

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.


PVC-board_08

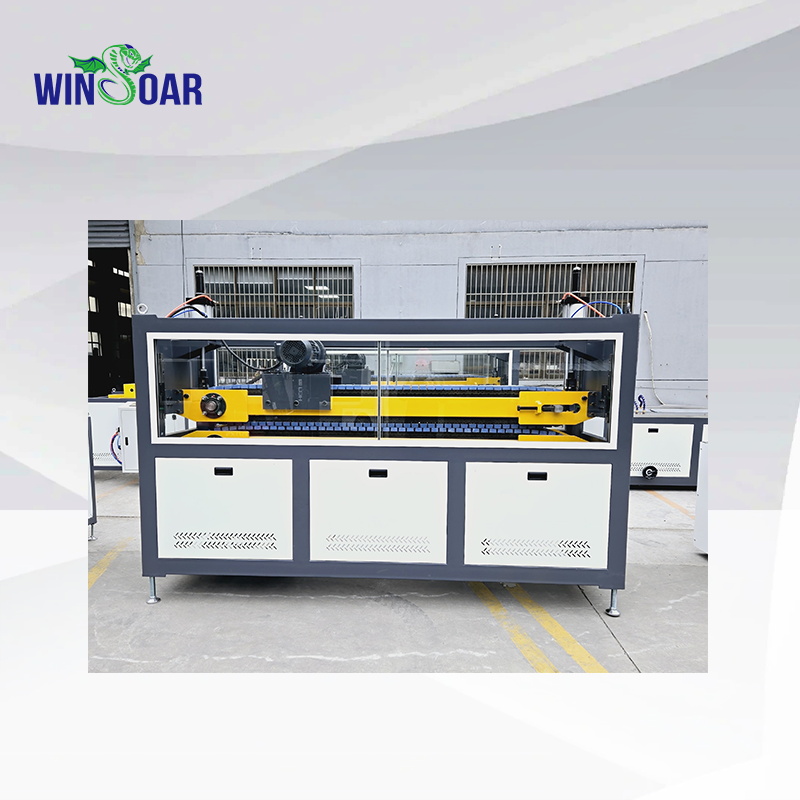

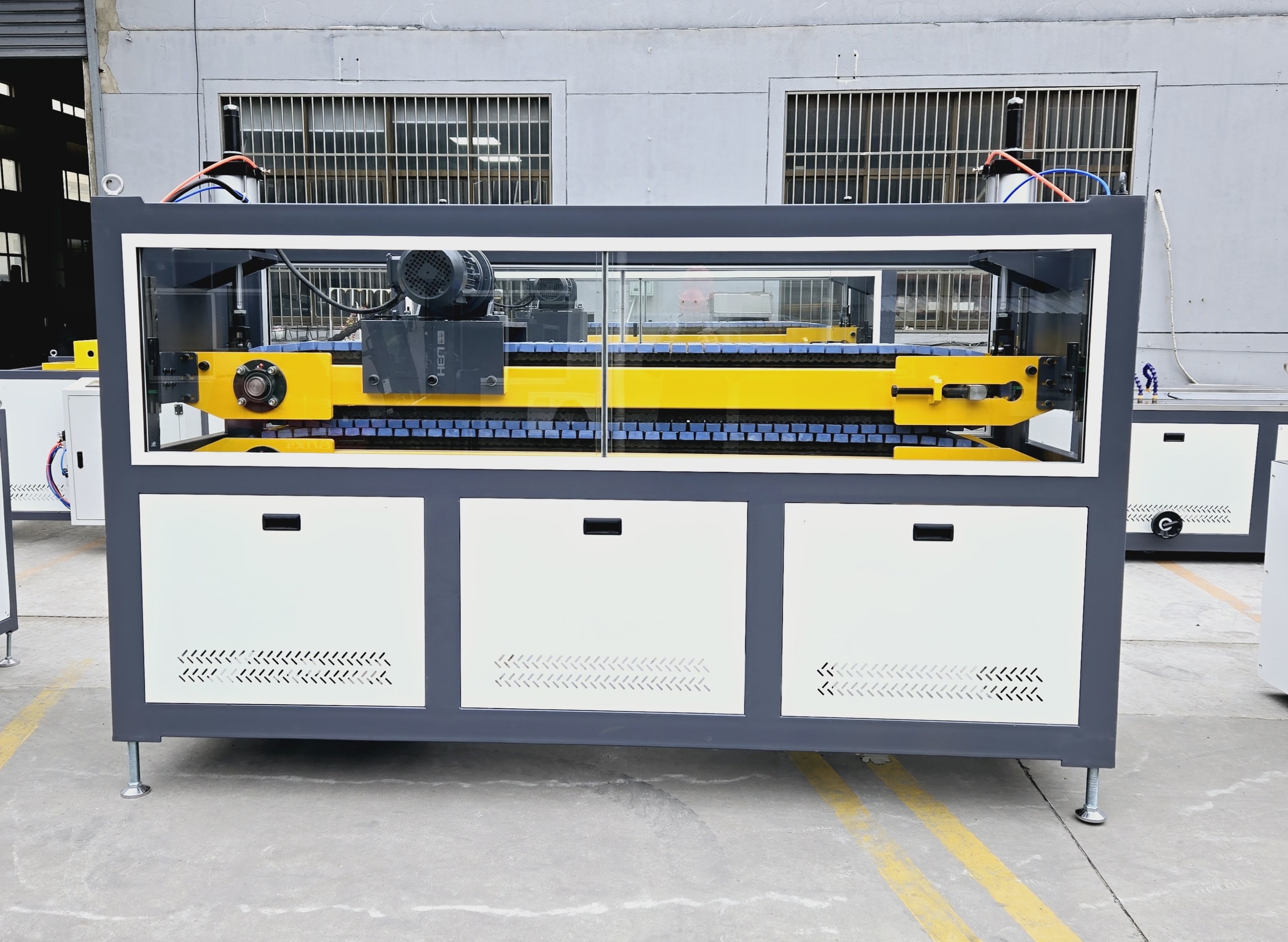

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.


PVC-board_09

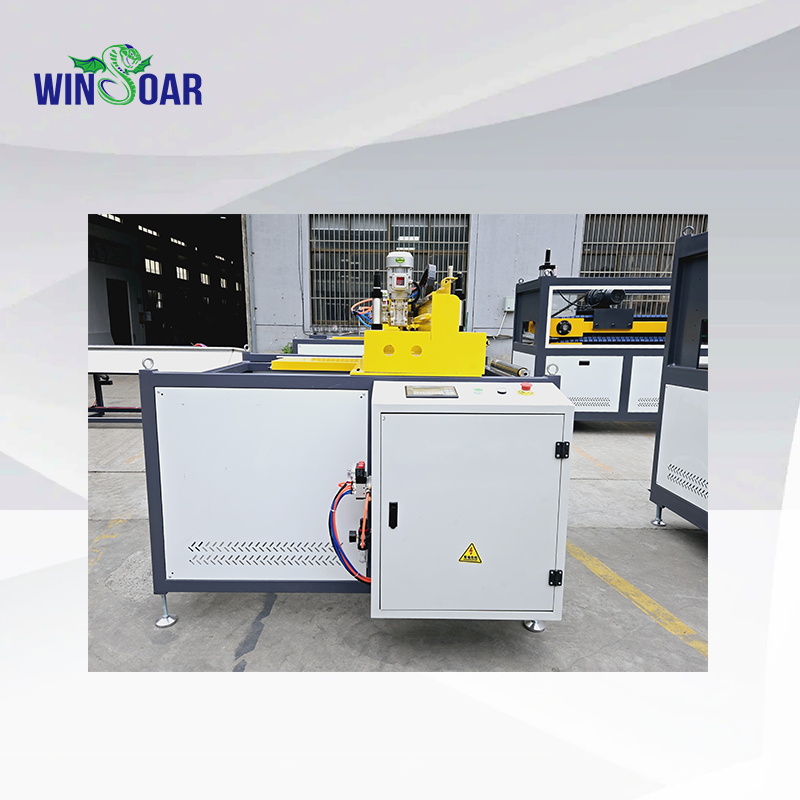

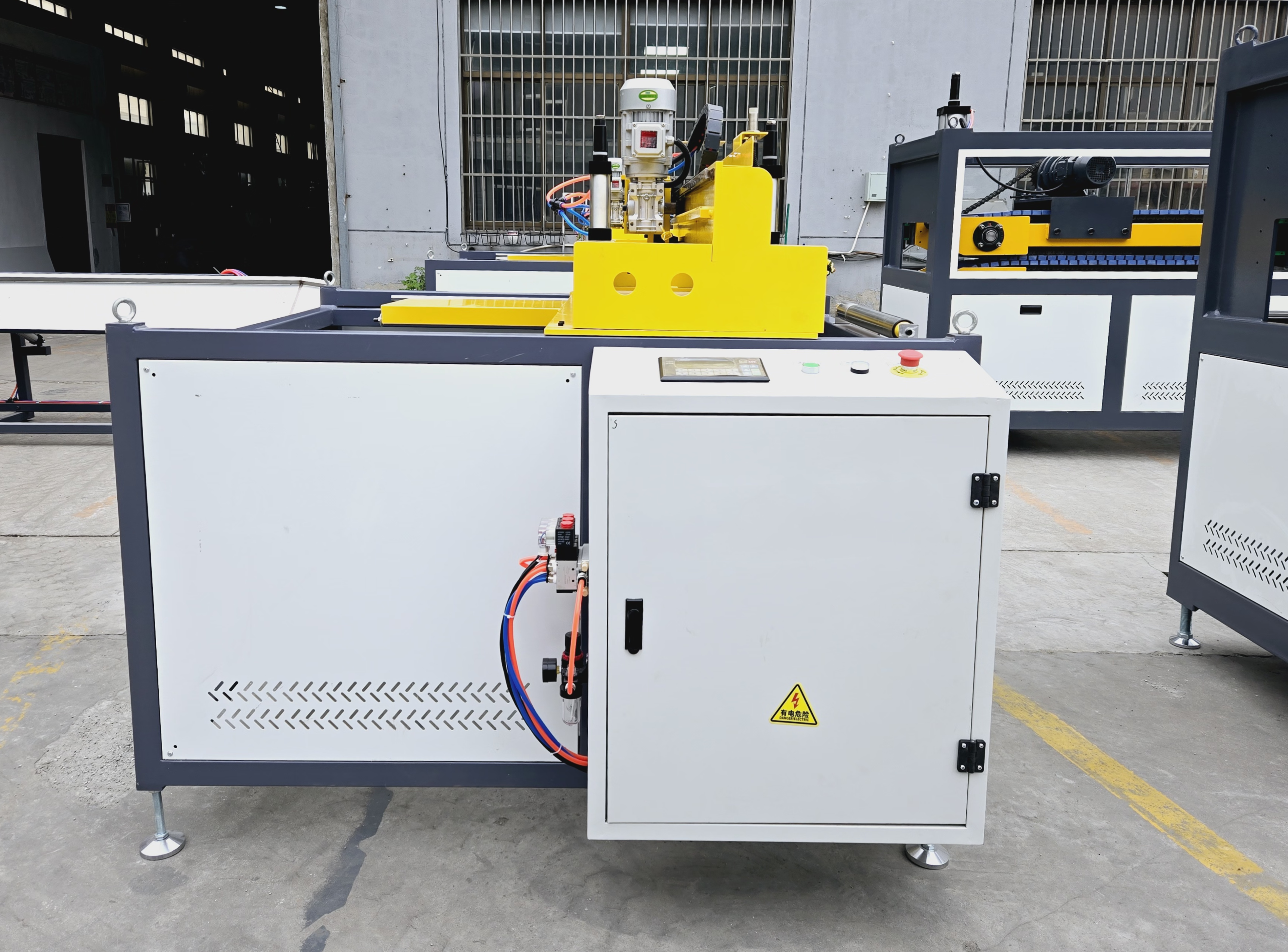

HORIZONTAL CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Automatic pressing, sawing, hidden saw blade, low noise and high safety.


PVC-board_10

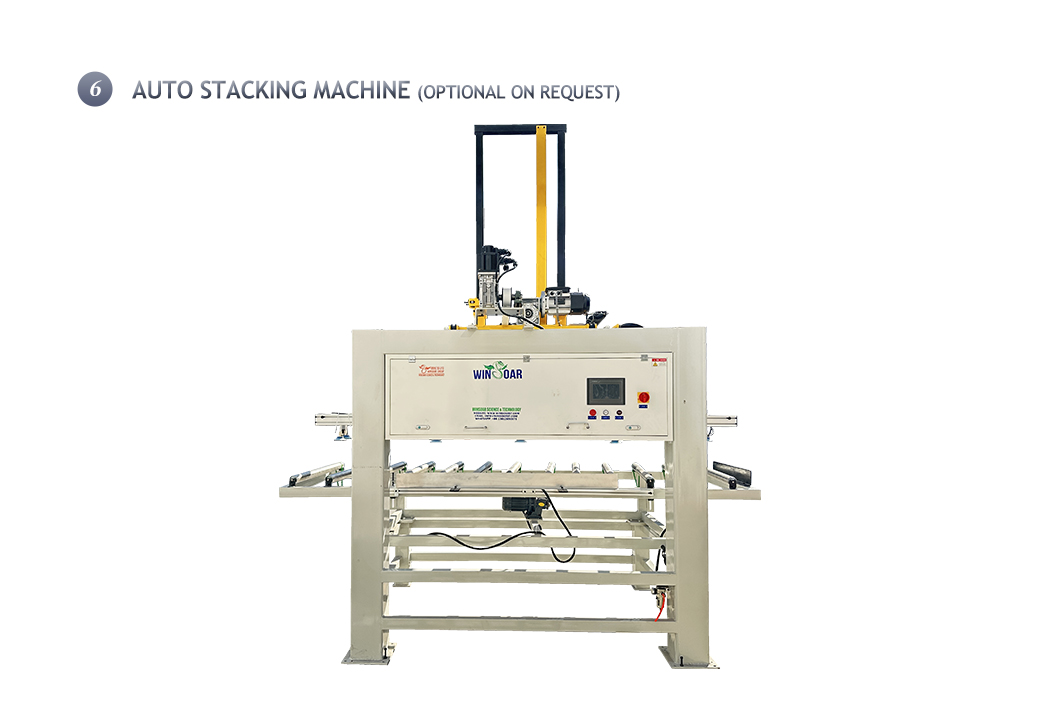

AUTO STACKING MACHINE (OPTIONAL ON REQUEST)

It can automatically receive and stack plates, saving personnel time for plate placement.

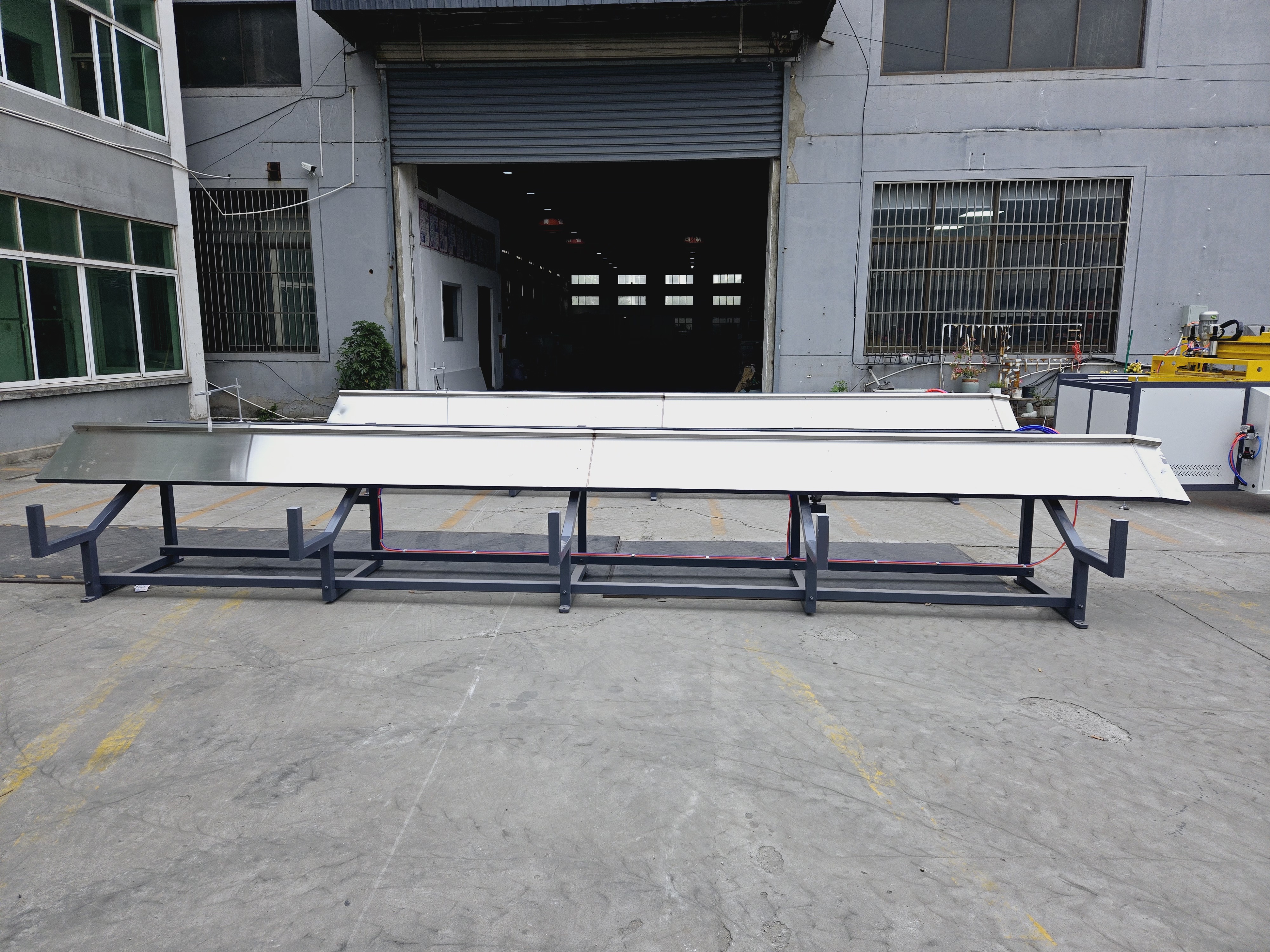

PVC-board_11


PLATE STACKER (OPTIONAL ON REQUEST)

Receive finished product and unload.


p12p13p14
