Product Description

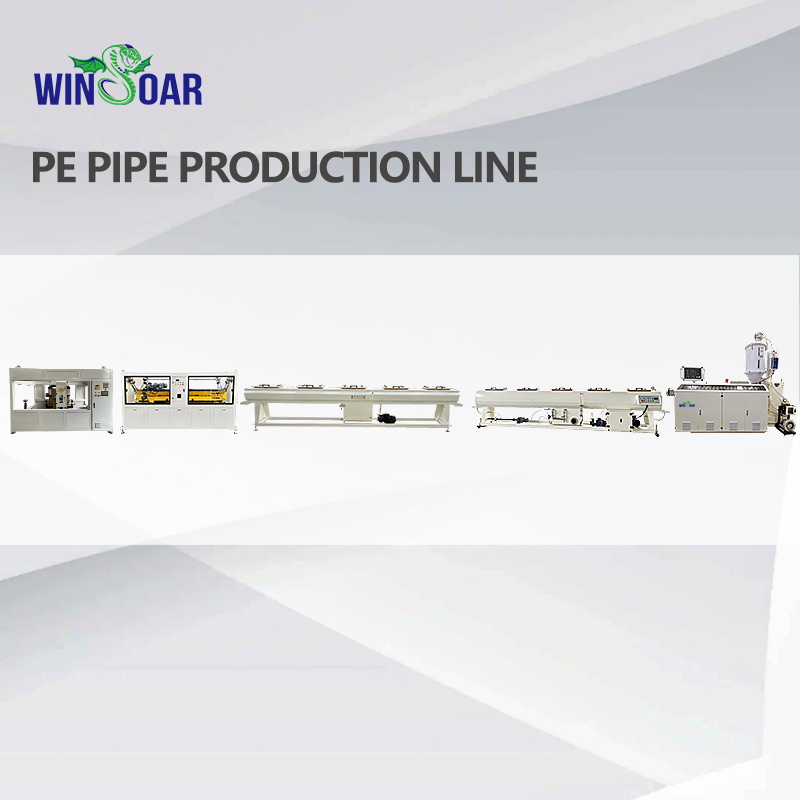

Introducing our top-of-the-line HDPE pipe production line, designed to meet the growing demand for high-quality water pipes. Our production line is capable of producing pipes ranging from 16mm up to 2000mm, making it suitable for a wide range of applications including water supply, drainage, irrigation, gas, sewage, and city construction.
Crafted with precision engineering, our HDPE pipe production line is equipped with cutting-edge technology that ensures consistent quality and durability. Our team of experts has meticulously designed each component of the production line to deliver exceptional performance, reliability, and efficiency.
This line is mainly used in the manufacture of the plastic PE PP pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.

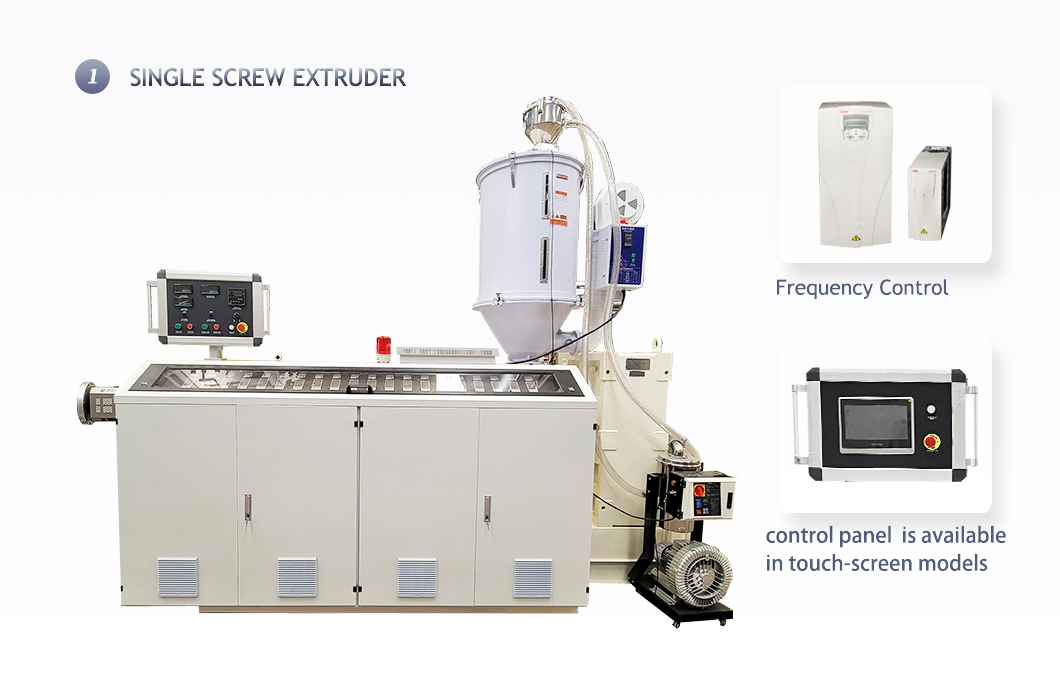

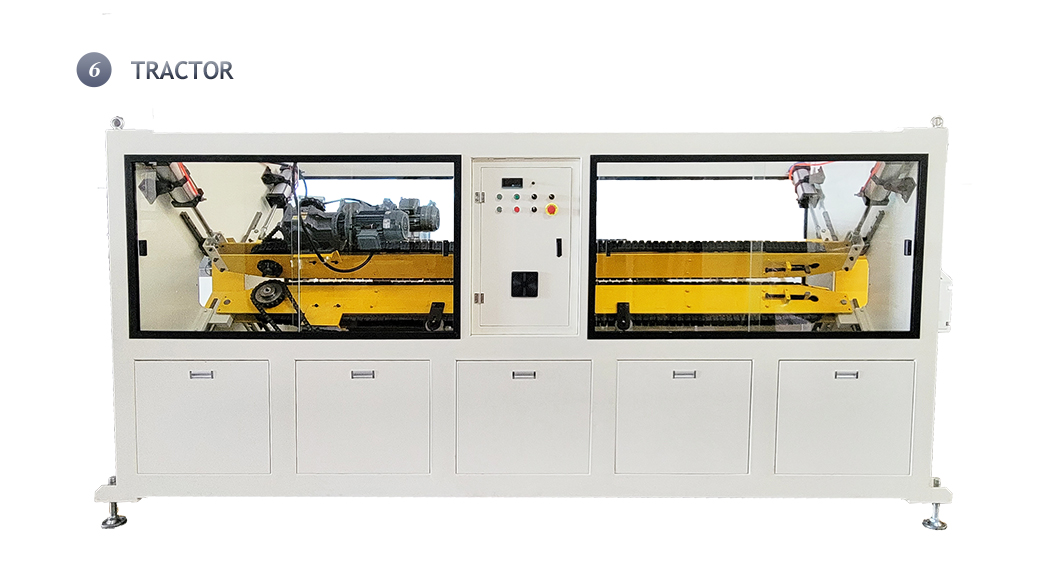

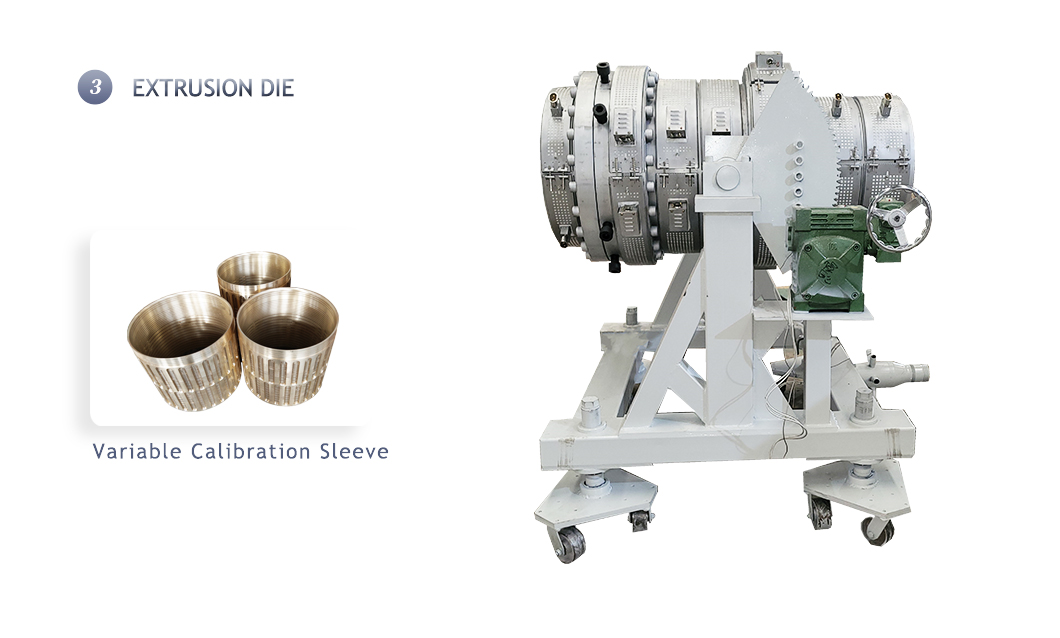

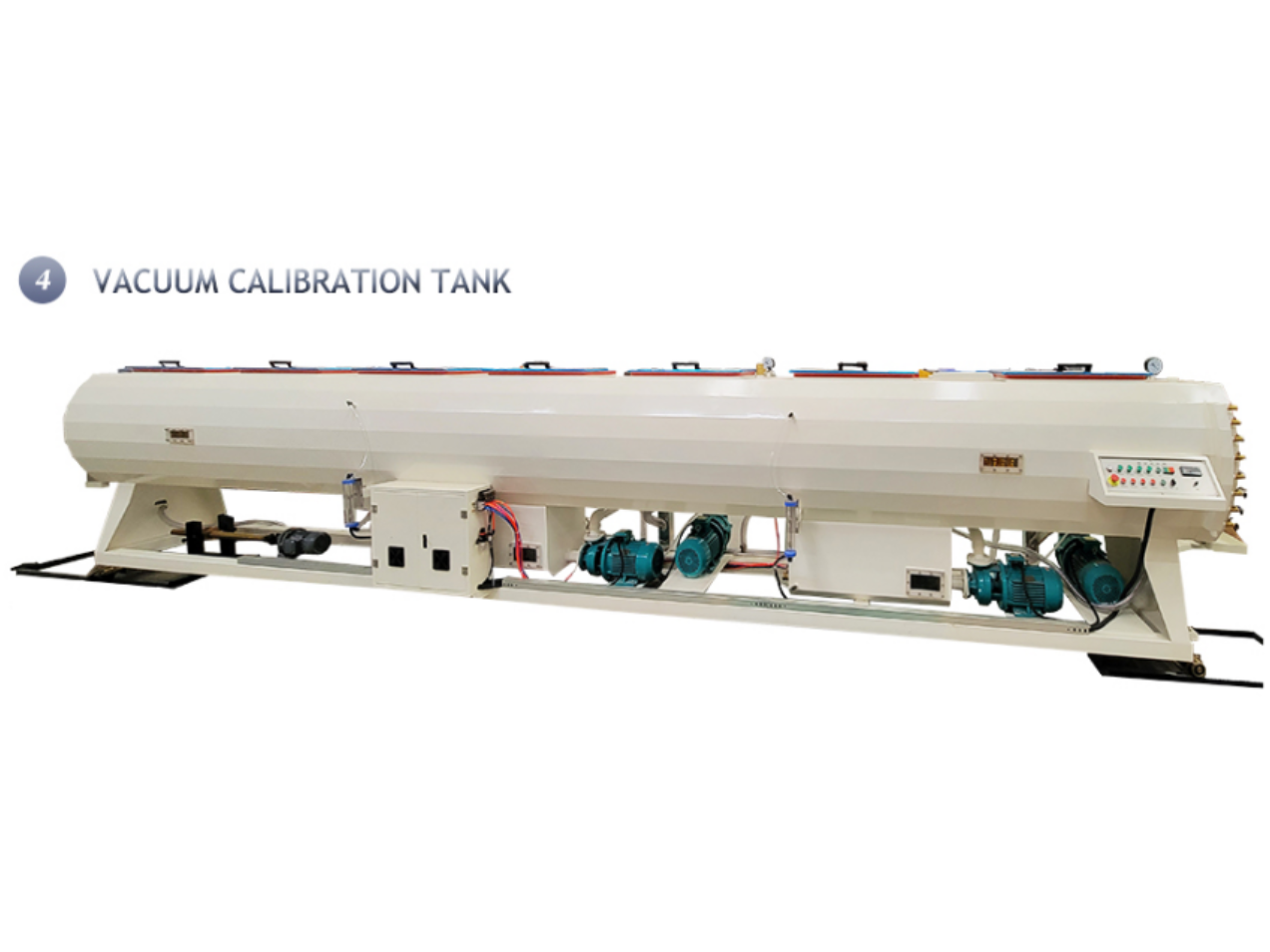

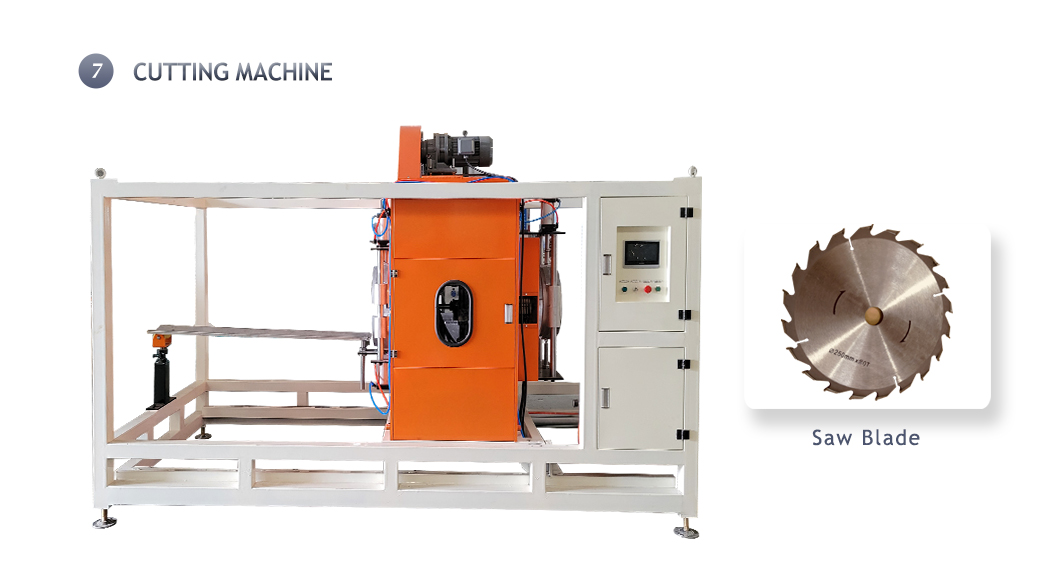

The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Features
With our HDPE pipe production line, you can rest assured that you are getting a product that meets the highest standards of quality and safety. Our pipes are built to withstand extreme weather conditions and are resistant to corrosion, making them ideal for use in harsh environments.
Whether you are a contractor, engineer, or a municipality looking for a reliable source of high-quality water pipes, our HDPE pipe production line is the perfect solution. So why wait? Invest in our production line today and experience the difference in quality and performance.
Main Parameter
33D Series Classical Production Line:
Production Line | Diameter Range(mm) | Extruder Type | Max. Capacity (kg/h) | Max. Haul Off Speed(m/min) | Extrusion Power(kw) |
WS-63 I | Ф 20-63 | SJ65/33 | 220 | 12 | 55 |
WS-110 I | Ф 20-110 | SJ65/33 | 220 | 12 | 55 |
WS-160 I | Ф 50-160 | SJ75/33 | 400 | 10 | 110 |
WS-250 I | Ф 90-250 | SJ90/33 | 400 | 6 | 110 |
WS-450 I | Ф 160-450 | SJ120/33 | 500 | 4 | 160 |
WS-630 I | Ф 400-630 | SJ120/33 | 850 | 2 | 280 |
WS-800 II | Ф 500-800 | SJ120/33 | 850 | 2 | 280 |
WS-630 I | Ф 315-630 | SJ120/33 | 850 | 2 | 355 |
WS-800 I | Ф 500-800 | SJ150/33 | 1100 | 1 | 400 |
38D Series High Efficient Production Line:
Production Line | Diameter Range(mm) | Extruder Type | Max. Capacity (kg/h) | Max. Haul Off Speed(m/min) | Extrusion Power(kw) |
WS-63Ⅱ | Ф 20-63 | WSD60/38 | 320 | 30 | 70 |
WS-110Ⅱ | Ф 20-110 | WSD60/38 | 380 | 20 | 90 |
WS-160Ⅱ | Ф 40-160 | WSD60/38 | 460 | 15 | 110 |
WS-250Ⅱ | Ф 50-250 | WSD75/38 | 600 | 12 | 160 |
WS-450Ⅱ | Ф 110-450 | WSD90/38 | 850 | 8 | 250 |
WS-630Ⅱ | Ф 250-630 | WSD90/38 | 1050 | 4 | 280 |
WS-800Ⅱ | Ф 500-800 | WSD120/38 | 1300 | 2 | 355 |
WS-1200Ⅱ | Ф 710-1200 | WSD75/38 WSD90/38 | 1450 | 1 | 160/250 |
WS-1600Ⅱ | Ф 1000-1600 | WSD90/38 WSD90/38 | 1900 | 0.6 | 280/280 |
Pictures for Reference
