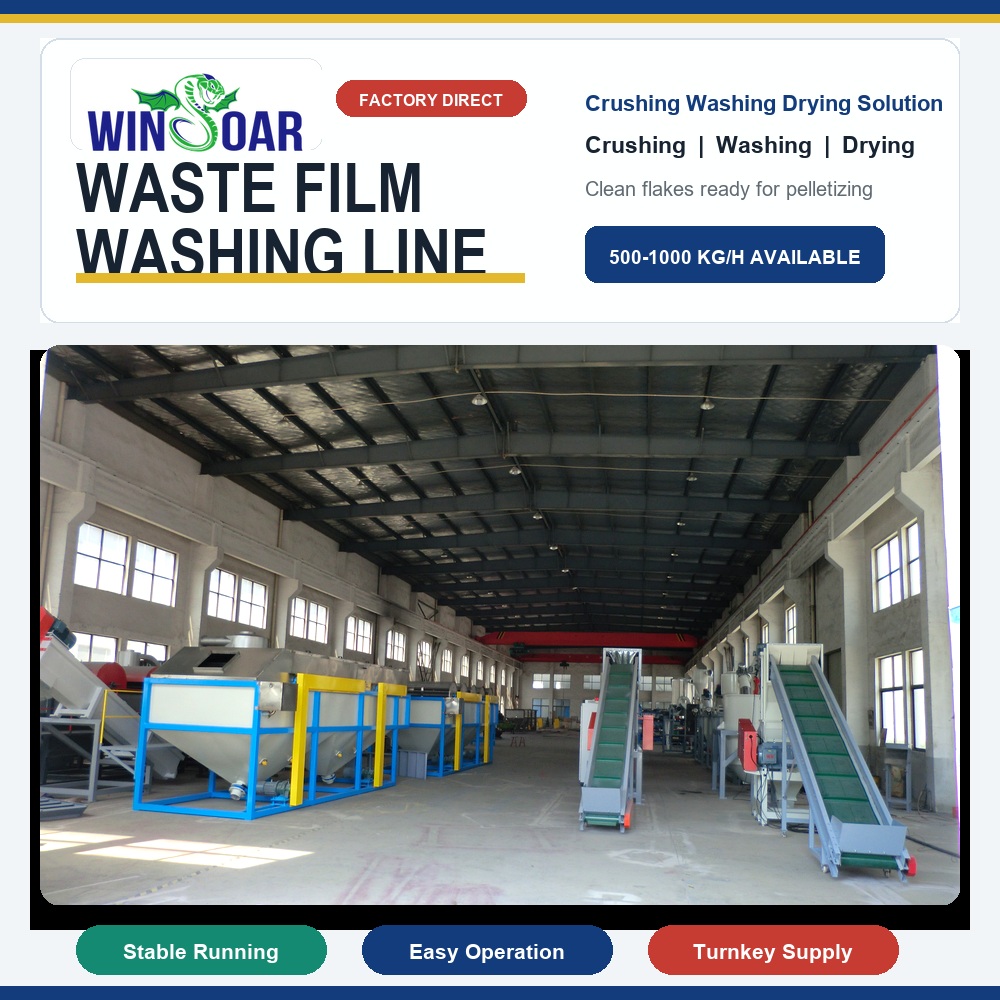

PE/PP Film/Bag/Bottles Crushing Washing Line

1. High automation, Less man power, low energy consumption, high output

2. Film label removing solution

3. With a materials pre-treatment system such as Pre-washer, Label processing module, highly improve quality of end product

4. The complete solution for metals, sediment, water treatment, granulation

5. Provide centrifugal dewatering and squeezing technology

PE/PP Film/bag Washing Line
Model	Capacity （kg/h）	Consumption （kw/h）	Steam （kg/h）	Detergent （kg/h）	Water （ton/h）	Total Power（kw）	Space（M2）	Labors （person/shift）
PE300	300	120	0-150	0-8	0.5	160	400	4
PE500	500	180	0-200	0-10	1.2	220	500	4
PE1000	1000	280	0-300	0-12	3	350	700	5
PE/PP/PS/ABS Rigid Material Washing Line
PE500	500	120	0-150	0-8	0.5	160	400	4
PE1000	1000	180	0-200	0-10	1.2	220	500	4
PE2000	2000	280	0-400	0-12	3	350	700	5
PE3000	3000	330	0-500	0-15	4	410	900	5
PE5000	5000	360	0-800	0-18	5	480	1200	6

1. What materials is this bag bottle film washing crushing line suitable for?

Winsoarst's PE-PP film bag bottle crushing and washing line is designed for waste PE and PP plastic film bags, bottles and other materials. It is suitable for a wide range of waste plastic recycling processes.

2. How does the line ensure thorough washing of waste plastics?

Adopting advanced crushing and washing technology to ensure the materials are fully cleaned. High-quality sorting system effectively classifies and improves the cleaning effect.

3. What is the productivity of this bag bottle film washing crushing equipment?

Winsoarst's production line offers excellent performance and increased productivity. Precise design and advanced technology ensure high quality output of recycled plastics.

4. What are the environmental aspects?
The line helps to recycle waste plastics and promote circular economy. Adopting environmentally friendly technology to reduce the impact on the environment is a green solution to realize sustainable development.

5. Is the pp pe production line easy to operate and maintain?
Winsoarst focuses on user experience to ensure that the product is easy to operate and maintain. It is equipped with a user-friendly control system that reduces operational difficulties.

6. Is the product suitable for all sizes of production?

Yes, the line can be customized to meet the needs of production scale and is suitable for both small and large scale waste plastic recycling and processing projects.

BALE OPENER

Used for compressed bottle brick unpacking and scattering pretreatment.

BELT CONVEYER

Convey bottles into label separating machine/crusher.

CRUSHER

Crush the plastic into flakes.

SCREW LOADER

Convey flakes to washing tank.

WASHING TANK

To wash PE flakes.

HOT WASHING POT

Remove impurities from the flakes.

FRICTION WASHER

Make flakes be rubbed with each other in high speed to remove dust.

DEWATER MACHINE

To remove water from flakes in high speed.

HOT AIR DRYER

To remove moisture from film flakes with hot wind.

STORAGE SILO

Made of stainless steel, suitable for storage finished products.
