Features
1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 150-2000kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 or 316 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect. Here is from our customer's feedback.
Main Technical Parameter
| PE/PP Film/bag Washing Line | ||||||||
Model | Capacity （kg/h） | Consumption （kw/h） | Steam （kg/h） | Detergent （kg/h） | Water （ton/h） | Total Power（kw） | Space（M2） | Labors （person/shift） |
PE300 | 300 | 120 | 0-150 | 0-8 | 0.5 | 160 | 400 | 4 |
PE500 | 500 | 180 | 0-200 | 0-10 | 1.2 | 220 | 500 | 4 |
PE1000 | 1000 | 280 | 0-300 | 0-12 | 3 | 350 | 700 | 5 |
PE/PP/PS/ABS Rigid Material Washing Line | ||||||||
PE500 | 500 | 120 | 0-150 | 0-8 | 0.5 | 160 | 400 | 4 |
PE1000 | 1000 | 180 | 0-200 | 0-10 | 1.2 | 220 | 500 | 4 |
PE2000 | 2000 | 280 | 0-400 | 0-12 | 3 | 350 | 700 | 5 |
PE3000 | 3000 | 330 | 0-500 | 0-15 | 4 | 410 | 900 | 5 |
PE5000 | 5000 | 360 | 0-800 | 0-18 | 5 | 480 | 1200 | 6 |

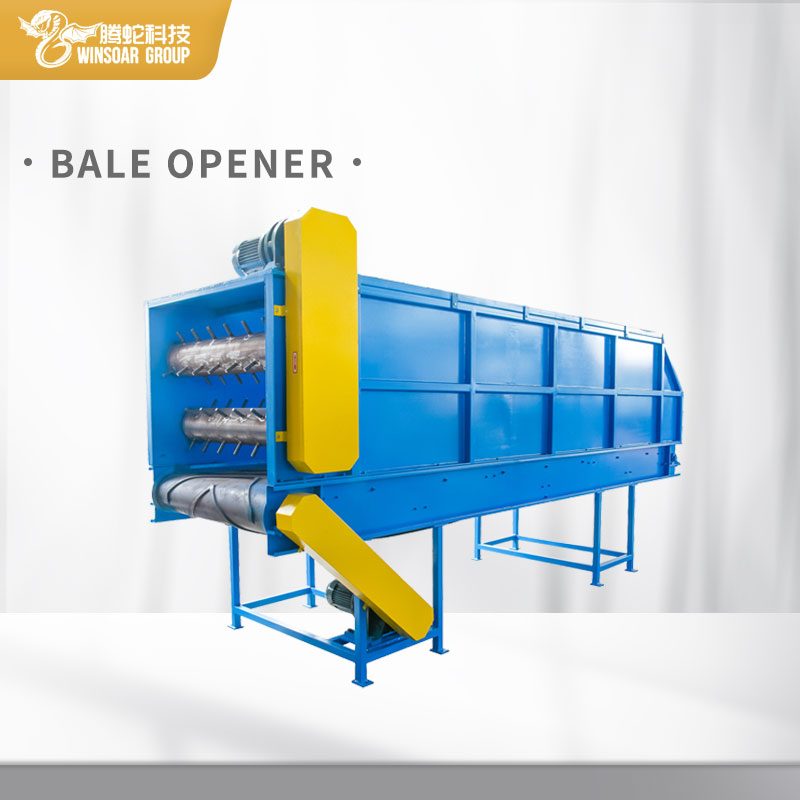

BALE OPENER
Used for compressed bottle brick unpacking and scattering pretreatment.

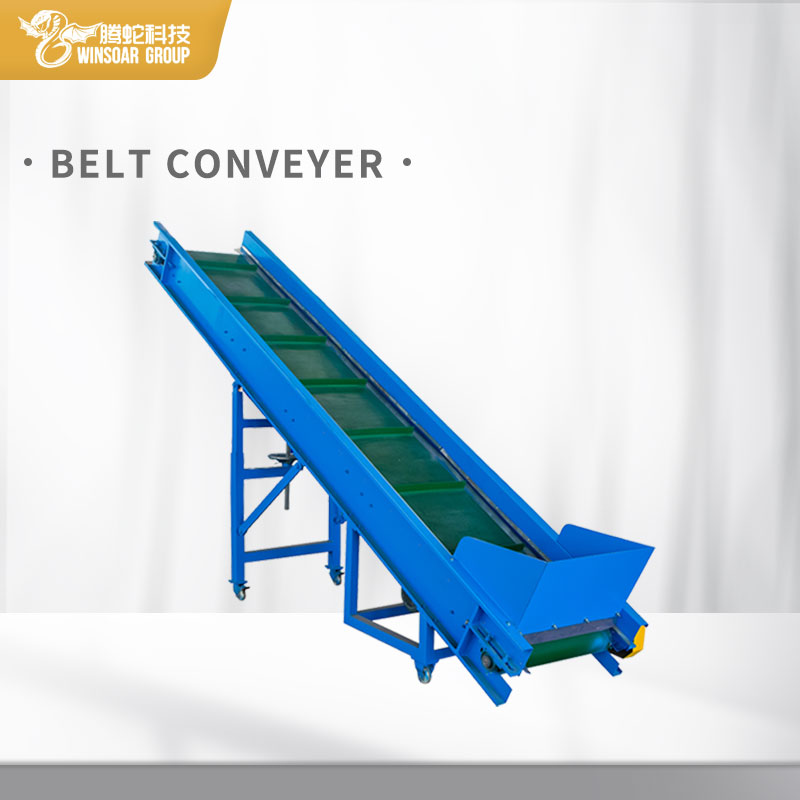

BELT CONVEYER
Convey bottles into label separating machine/crusher.
CRUSHER
Crush the plastic into flakes.
SCREW LOADER
Convey flakes to washing tank.
WASHING TANK
To wash PE flakes.
HOT WASHING POT
Remove impurities from the flakes.
FRICTION WASHER
Make flakes be rubbed with each other in high speed to remove dust.
DEWATER MACHINE
To remove water from flakes in high speed.
HOT AIR DRYER
To remove moisture from film flakes with hot wind.
STORAGE SILO
Made of stainless steel, suitable for storage finished products.
