Plastic Agricultural Drip Irrigation Tube Electric Conduit Pipes Extrusion Making Machine Production Line

5 0 Reviews

This machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PVC pipe making machine adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production. Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

This PVC pipe making machine adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production. Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.

Application Fields

The produced pipes are widely used in building water supply and drainage systems as water supply pipes, drain pipes, and drainage pipes. They are also suitable for cable laying as protective pipes and can be used in agricultural water supply and drainage, etc.

Production Process

Raw material + additive preparation → mixing → conveying and feeding → forced feeding → conical twin-screw extruder → extrusion die → sizing sleeve → vacuum shaping tank → cooling water tank → printer (optional) → crawler tractor → lifting knife cutting machine → pipe stacking rack

Features

High Production Efficiency: Adopting advanced screw design and efficient transmission system, it can achieve high extrusion speed. Meanwhile, the high degree of automation reduces manual operation links and improves overall production efficiency.
Stable Product Quality: Through precise control of temperature, vacuum degree, and traction speed, the dimensional accuracy, roundness, and surface quality of the pipes are ensured to be stable and consistent.
Strong Adaptability: By replacing molds of different specifications and adjusting process parameters, it can produce Φ20-110 PVC pipes of various specifications and wall thicknesses to meet the needs of different users.
Good Energy-saving Effect: Equipped with energy-saving motors and advanced heating and cooling systems, it reduces energy consumption while ensuring production quality.

Technical Parameter

Diameter Range (mm)	Extruder Type	Extrusion Power(KW)	Max. Capacity (kg/h)	Max. Haul Off Speed(m/min)
Ф16-40 Dual	SJZ51/105	18.5 AC	120	10
Ф20-63 Dual	SJZ65/132	37 AC	250	15
Ф20-63	SJZ51/105	18.5 AC	120	15
Ф50-160	SJZ65/132	37 AC	250	8
Ф75-160 Dual	SJZ80/156	55AC	450	6
Ф63-200	SJZ65/132	37 AC	250	3.5
Ф110-315	SJZ80/156	55 AC	450	3
Ф315-630	SJZ92/188	110 AC	800	1.2
Ф710-1000	WSP130/26	160 AC	1100	1.3

Key Components

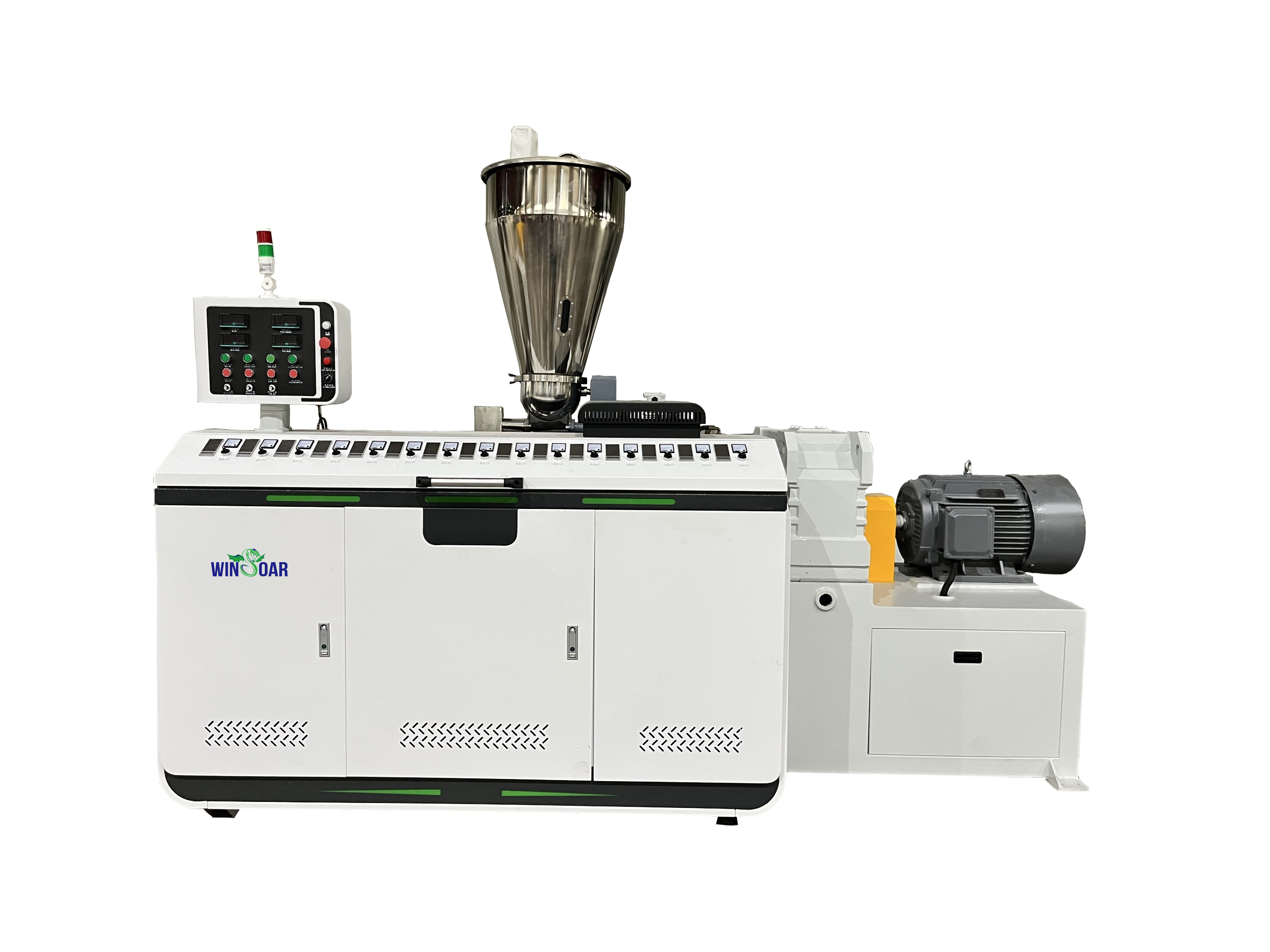

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

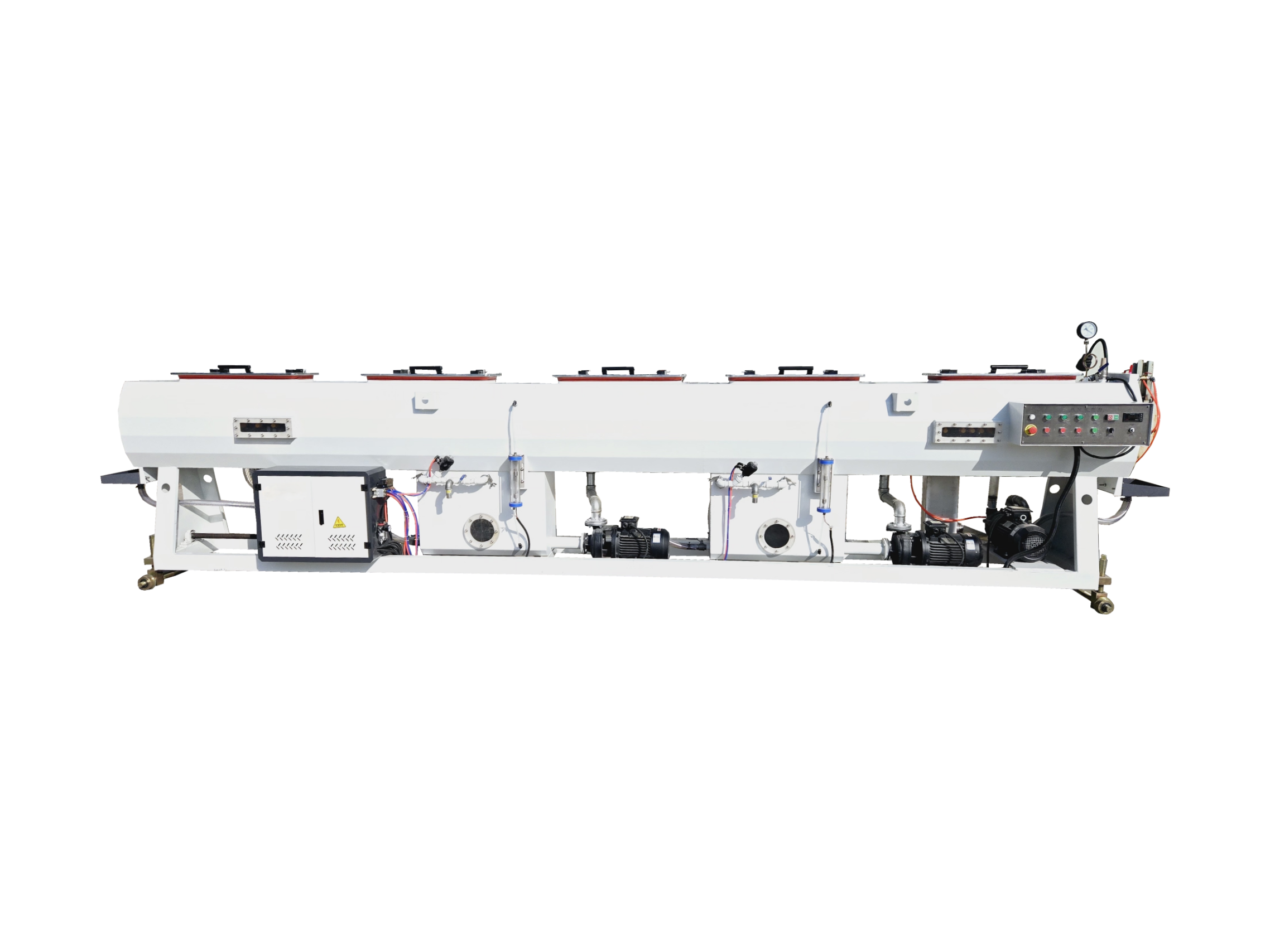

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

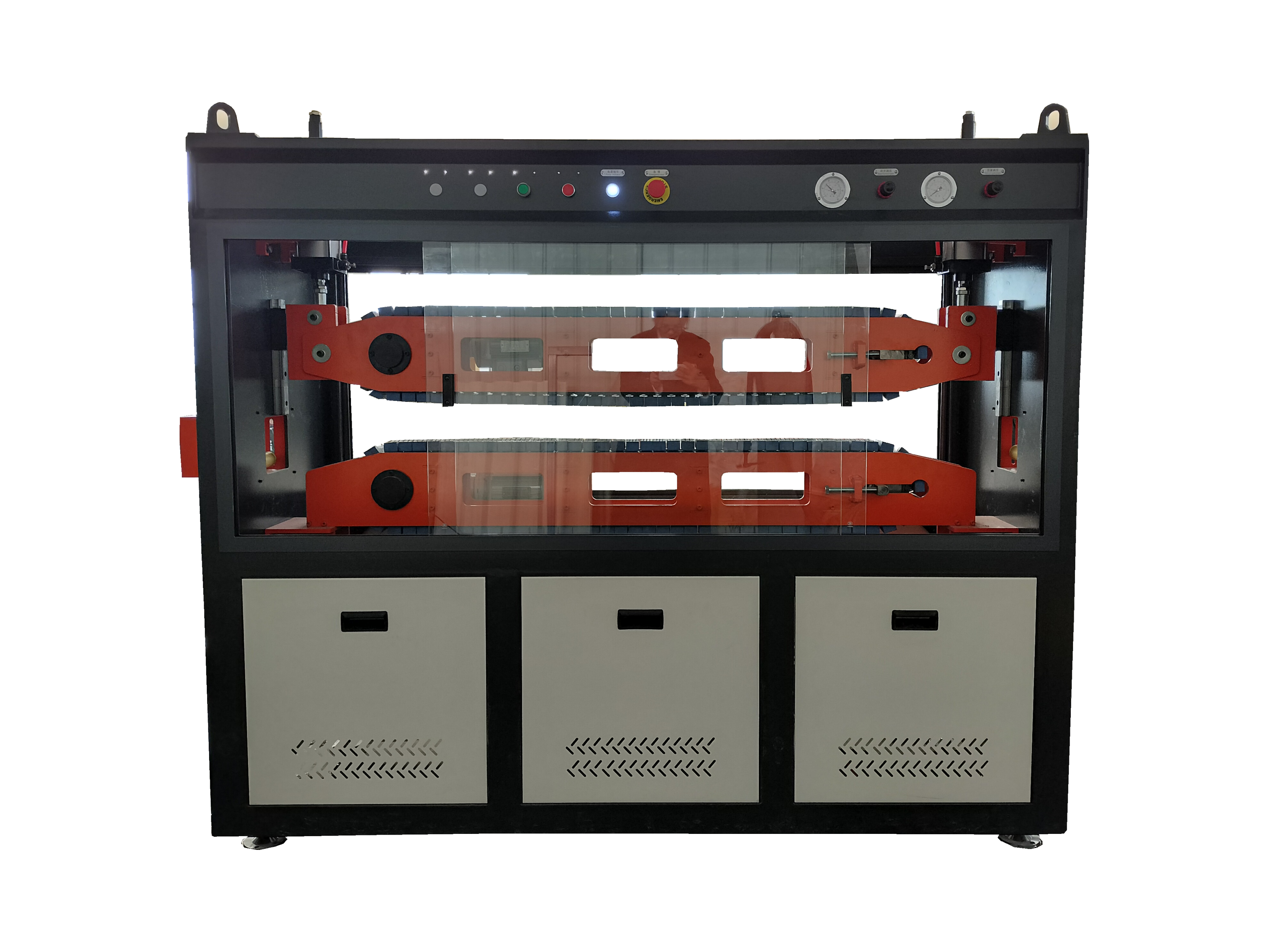

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.

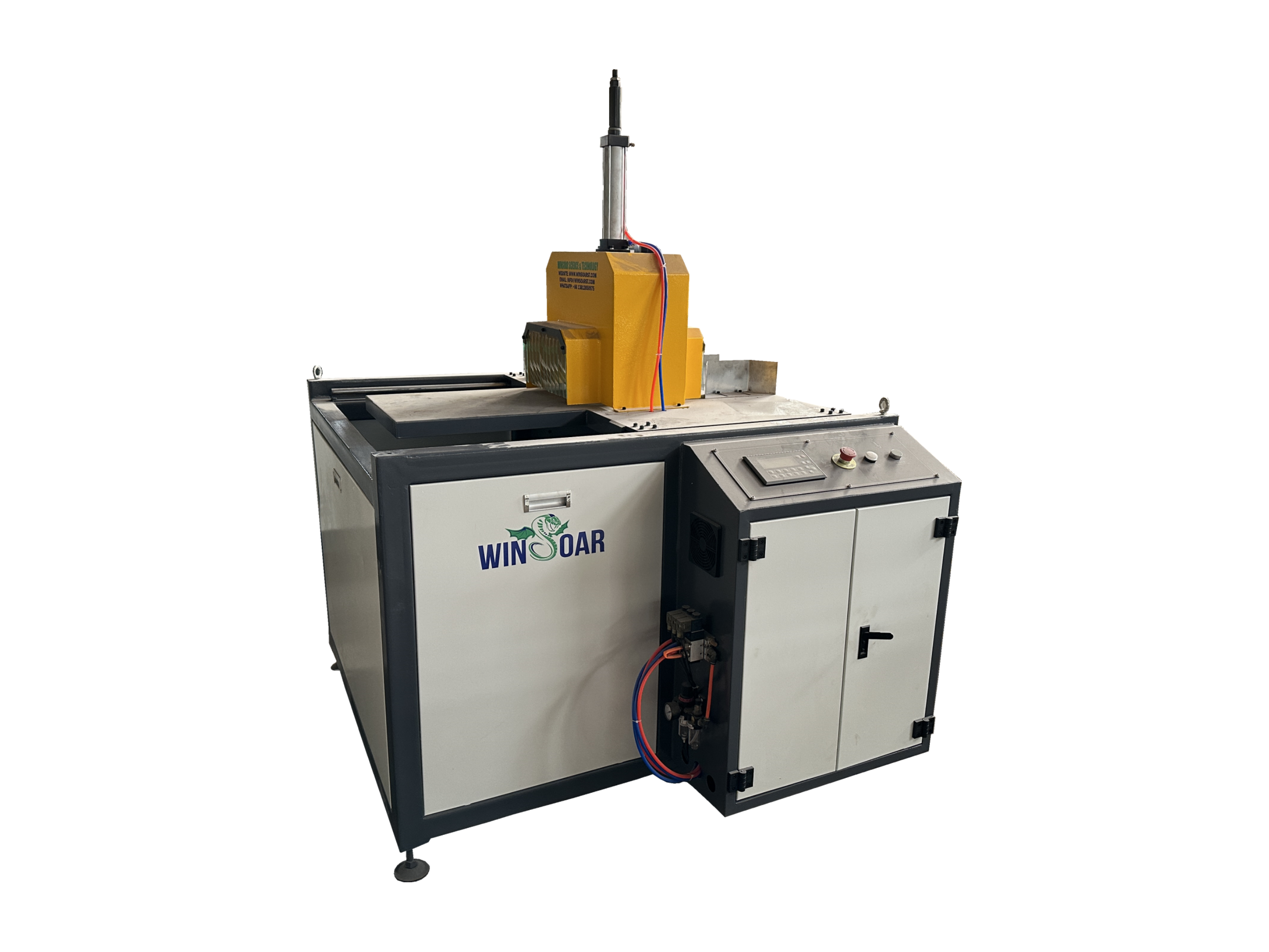

CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.
