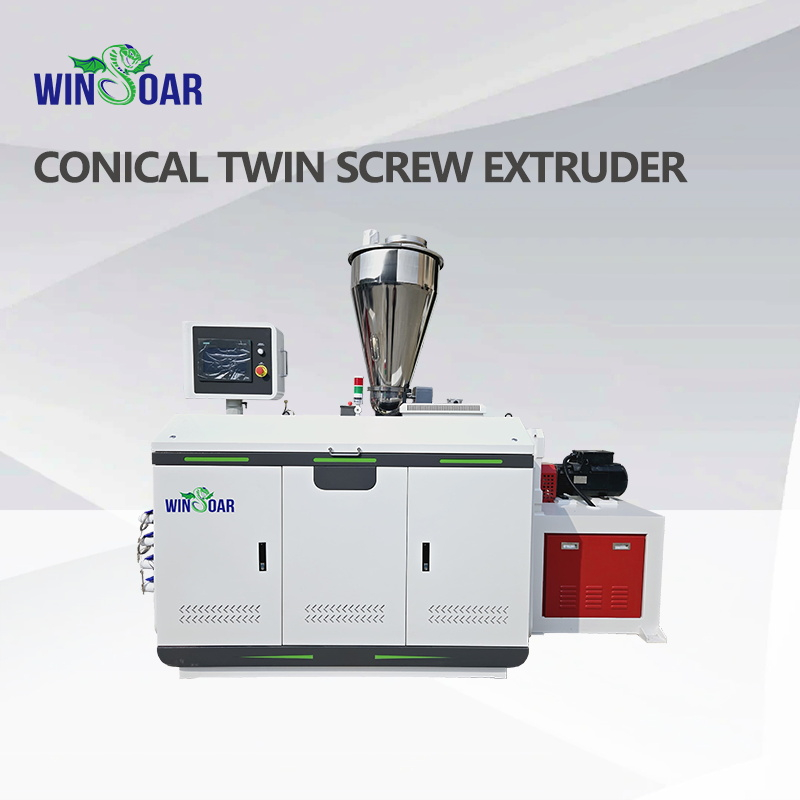

Plastic CPVC/UPVC Pipe/ Tube/ Profile/ Panel/Ceiling Extrusion Machine Conical Twin Screw Extruder

5 0 Reviews

Model SJZ series twin conical screws extruder is a kind of special equipment for extruding of PVC powder. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation.

Availability:

Quantity:



Inquire Add to Basket

Main Description

Conical Twin Screw Extruder is applicant for PVC powder material, with different mould and downstream equipment; the plastic extruder can produce pipe, profile, plate& sheet, and pelletizing.

The extruder features in good plastic extrusion, good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time.

Main Technical Parameter

Model	SJZ45/90	SJZ51/105	SJZ55/110	SJZ65/132	SJZ80/156	SJZ92/188

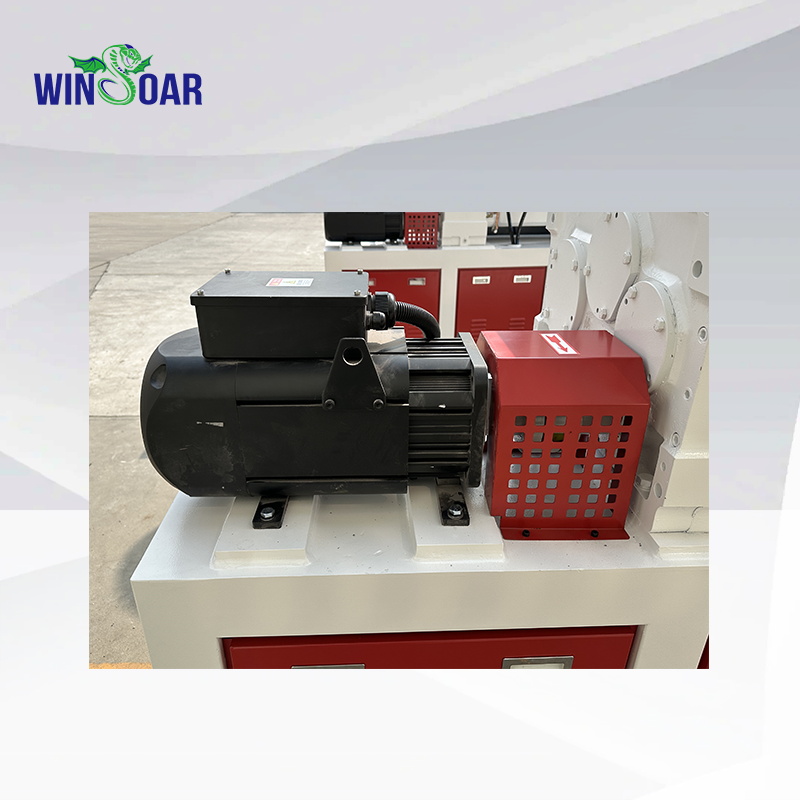

Power of drive motor (kw)	15	18.5	22	37	55	110
Screw diameter (mm)	Φ45/Φ90	Φ51/Φ105	Φ55/Φ110	Φ65/Φ132	Φ80/Φ156	Φ92/Φ188
No.of screw	2	2	2	2	2	2
Rotational speed	45	40	38	38	37	36
Torsional moment of screw (Nm)	3148	6000	7000	10000	14000	32000
Capacity(kg/h)	70	100	150	250	400	750
Central height	1000	1000	1000	1000	1100	1200
Dimentions	3360x1290x2127	3360x1290x2127	3620x1050x2157	3715x1520x2450	4750x1550x2460	67250x1550x2814
