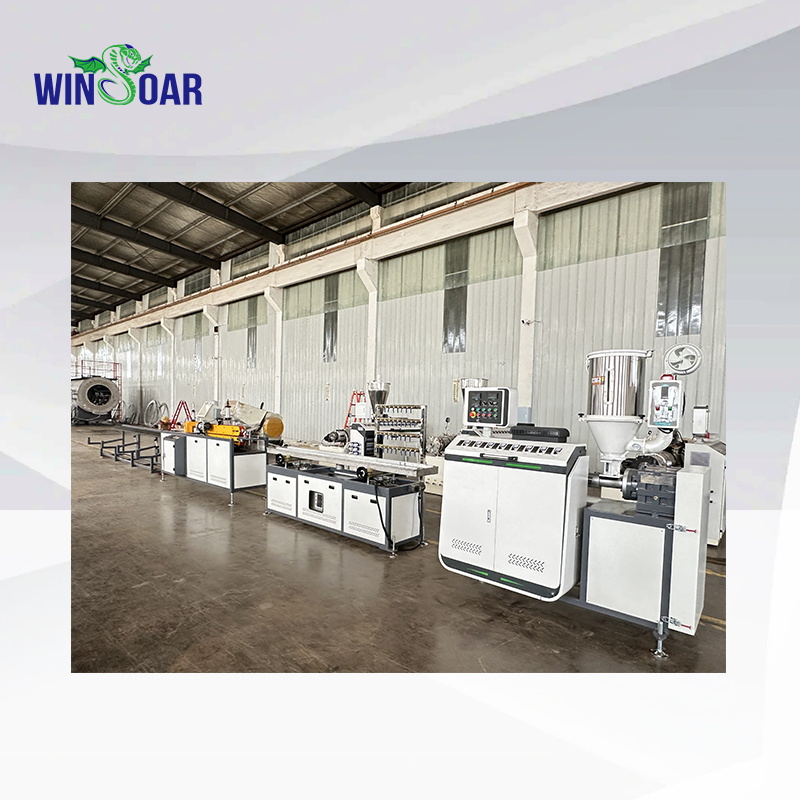

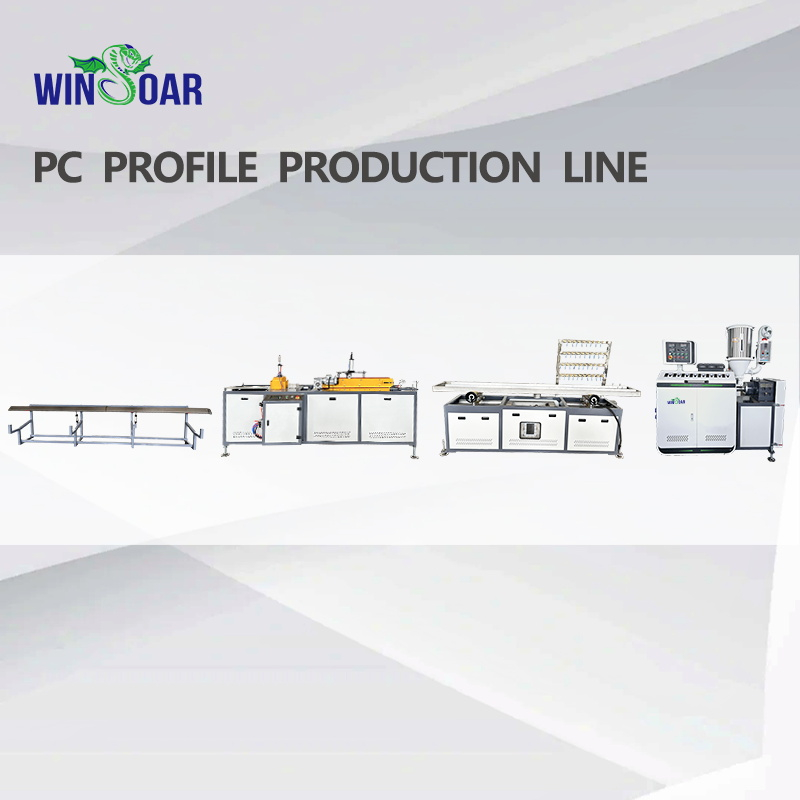

Small Scale Plastic PVC Profile Extrusion Production Line

5 0 Reviews

PVC profile production line equipment is a complete set of automated production equipment used to process PVC raw materials into various profiles. Its core function is to heat and melt PVC resin mixed with additives through an extrusion molding process, then shape it through molds, cool and set it, and finally cut it into profiles of the required length.

Availability:

Quantity:



Inquire Add to Basket

Product Description

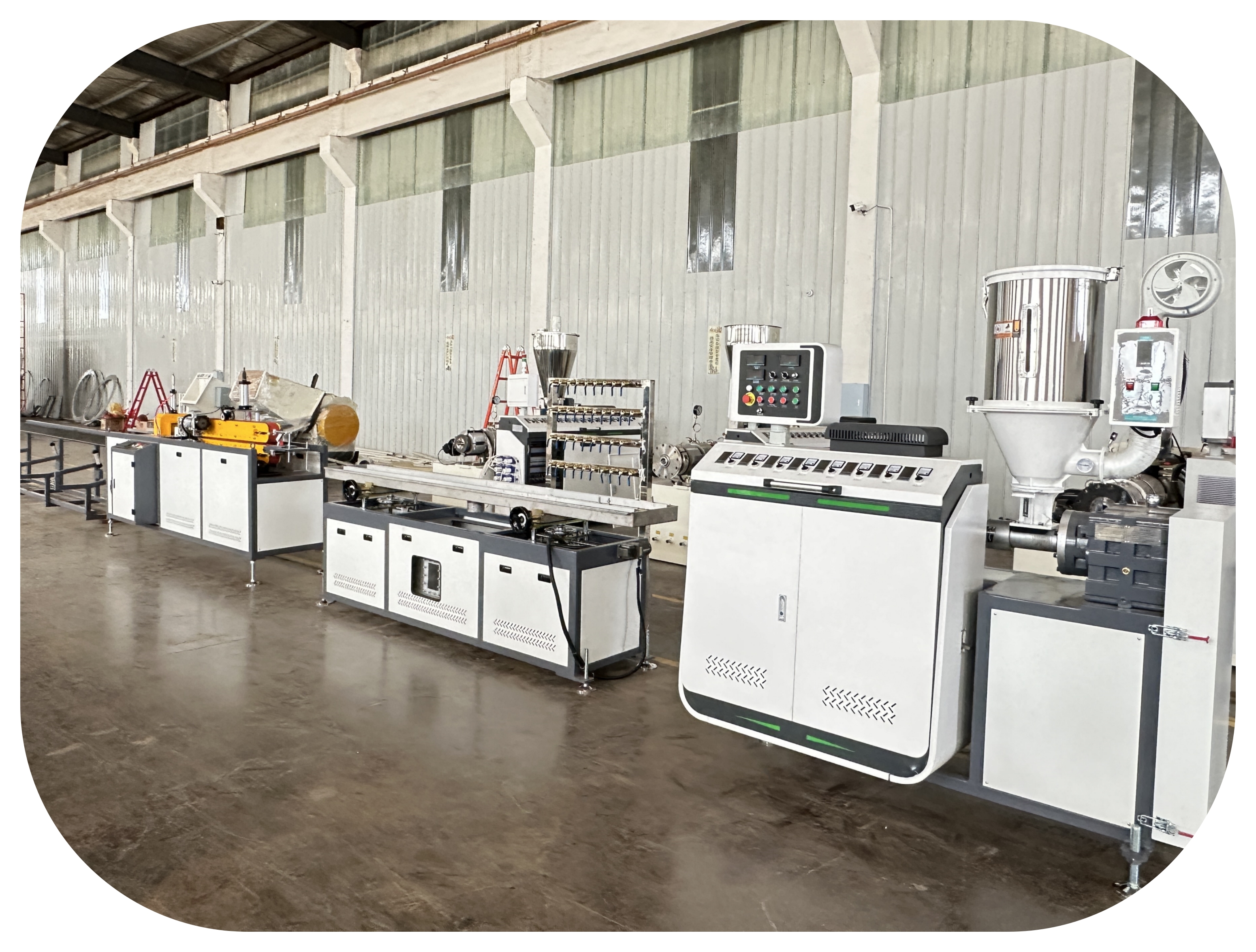

Our Small Scale Plastic PVC Profile Extrusion Production Line is a compact, high-performance solution tailored for medium and small-batch PVC profile manufacturing. Integrating extrusion, molding, cooling, traction, and precision cutting into a streamlined workflow, this all-in-one line enables efficient production of diverse PVC profiles—including door/window frames, decorative strips, wire troughs, and custom-shaped accessories. Equipped with a user-friendly PLC touch screen control system, it simplifies parameter adjustment and operation, while its precision screw extruder and customizable molds ensure consistent product quality—delivering profiles with smooth surfaces, tight dimensional tolerance. Whether for standard product batches or custom R&D projects, this production line balances reliability, versatility, and cost-effectiveness to help you unlock the full potential of PVC profile manufacturing.

2副本

Key Components

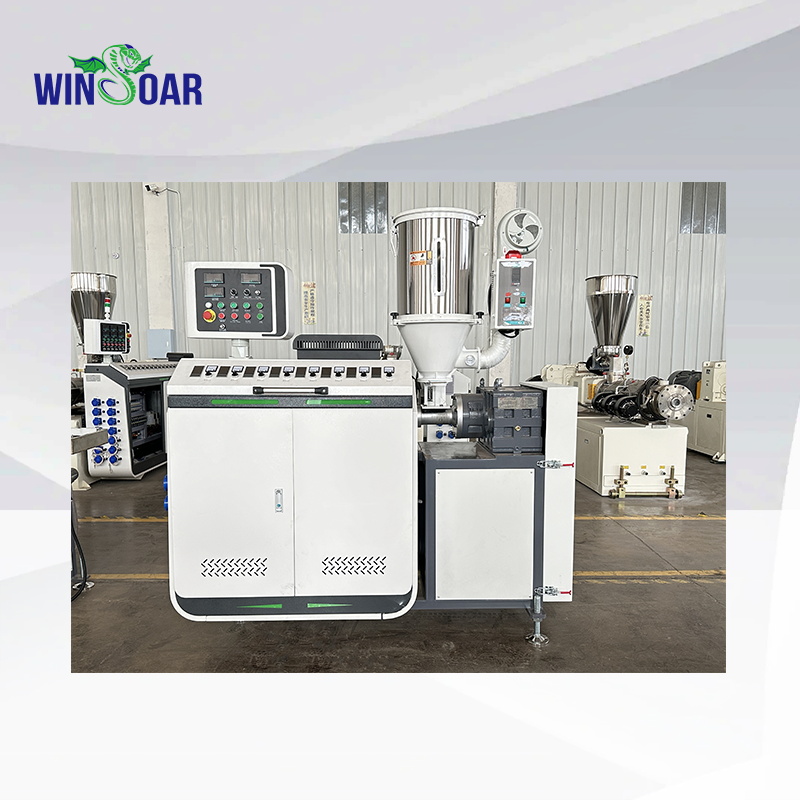

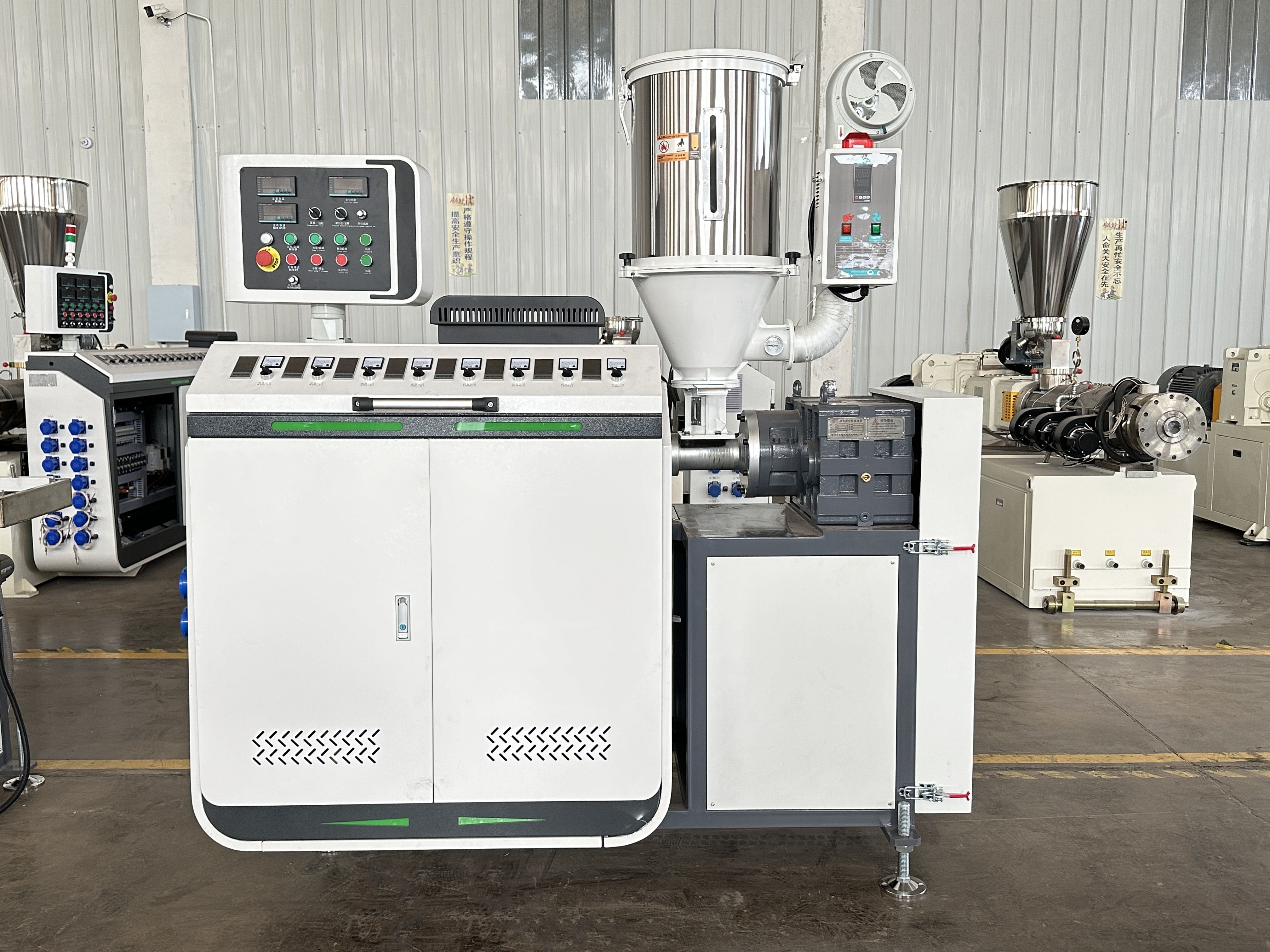

Extruder

Adopts a single-screw extruder with variable-frequency speed regulation. This allows for precise control of the extrusion speed, ensuring stable production for different product specifications. Equipped with high-quality screw and barrel, which are made of special alloy materials.

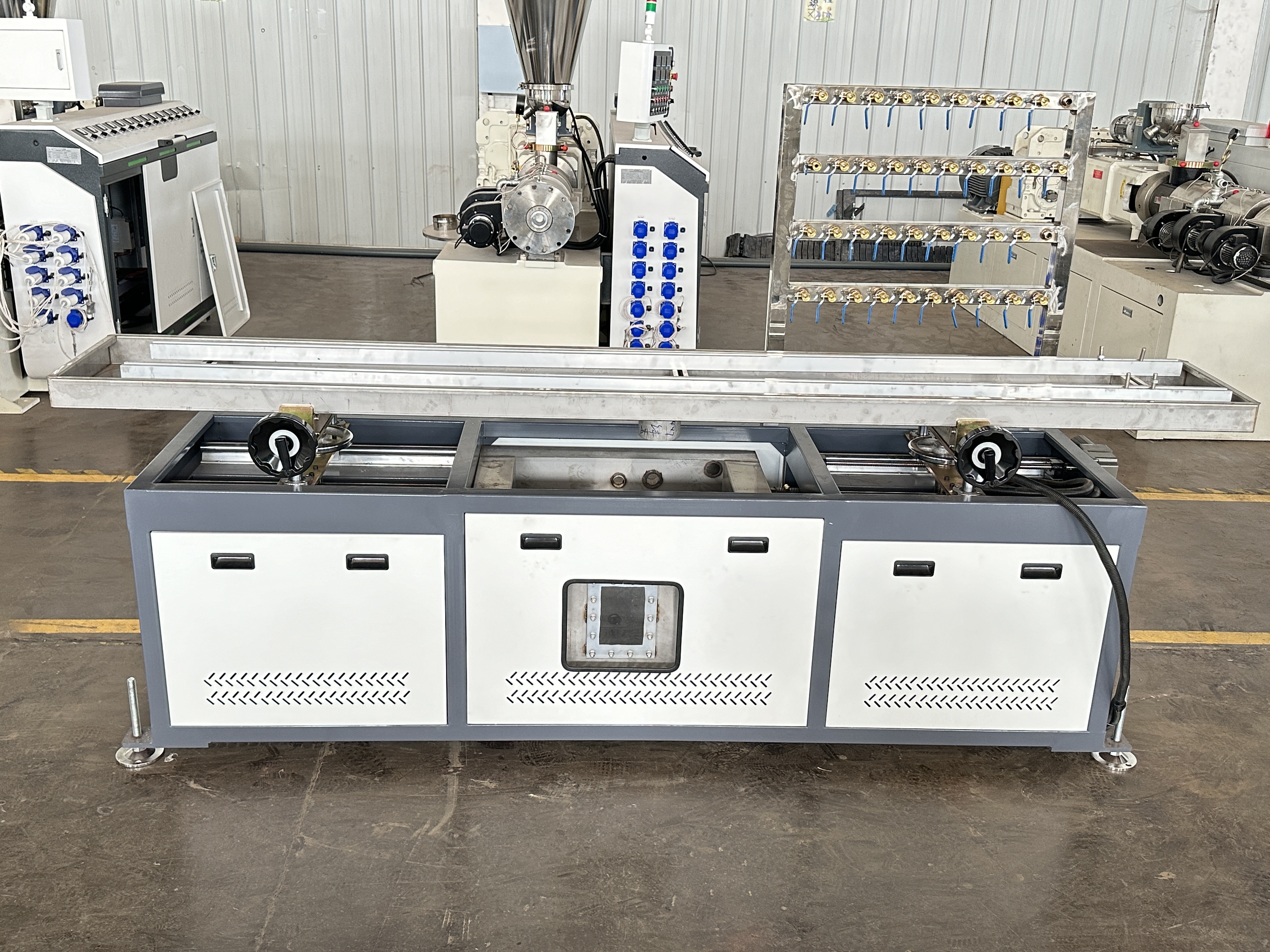

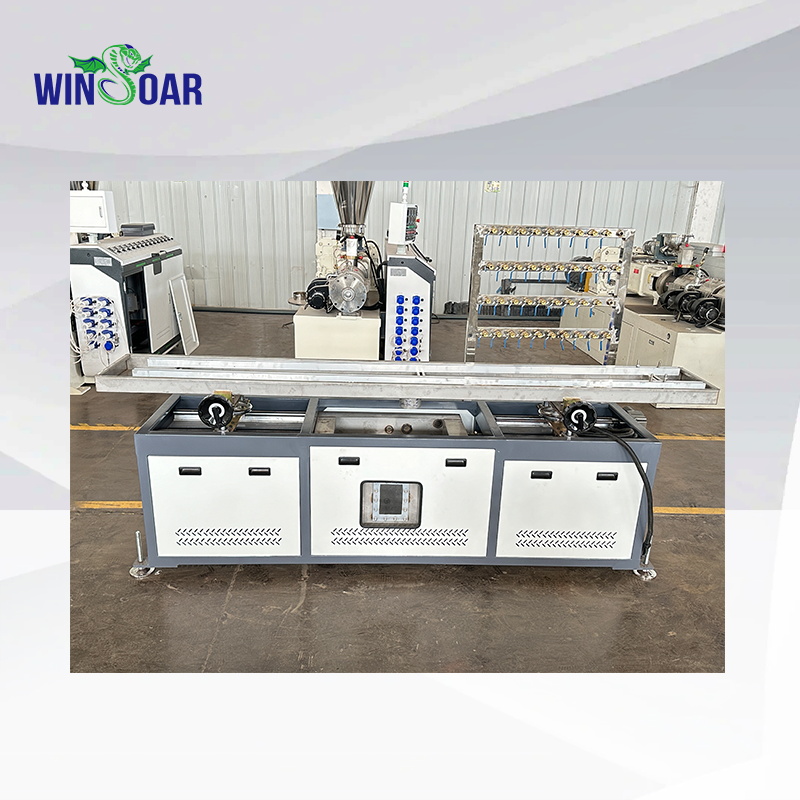

Shaping Table

The shaping table is designed with a stainless-steel water tray, which is not only durable but also easy to clean. It is equipped with a domestic famous-brand vacuum pump.

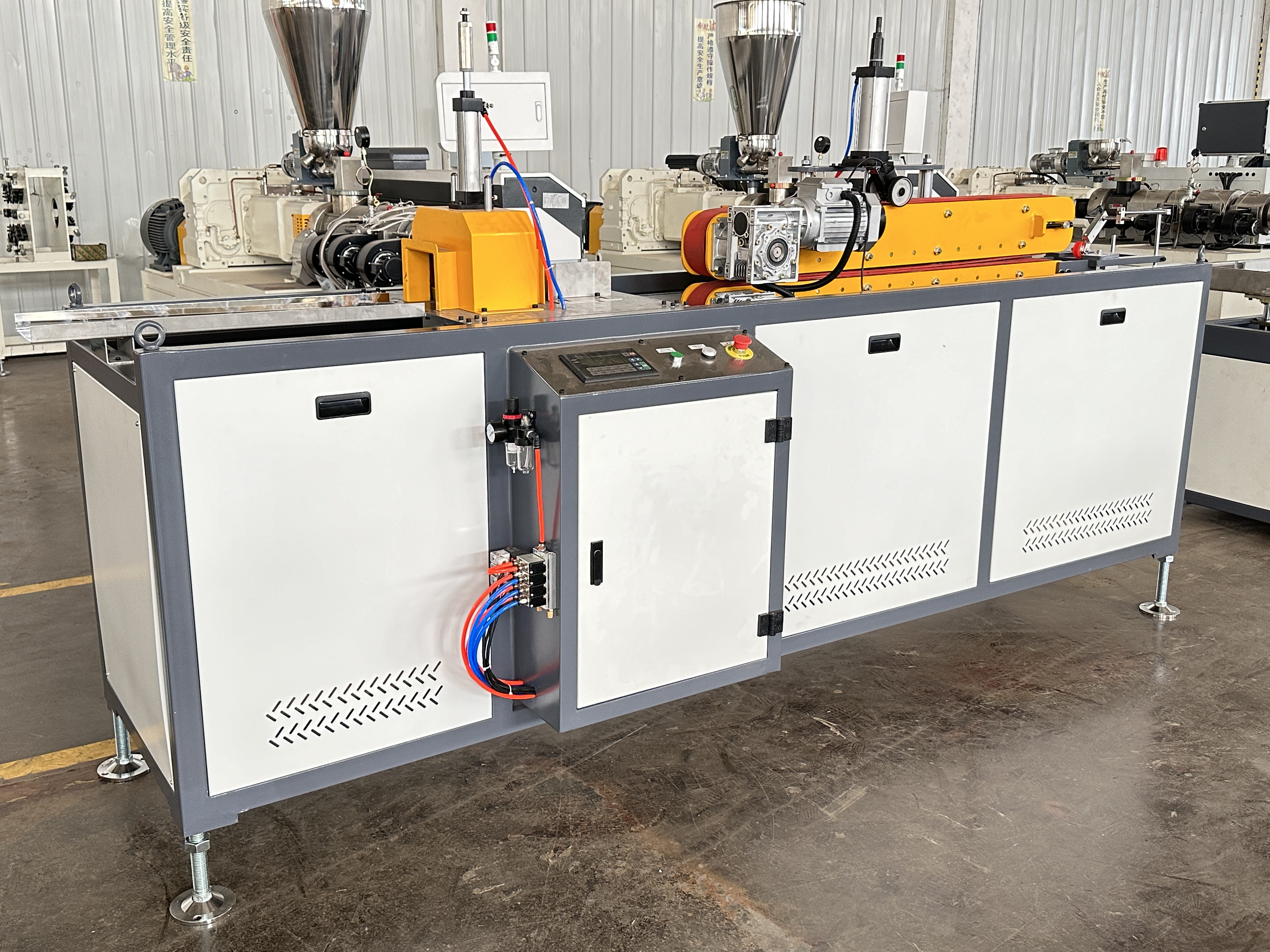

Traction and Cutting Machine

The traction machine uses a belt-traction method. It is driven by a high-torque motor with variable-frequency control, which can achieve smooth and stable traction. The traction speed can be adjusted according to the extrusion speed. It has a convenient lifting mechanism, which can be manually or automatically adjusted, making it easy to load and unload materials and maintain the equipment.

The cutting machine can precisely cut the lamp-shade material according to the set length, ensuring that each cut end is smooth and free of burrs.

Core Advantages

1、Compact Design, Flexible Adaptation

The overall footprint is small, allowing installation without large workshops. It fits production scenarios with limited space and is easy to relocate and debug.

2、Full-Process Automation, Simple Operation

From raw material mixing to finished product cutting, the whole process is automatically controlled. Equipped with a PLC touch screen operating system, parameter setting is intuitive. New operators can get on board after simple training, reducing labor costs.

3、High Stability, High Precision of Finished Products

Adopts a precision screw extruder with a temperature control accuracy of ±1℃. Combined with customized molds, it ensures the surface is smooth without defects.

4、Multi-Specification Compatibility, Strong Customization

Supports changing different molds to produce PVC profiles of various cross-sections, meeting the needs of multiple fields including doors and windows, architectural decoration, and furniture accessories.

5、Energy-Saving and Efficient, Controllable Costs

The motor and heating system adopt energy-saving design, with unit energy consumption 15%-20% lower than traditional equipment. The raw material utilization rate is over 98%, making it suitable for small-batch and multi-batch production.

Application Scenarios

1、Construction Field: PVC door and window frames, sealing strips, decorative lines, ceiling panels

2、Home Furnishing Field: Furniture edge banding, wire troughs, special-shaped accessories

3、Industrial Field: PVC shields, guide rails, small pipes

4、Laboratory/R&D: New material formula testing, small-batch sample production

PVC造粒_10 PVC造粒_11 PVC造粒_12 PVC造粒_13 PVC造粒_14
