High-Efficiency PVC Double-Channel Milk Conveying Pipe Profile Production Line

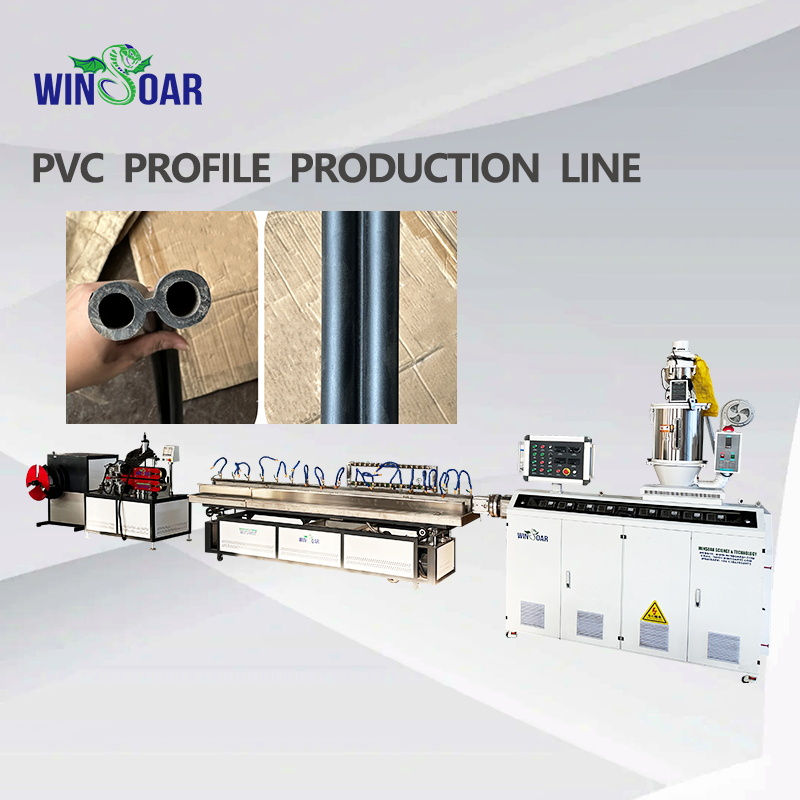

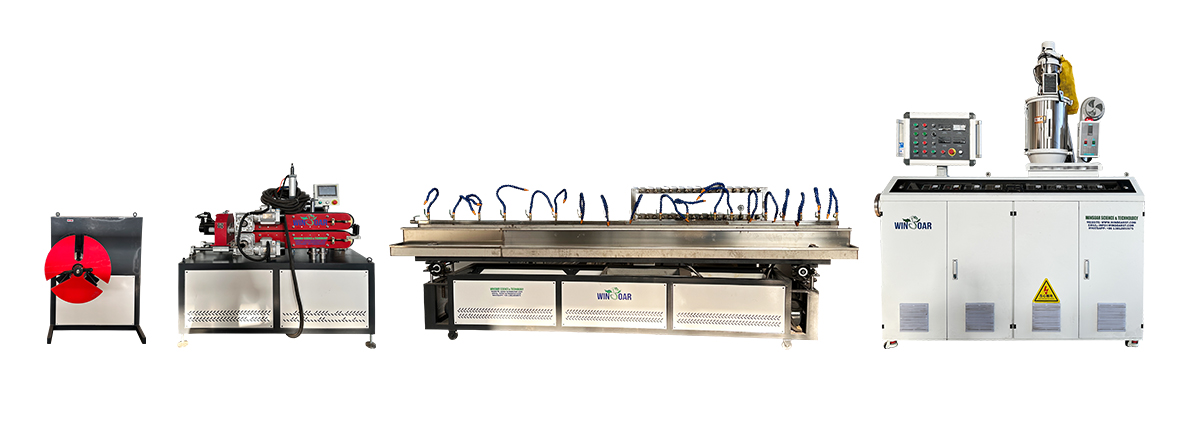

This High-Efficiency PVC Double-Channel Milk Conveying Pipe Profile Production Line is a professional equipment tailored for the food industry, specializing in manufacturing of double-channel PVC milk conveying pipes. It integrates five core components: extruder, double-channel precision mold, high-stability sizing table, traction machine, and intelligent winding machine.

Equipment composition

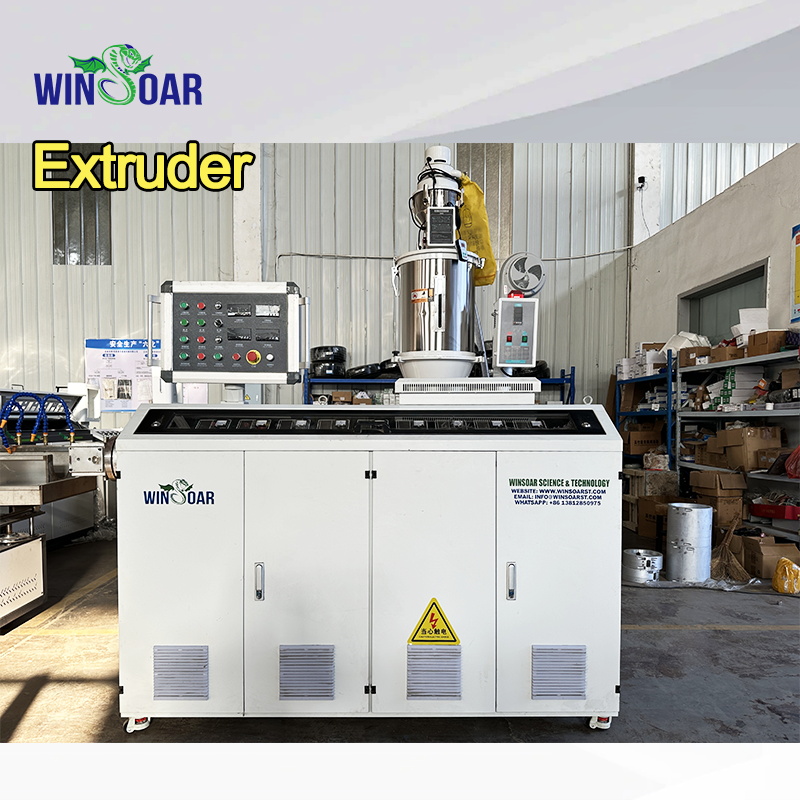

Extruder: Melts food-grade PVC dry blend into uniform viscous melt, then extrudes stably into pipe shape.

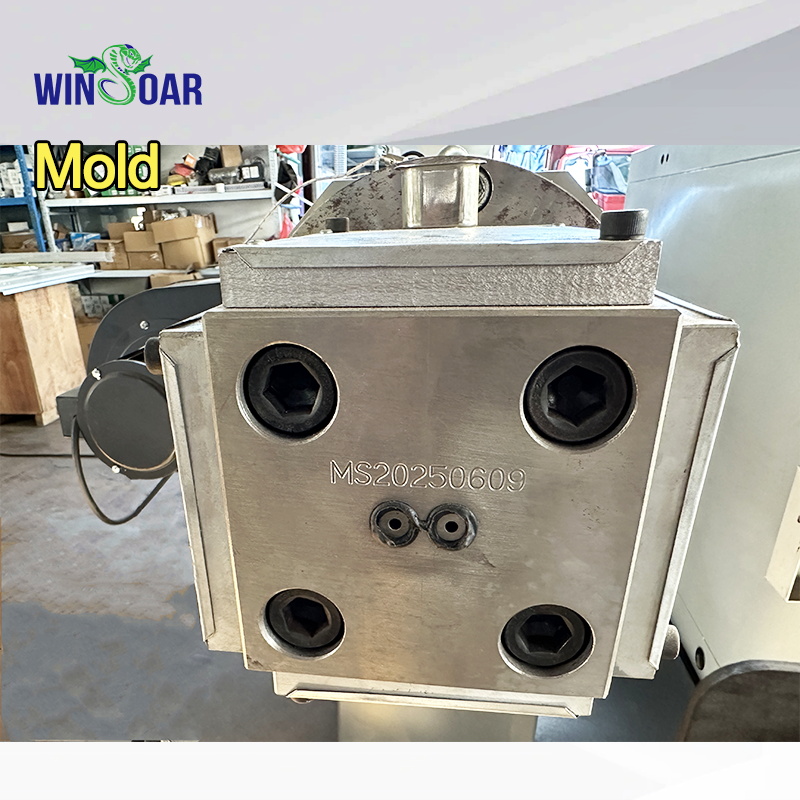

Custom Forming Mold: Control the inner/outer diameter and wall thickness of the pipe, ensure uniform melt distribution, avoid bubbles and scratches, and improve light transmittance.

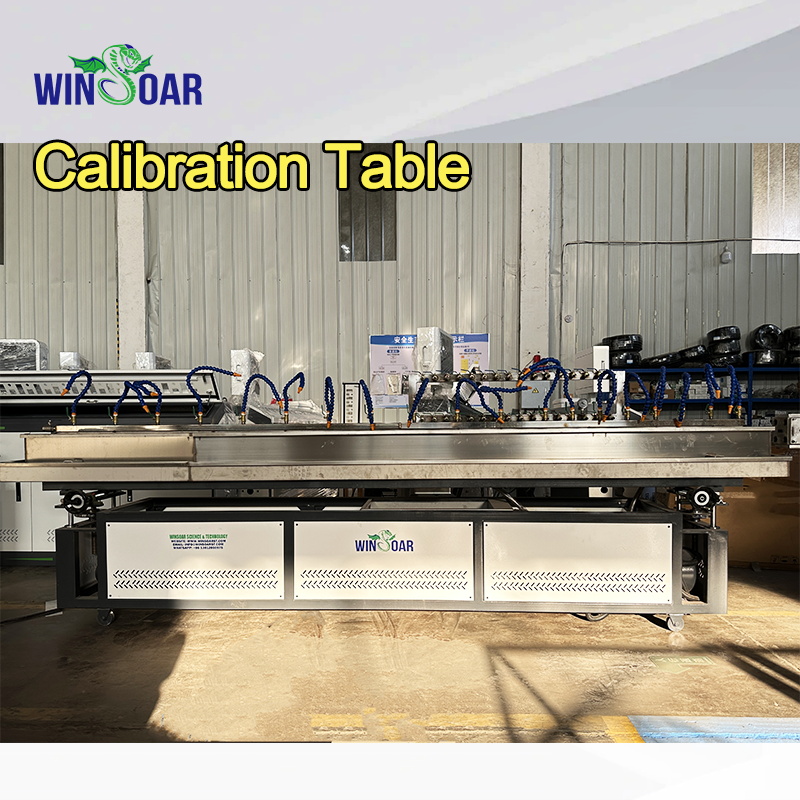

Vacuum Shaping Table: Uses vacuum suction to attach hot pipe to shaping sleeve; cools quickly to fix dimensions, preventing deformation.

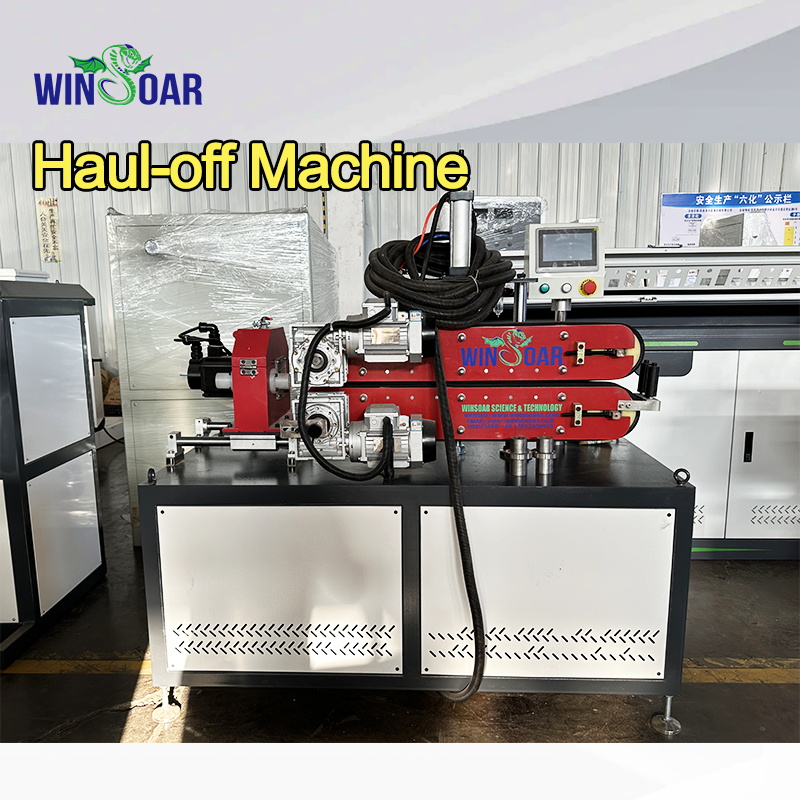

Haul-off Machine: Pulls cooled pipe at constant speed, matching extruder output to keep wall thickness uniform.

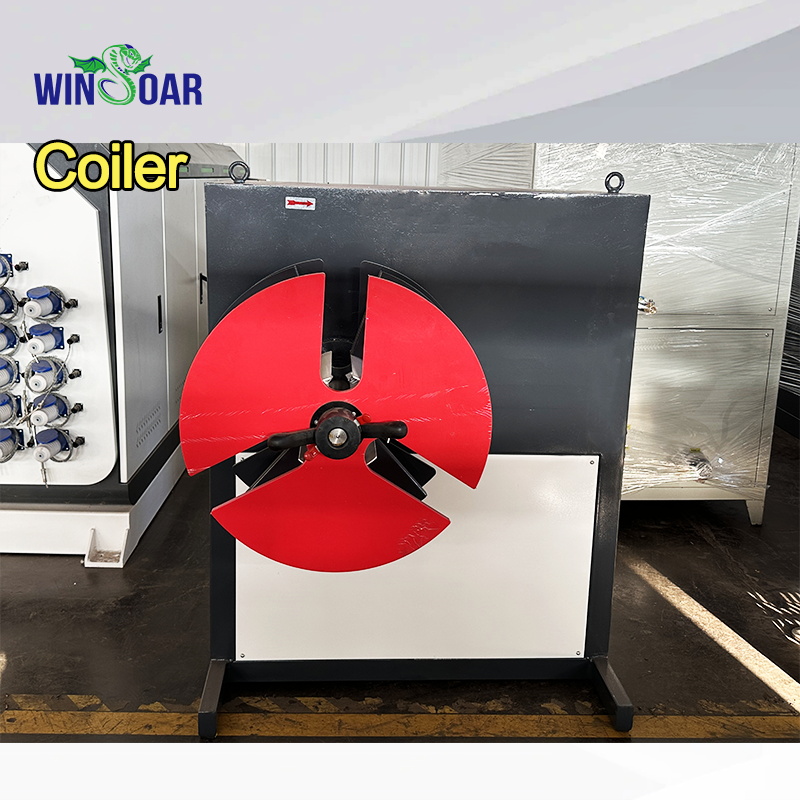

Automatic Winder: Neatly winds finished pipes into rolls; auto-stops when preset length is reached - easy for packaging.

1、Food-Grade Safety: All components in contact with PVC raw materials (such as extruder screw, mold, and the contact surfaces of the forming table) are made of non-toxic and corrosion-resistant materials (304 stainless steel) and are easy to clean.
2、High Transparency & Precision: Special mold design ensures bubble-free, smooth pipe walls; shaping table maintains ±0.2mm diameter tolerance. The light transmittance is extremely high, allowing you to clearly observe the milk flowing inside the tube.
3、Effortless Automation: From plasticizing to winding, one-touch control reduces labor.

1、Dairy Plants:  Transparent pipes for milk/yogurt conveying (low-temperature 2-6ºC or normal temp compatible).

2、Beverage Factories: Juice/water conveying pipes (food-grade & transparent for easy contamination checks).

3、Pipe Manufacturers: A cost-effective solution for small-to-medium enterprises to produce food-grade double-channel PVC pipes, especially beneficial for roll-form product production (no extra cutting machine needed).
