Product Overview

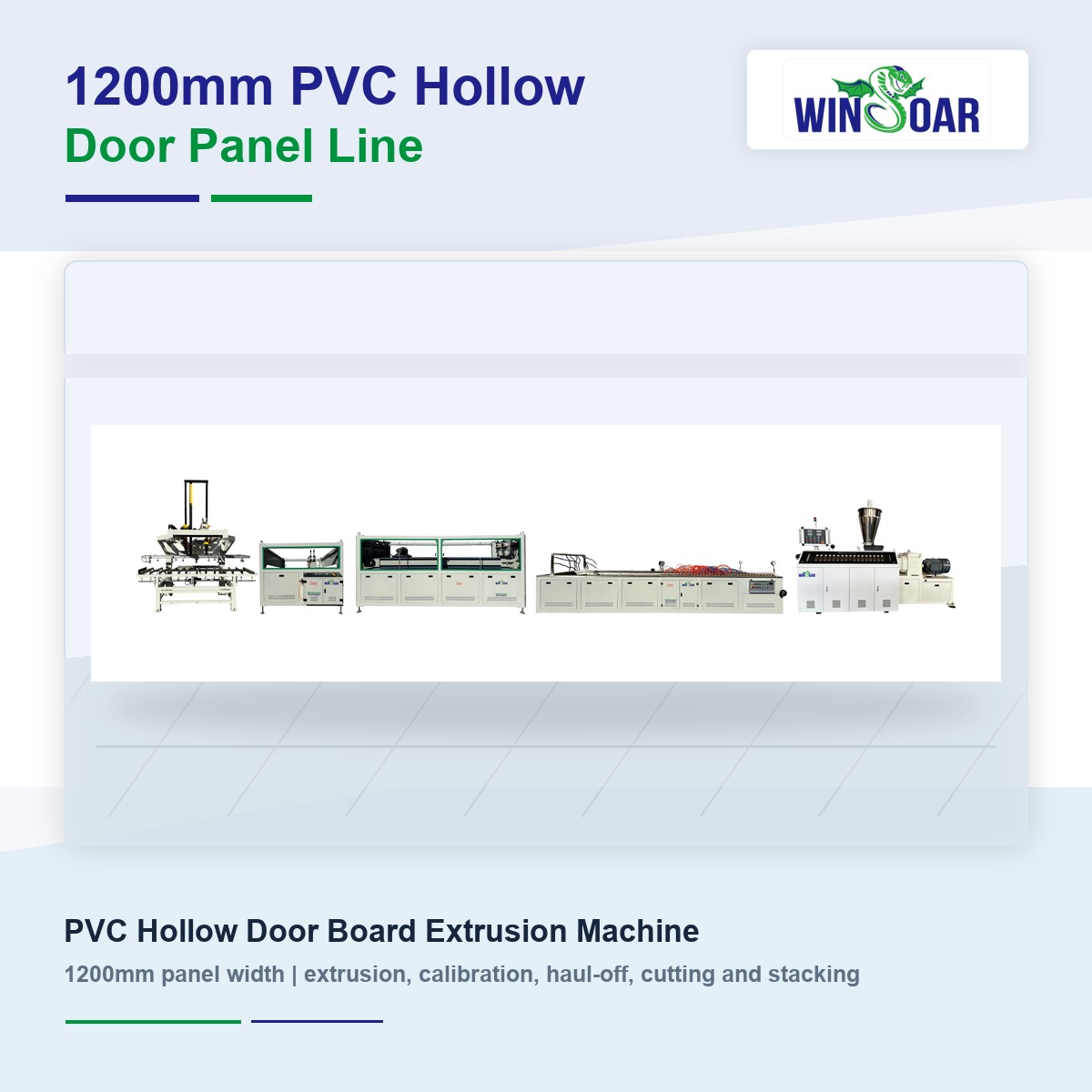

1200mm PVC Hollow Door Panel Production Line is used to produce wide PVC hollow door boards, PVC interior door panels and related plastic hollow board/profile products. It belongs to PVC profile and board extrusion machinery, with the 1200mm size suitable for large door panel applications.
The complete PVC door board extrusion line can include raw material mixing, main extrusion, custom mould, vacuum calibration, hauling, cutting and automatic stacking. Machine selection should be confirmed by the finished door panel width, thickness, hollow chamber design, product weight, PVC formula, output target, voltage and workshop layout.
PVC hollow door panel extrusion is a wide board/profile application. The same engineering logic can be adapted for PVC door boards, PVC wall panels, PVC hollow boards and other plastic profile or board extrusion products by changing mould, calibration tooling and downstream machines.
For related product categories, review Plastic Profile and Board Production Line, Profile Production Line and PVC and WPC Profile Production Line. For this specific equipment, read 1200mm PVC hollow door panel production line process and machine configuration. For broader process reference, see PVC WPC profile extrusion line process and machine configuration.
Related equipment references include Plastic Mixer, Twin Screw Extruder and Conical Twin Screw Extruder, depending on the PVC formula, output and screw structure selected for the project.
Video & Technical Parameters
The video shows the 1200mm PVC hollow door panel production line running at the factory. It helps buyers review the actual equipment layout before confirming mould design, output target and project configuration.
| Item | Reference selection | Project note |
| Product width | Up to 1200mm door panel | Final mould is designed according to door board drawing. |
| Product type | PVC hollow door board / panel | Hollow chamber structure affects mould, cooling and traction. |
| Main extruder | 90kW main extruder | Selected according to formula, product weight and output target. |
| Mould and calibration | PVC hollow door panel mould and vacuum calibration table | Controls panel width, flatness and hollow profile stability. |
| Downstream | Haul-off, cutting machine and automatic stacker | Matched with finished panel length and packing workflow. |
| Auxiliary equipment | Mixer, loader, crusher or other auxiliary machines | Configured according to raw material preparation and factory operation. |
Please send the door panel drawing or sample photo, panel width and thickness, hollow chamber design, PVC formula, expected output, cutting length, voltage, workshop layout and delivery destination. These details help Winsoar recommend the extruder, mould, cooling length, downstream machines and auxiliary equipment.
Machine Configuration

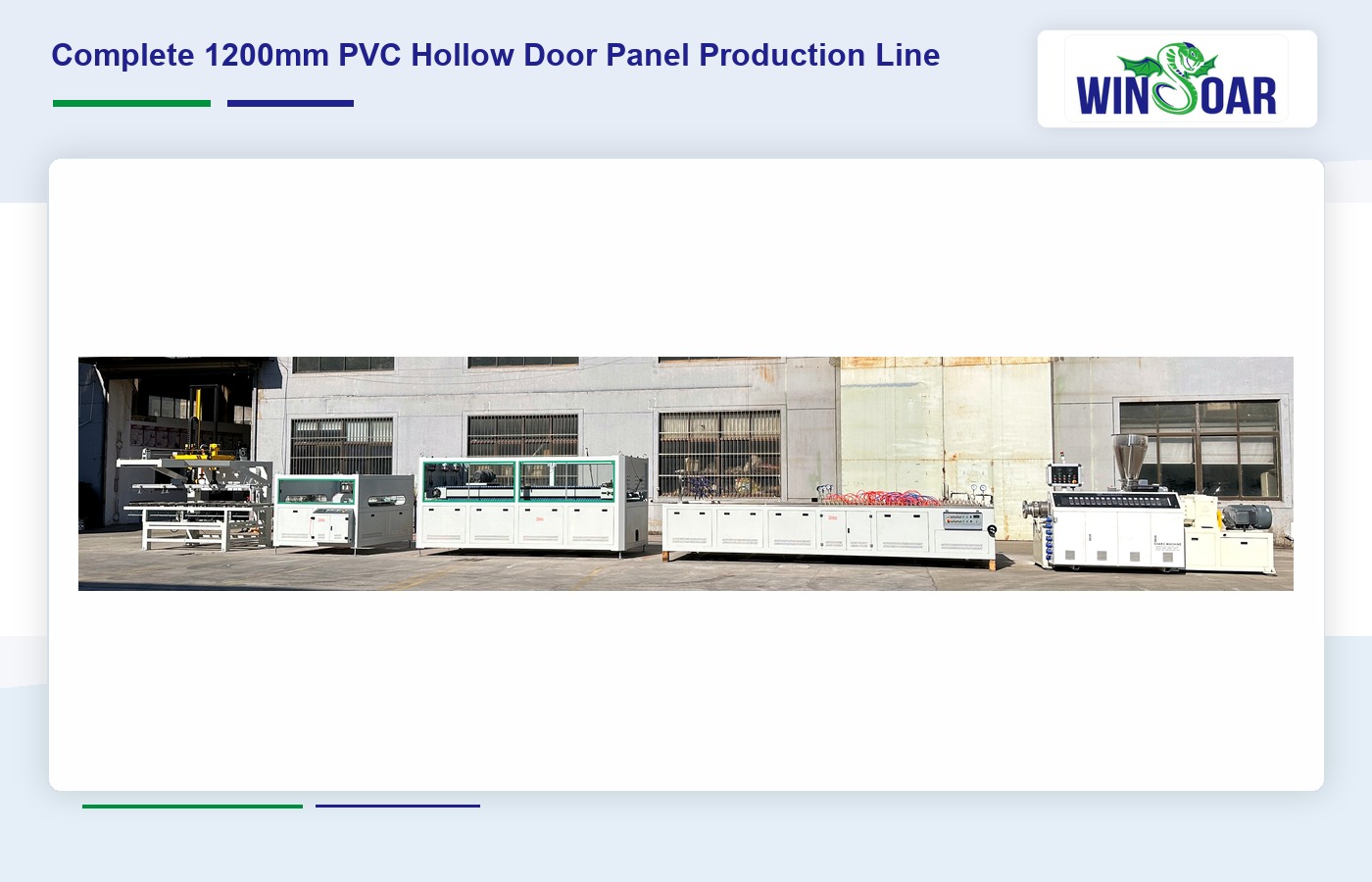

A stable PVC hollow door panel machine must support PVC material preparation, melt plasticizing, wide hollow profile moulding, vacuum shaping, traction, accurate cutting and finished panel collection. The following sections show the main equipment units used in this 1200mm project.

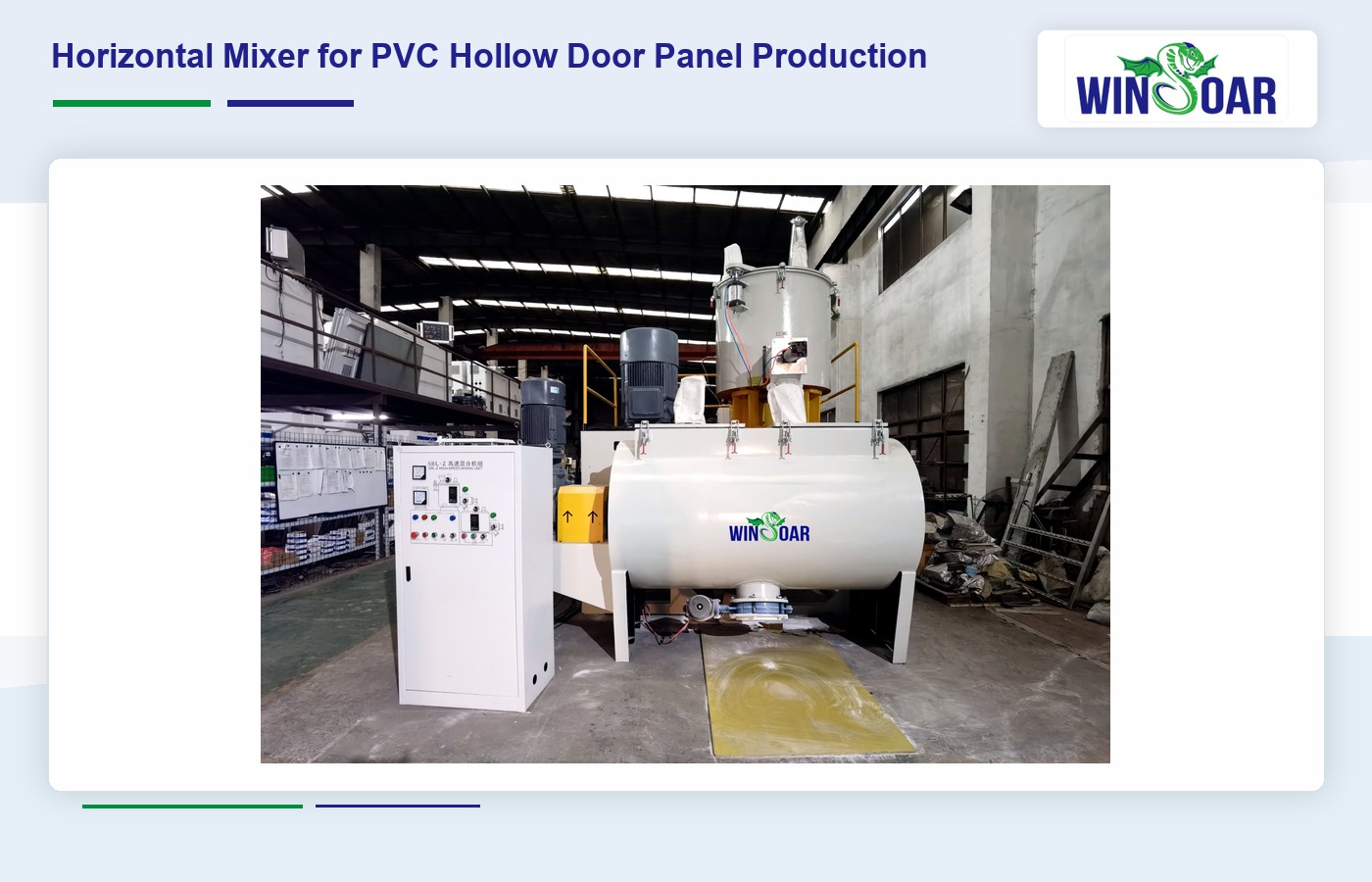

The horizontal mixer prepares PVC powder, calcium carbonate, stabilizer and other additives before extrusion. Uniform mixing helps maintain plasticizing stability, panel surface quality and consistent production.

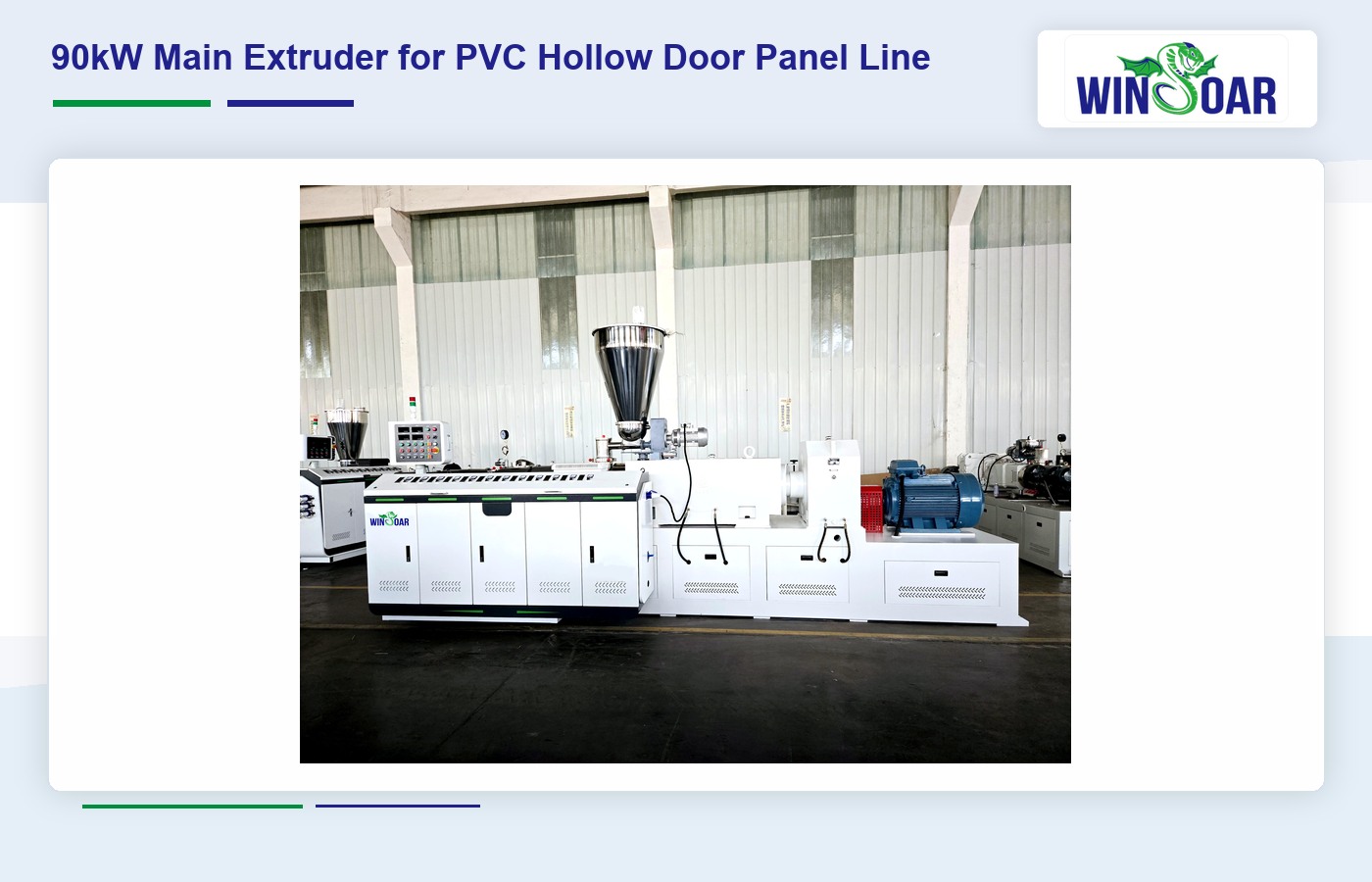

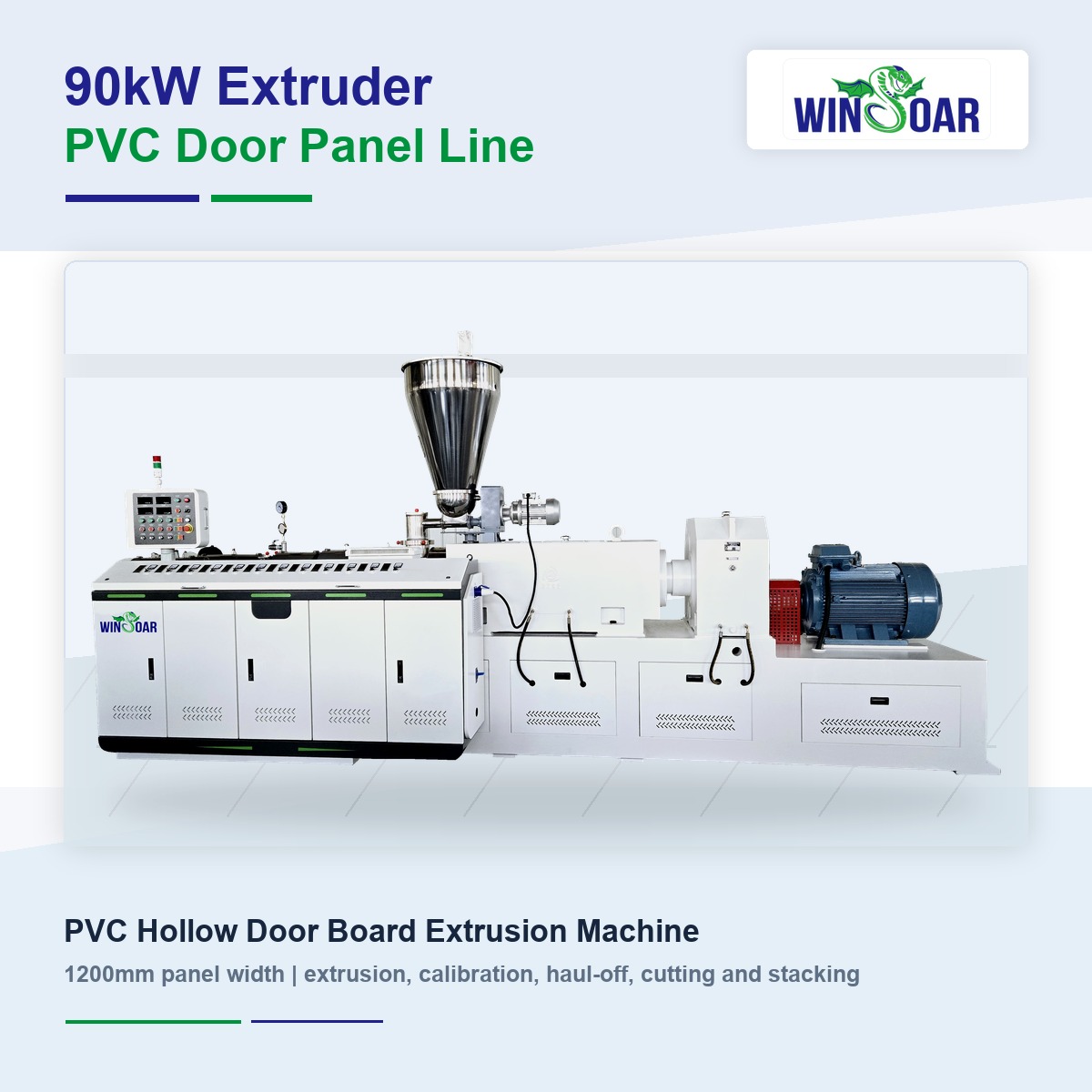

The 90kW main extruder plasticizes the PVC material and provides stable melt pressure for the wide hollow door panel mould. Screw structure and temperature control should match the PVC formula and production target.

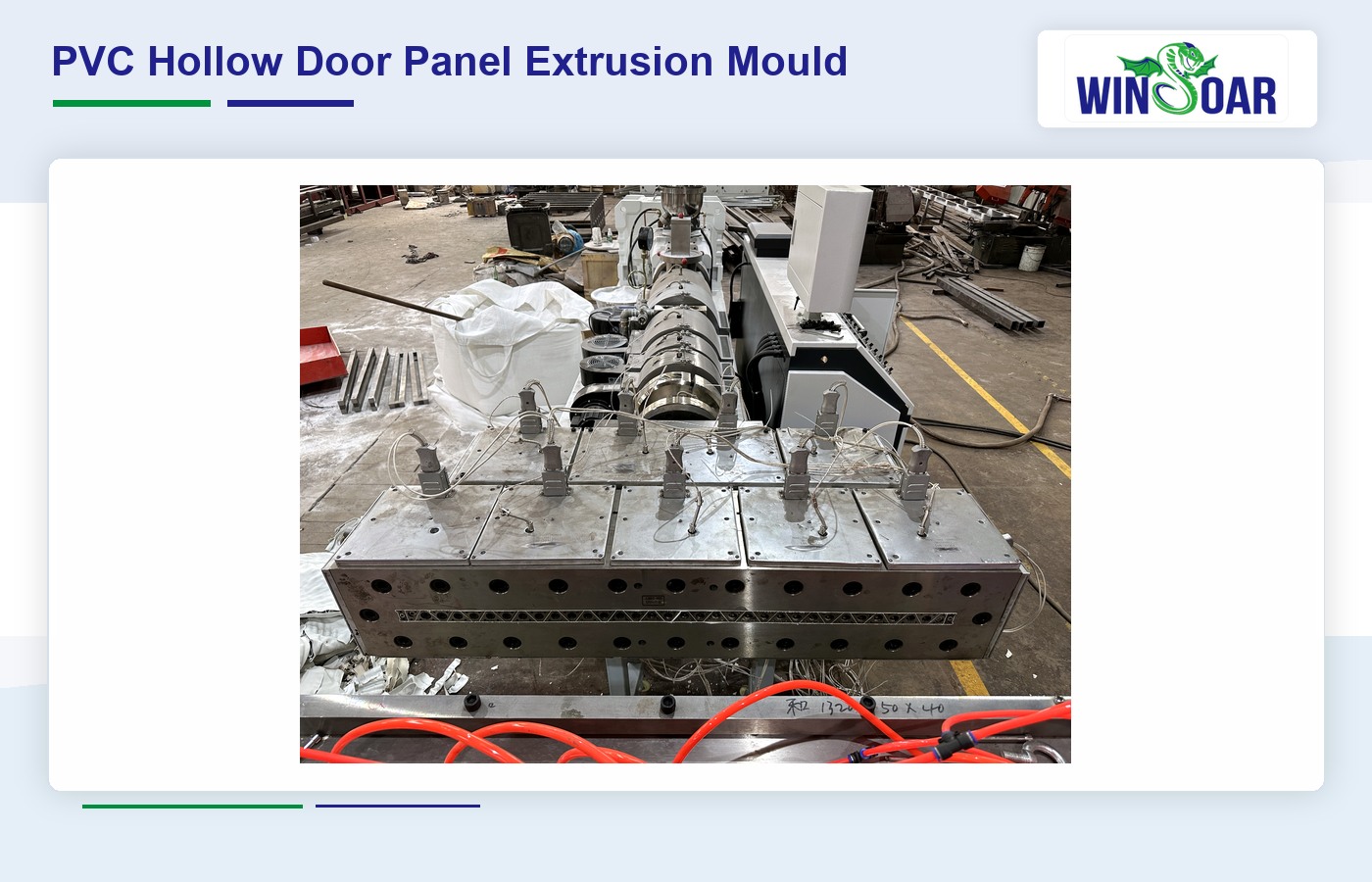

The extrusion mould forms the door panel width, hollow chamber, rib structure and surface profile. Mould design is customized according to the buyer's door panel drawing and target application.

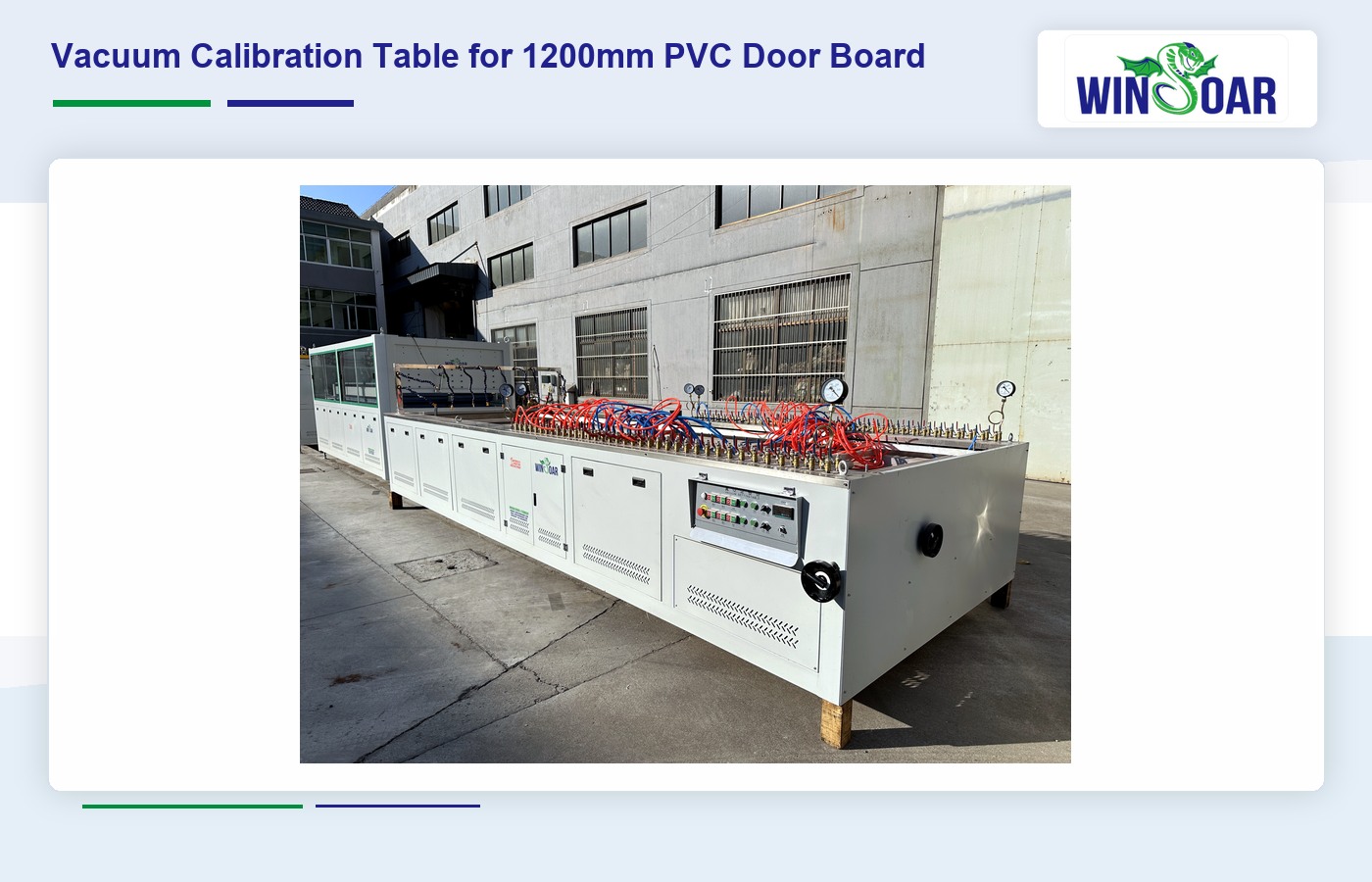

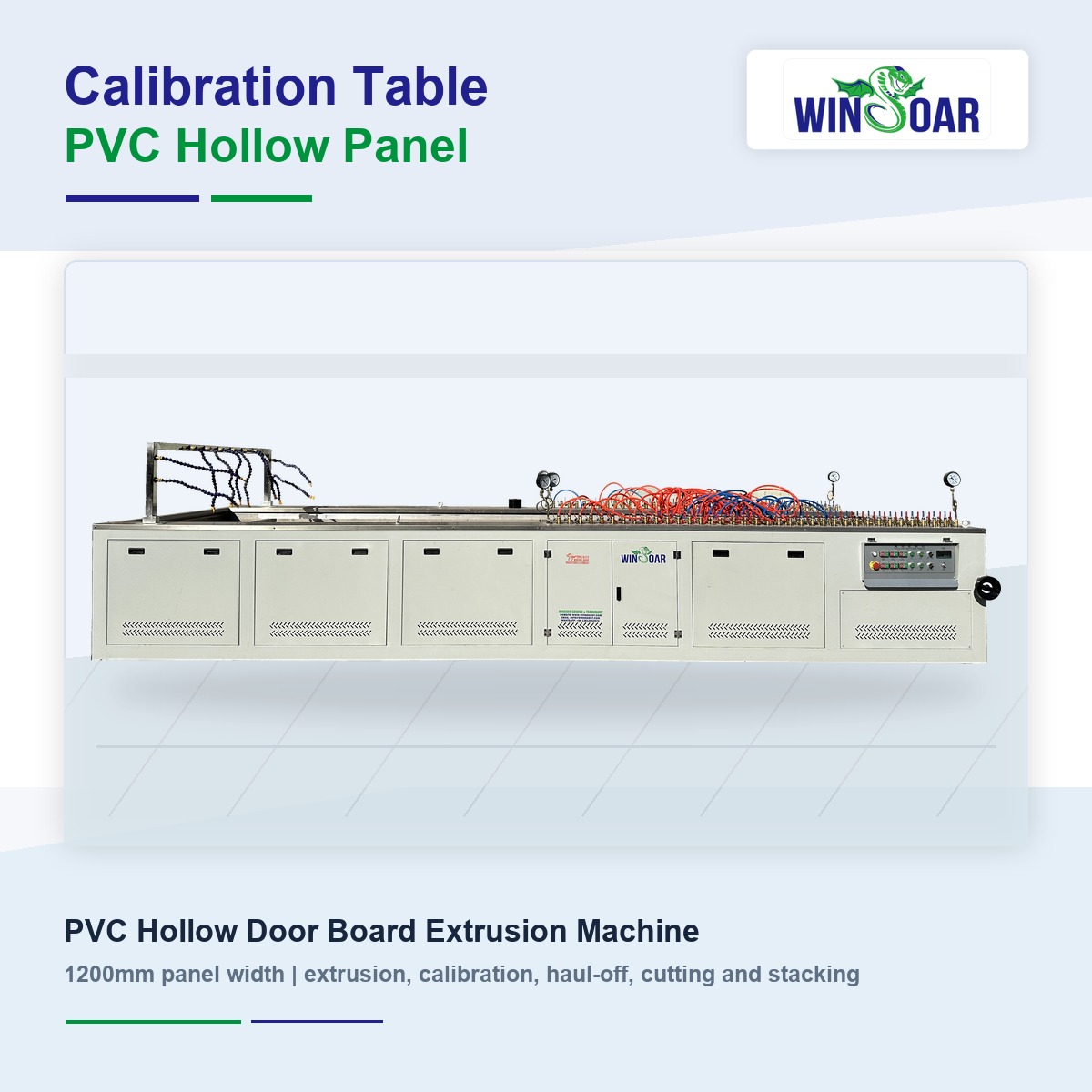

The vacuum calibration table stabilizes the wide PVC door board after extrusion. Proper cooling and vacuum shaping are important for panel flatness, dimension control and continuous downstream operation.

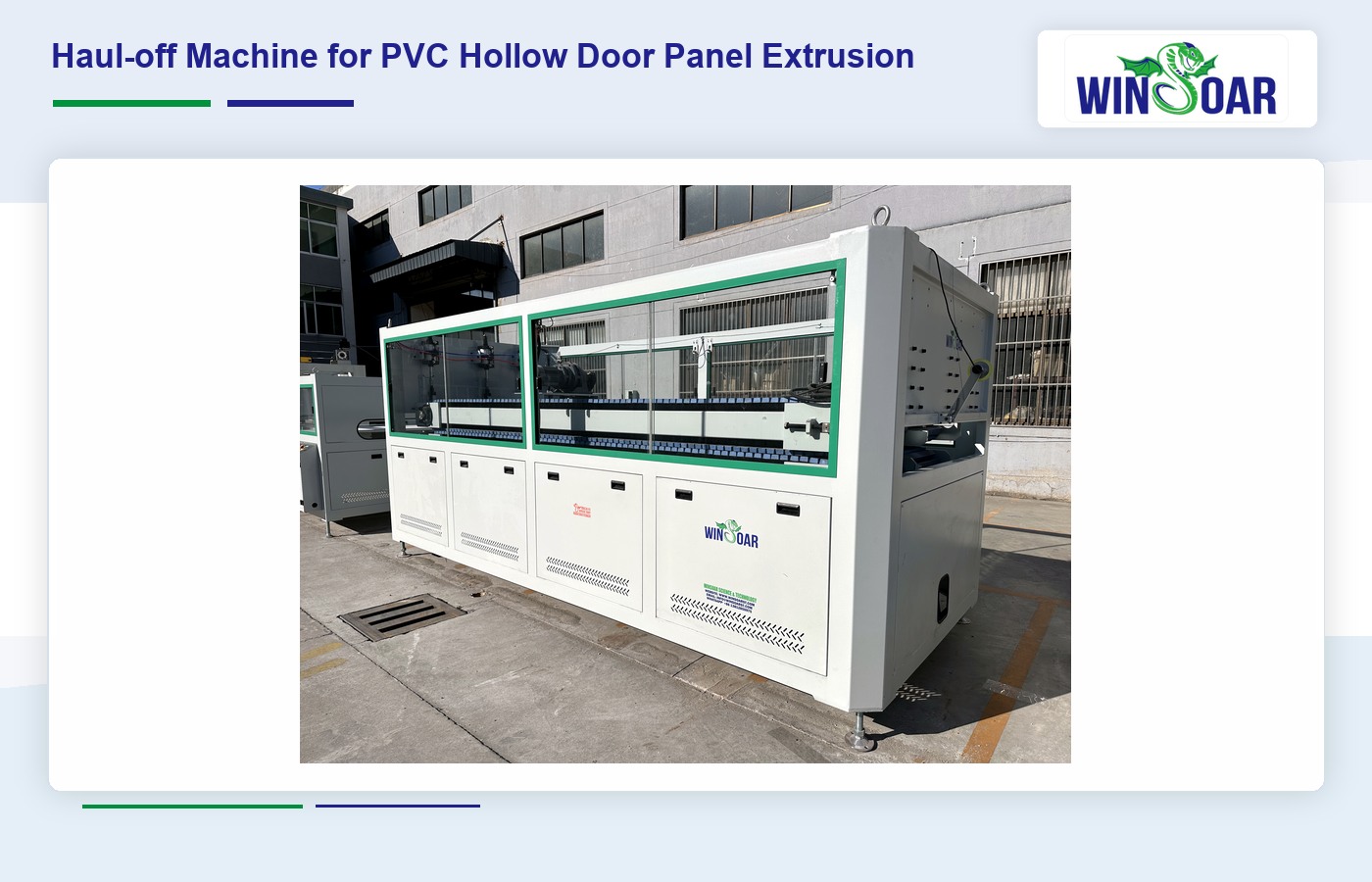

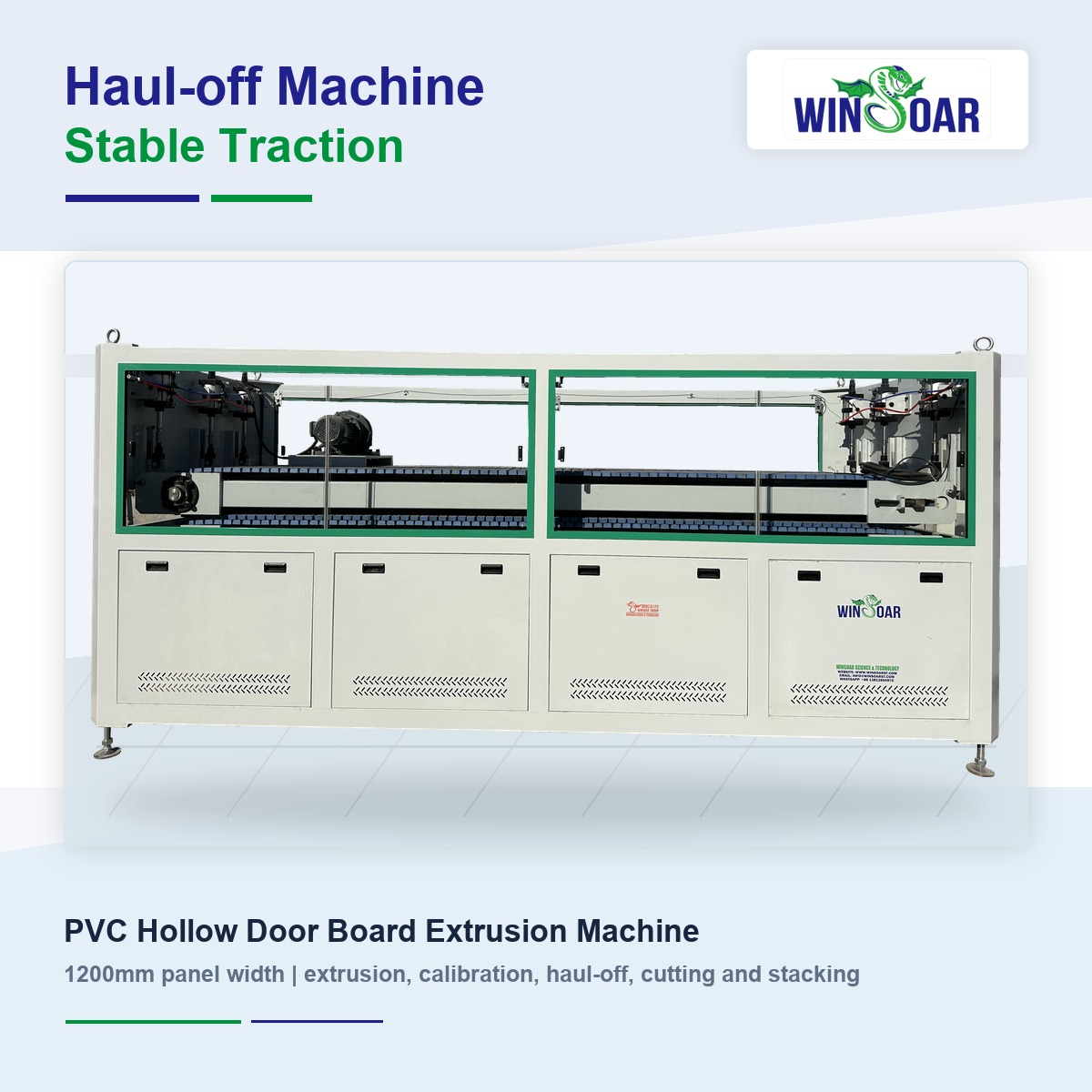

The haul-off machine pulls the calibrated PVC hollow door panel at a steady speed. Stable traction protects the hollow structure and keeps the board moving smoothly into the cutter.

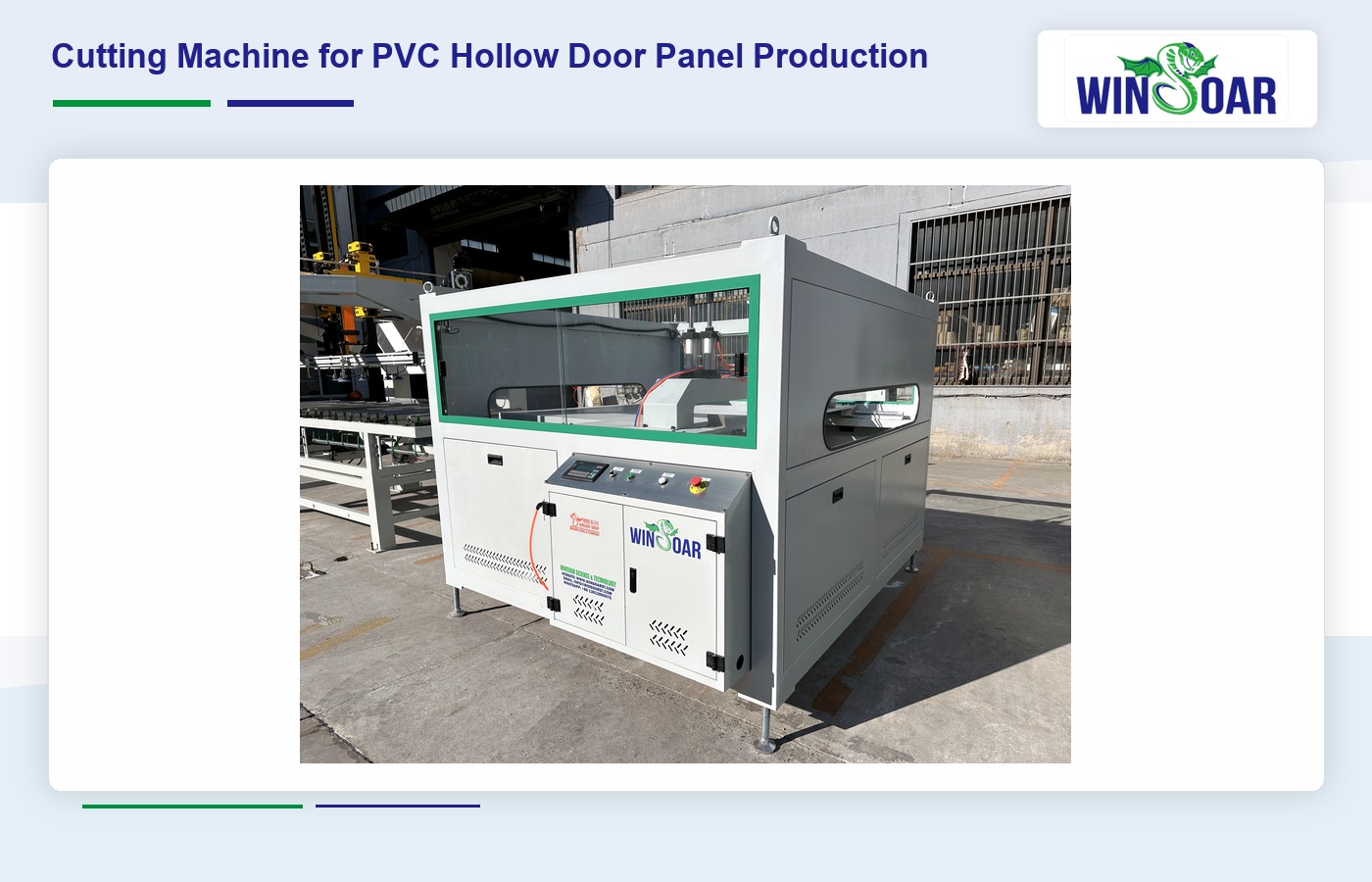

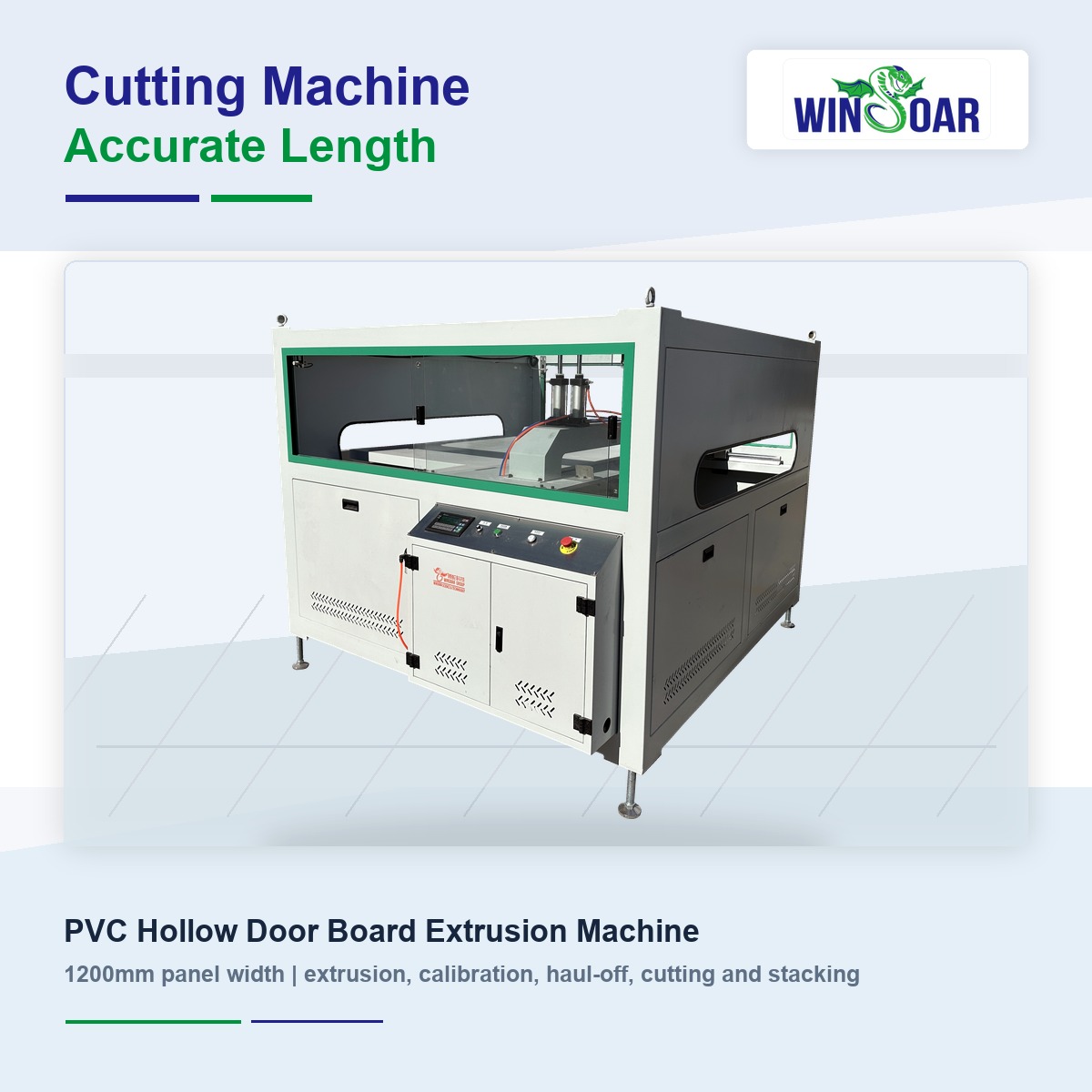

The cutting machine cuts PVC hollow door panels to the required length after hauling. Cutting accuracy should match finished door panel size, packing requirement and downstream handling.

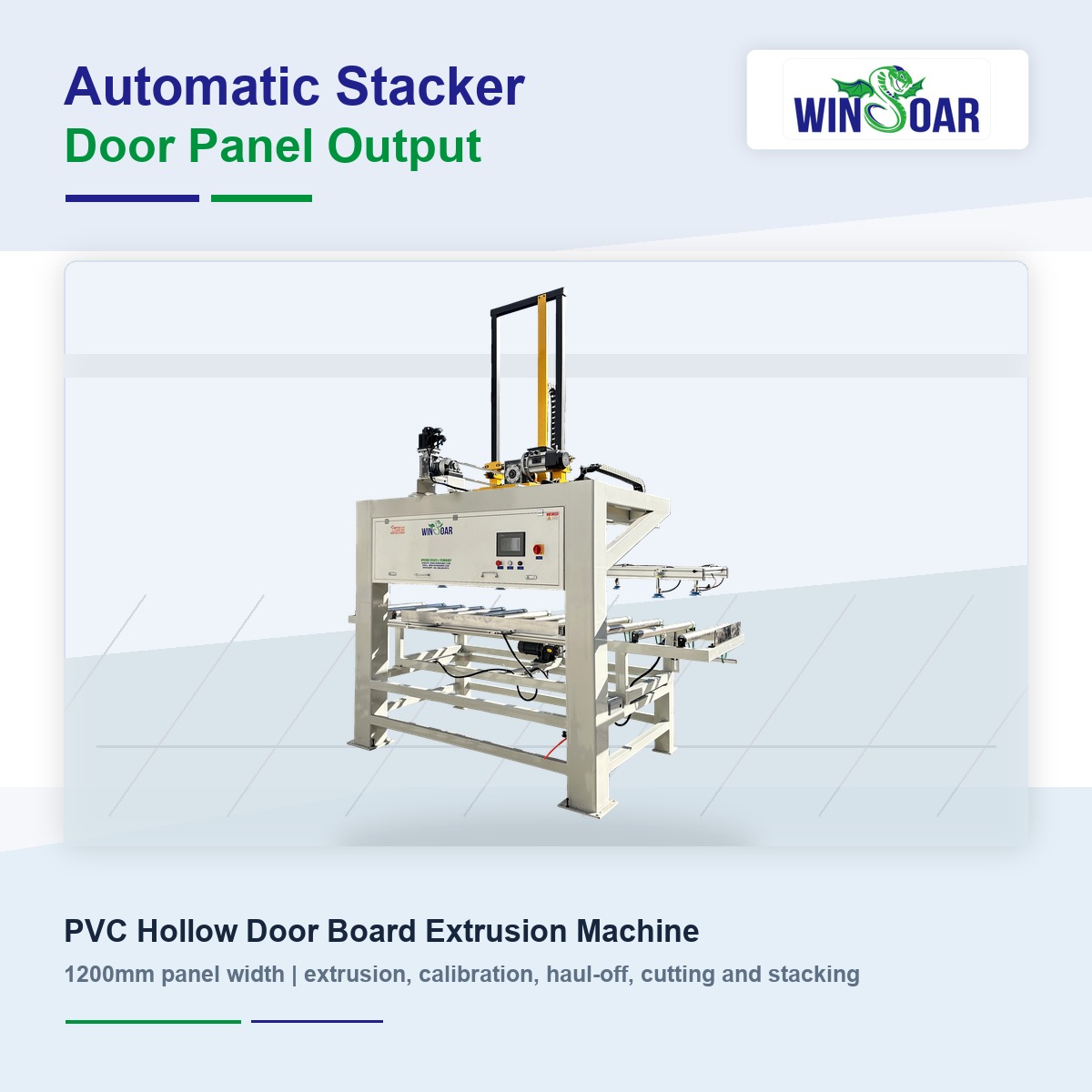

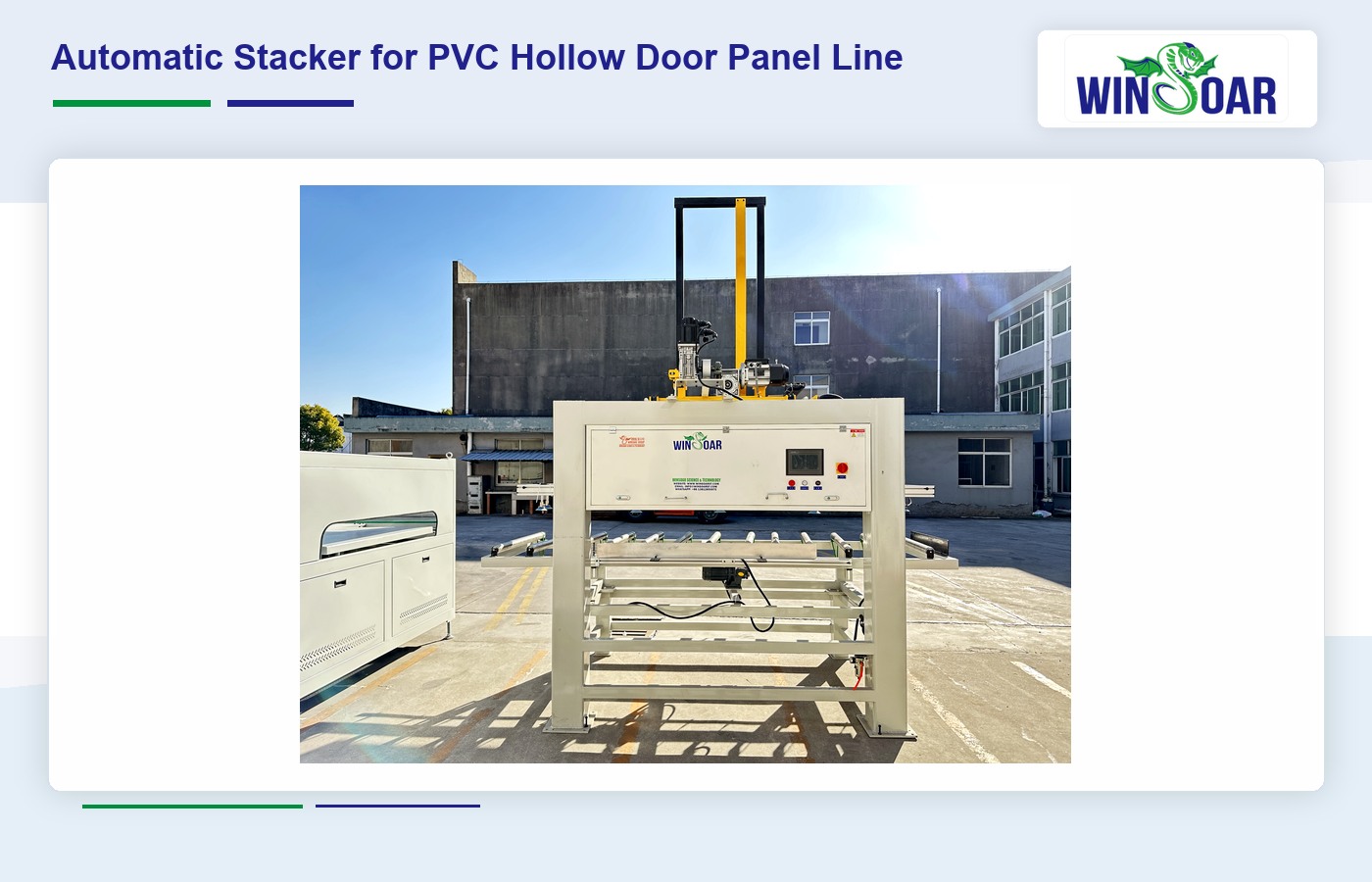

The automatic stacker receives finished PVC hollow door panels after cutting and keeps the output area organized before packing. The stacker layout should be confirmed by panel length, weight and factory space.
Send Winsoar your PVC door board drawing, panel width and thickness, hollow chamber structure, PVC formula, target output, cutting length, voltage and workshop layout. We will recommend the suitable PVC hollow door panel production line configuration, including mixer, 90kW main extruder, mould, vacuum calibration table, haul-off machine, cutter, automatic stacker and auxiliary machines. Contact Winsoar for quotation.
Factory & Delivery Support
Winsoar supports PVC hollow door panel production line projects from product drawing review and machine configuration to factory assembly, export packaging, container loading and customer communication. This section helps overseas buyers evaluate supplier capability beyond the machine photos.
PVC hollow door panel machinery is assembled and checked in Winsoar's extrusion machine workshop. Project layout, machine section length, downstream configuration and auxiliary equipment are reviewed before delivery.
Extruder body, electrical control, mould-related equipment and downstream sections are checked during assembly. This helps reduce installation risk after the PVC hollow door panel line arrives at the buyer's factory.
Winsoar prepares protective export packaging according to machine size, transport distance and unloading conditions. Moulds, electrical parts and accessories are packed separately when required.
The loading sequence is arranged according to the length and weight of the PVC hollow door panel extrusion line. Machine sections, moulds, electrical cabinets and auxiliary equipment are grouped for easier unloading and installation.
At exhibitions, Winsoar discusses profile drawings, door panel samples, PVC formulas, output targets and factory layouts with customers. This is useful when buyers need to compare PVC hollow door panels, PVC wall panels and other plastic profile or board applications before quotation.
For a complete 1200mm PVC hollow door panel production line proposal, send the panel drawing, PVC formula, target output, finished panel length, voltage, workshop layout and delivery destination. Contact Winsoar for machine configuration and quotation.
FAQ
Send the door panel drawing or sample photo, panel width and thickness, hollow chamber design, PVC formula, expected output, finished length, voltage, workshop layout and delivery destination.
Yes. The mould, calibration table, hauling speed, cutting length and stacker layout can be customized according to the finished panel width, thickness, hollow structure and factory space.
A complete line normally includes mixing, main extrusion, hollow door panel mould, vacuum calibration table, haul-off machine, cutting machine and automatic stacker, with auxiliary equipment added according to project needs.
Yes. Winsoar can review the line layout, prepare export packaging, support container loading and discuss the project at the factory or exhibition before quotation.
