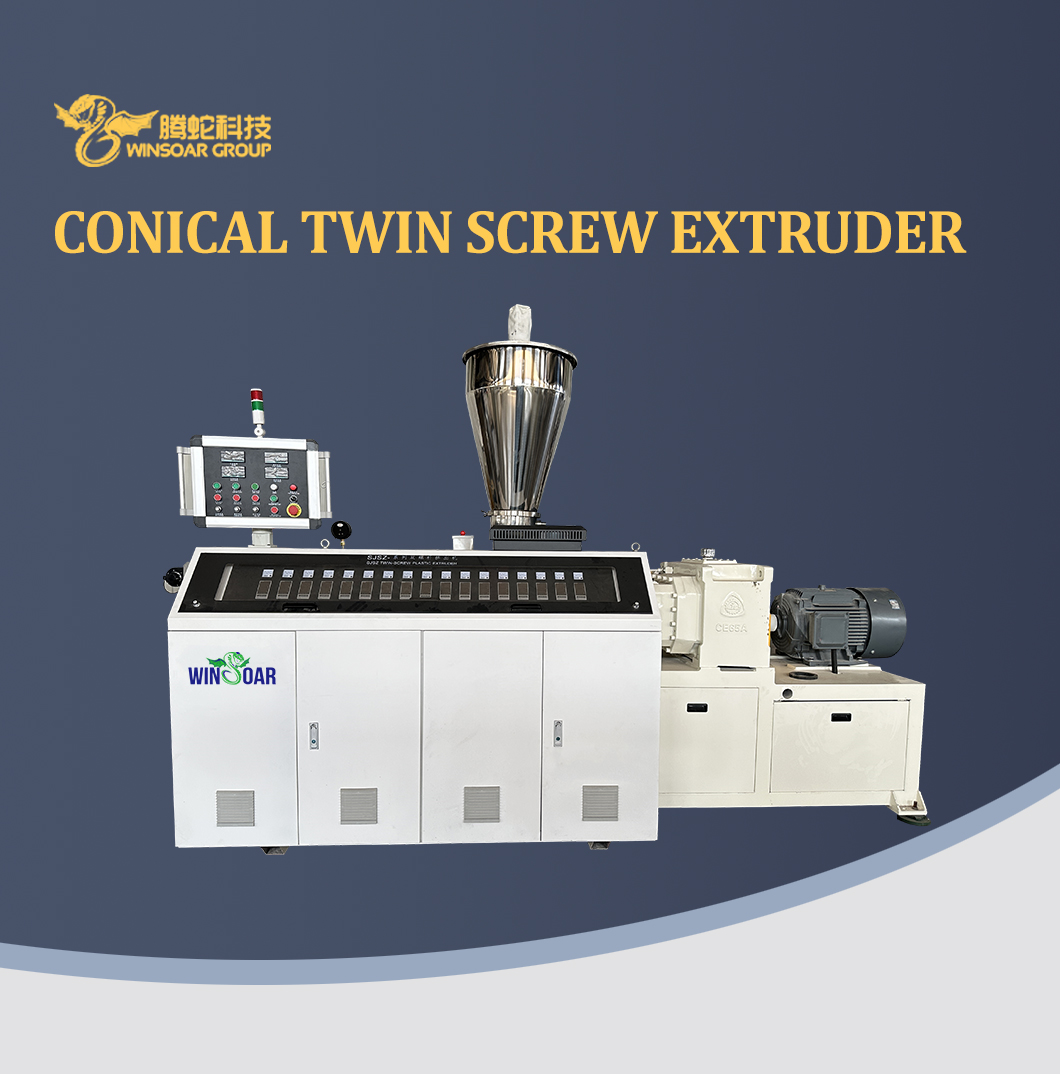

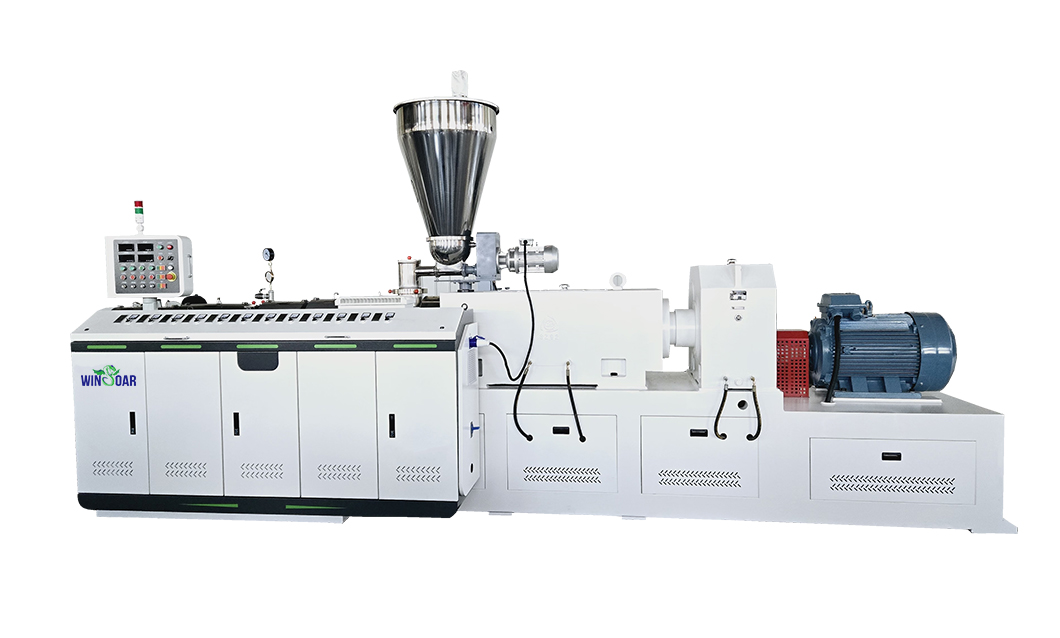

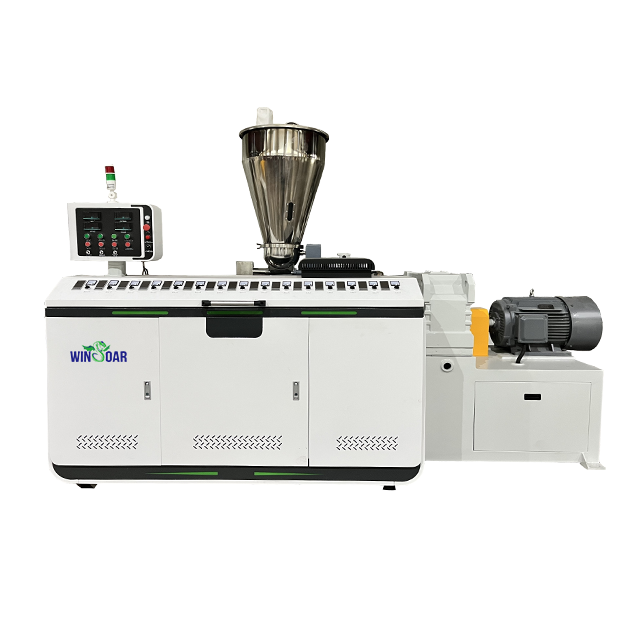

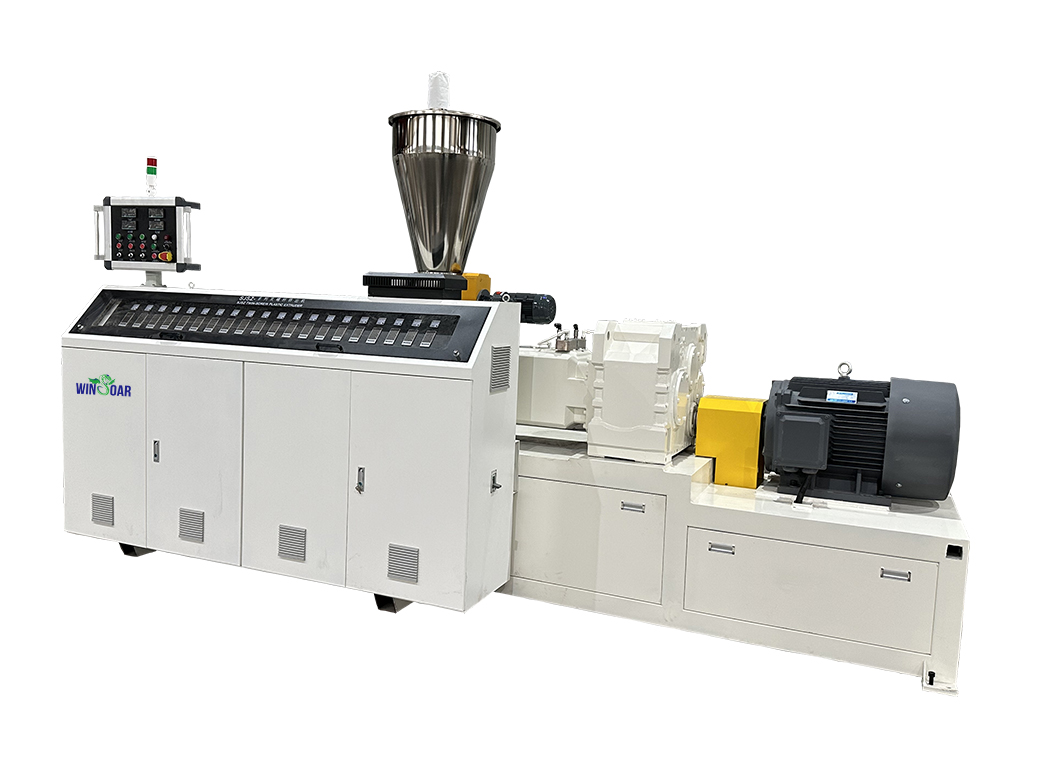

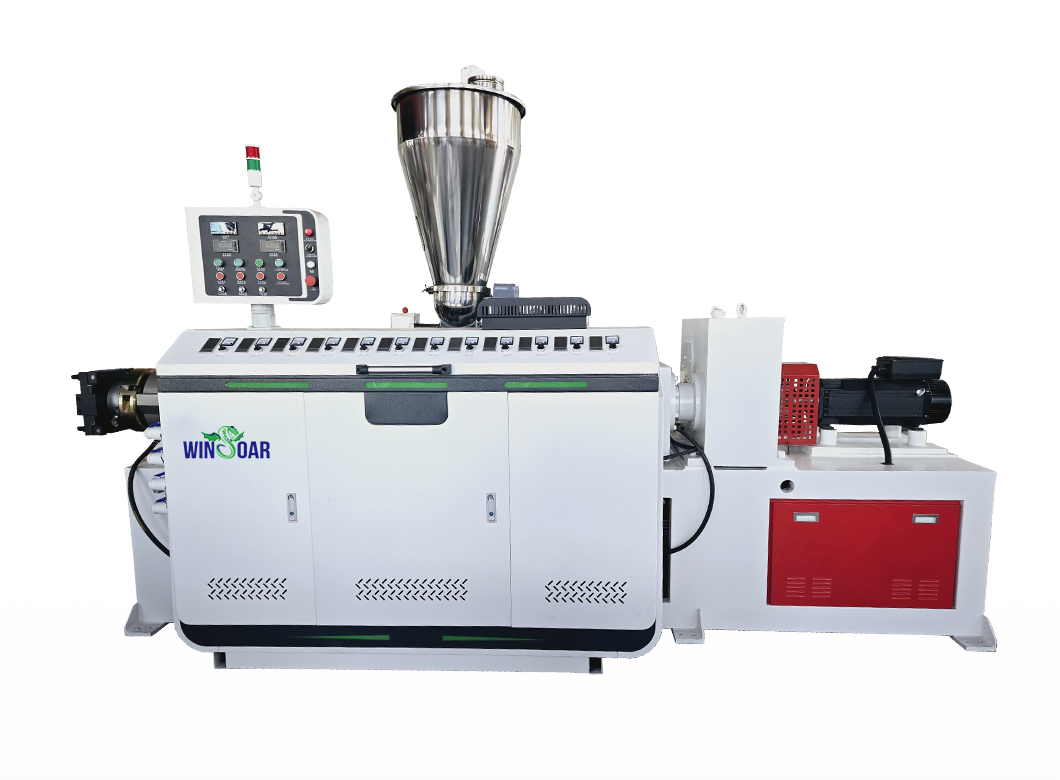

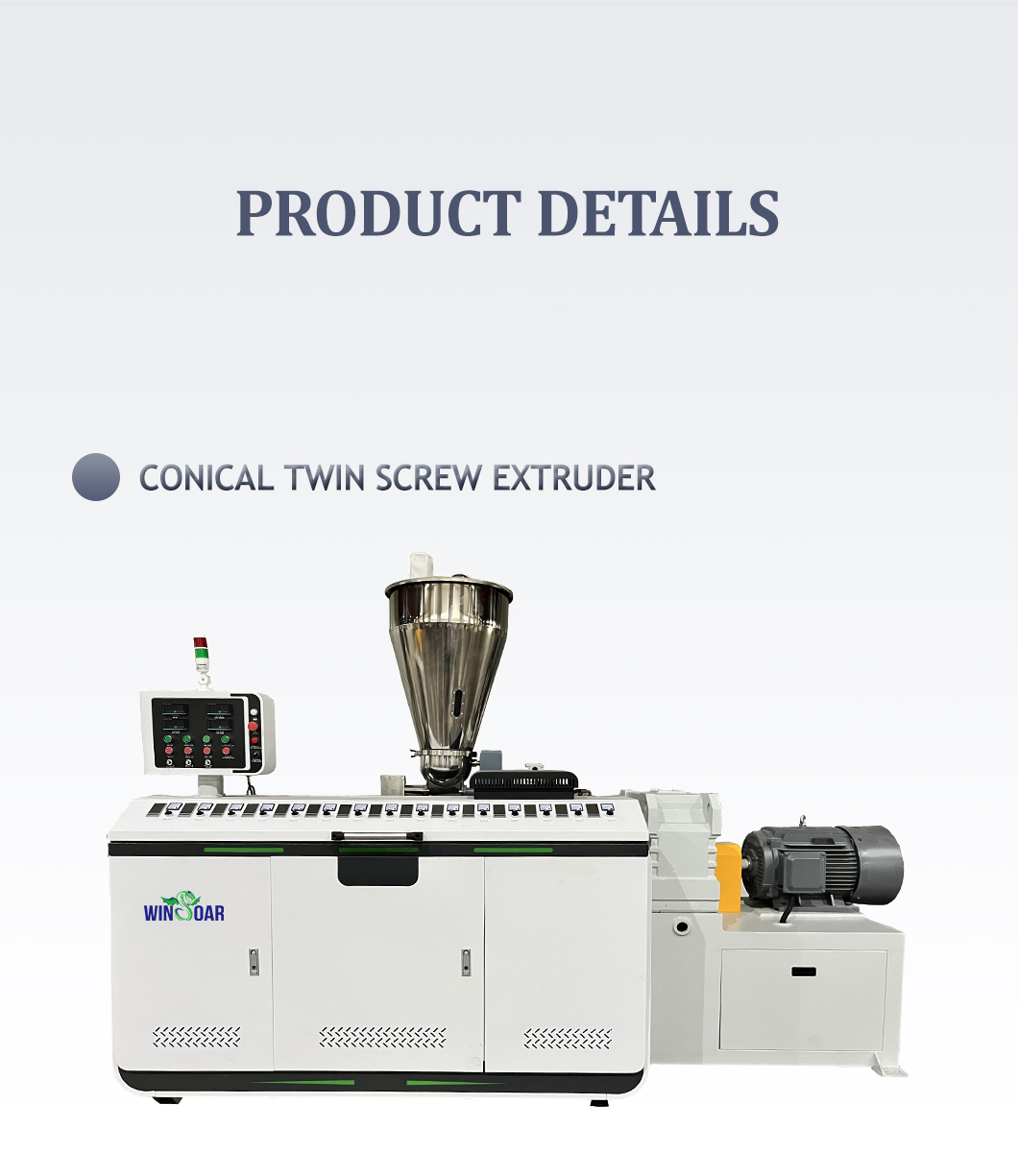

Conical Twin Screw Extruder

5 0 Reviews

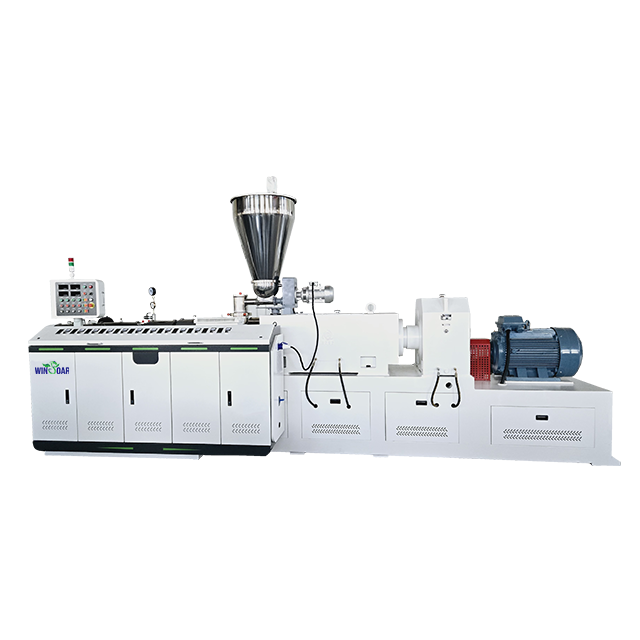

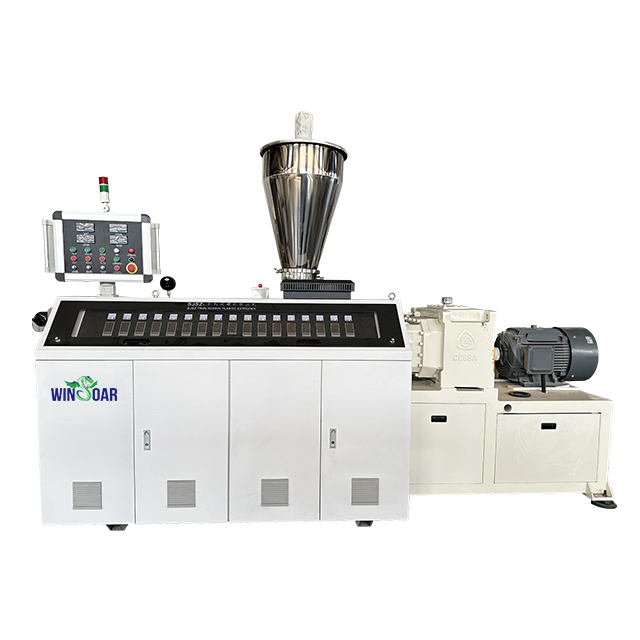

Model SJZ series twin conical screws extruder is a kind of special equipment for extruding of PVC powder. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation.
Availability:
Quantity:

Main Description

Model SJZ series twin conical screws extruder is a kind of special equipment for extruding of PVC powder. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation.

The screw has applied oil cooling system. Barrel is cooled by special wind cooling system. The system has applied special computer control. According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality. The screw is made by high precision special digital screw miller, extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut. The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure. The electrical system has mainly applied imported parts, it has multiple alarm system, there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be ±1℃.



Main Technical Parameter

Model

SJZ45/90

SJZ51/105

SJZ55/110

SJZ65/132

SJZ80/156

SJZ92/188

Power of drive motor
(kw)

15

18.5

22

37

55

110

Screw diameter
(mm)

Φ45/Φ90

Φ51/Φ105

Φ55/Φ110

Φ65/Φ132

Φ80/Φ156

Φ92/Φ188

No.of screw

2

2

2

2

2

2

Rotational speed

45

40

38

38

37

36

Torsional moment of

screw (Nm)

3148

6000

7000

10000

14000

32000

Capacity(kg/h)

70

100

150

250

400

750

Central height

1000

1000

1000

1000

1100

1200

Dimentions

3360x1290x2127

3360x1290x2127

3620x1050x2157

3715x1520x2450

4750x1550x2460

67250x1550x2814
