This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
Characteristics extruder plastic machine:
Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h· Diameter: from 16 to 800mm
Adopts reasonable design, absorbing safe producing technology, acquiring CE & ISO certificate
Features
1. The optimum spiral bush highly improves the output of the pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high-quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of an extruder
6. Advanced PLC operation system realizes synchronization and high-quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer a stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
It adopts PLC control system and HMI for whole extrusion line, synchronization function as well as
Main Technical Parameter
33D Series Classical Production Line：
Production Line | Diameter Range（mm） | Extruder Type | Max. Capacity （kg/h） | Max. Haul Off Speed（m/min） | Extrusion Power（kw） |
WS-63 I | Ф 20-63 | SJ65/33 | 220 | 12 | 55 |
WS-110 I | Ф 20-110 | SJ65/33 | 220 | 12 | 55 |
WS-160 I | Ф 50-160 | SJ75/33 | 400 | 10 | 110 |
WS-250 I | Ф 90-250 | SJ90/33 | 400 | 6 | 110 |
WS-450 I | Ф 160-450 | SJ120/33 | 500 | 4 | 160 |
WS-630 I | Ф 400-630 | SJ120/33 | 850 | 2 | 280 |
WS-800 II | Ф 500-800 | SJ120/33 | 850 | 2 | 280 |
WS-630 I | Ф 315-630 | SJ120/33 | 850 | 2 | 355 |
WS-800 I | Ф 500-800 | SJ150/33 | 1100 | 1 | 400 |
38D Series High Efficient Production Line：
Production Line | Diameter Range（mm) | Extruder Type | Max. Capacity （kg/h） | Max. Haul Off Speed（m/min） | Extrusion Power（kw） |
WS-63Ⅱ | Ф 20-63 | WSD60/38 | 320 | 30 | 70 |
WS-110Ⅱ | Ф 20-110 | WSD60/38 | 380 | 20 | 90 |
WS-160Ⅱ | Ф 40-160 | WSD60/38 | 460 | 15 | 110 |
WS-250Ⅱ | Ф 50-250 | WSD75/38 | 600 | 12 | 160 |
WS-450Ⅱ | Ф 110-450 | WSD90/38 | 850 | 8 | 250 |
WS-630Ⅱ | Ф 250-630 | WSD90/38 | 1050 | 4 | 280 |
WS-800Ⅱ | Ф 500-800 | WSD120/38 | 1300 | 2 | 355 |
WS-1200Ⅱ | Ф 710-1200 | WSD75/38 WSD90/38 | 1450 | 1 | 160/250 |
WS-1600Ⅱ | Ф 1000-1600 | WSD90/38 WSD90/38 | 1900 | 0.6 | 280/280 |
Pictures for Reference

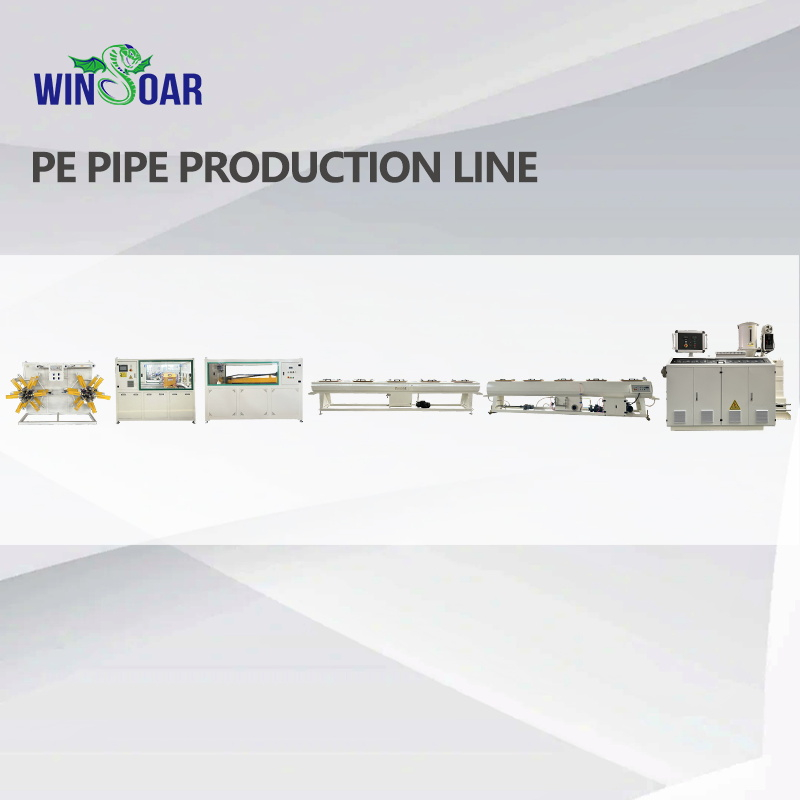

PE PIPE PRODUCTION LINE
It consists of extruder, mould, vacuum calibration tank, cooling tank, haul-off machine, cutting machine, stacker, etc.

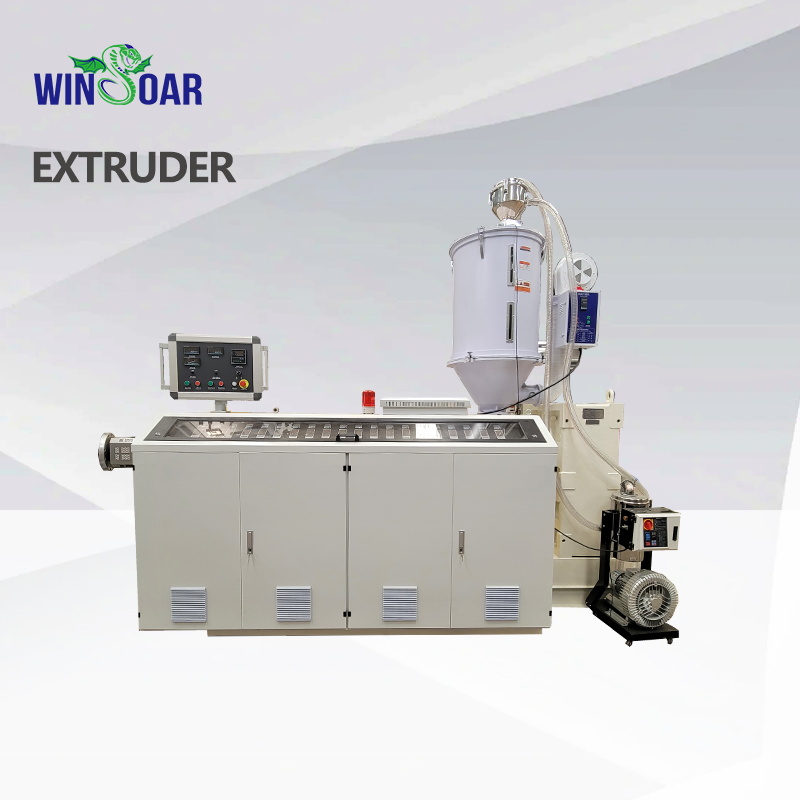

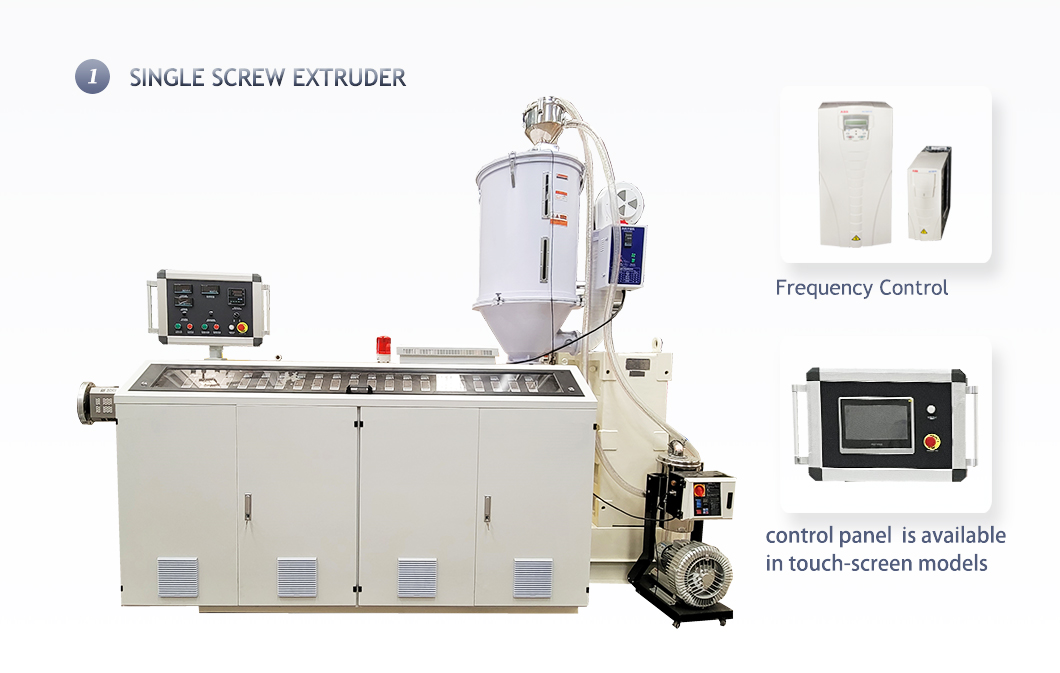

SINGLE SCREW EXTRUDER
The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.

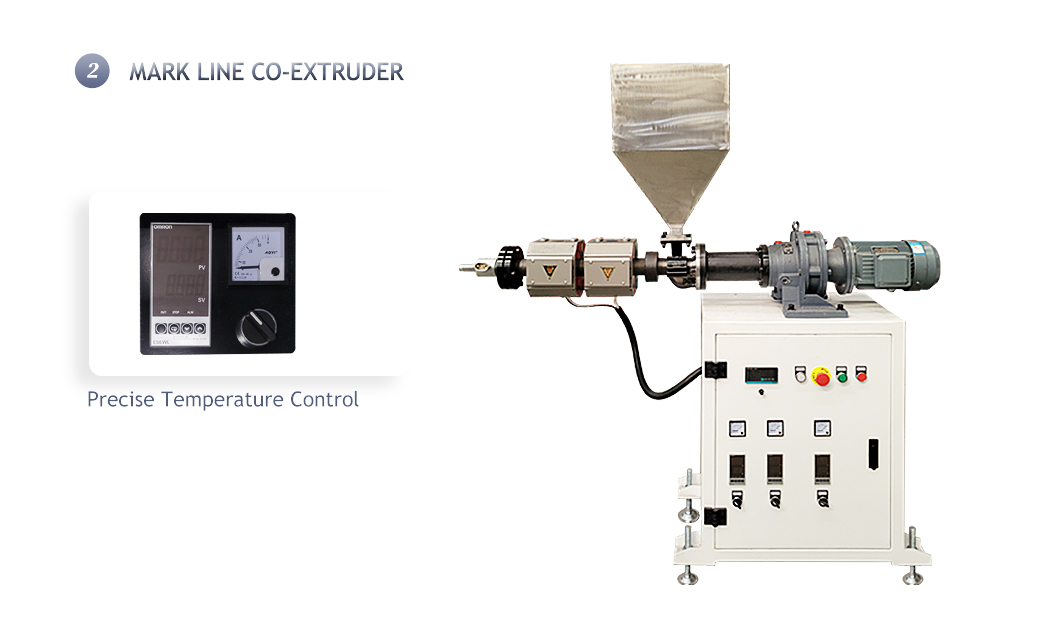

MARK LINE CO-EXTRUDER
The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.

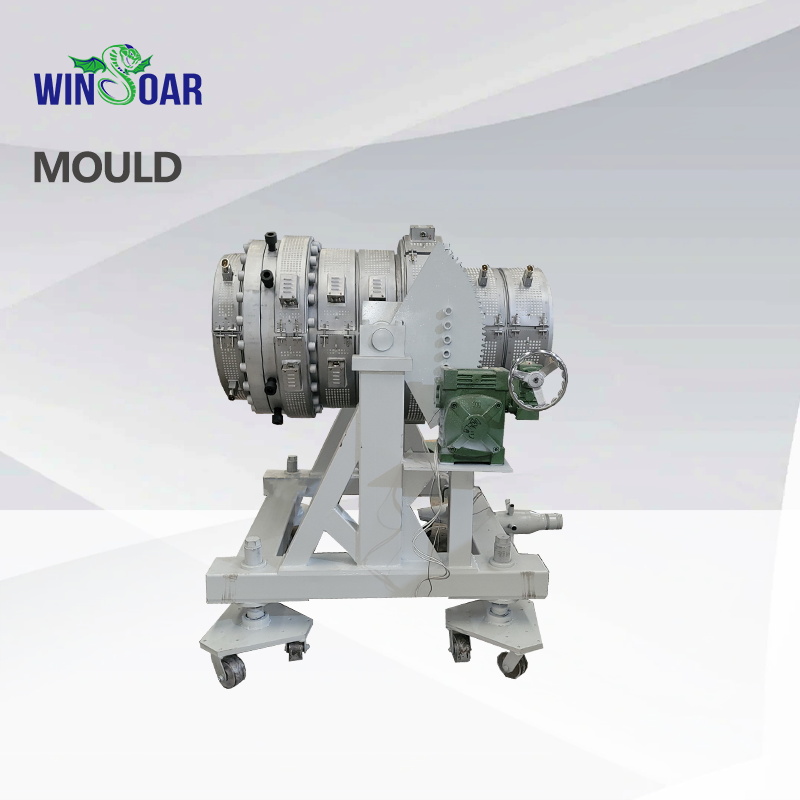

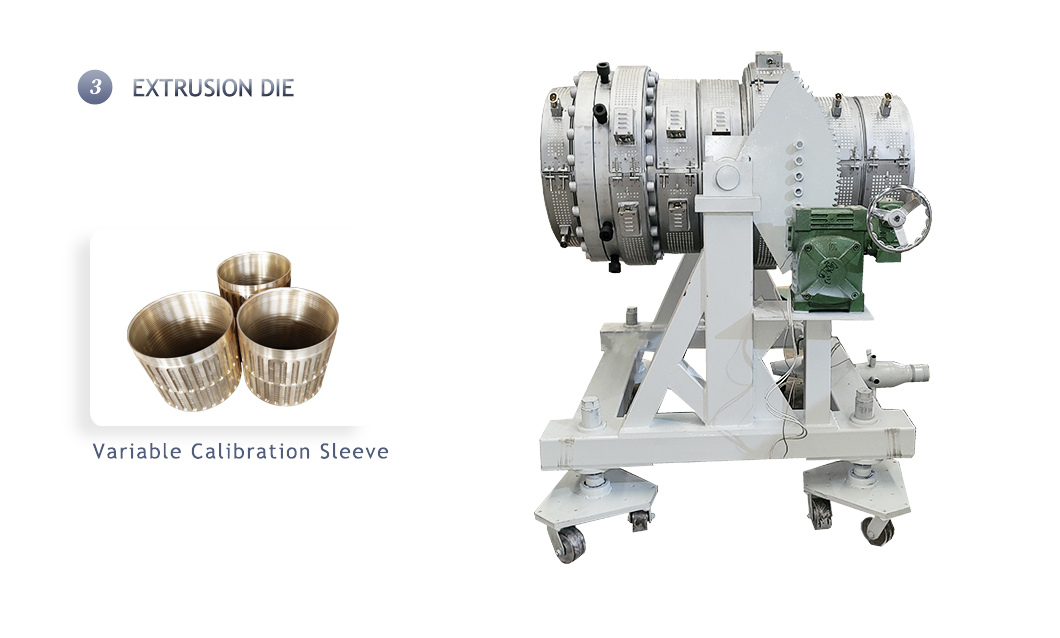

EXTRUSION DIE
After compaction, melting, mixing and homogenization of PP the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of tube forming.

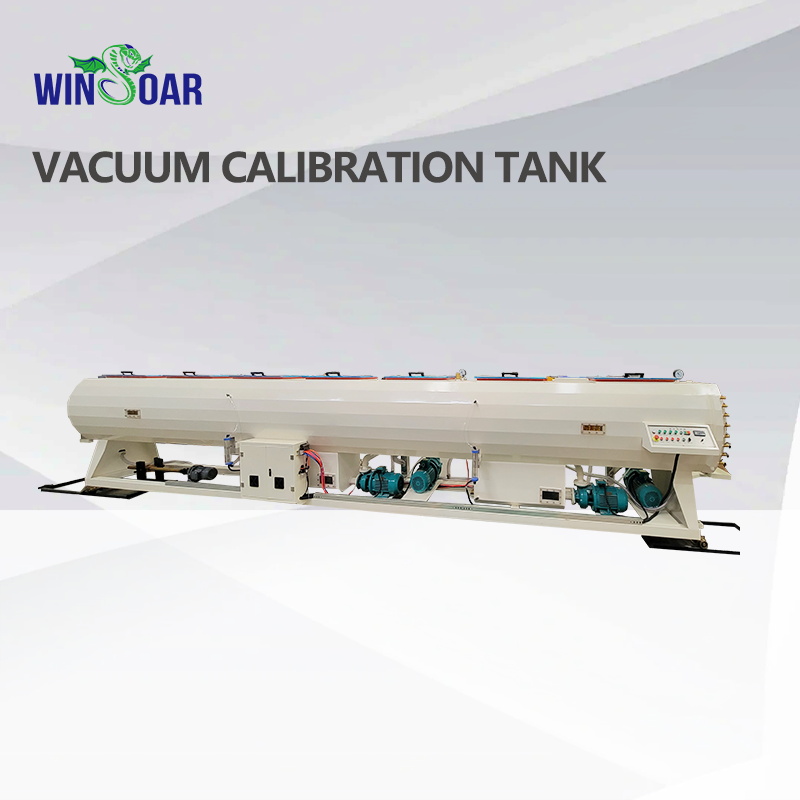

VACUUM CALIBRATION TANK
Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

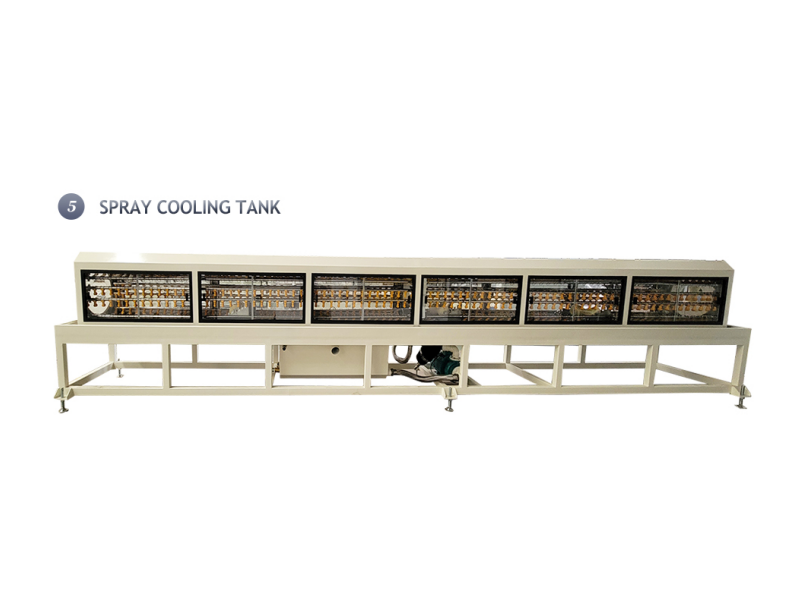

SPRAY COOLING TANK
The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.

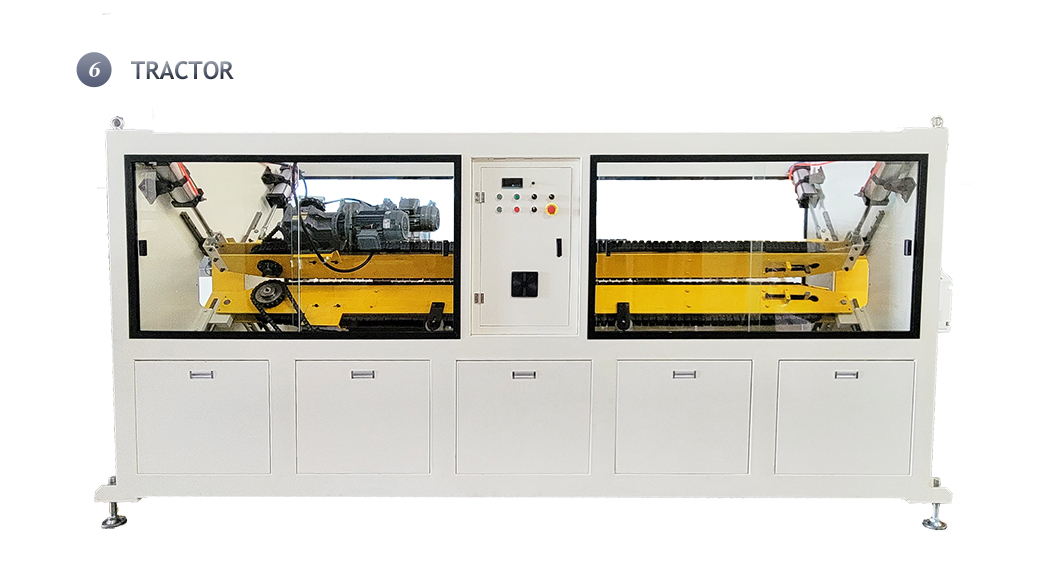

TRACTOR
It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.

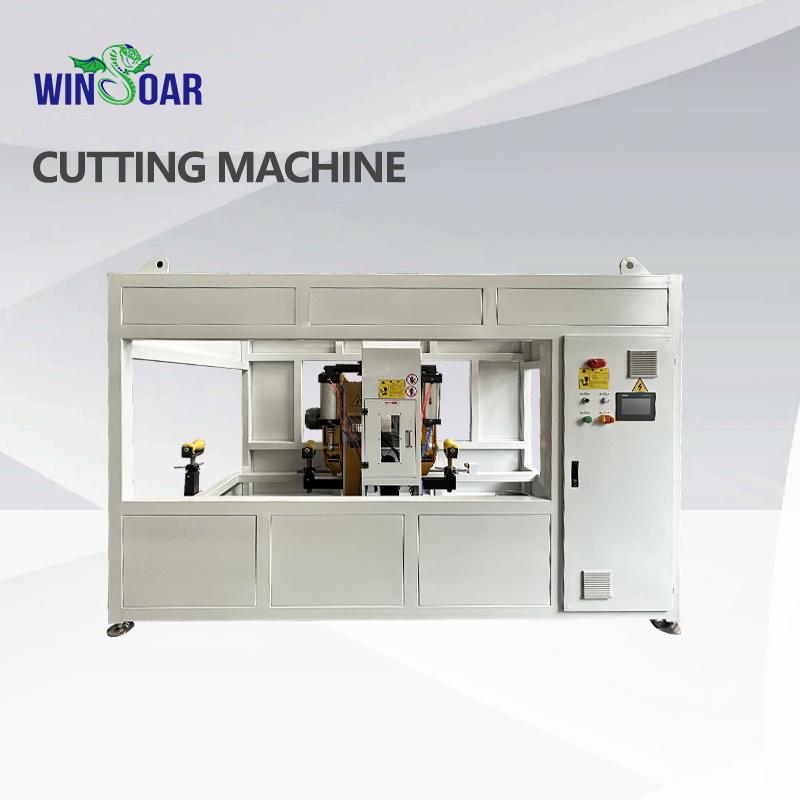

CUTTING MACHINE
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

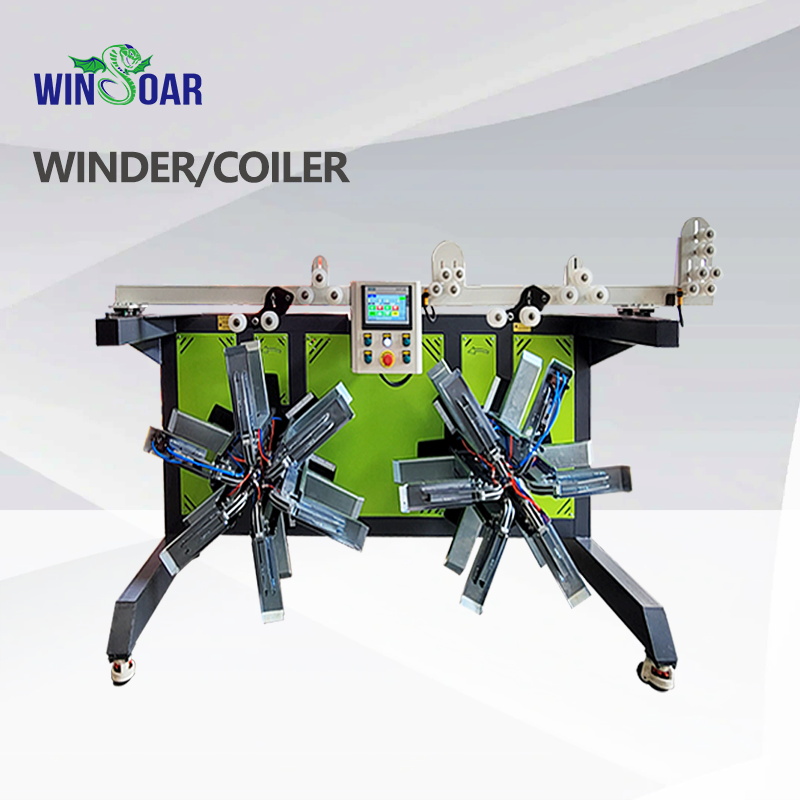

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)
This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging,automatic rewinding, and easy operation.

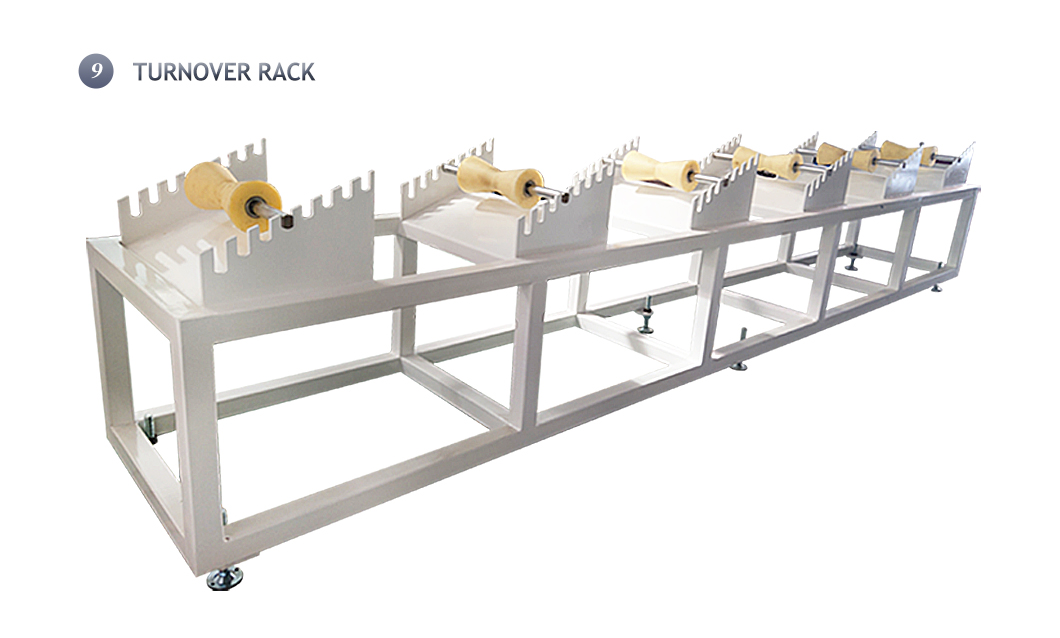

TURNOVER RACK (OPTIONAL ON REQUEST)
Accept finished products and automatically turn over.
