Vapor Resistance Black PE Pipe Production Line For Water Drainage

Plastic PPR/PP/PE Pipe Production Line Dia. 16-1200mmis mainly used to produce the PPR/PE water supply pipe. High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.

1. High lineal extrusion speed, big capacity and low power consumption, and achieved multi-layers co-extrusion with 1-5 layers.

2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.

3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.

4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.

Invest in our HDPE pipe production line today and experience the difference for yourself. With our commitment to excellence and customer satisfaction, you can trust that you're making the right choice for your business. Contact us today to learn more about our product and how it can benefit your operations.

33D Series Classical Production Line：

38D Series High Efficient Production Line：

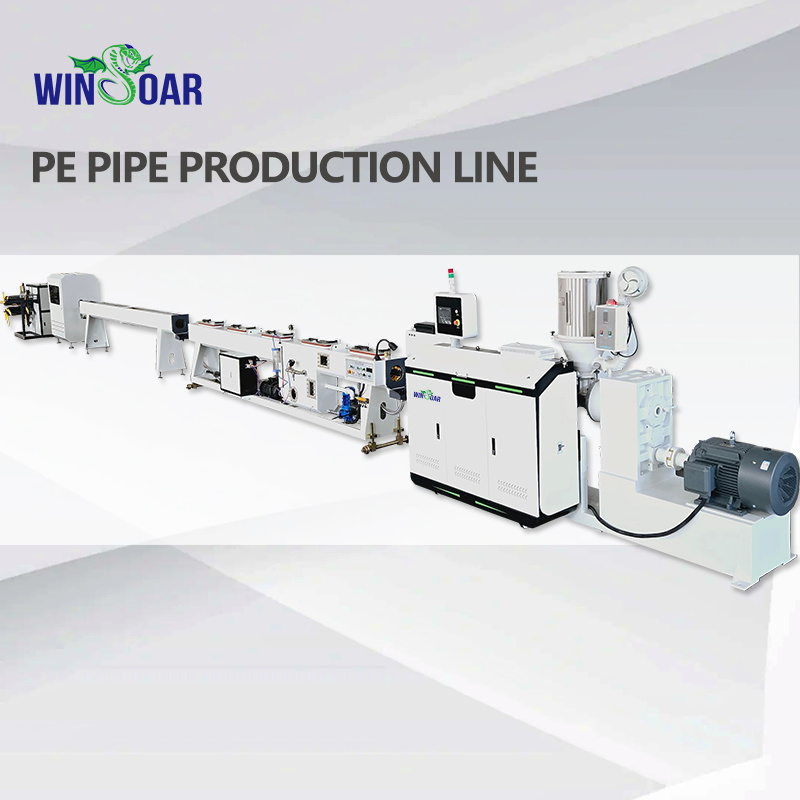

PE PIPE PRODUCTIONLINE

It consists of extruder, mould, vacuum calibration tank, cooling tank, haul-off machine, cutting machine, stacker, etc.

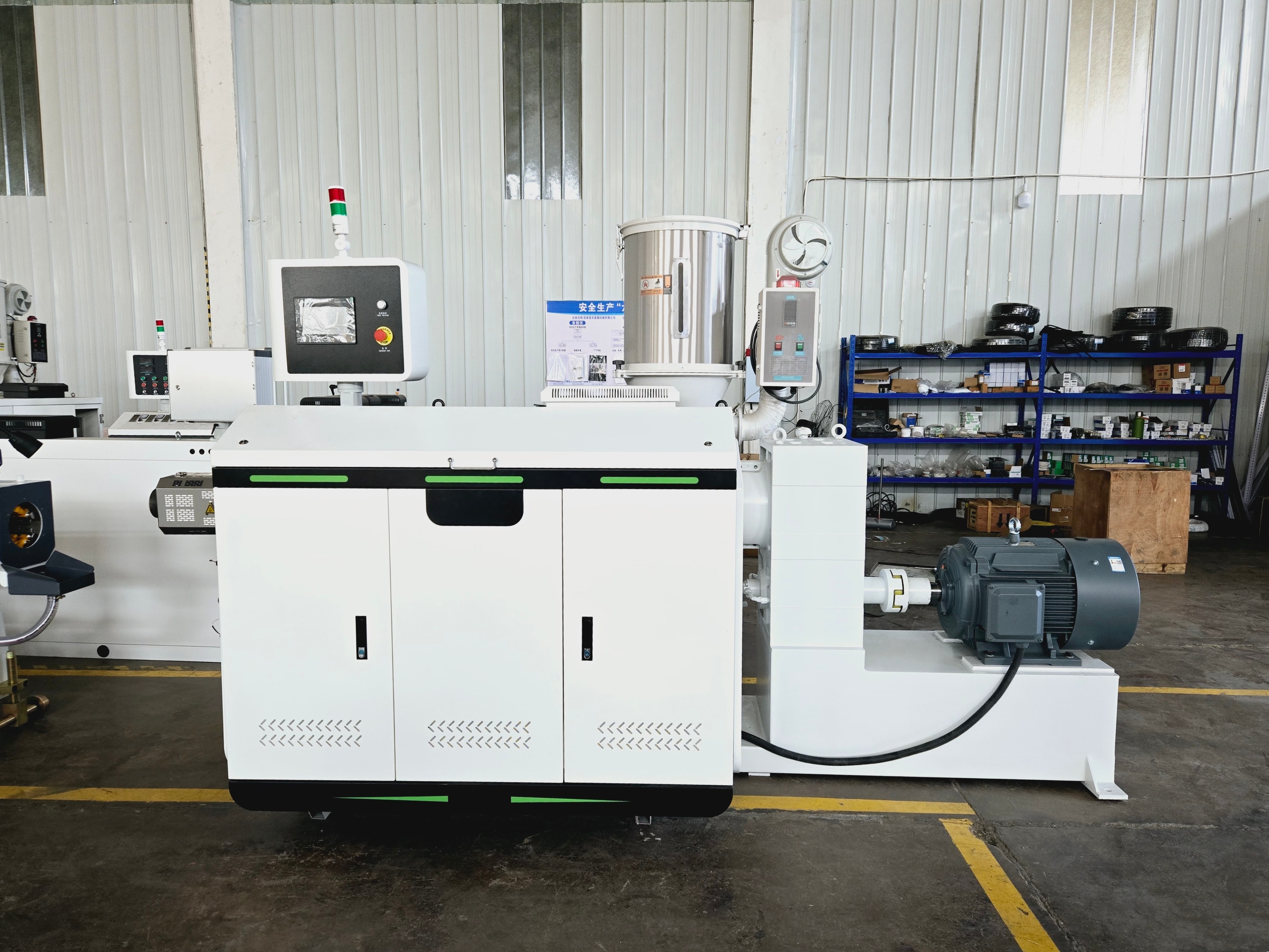

SINGLE SCREW EXTRUDER

The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.

MARK LINE CO-EXTRUDER

The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PP the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of tube forming.

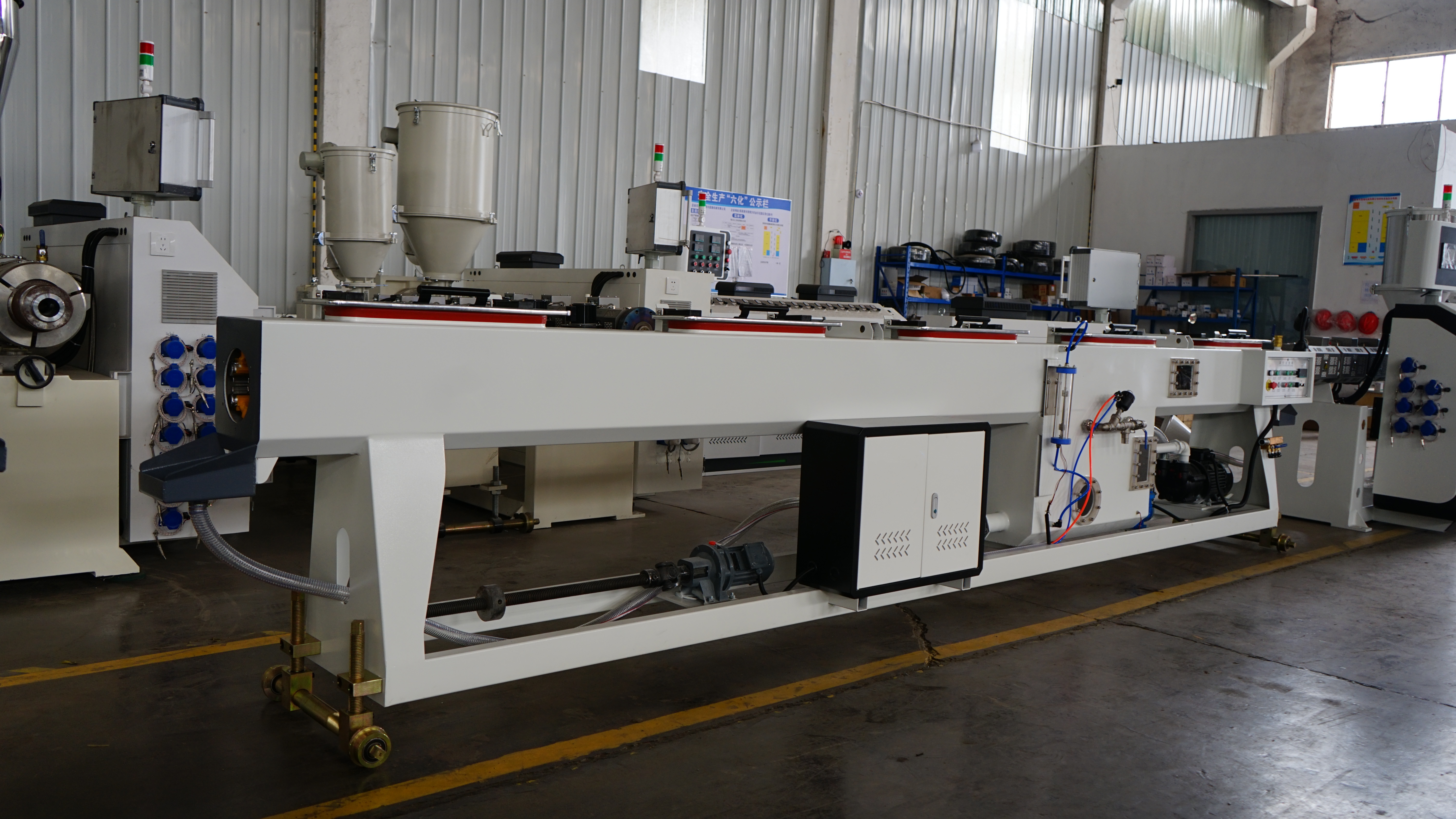

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

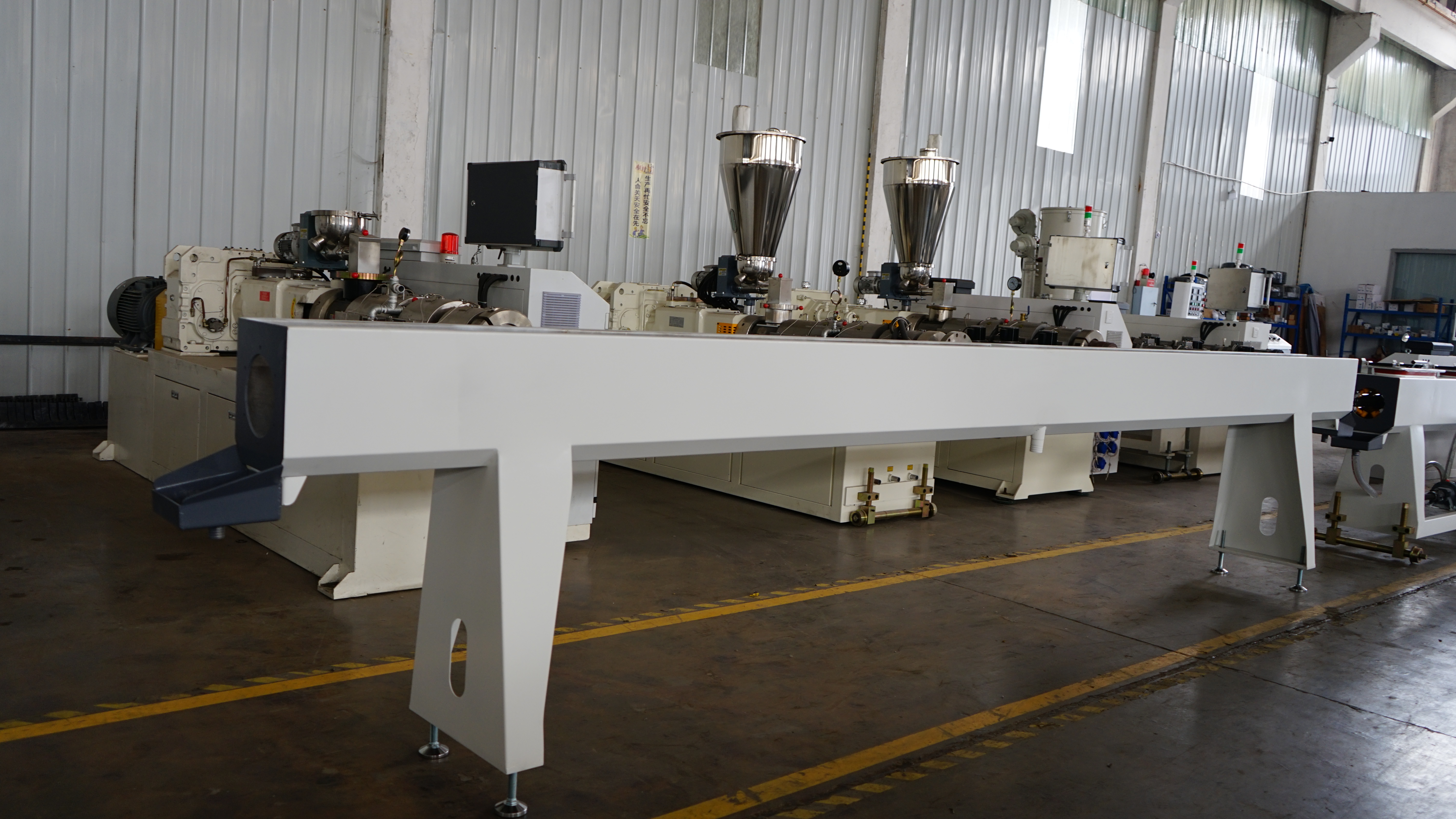

SPRAY COOLING TANK

The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.

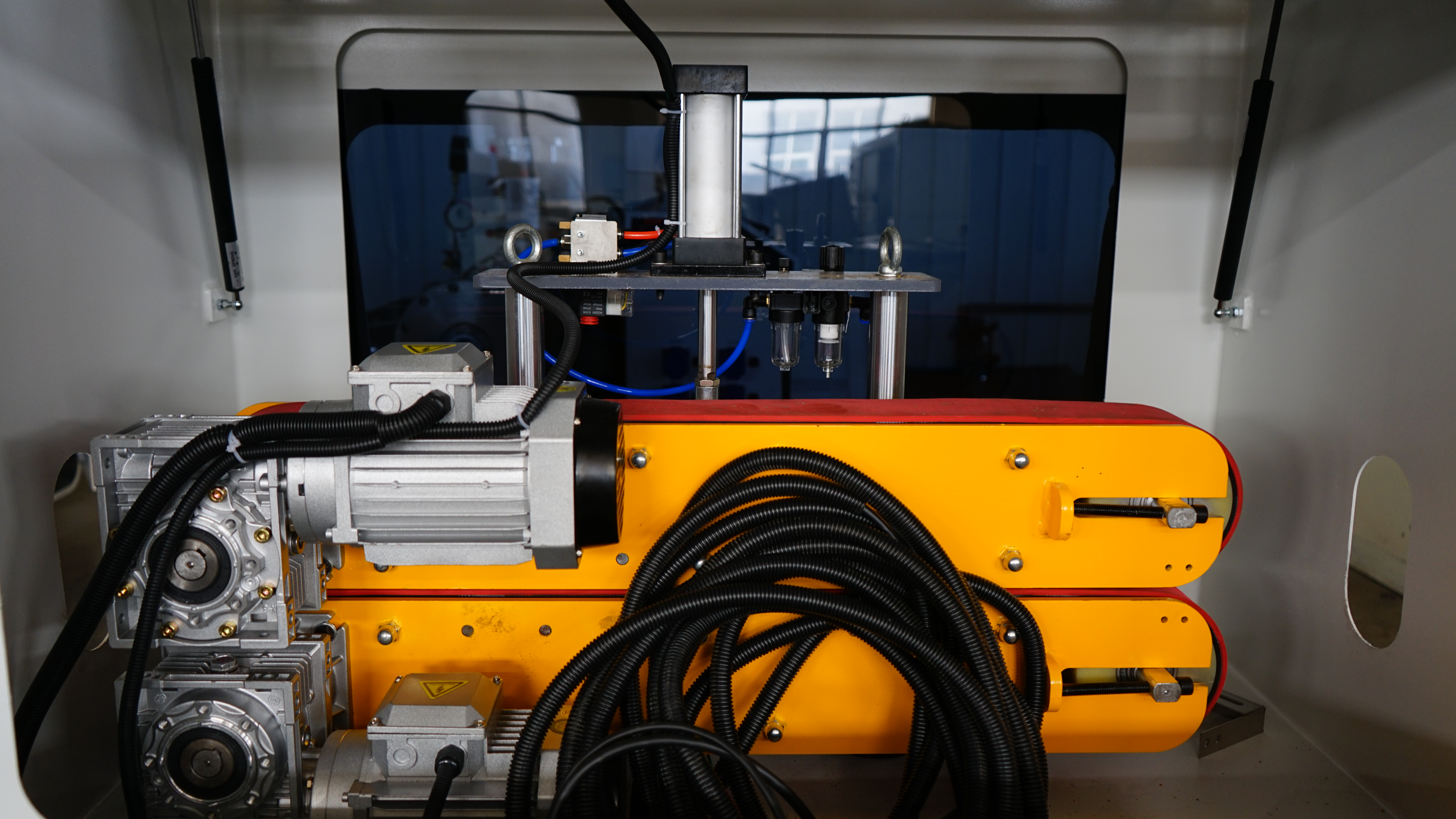

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.

CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

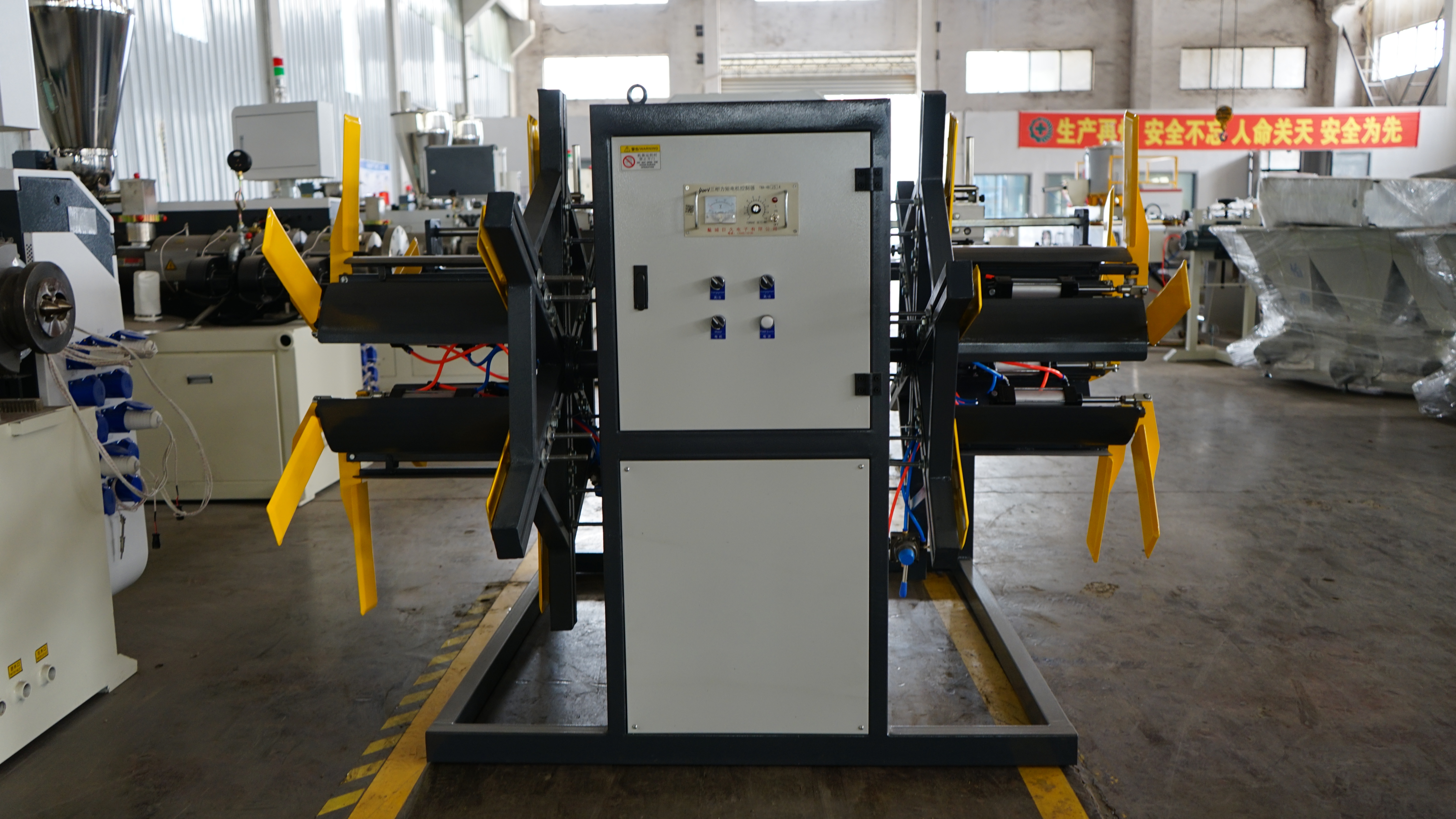

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)

This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging,automatic rewinding, and easy operation.

TURNOVER RACK (OPTIONAL ON REQUEST)

Accept finished products and automatically turn over.
