PE pipe production line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1200mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation.
Extruders adopt SIEMENS BEIDE MOTOR, ABB or TAIWAN DELTA INVERTOR, omron temperature controller, The two electrical boxes are merged into one, which is easy to install and operate The main machine can adjust the base, the precision of the mould is higher after fine adjustment. Beautiful appearance, small occupation.
Pipe Application Area:
1. Urban tap water supply, direct drinking water supply and different quality water supply.
2. Coal gas, liquefied gas and natural gas distribution and transportation.
3. Corrosive water drainage.
4. Water conservancy and farm irrigation works.
Features
1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3.Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
4.Coiler :Single position or double position with torque motor.
5.Electrical parts: ABB inverter, Siemens contactor, RKC thermo controllers etc.
Main Parameter
33D Series Classical Production Line：
Production Line | Diameter Range（mm） | Extruder Type | Max. Capacity （kg/h） | Max. Haul Off Speed（m/min） | Extrusion Power（kw） |
WS-63 I | Ф 20-63 | SJ65/33 | 220 | 12 | 55 |
WS-110 I | Ф 20-110 | SJ65/33 | 220 | 12 | 55 |
WS-160 I | Ф 50-160 | SJ75/33 | 400 | 10 | 110 |
WS-250 I | Ф 90-250 | SJ90/33 | 400 | 6 | 110 |
WS-450 I | Ф 160-450 | SJ120/33 | 500 | 4 | 160 |
WS-630 I | Ф 400-630 | SJ120/33 | 850 | 2 | 280 |
WS-800 II | Ф 500-800 | SJ120/33 | 850 | 2 | 280 |
WS-630 I | Ф 315-630 | SJ120/33 | 850 | 2 | 355 |
WS-800 I | Ф 500-800 | SJ150/33 | 1100 | 1 | 400 |
38D Series High Efficient Production Line：
Production Line | Diameter Range（mm) | Extruder Type | Max. Capacity （kg/h） | Max. Haul Off Speed（m/min） | Extrusion Power（kw） |
WS-63Ⅱ | Ф 20-63 | WSD60/38 | 320 | 30 | 70 |
WS-110Ⅱ | Ф 20-110 | WSD60/38 | 380 | 20 | 90 |
WS-160Ⅱ | Ф 40-160 | WSD60/38 | 460 | 15 | 110 |
WS-250Ⅱ | Ф 50-250 | WSD75/38 | 600 | 12 | 160 |
WS-450Ⅱ | Ф 110-450 | WSD90/38 | 850 | 8 | 250 |
WS-630Ⅱ | Ф 250-630 | WSD90/38 | 1050 | 4 | 280 |
WS-800Ⅱ | Ф 500-800 | WSD120/38 | 1300 | 2 | 355 |
WS-1200Ⅱ | Ф 710-1200 | WSD75/38 WSD90/38 | 1450 | 1 | 160/250 |
WS-1600Ⅱ | Ф 1000-1600 | WSD90/38 WSD90/38 | 1900 | 0.6 | 280/280 |
Pictures for Reference

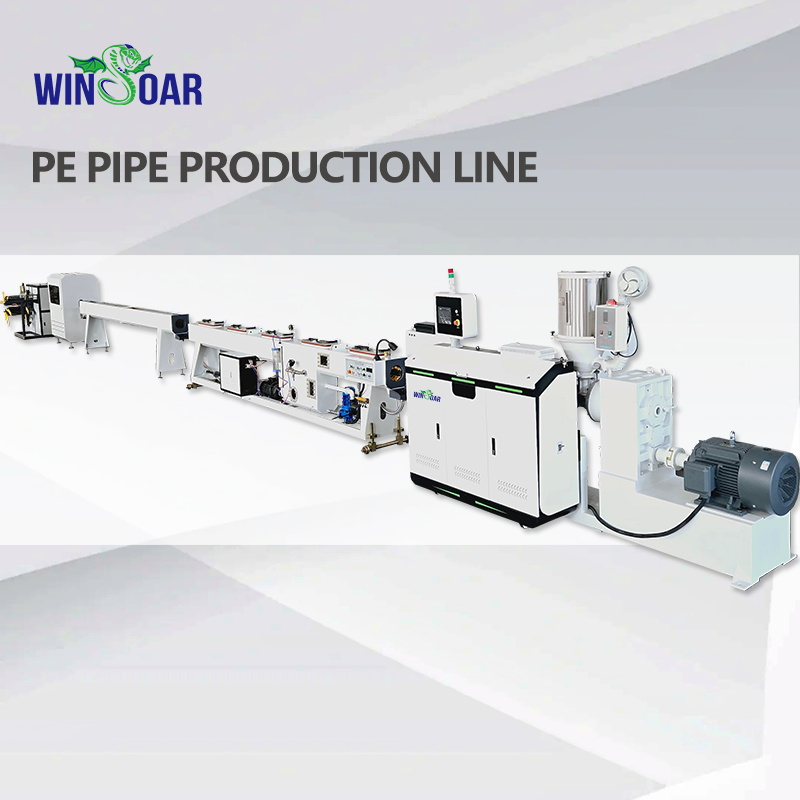

PE PIPE PRODUCTION LINE
It consists of extruder, mould, vacuum calibration tank, cooling tank, haul-off machine, cutting machine, stacker, etc.

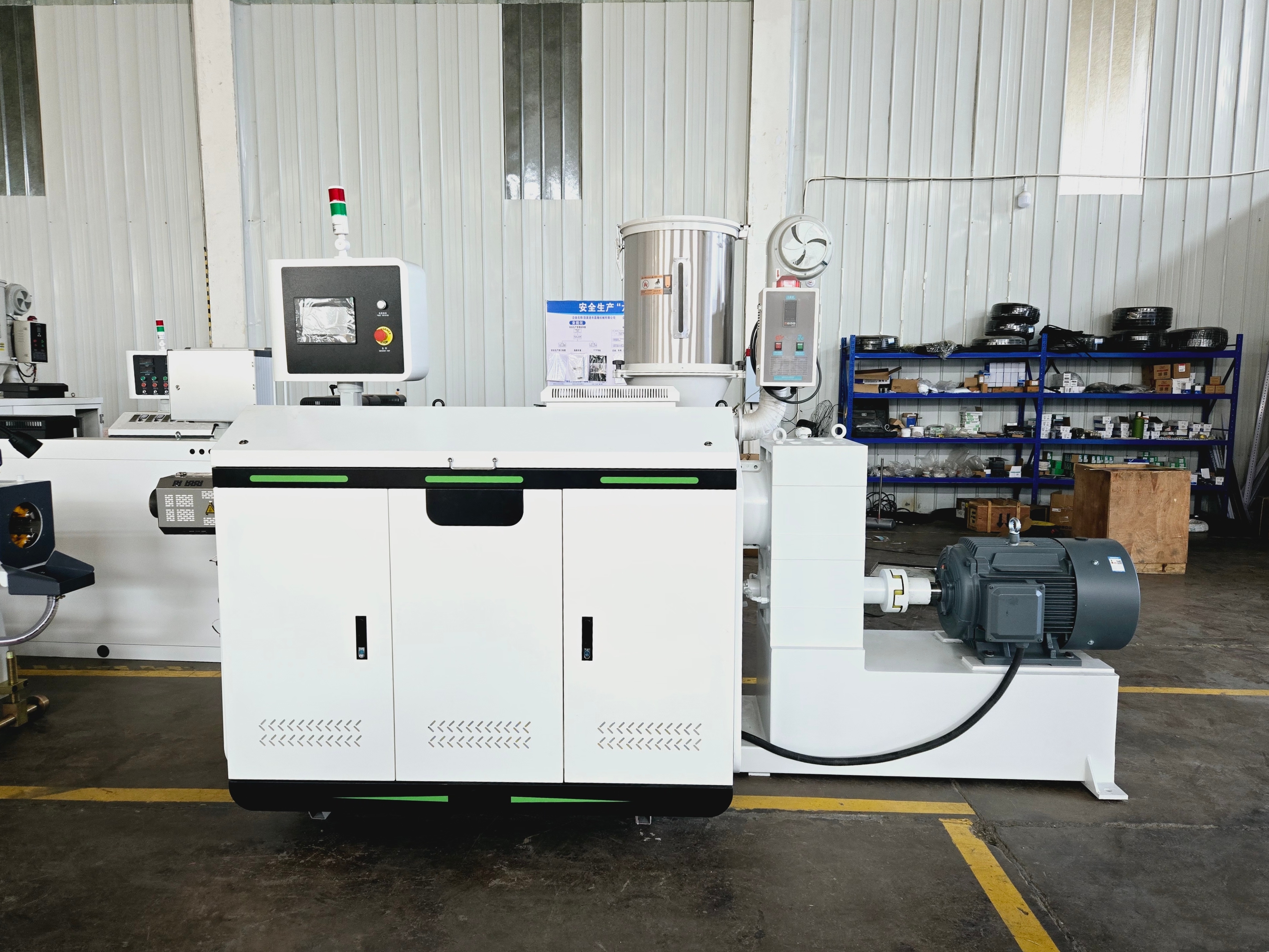

SINGLE SCREW EXTRUDER
The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.
MARK LINE CO-EXTRUDER
The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.
EXTRUSION DIE
After compaction, melting, mixing and homogenization of PP the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of tube forming.

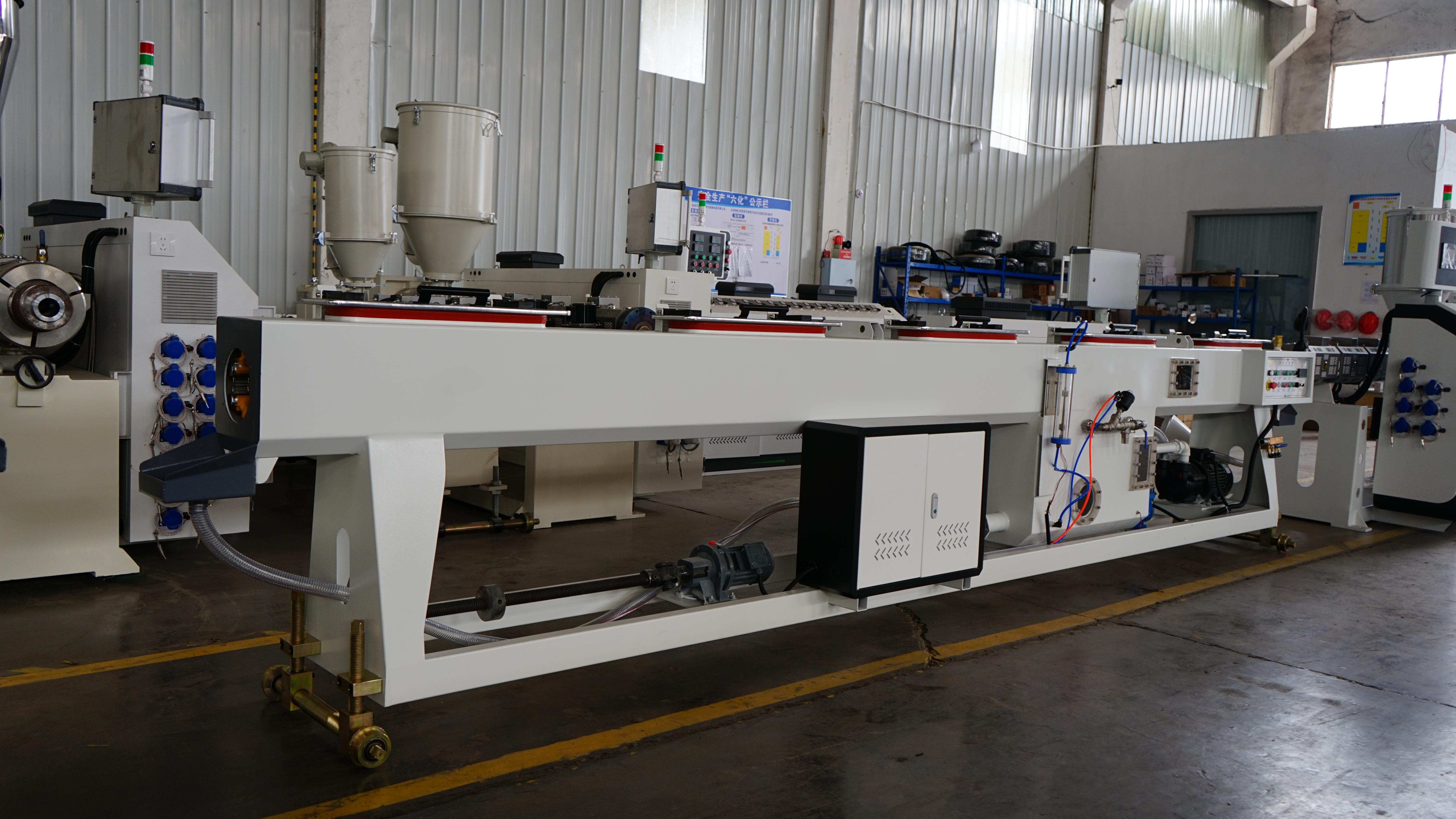

VACUUM CALIBRATION TANK
Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

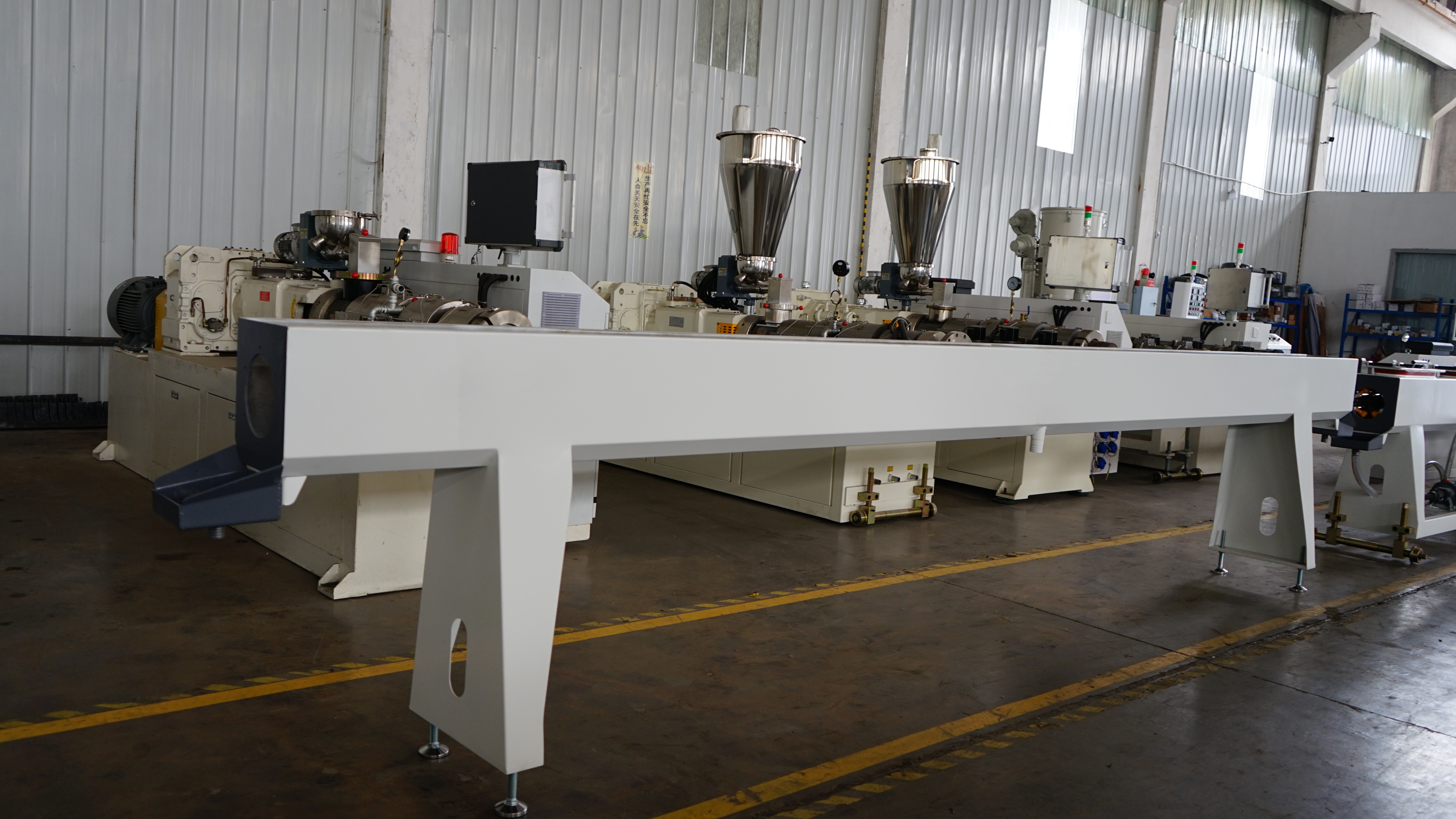

SPRAY COOLING TANK
The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.

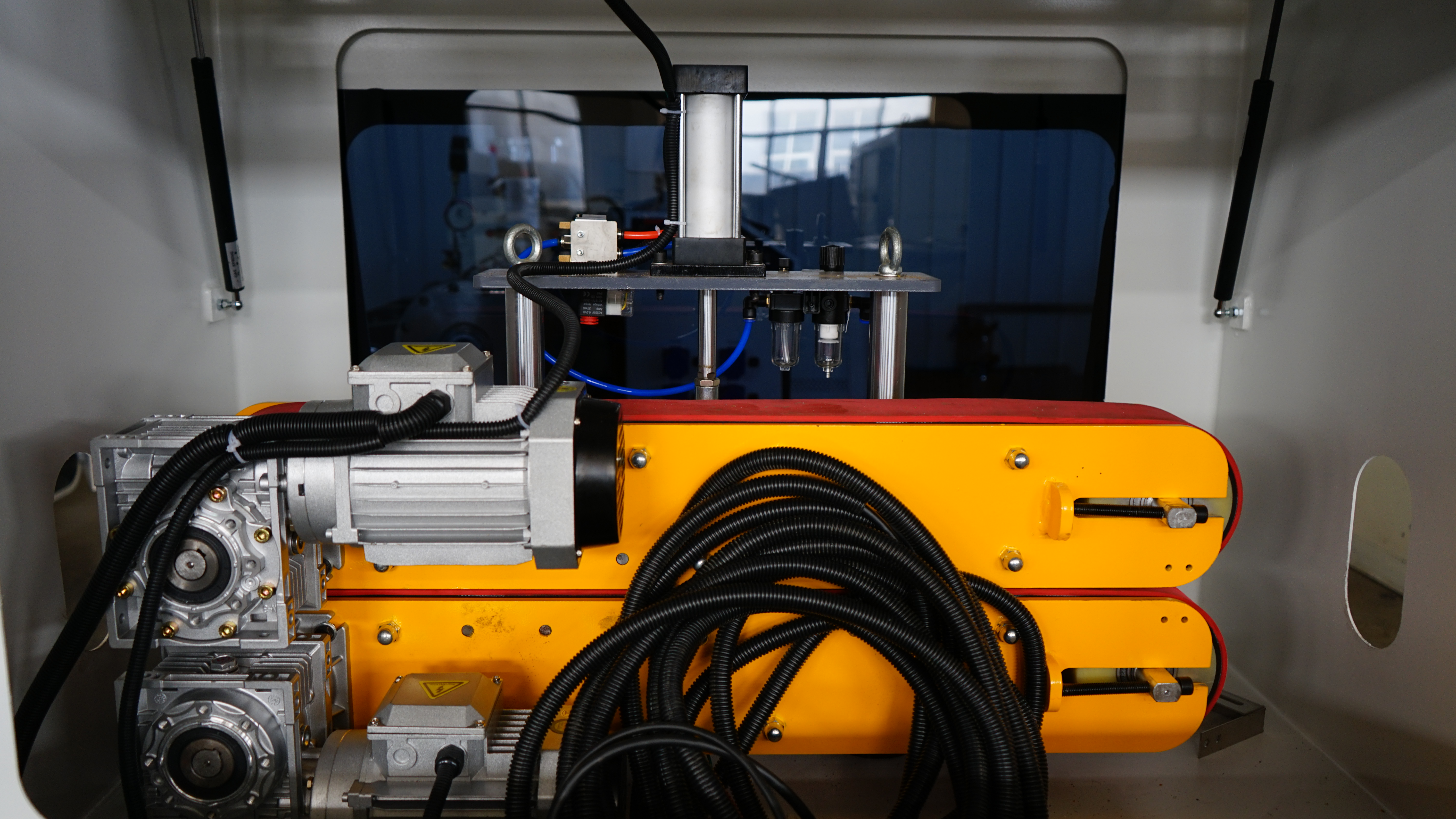

TRACTOR
It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.
CUTTING MACHINE
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

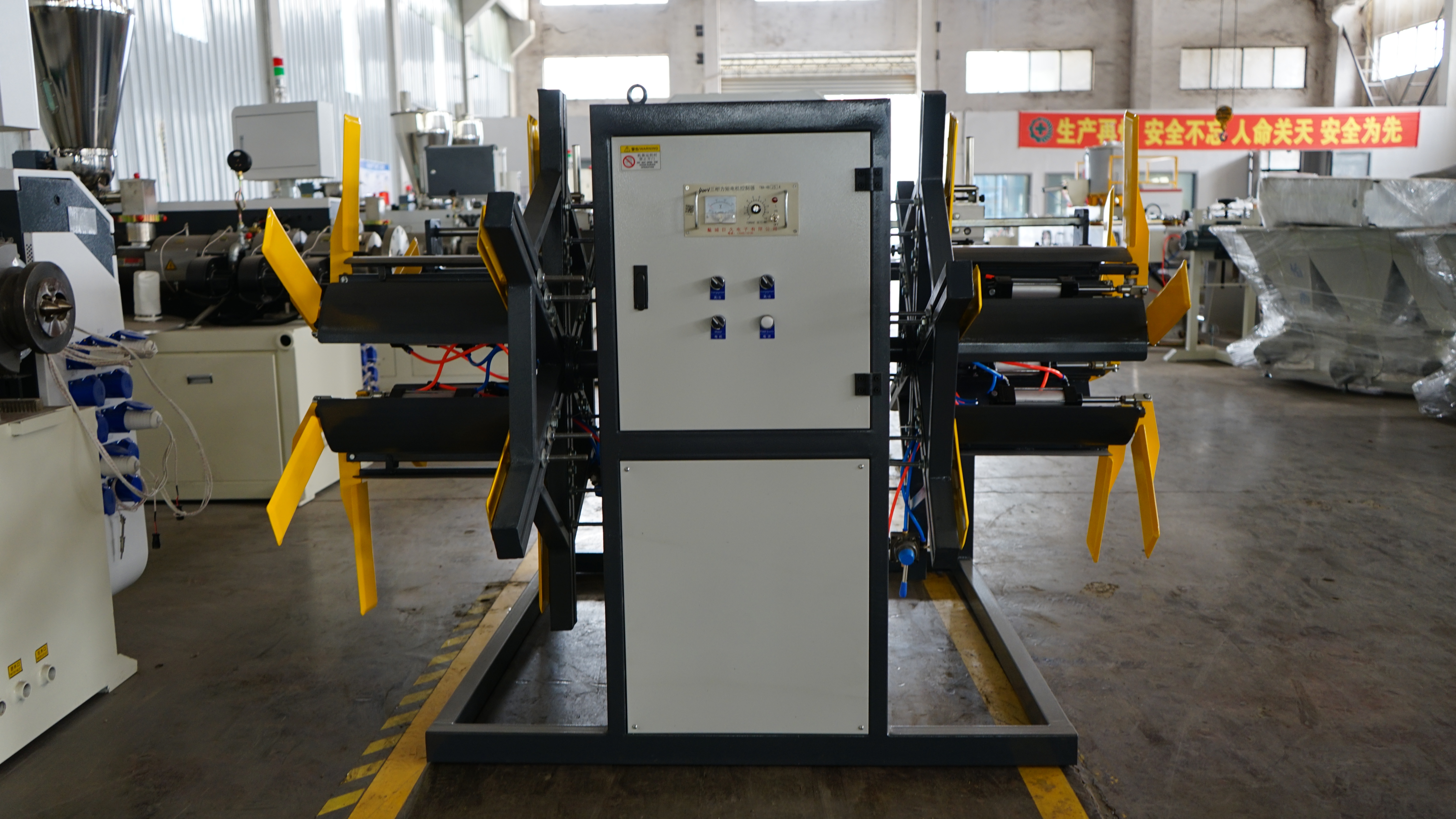

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)
This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging,automatic rewinding, and easy operation.
TURNOVER RACK (OPTIONAL ON REQUEST)
Accept finished products and automatically turn over.
