Brief Introduction

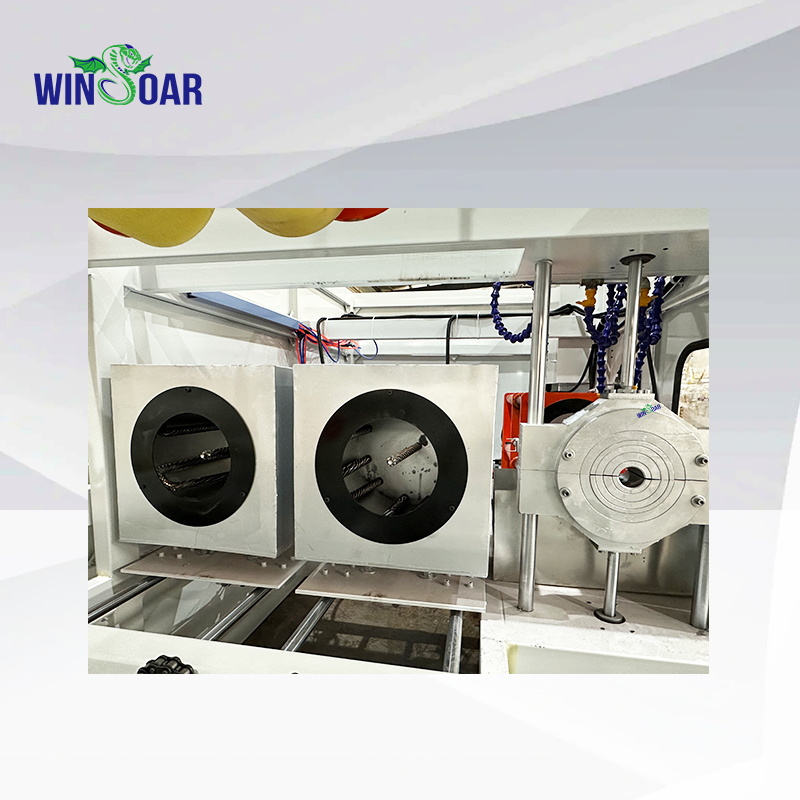

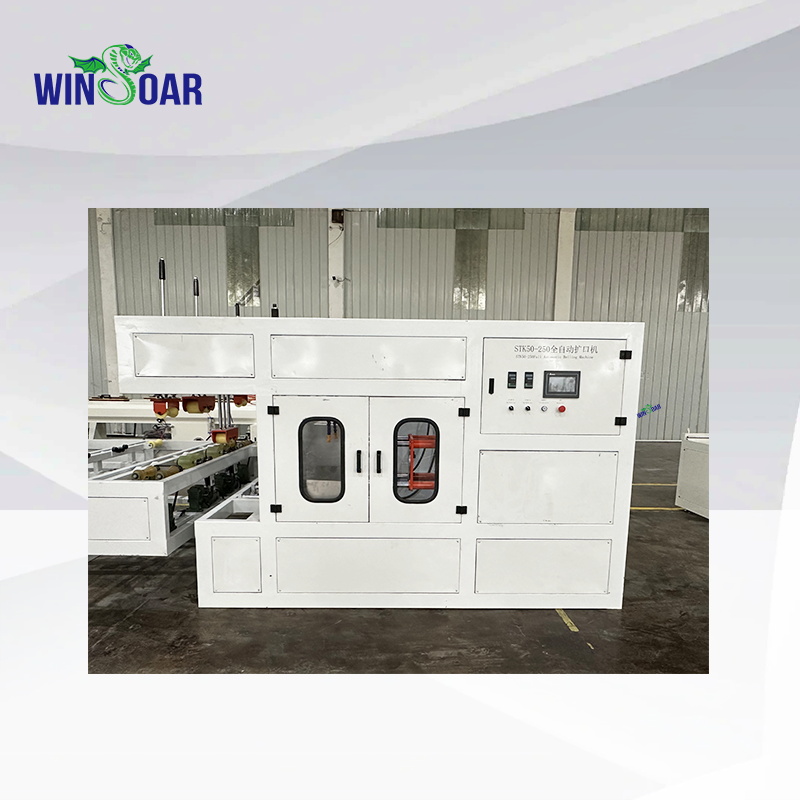

This machine is specially designed for the PVC sewage pipes, water supply pipes, electric cables pipes, PVC conduits automatic belling with "u", "R" and square styles.The machine is by all automatic control from pipes sending to working tables, pipes heating, pipes belling and pipes discharge. All this works controlled by PLC control system and the heating time, belling processing can be adjusted to detail conditions of the formulation, and factory condition.
Technical specifications
Item/Model | SGK-50S | SGK-160 | SGK-250 | SGK-315 | SGK-400 | SGK-630 |
Belling Range | 16-50mm | 50-160mm | 110-250mm | 200-315mm | 200-400mm | 315-630mm |
Belling type | U | U/R/Square | U/R/Square | U/R/Square | U/R/Square | U/R |
Oven quantity | 2pcs | 1 or 2 | 1 or 2 | 1 or 2 | 1 or 2 | 1 or 2 |
Heating power | 2kw | 8.0kw | 9.5kw | 16.5kw | 21.6kw | 28.8kw |
Total power | 5kw | 13.2kw | 17.5kw | 26kw | 31.2kw | 42kw |
Cooling method | Air Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Speed | 200-400pcs/h | 30-50pcs/hour | 18-30pcs/hour | 12-20pcs/hour | 10-15pcs/hour | 6-12pcs/hour |
Pipe length | 3-5m | 3-6m | 3-6m | 3-6m | 3-6m | 3-6m |
