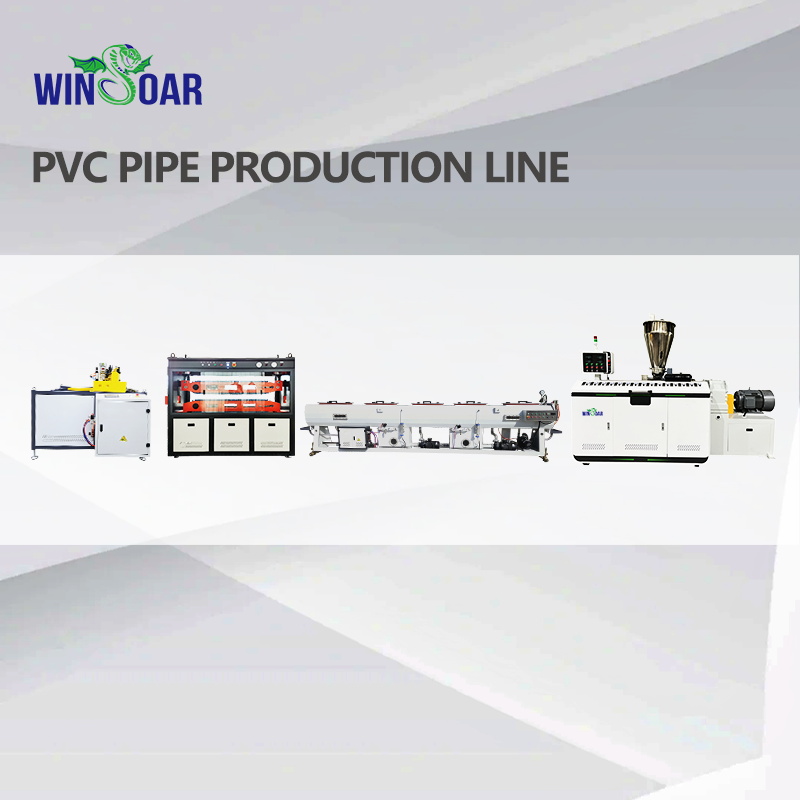

50mm Plastic Water Supply Sewer PVC Drainage Tube Extruder/UPVC Pipe Making Machine

5 0 Reviews

50mm Plastic Water Supply Sewer PVC Drainage Tube Extruder/UPVC Pipe Making Machine – Specifically designed for scenarios such as indoor building drainage, home improvement pipelines, and small municipal branch drainage. It focuses on the specialized production of 50mm small-caliber PVC drainage pipes, equipped with an energy-saving extrusion system and intelligent temperature control technology. It balances low-cost operation and high-efficiency output, helping enterprises seize the segmented market of small-caliber drainage pipes.

Availability:

Quantity:



Inquire Add to Basket

Main Technical Parameter

Diameter Range (mm)	Extruder Type	Extrusion Power(KW)	Max. Capacity (kg/h)	Max. Haul Off Speed(m/min)
Ф16-40 Dual	SJZ51/105	18.5 AC	120	10
Ф20-63 Dual	SJZ65/132	37 AC	250	15
Ф20-63	SJZ51/105	18.5 AC	120	15
Ф50-160	SJZ65/132	37 AC	250	8
Ф75-160 Dual	SJZ80/156	55AC	450	6
Ф63-200	SJZ65/132	37 AC	250	3.5
Ф110-315	SJZ80/156	55 AC	450	3
Ф315-630	SJZ92/188	110 AC	800	1.2
Ф710-1000	WSP130/26	160 AC	1100	1.3

Core Advantages

1. In-Depth Energy-Saving Design to Reduce Production Costs

The core equipment of the production line adopts a combination of "frequency conversion motor + high-efficiency thermal insulation heating coil". The operating power of the extruder is 25% lower than that of traditional equipment, and the heat loss of the heating coil is reduced by 30%. It is equipped with an intelligent energy consumption monitoring system that displays real-time energy consumption data of each link, facilitating enterprises to optimize production parameters.

2. Specialized Production of 50mm Caliber for Higher Precision

Customized special extrusion molds and vacuum sizing boxes are used for 50mm PVC drainage pipes. The mold flow channel is optimized to ensure uniform plasticization of raw materials and control the pipe wall thickness deviation within ±0.3mm. No subsequent correction is required, increasing the qualified rate of finished products to over 99%.

3. Compact Layout to Save Site Space

Considering the production characteristics of small-caliber pipes, the production line adopts a modular and compact design. It can adapt to the needs of small and medium-sized workshops or partial workshop transformation, and can complete equipment installation and production operations in a space of less than 100㎡, significantly reducing site rental and transformation costs.

4. Automation Upgrade to Reduce Manual Intervention

It integrates the full-process automation functions of "automatic raw material feeding - extrusion molding - online inspection - automatic cutting - finished product stacking". Only 1-2 operators are needed to monitor the entire production line. It is equipped with online inspection devices for pipe wall thickness and outer diameter. Once parameter deviations occur, it will automatically alarm and adjust, reducing manual inspection costs and the generation of unqualified products.

Application Scenarios

1、Building Home Improvement Field: Indoor bathroom and kitchen drainage branch pipes in commercial houses and apartments. The 50mm caliber is suitable for the installation needs of narrow spaces in home improvement.

2、Small Municipal Engineering: Drainage pipe network transformation in old urban residential areas and branch drainage pipes in urban villages, meeting the demand for small-flow drainage.

3、Light Industry Workshops: Workshop floor drainage pipes in food processing, electronic component production and other workshops. The 50mm caliber is suitable for local drainage scenarios.

4、Agricultural Supporting Facilities: Irrigation return water pipes in greenhouses and sewage collection branch pipes in small-scale livestock and poultry farms, featuring corrosion resistance and easy installation.
