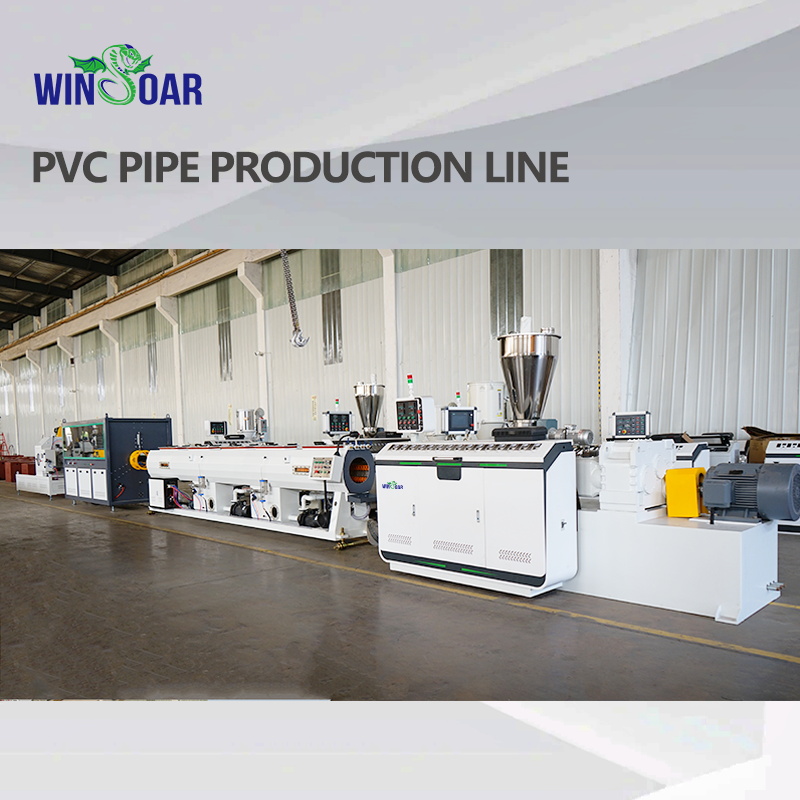

Industrial High-Density Large-Size PVC Pipe Extrusion Line

5 0 Reviews

This Industrial High-Density Large-Size PVC Pipe Extrusion Line is a professional industrial equipment designed for mass - producing large - diameter, high - density PVC pipes. The produced pipes feature excellent pressure resistance, corrosion resistance, and long service life, widely applicable to municipal water supply and drainage, industrial fluid transportation, and underground pipeline engineering.

Availability:

Quantity:



Inquire Add to Basket

Characteristic

1、High - Density Pipe Performance Guarantee：Adopts a special high - temperature extrusion process and high - quality PVC raw material compatibility design.

2、Large - Diameter Mass Production Capacity：The customized large - size molding die and high - power traction system ensure stable molding of large - diameter pipes, meeting the supply needs of large municipal and industrial projects.

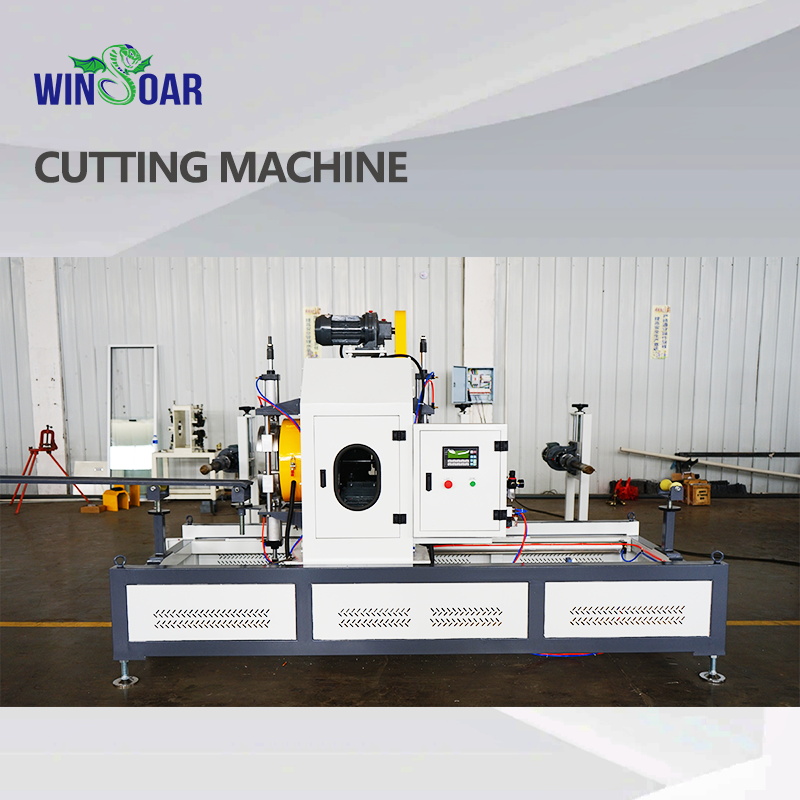

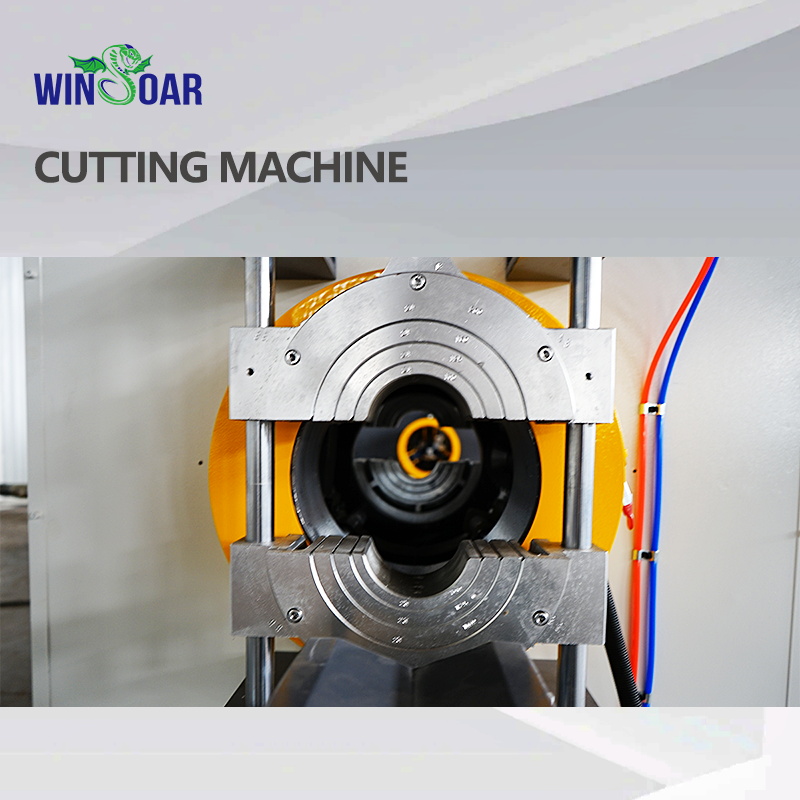

3、Intelligent & Efficient Production：Equipped with a PLC central control system, which realizes automatic adjustment of extrusion temperature, traction speed, and cutting length. The touch - screen operation interface is easy to use, reducing manual intervention by 60%. It can run continuously for 24 hours, with a product qualification rate of over 99%.

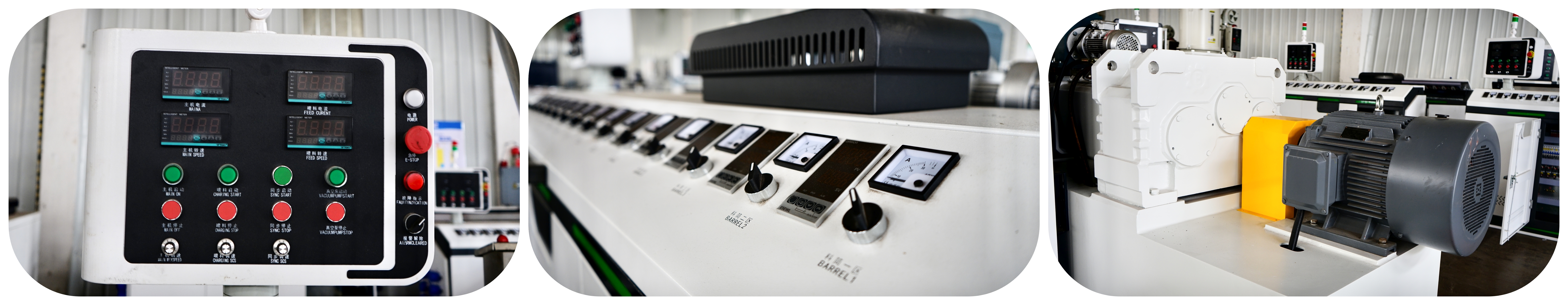

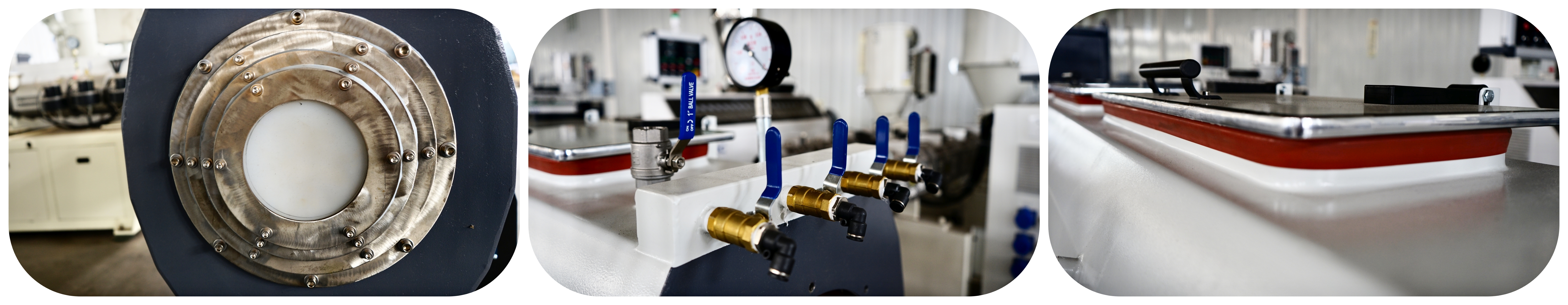

87011a4fabfdcfe168ebe3e00f4cf8ad bb1f66c2f9ce7b0eccd39b7150240533

Equipment Advantages

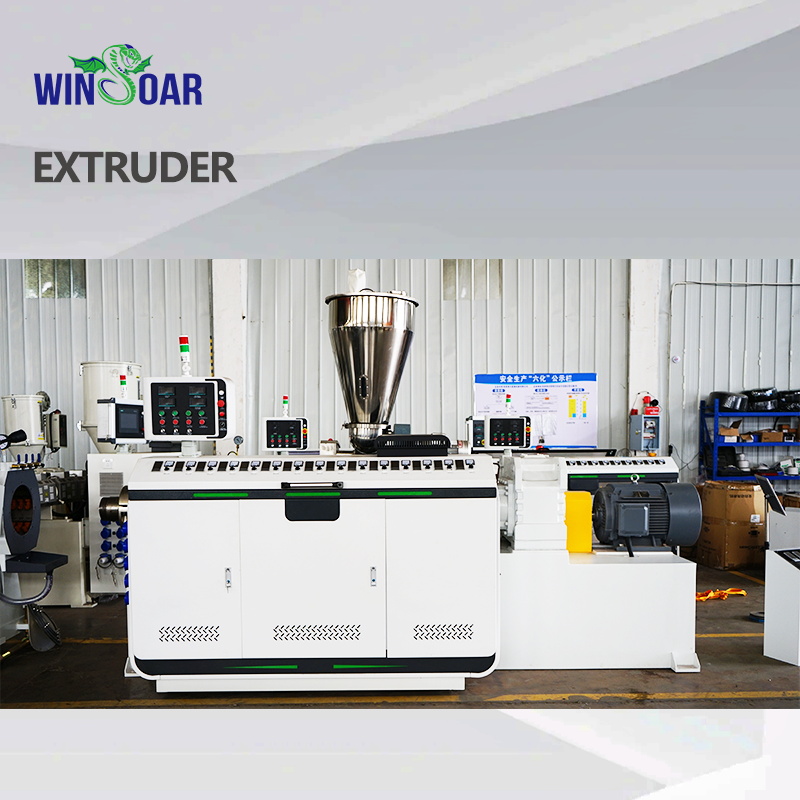

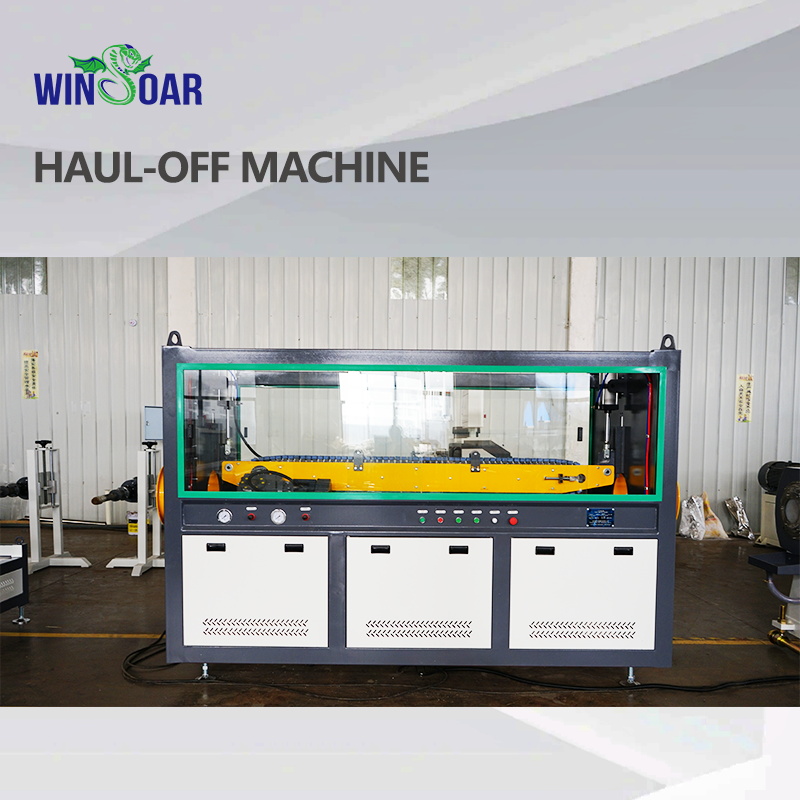

Durable Core Components：The extruder screw and barrel are made of 38CrMoAl alloy steel, 经过 nitriding treatment. The traction clamp is made of high - wear - resistant rubber, ensuring stable clamping force for long - term use.
Energy - Saving & Environmental Protection：Adopts frequency conversion speed regulation technology, which saves 15% of electricity compared with traditional equipment. The closed - loop cooling system recycles cooling water, reducing water resource waste. The exhaust gas treatment device meets national environmental protection emission standards.
Flexible Customization：Can be customized according to customer needs, such as adding a double - color co - extrusion function for pipe surface marking, or configuring a online thickness detection system to further improve product precision.

Main Technical Parameter

Diameter Range (mm)	Extruder Type	Extrusion Power(KW)	Max. Capacity (kg/h)	Max. Haul Off Speed(m/min)
Ф16-40 Dual	SJZ51/105	18.5 AC	120	10
Ф20-63 Dual	SJZ65/132	37 AC	250	15
Ф20-63	SJZ51/105	18.5 AC	120	15
Ф50-160	SJZ65/132	37 AC	250	8
Ф75-160 Dual	SJZ80/156	55AC	450	6
Ф63-200	SJZ65/132	37 AC	250	3.5
Ф110-315	SJZ80/156	55 AC	450	3
Ф315-630	SJZ92/188	110 AC	800	1.2
Ф710-1000	WSP130/26	160 AC	1100	1.3

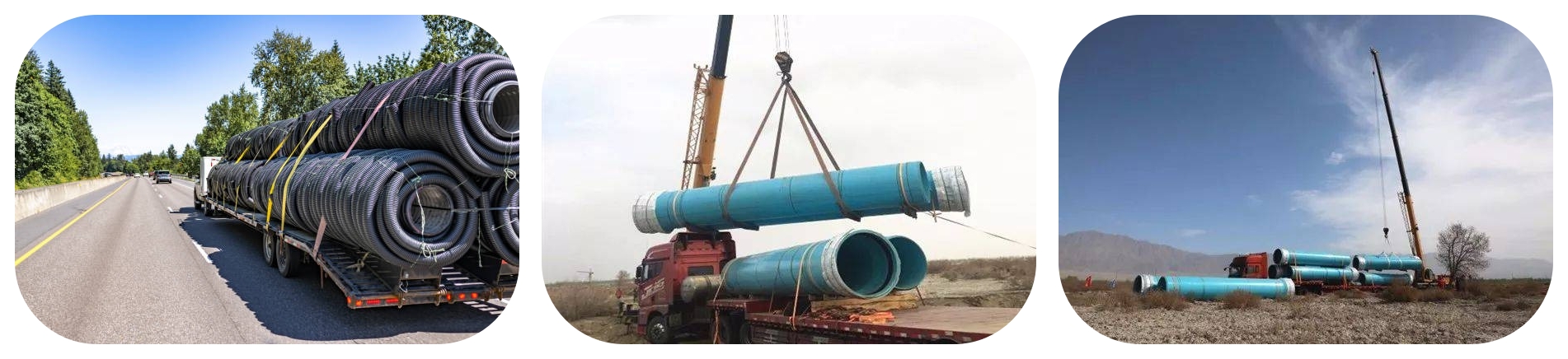

Application Scenarios

1、Municipal Engineering：Production of large - diameter pipes for municipal water supply, drainage, and rainwater storage systems, adapting to underground buried and heavy - load environments.

2、Industrial Transportation：Manufacturing of pipes for transporting industrial cooling water, chemical raw materials (non - strong corrosive), and pulp, with excellent corrosion resistance to meet industrial production needs.

3、Water Conservancy Projects：Production of pipes for farmland irrigation, reservoir water diversion, and river regulation projects, with good weather resistance and anti - aging performance.
