Product Overview

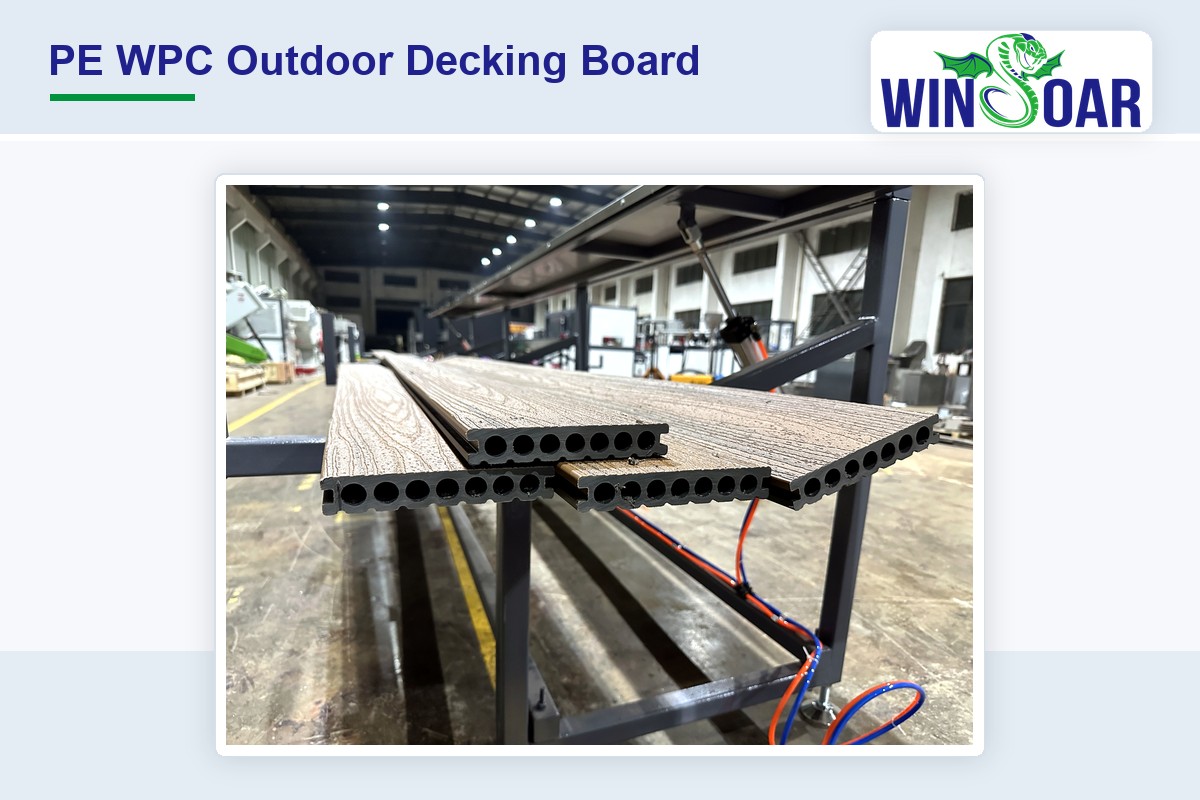

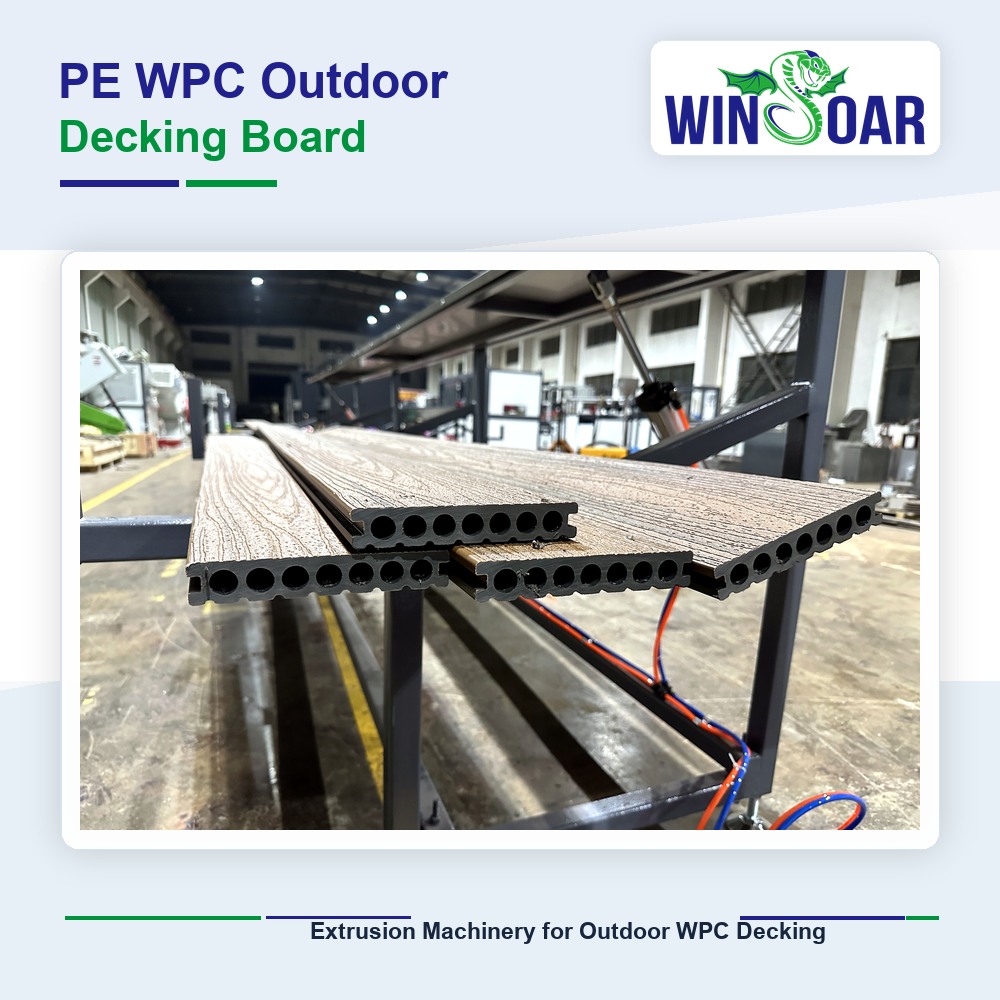

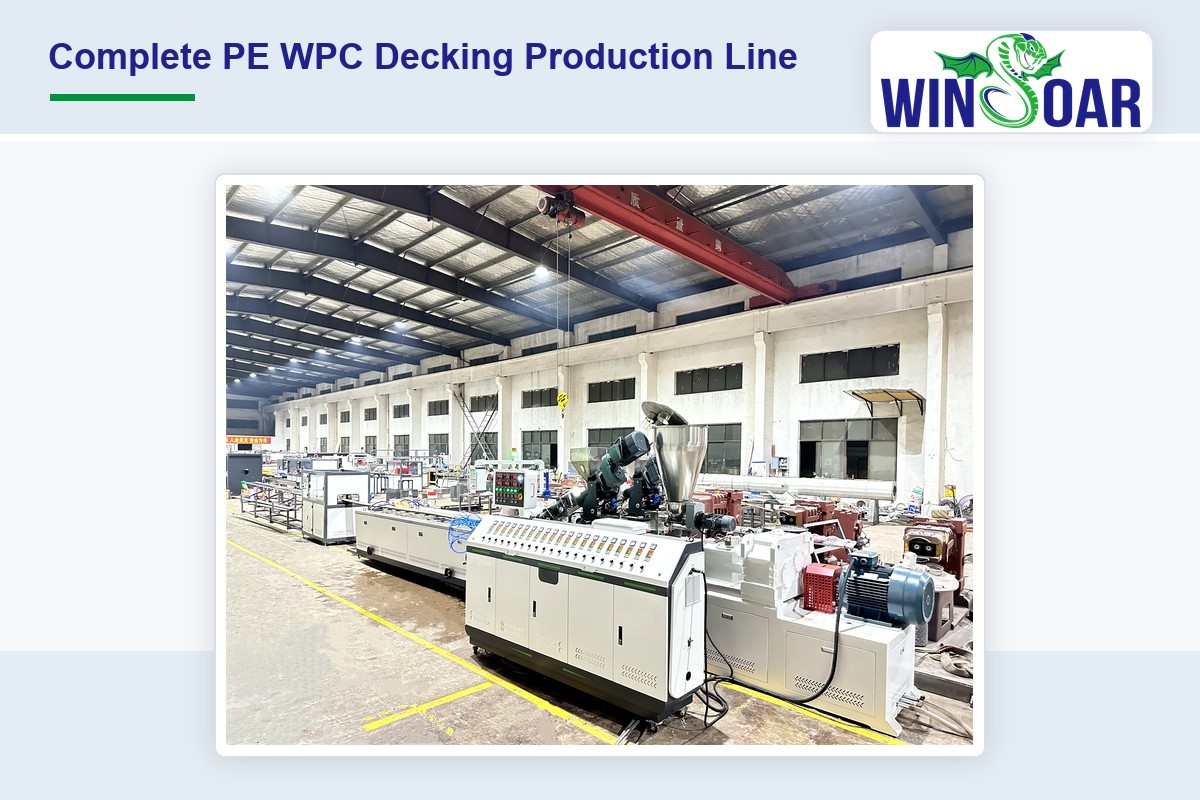

PE WPC Decking Production Line is used to manufacture outdoor decking boards and related WPC profile products from PE resin, wood powder and additives. This material belongs to wood plastic composite profile extrusion, but it should be positioned as PE WPC, not PVC WPC, because the polymer base is polyethylene.
The line is suitable for PE WPC decking boards, wall cladding, fence profiles, landscape profiles, hollow decking, solid decking and decorative outdoor boards. A practical project should be selected by profile drawing, board width and thickness, wood powder ratio, PE grade, output target, surface embossing requirement and factory layout.
Decking is one application of the broader WPC profile extrusion line. The same machine concept can be adapted for outdoor floor boards, wall cladding, fence boards, handrail profiles, pergola profiles and decorative landscape profiles by changing mould, calibration tooling and downstream surface treatment.
For project comparison, review Plastic Profile and Board Production Line, Profile Production Line and PVC and WPC Profile Production Line. For this material type, see PE WPC decking production line process and machine configuration. For broader extrusion process reference, see PVC WPC profile extrusion line process and machine configuration.
Related equipment references include Plastic Mixer, Twin Screw Extruder and Conical Twin Screw Extruder, depending on whether the PE WPC project uses direct extrusion, pelletizing, or a two-step compounding process.
Video & Technical Parameters
The video shows the actual PE WPC decking production line and machine sections. It helps buyers review the real equipment layout before discussing profile drawing, formula and output.
| Item | Selection point | Project note |
| Raw material | PE resin, wood powder, additives | Formula affects screw design, plasticizing and moisture control. |
| Product type | Solid or hollow decking board | Send section drawing, board width, thickness and weight per meter. |
| Extruder system | WPC main extruder, optional surface co-extruder | Co-extrusion is optional when a surface layer is required. |
| Mould and calibration | Decking profile mould and vacuum calibration table | Mould design controls profile size, cooling and shape stability. |
| Surface treatment | Online embossing, sanding or brushing | Surface texture should match outdoor decking market demand. |
| Downstream | Cutting machine and turnover stacker | Cutting length and stacking layout depend on product length and packing method. |
Please send the decking profile drawing or sample photo, board width and thickness, solid or hollow design, PE and wood powder formula, target output, surface embossing or co-extrusion requirement, voltage and workshop layout. These details help Winsoar recommend the extruder, mould, cooling length, downstream machines and auxiliary equipment.
Machine Configuration

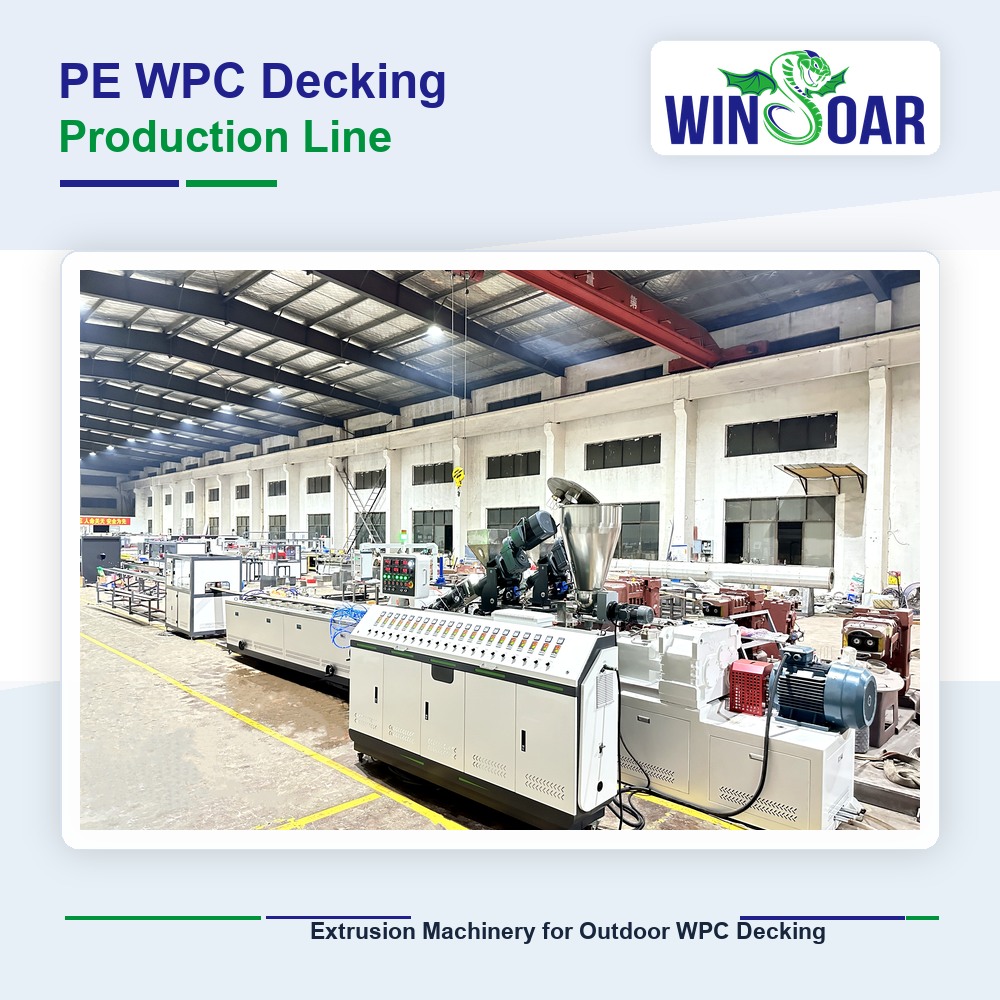

A reliable PE WPC decking board machine must handle wood powder dispersion, PE plasticizing, profile shaping, vacuum calibration, surface texture, accurate cutting and finished board collection. The following sections show the real machine units used in this project.

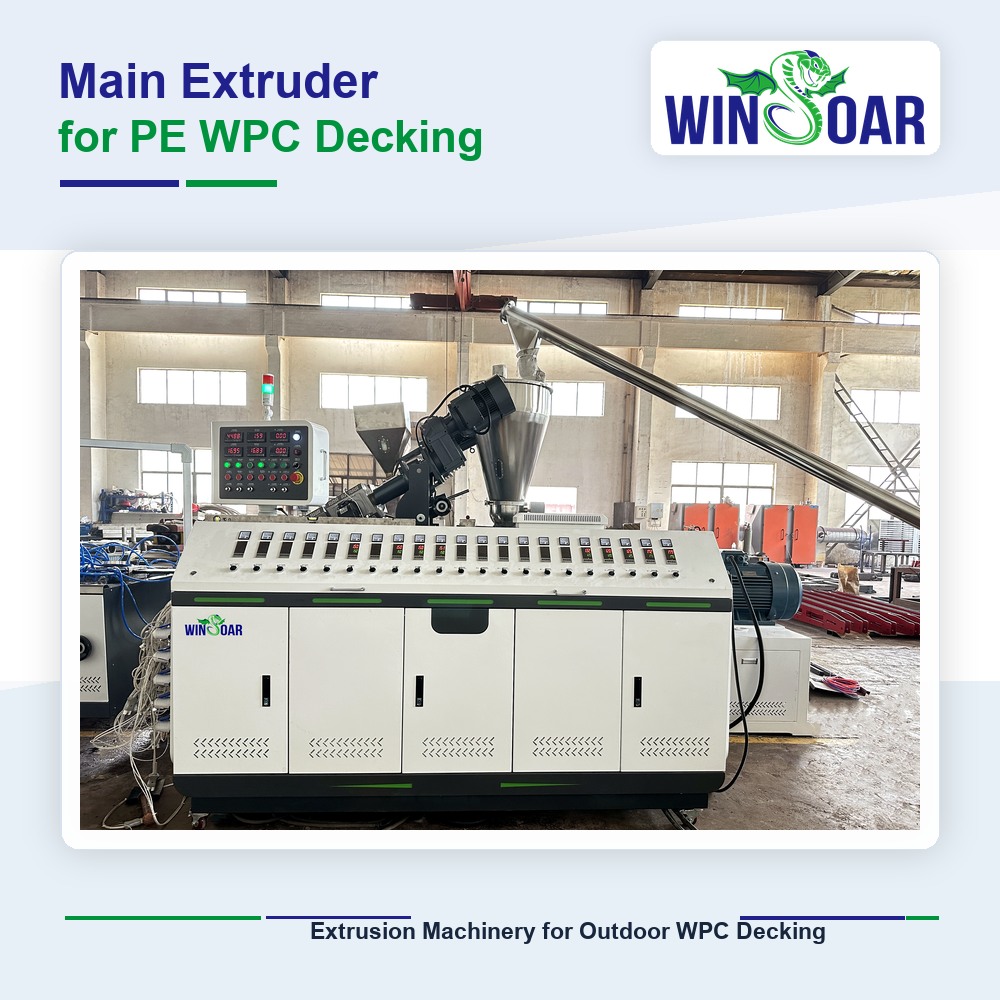

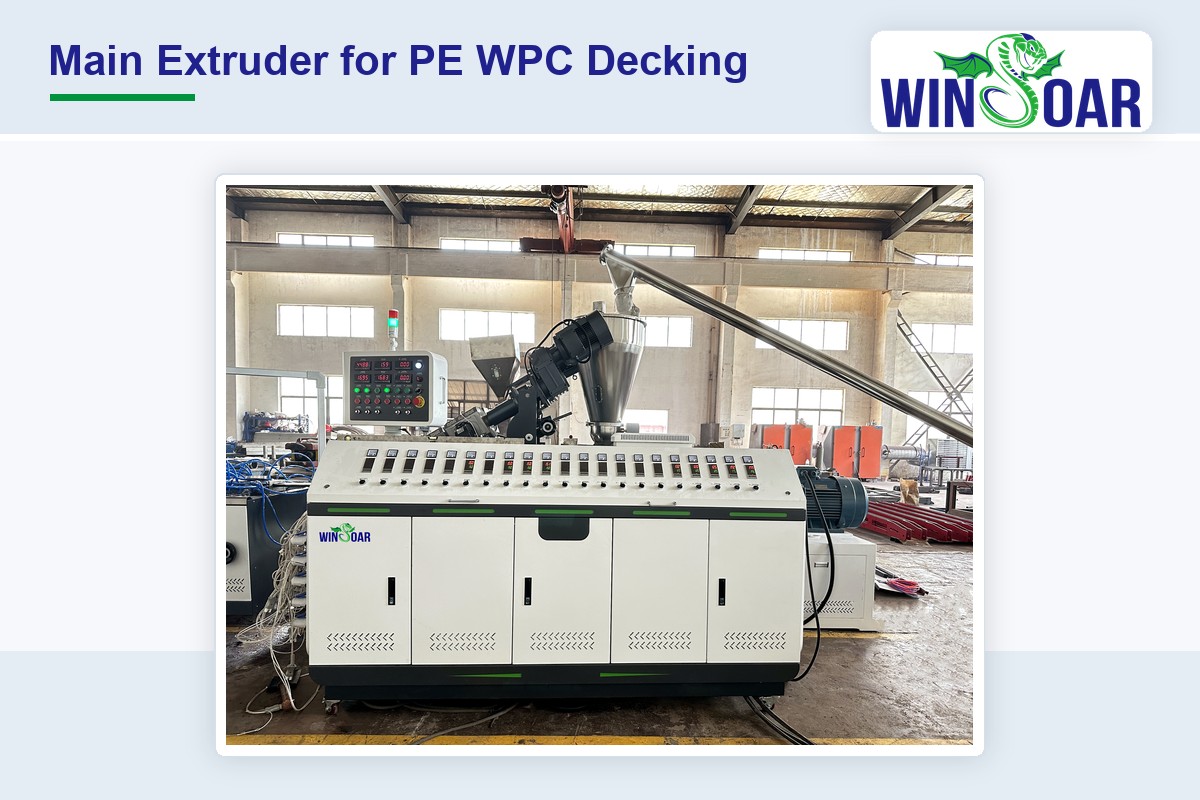

The main extruder melts and plasticizes the PE resin and wood powder composite material. Stable material feeding, screw design and temperature control are important for WPC profile density and surface quality.

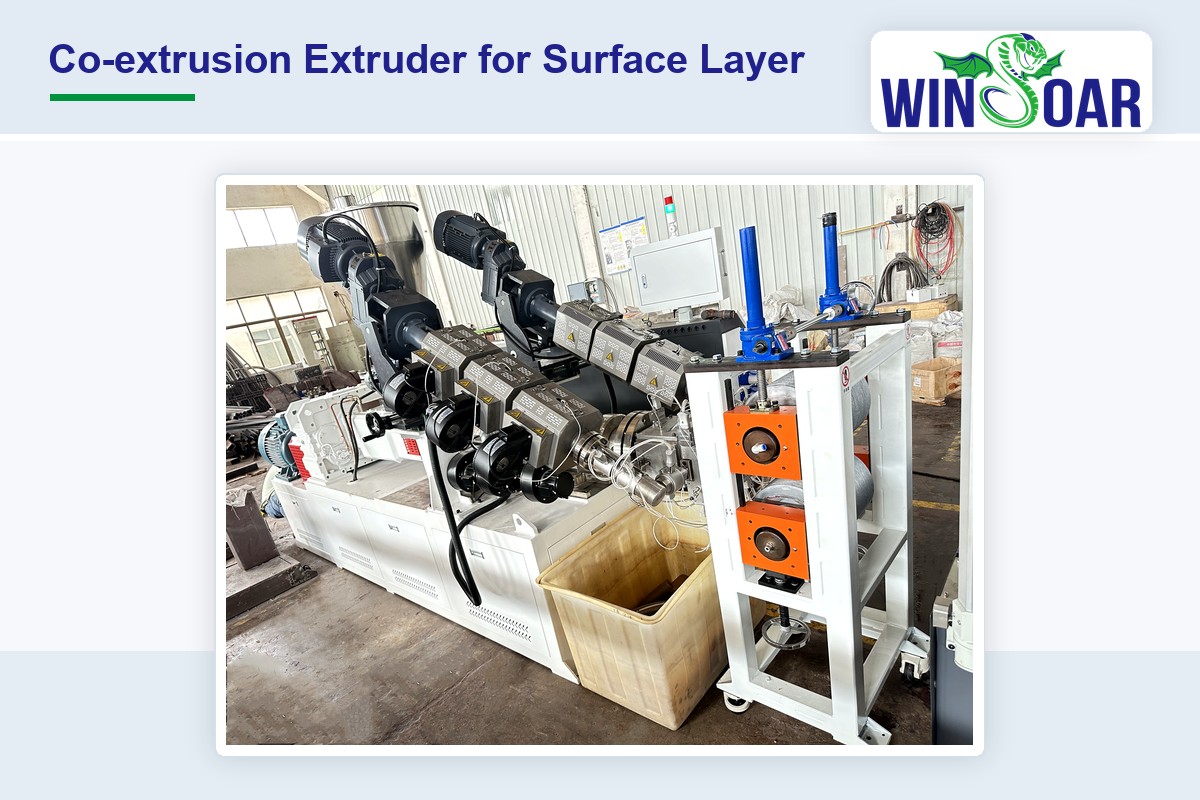

When the decking board requires a protective surface layer, color layer or improved weathering surface, a co-extrusion extruder can be added. This option should be confirmed by product structure and market requirement.

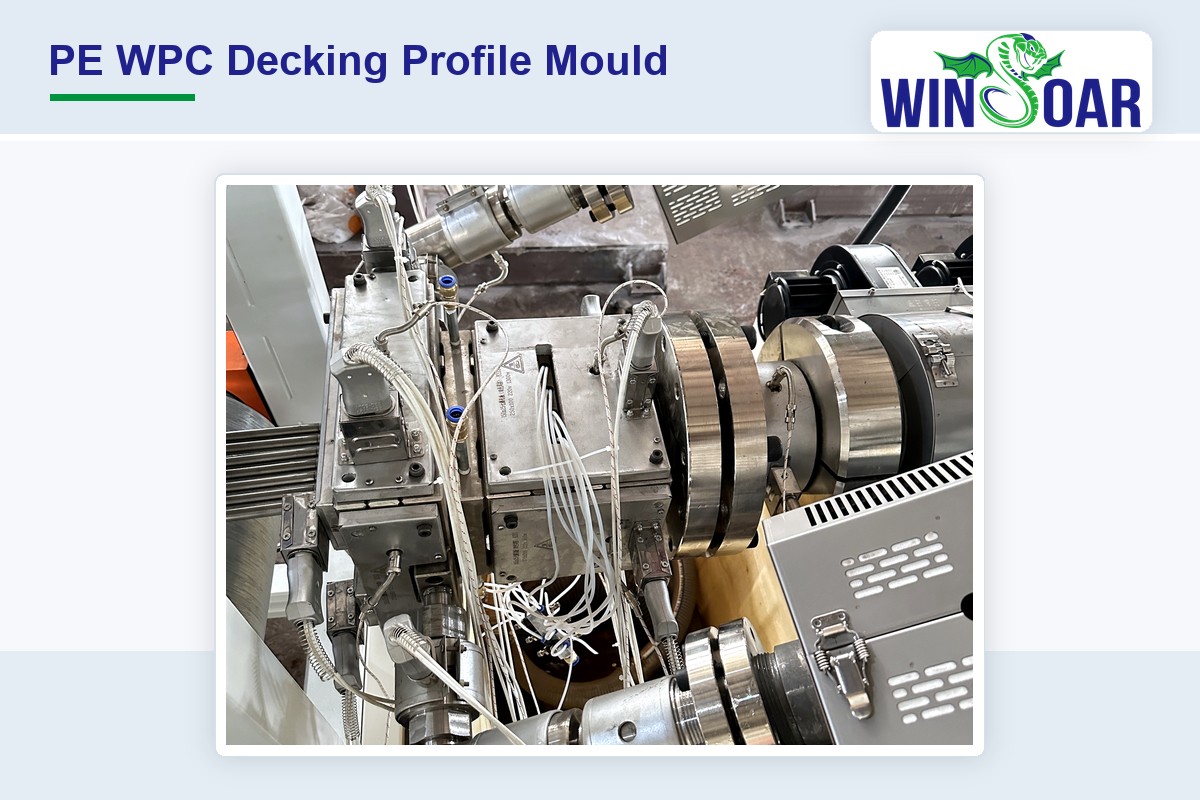

The profile mould forms the decking board section. It must be designed from the buyer's drawing, including hollow chamber, rib design, board width, thickness, locking groove and surface requirements.

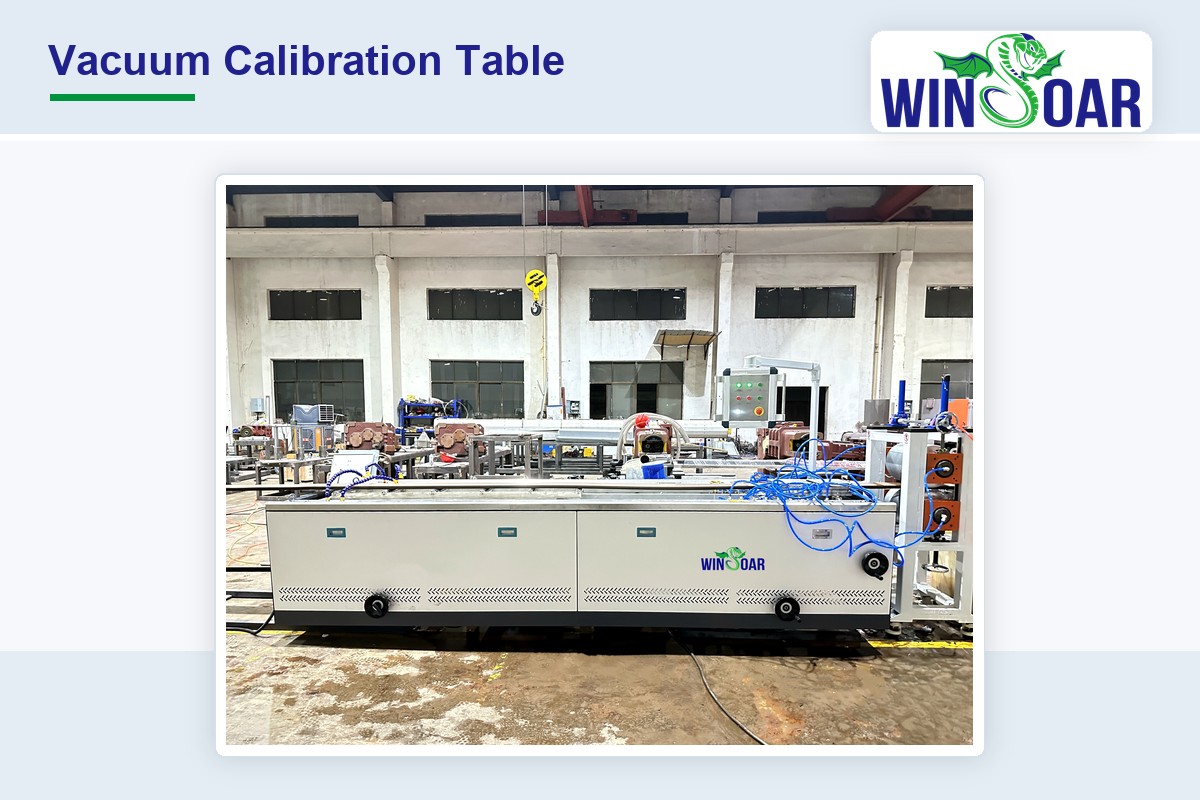

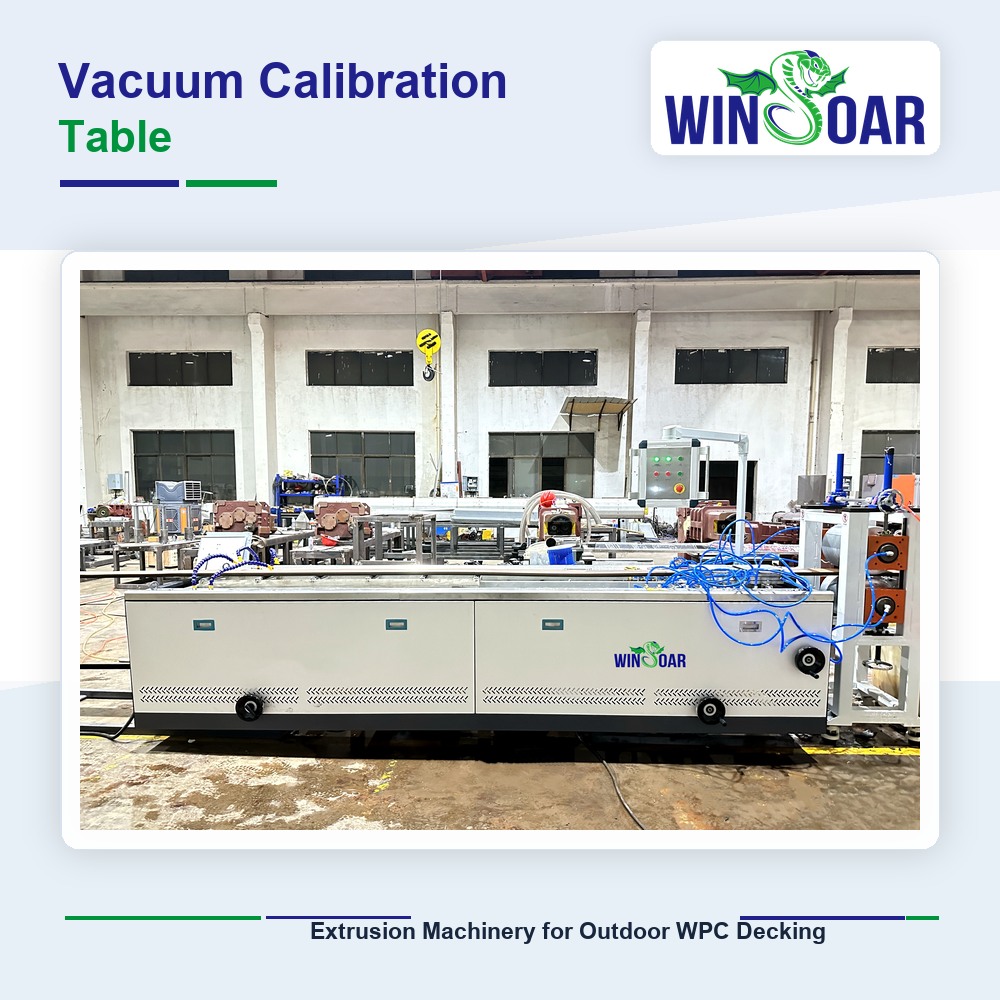

The vacuum calibration table stabilizes the profile shape after extrusion. It provides cooling and dimensional control before embossing, haul-off, cutting and stacking.

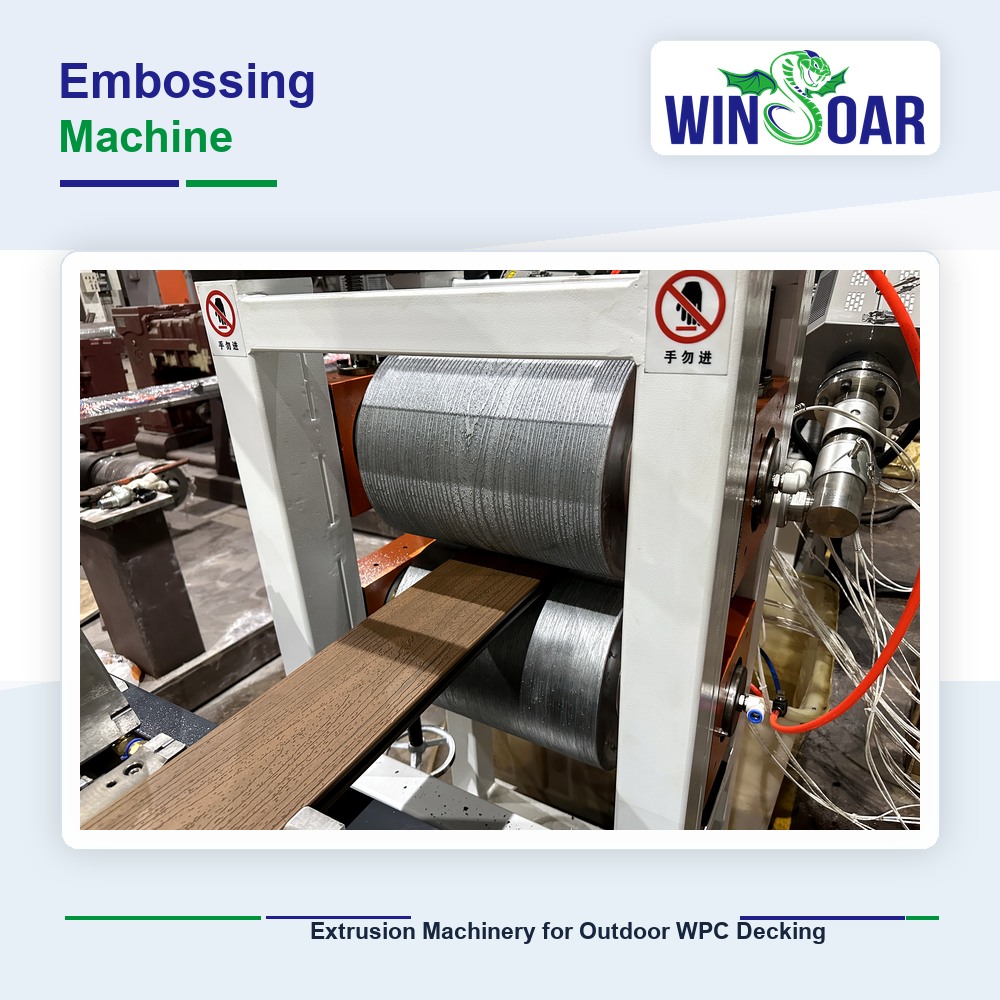

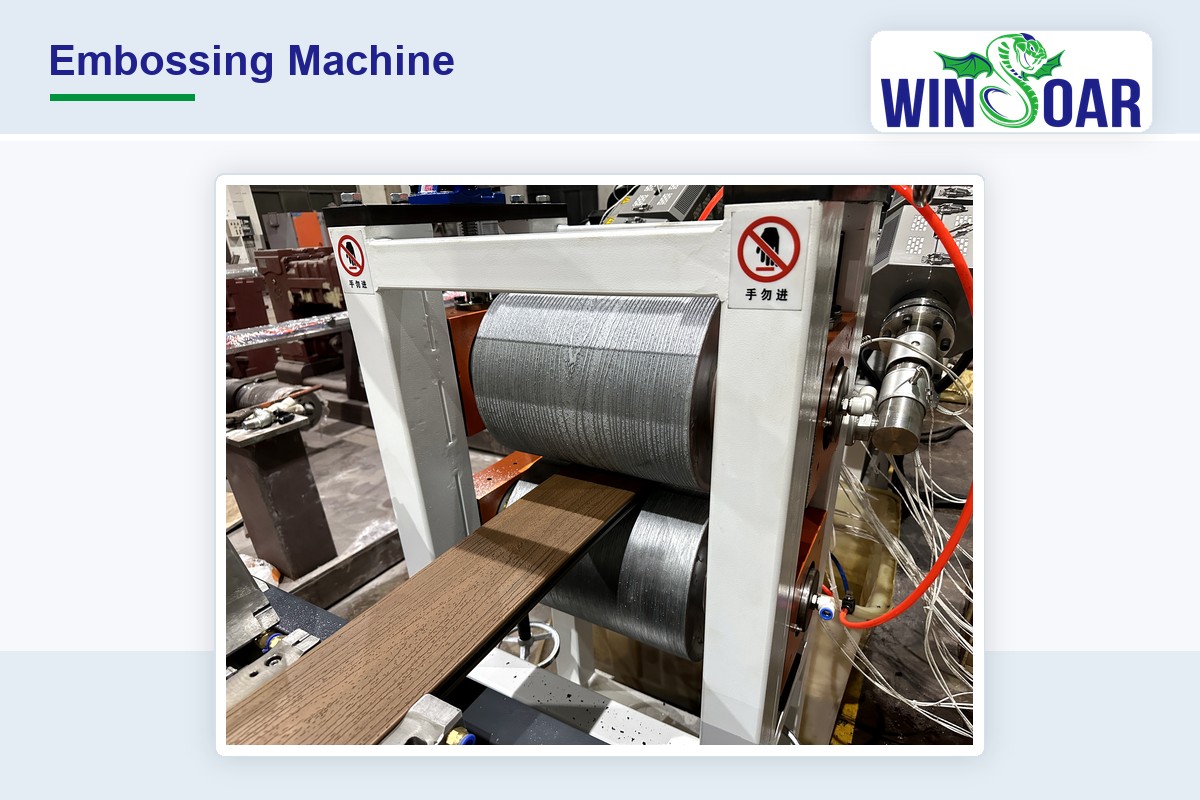

The embossing machine creates wood grain or surface texture on the decking board. The design can be selected according to outdoor flooring appearance and anti-slip requirements.

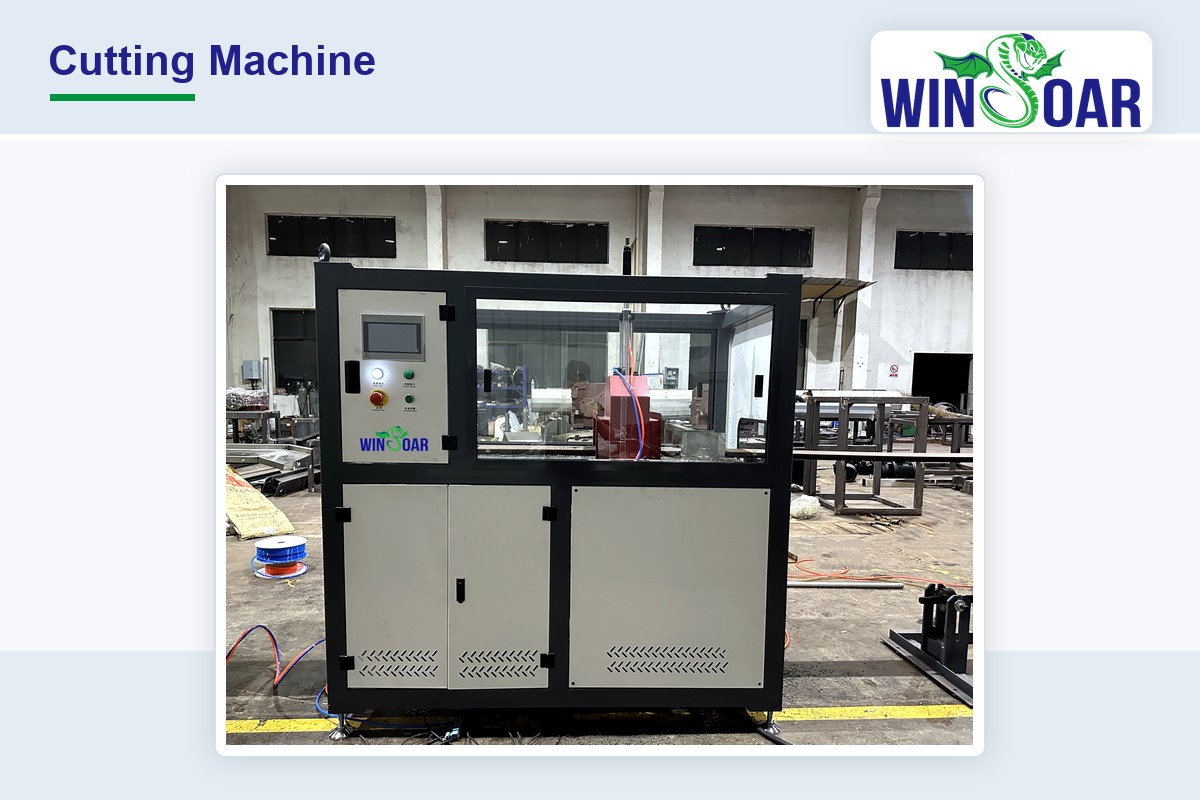

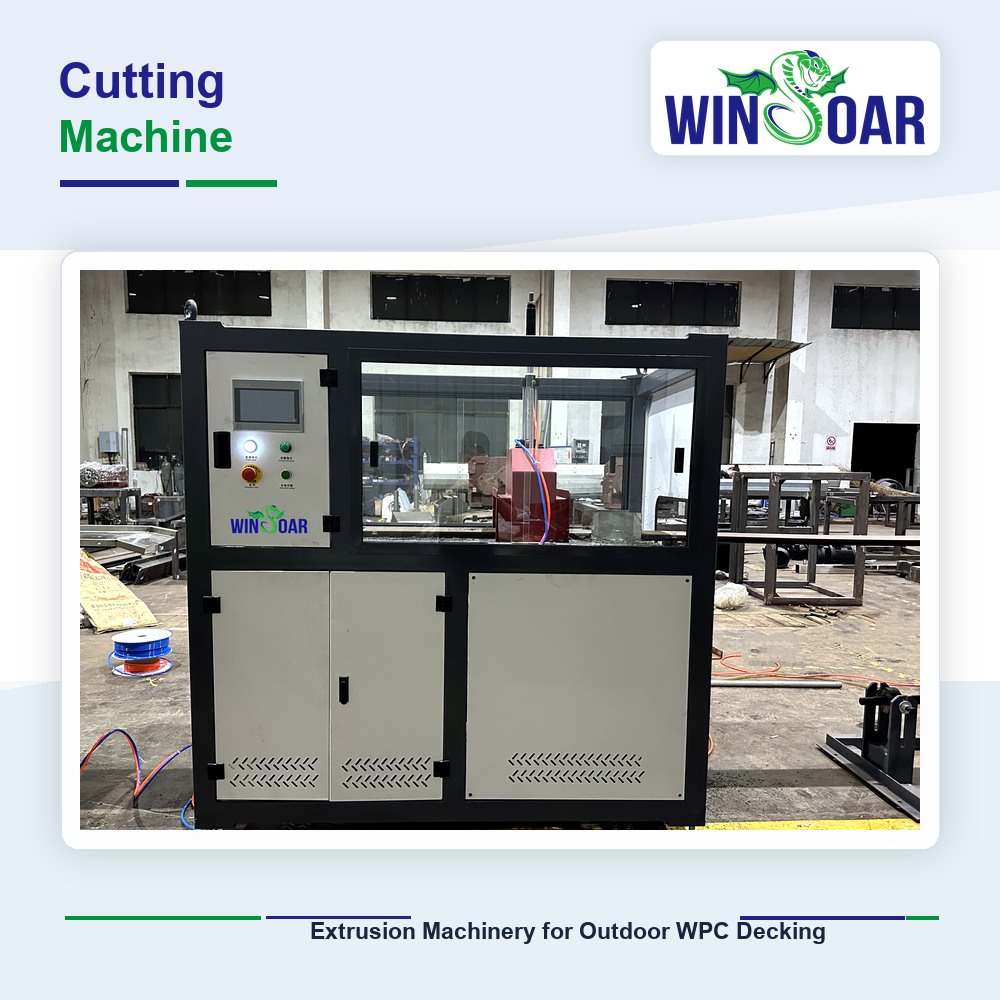

The cutting machine cuts PE WPC decking boards to fixed length after calibration, surface treatment and traction. Cutting accuracy should match the final packing length and downstream workflow.

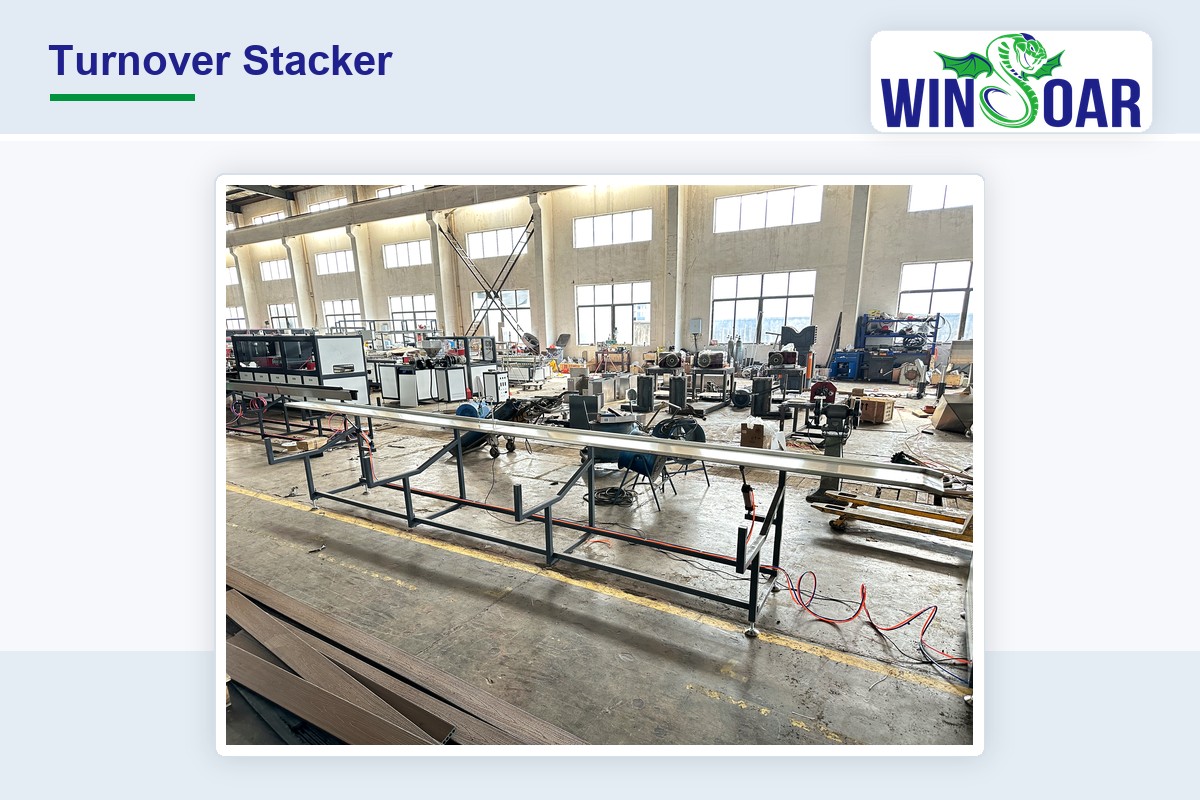

The turnover stacker receives finished decking boards after cutting and supports orderly board collection before packing. The stacker layout should be confirmed by board length, weight, packing method and available factory space.
Send Winsoar your PE WPC formula, decking board section drawing, target output, surface texture requirement, voltage and workshop layout. We will recommend the suitable WPC extrusion line configuration, including main extruder, optional co-extruder, mould, vacuum calibration table, embossing machine, cutter, stacker and auxiliary machines. Contact Winsoar for quotation.
Factory & Delivery Support
Winsoar supports PE WPC decking production line projects from profile drawing review and machine configuration to factory assembly, export packaging, container loading and customer communication. This section helps overseas buyers evaluate supplier capability beyond the machine photos.
PE WPC decking machinery is assembled and checked in Winsoar's extrusion machine workshop. Project layout, machine section length, downstream configuration and auxiliary machines are reviewed before delivery.
Extruder body, electrical control, mould-related equipment and downstream sections are checked during assembly. This helps reduce installation risk after the PE WPC decking line arrives at the buyer's factory.
Winsoar prepares protective export packaging according to machine size, transport distance and unloading conditions. Moulds, electrical parts and accessories are packed separately when required.
The loading sequence is arranged according to the length and weight of the PE WPC decking extrusion line. Machine sections, moulds, electrical cabinets and auxiliary equipment are grouped for easier unloading and installation.
At exhibitions, Winsoar discusses profile drawings, WPC formulas, decking samples, output targets and factory layouts with customers. This is useful when buyers need to compare PE WPC decking, WPC cladding and other WPC profile applications before quotation.
For a complete PE WPC decking production line proposal, send the decking profile drawing, PE and wood powder formula, target output, embossing or co-extrusion requirement, finished board length, voltage, workshop layout and delivery destination. Contact Winsoar for machine configuration and quotation.
FAQ
Send the decking board drawing or sample photo, board width and thickness, solid or hollow structure, PE and wood powder formula, target output, finished board length, surface texture requirement, voltage and workshop layout.
No. PE WPC decking uses PE resin and wood powder for outdoor composite boards, while PVC WPC profile projects use a different base material and different process control points.
A complete PE WPC decking production line usually includes mixing, main extrusion, mould, vacuum calibration, optional surface co-extrusion or embossing, cutting and turnover stacking equipment.
Yes, but the mould, calibration section, output setting and downstream layout should be selected according to the board section drawing and target product weight.
Yes. Winsoar can review the line layout, prepare export packaging, support container loading and discuss the project before quotation.
