PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc. This set is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc.
The extruder and extractor adopt the imported AC frenquncey control device. The vacuum pump and the main motor adopt the famous brand. The haul-off has many different kinds of Model, such as two-claw, three-claw, four-claw, five-claw, six-claw. About the cutter, you can choose the saw blade cutting type or the planet cutting type. We also can offer some auxiliary machine about the pipe extrusion line.
Features
PVC pipe extrusion lines can produce pipes in PVC materials, with diameters starting from 16mm up to 1000 mm. With its wide range including various technical solutions, Winsoar company's production does not only include standard machines, but also offers complete pipes extrusion lines, tailor-made according to the customers' requirements, still assuring high performances and competitive prices.
Main Technical Parameter
Diameter Range (mm) | Extruder Type | Extrusion Power(KW) | Max. Capacity (kg/h) | Max. Haul Off Speed(m/min) |
Ф16-40 Dual | SJZ51/105 | 18.5 AC | 120 | 10 |
Ф20-63 Dual | SJZ65/132 | 37 AC | 250 | 15 |
Ф20-63 | SJZ51/105 | 18.5 AC | 120 | 15 |
Ф50-160 | SJZ65/132 | 37 AC | 250 | 8 |
Ф75-160 Dual | SJZ80/156 | 55AC | 450 | 6 |
Ф63-200 | SJZ65/132 | 37 AC | 250 | 3.5 |
Ф110-315 | SJZ80/156 | 55 AC | 450 | 3 |
Ф315-630 | SJZ92/188 | 110 AC | 800 | 1.2 |
Ф710-1000 | WSP130/26 | 160 AC | 1100 | 1.3 |
Pictures for Reference

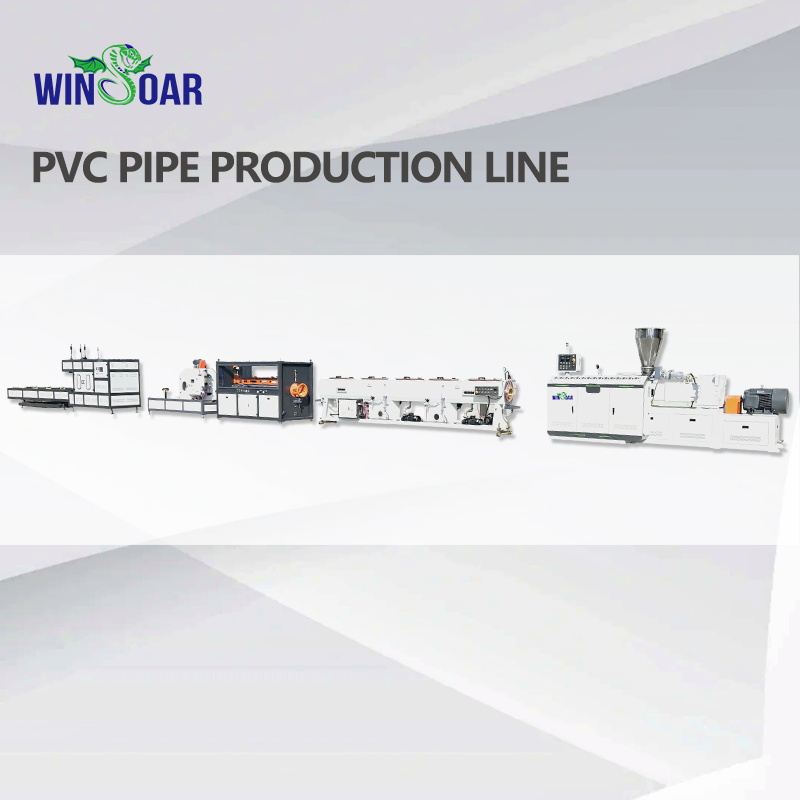

PVC PIPE PRODUCTION LINE
It consists of vacuum calibration tank, tractor, cutting machine,belling machine, etc. The equipment has a high degree of automation and is easy to operate.

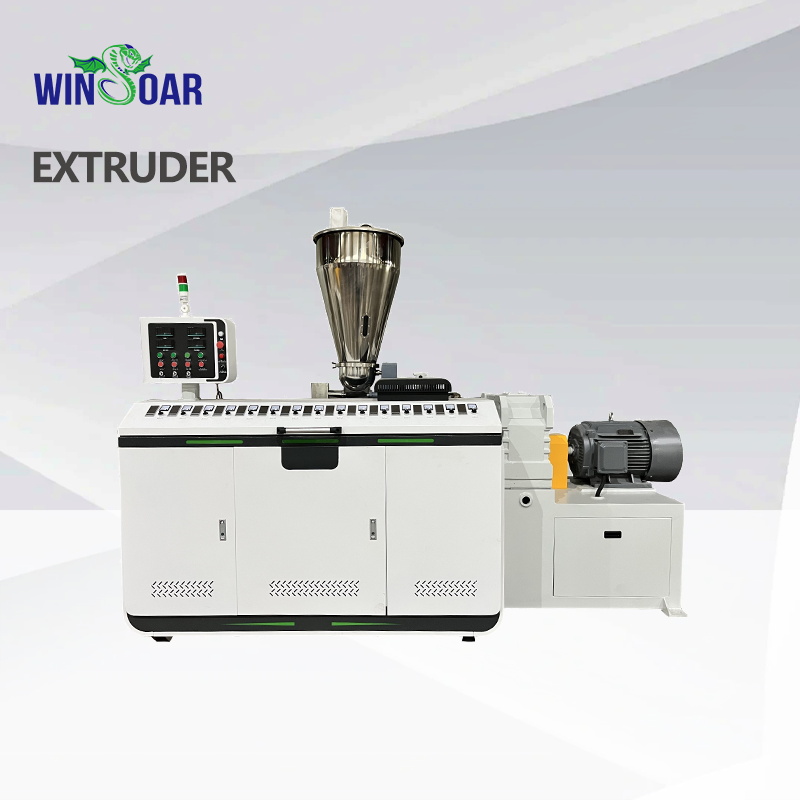

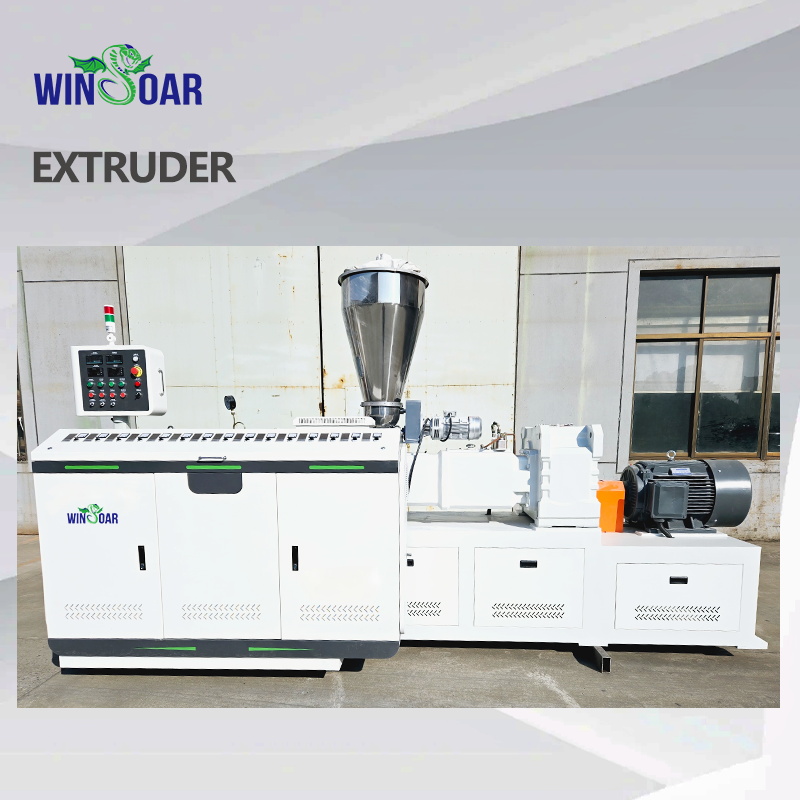

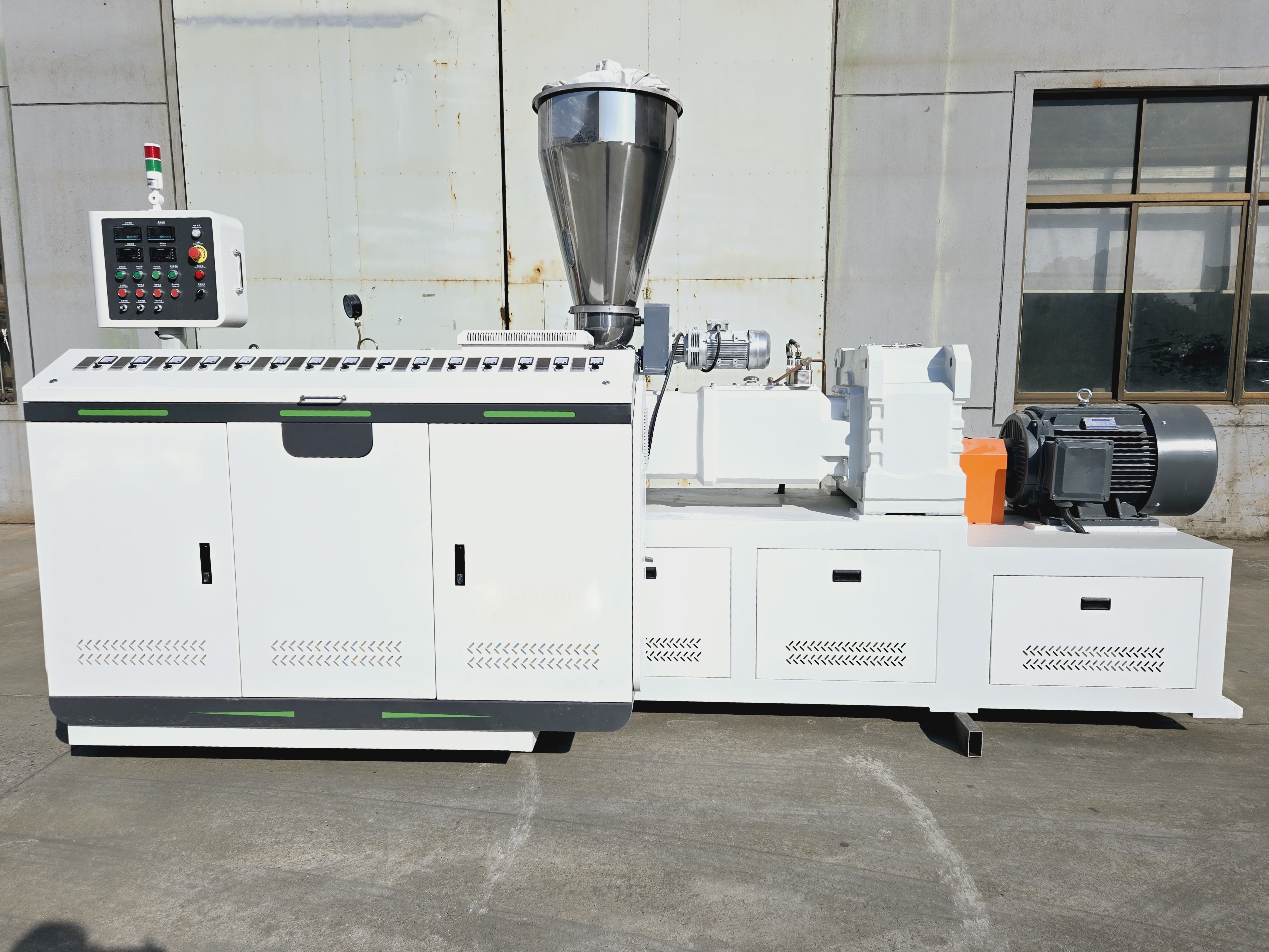

CONICAL TWIN SCREW EXTRUDER
This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

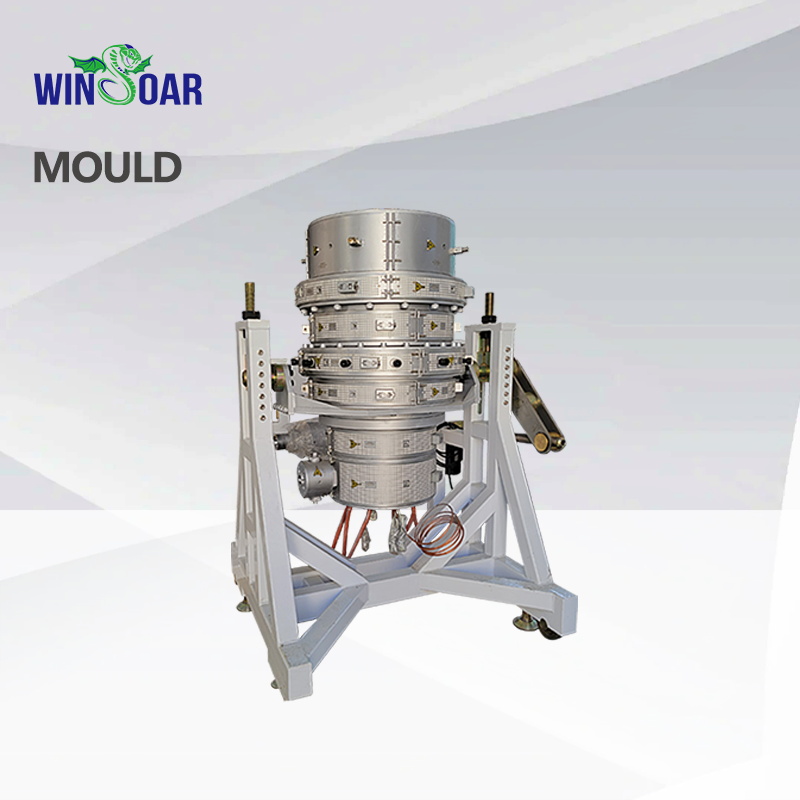

EXTRUSION DIE
After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.

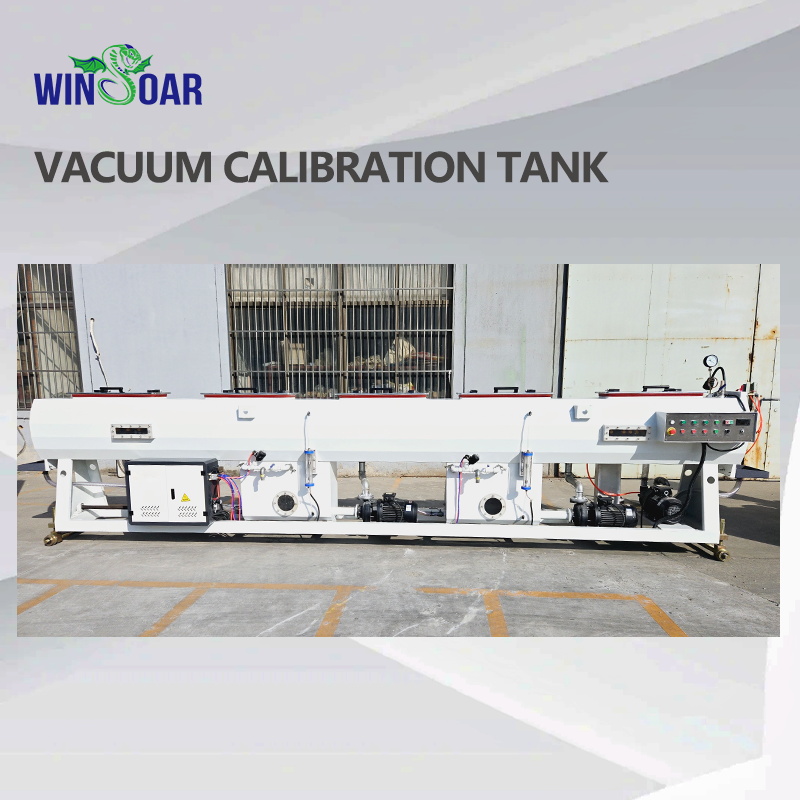

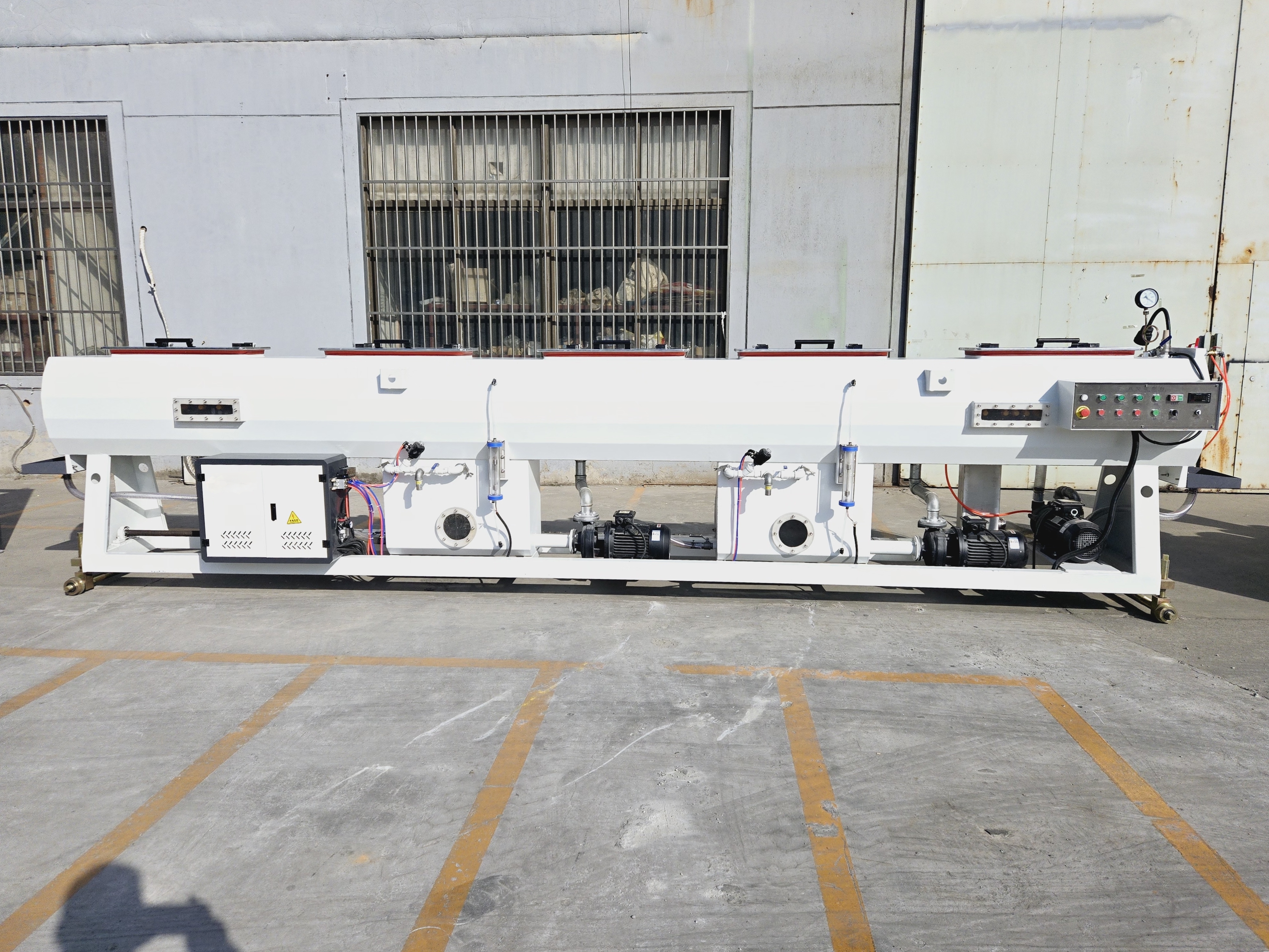

VACUUM CALIBRATION TANK
Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

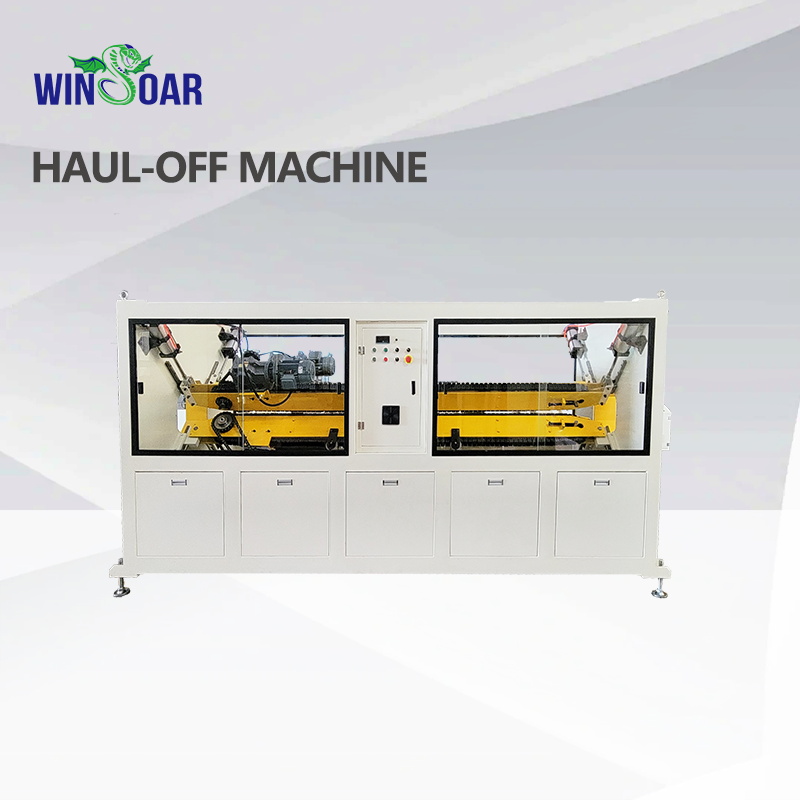

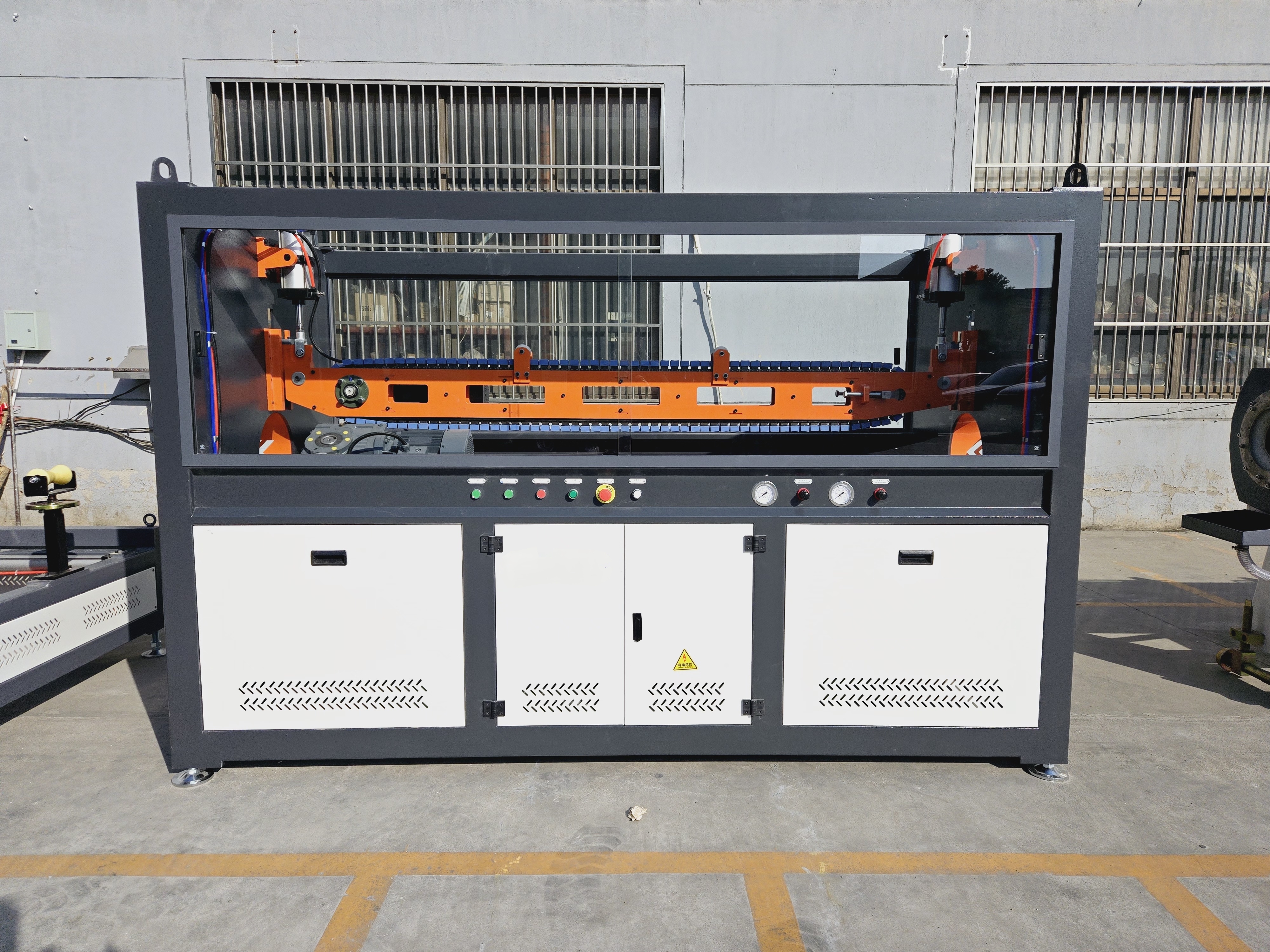

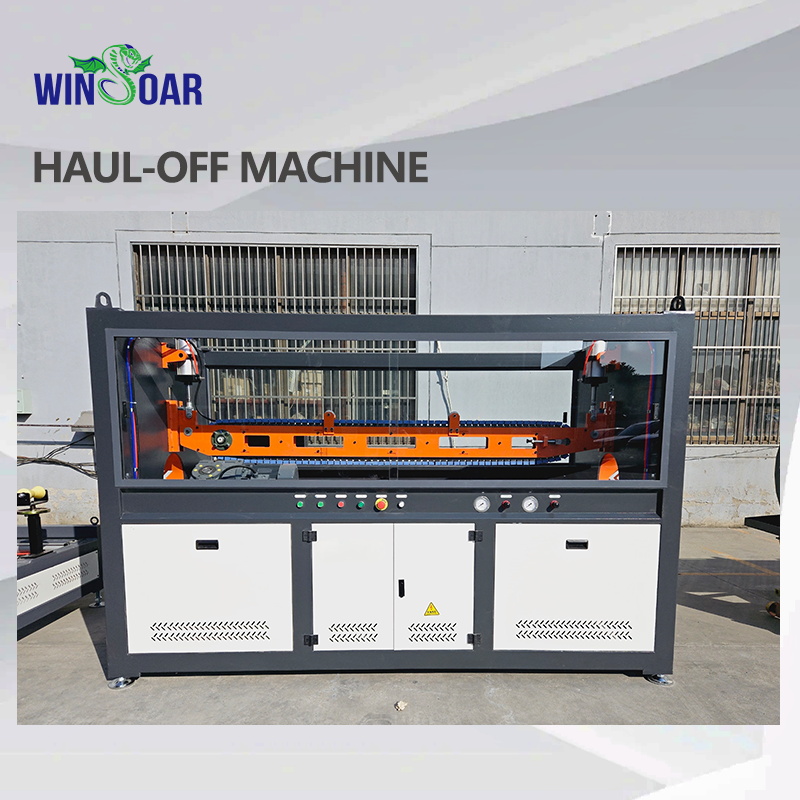

TRACTOR
It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.

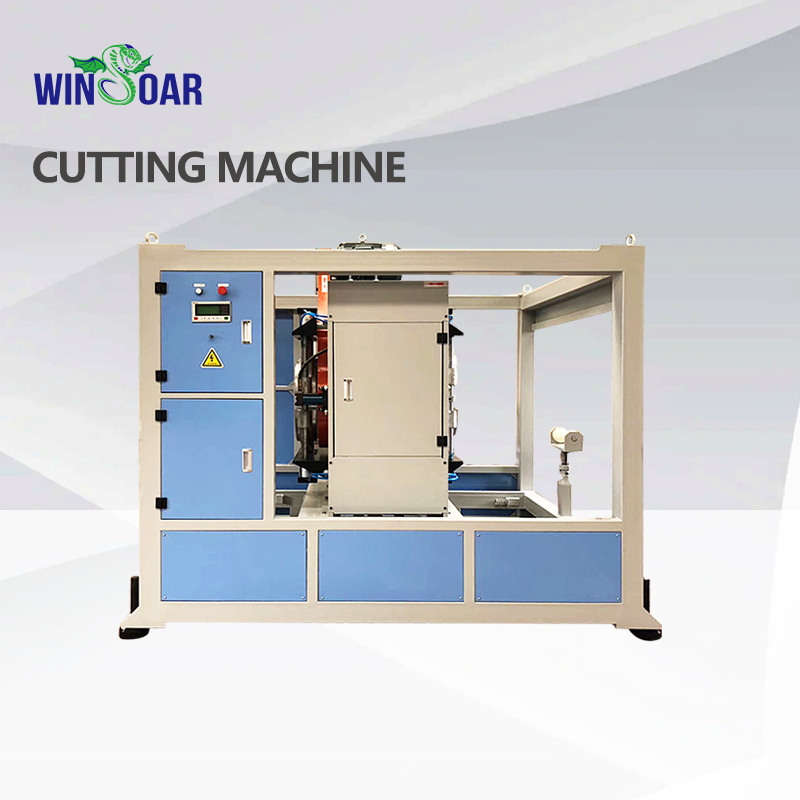

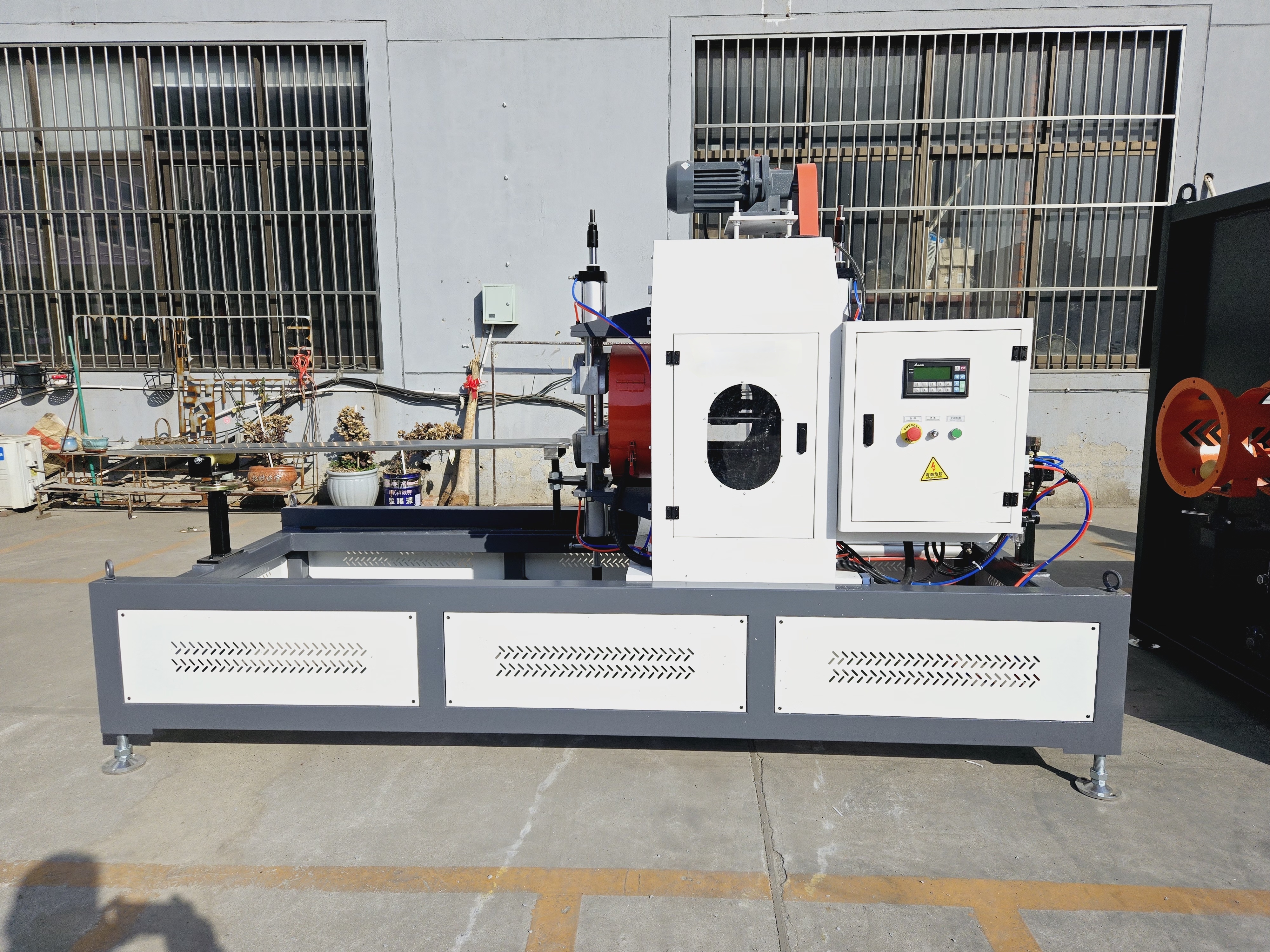

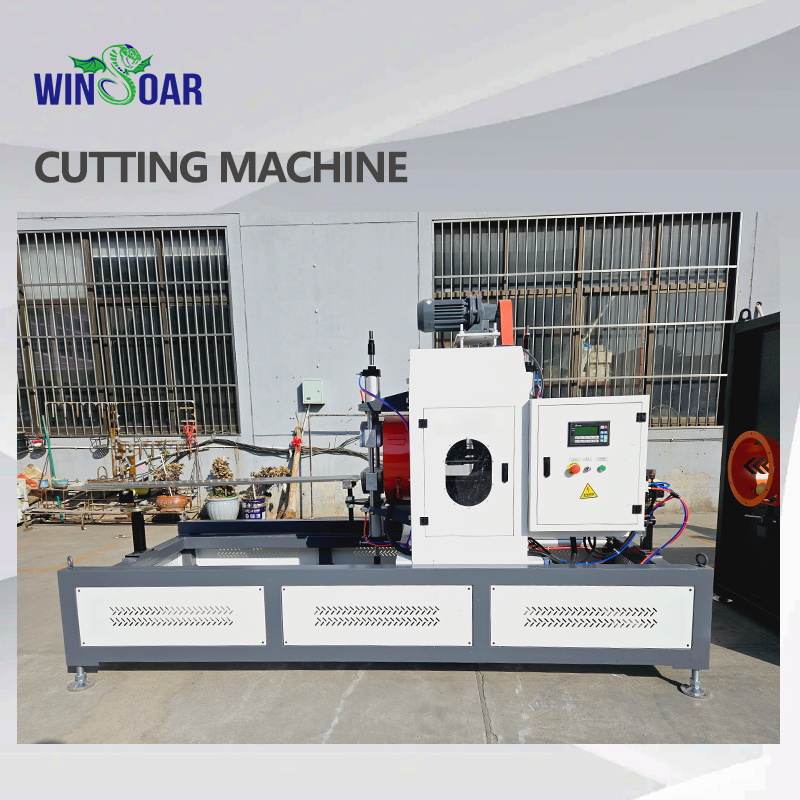

CUTTING MACHINE
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.
TURNOVER RACK (OPTIONAL ON REQUEST)

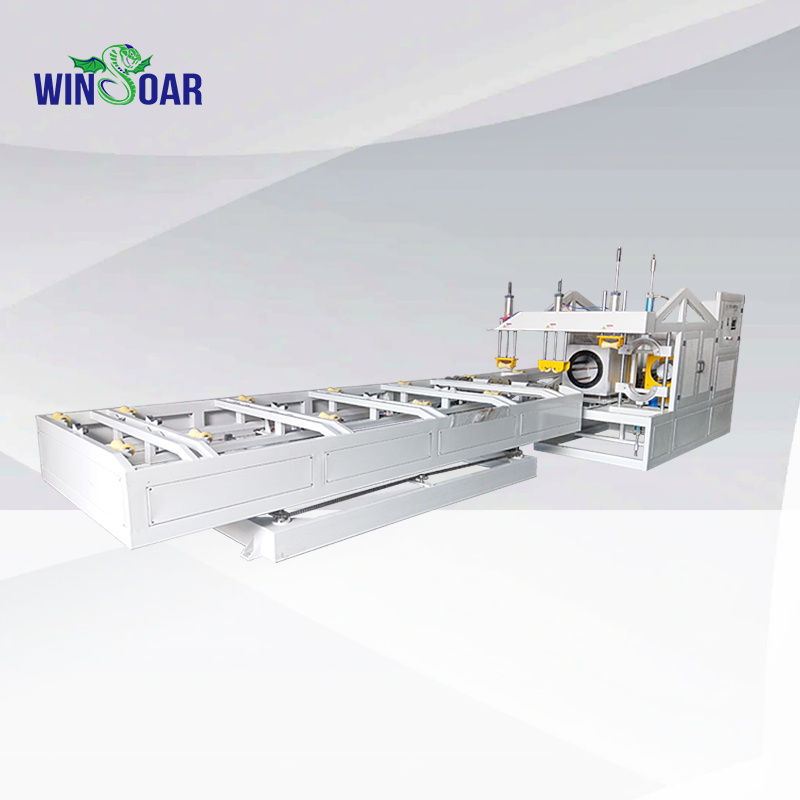

Accept finished products and automatically turn over.

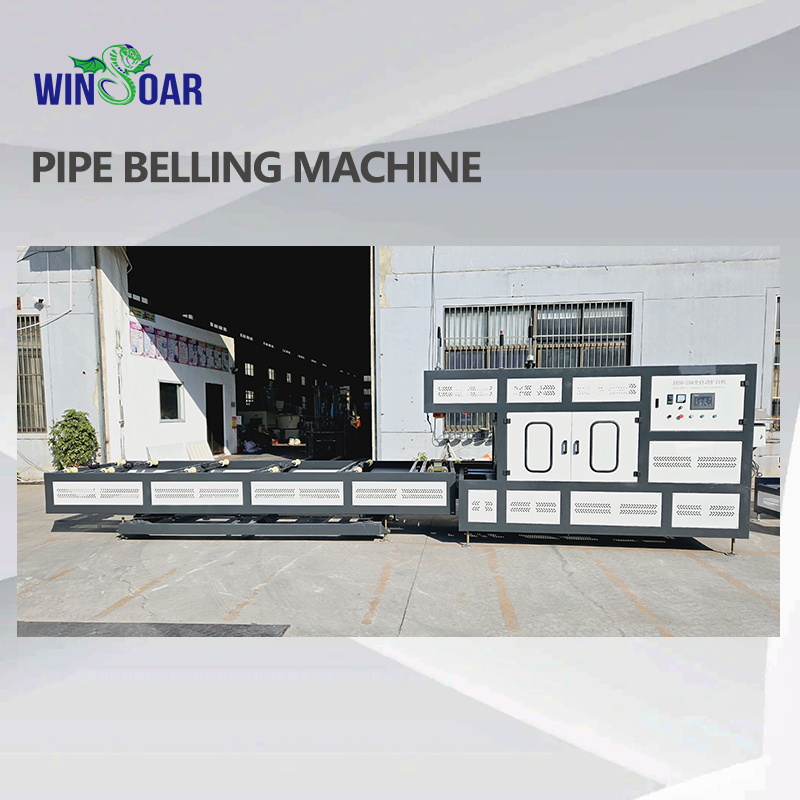

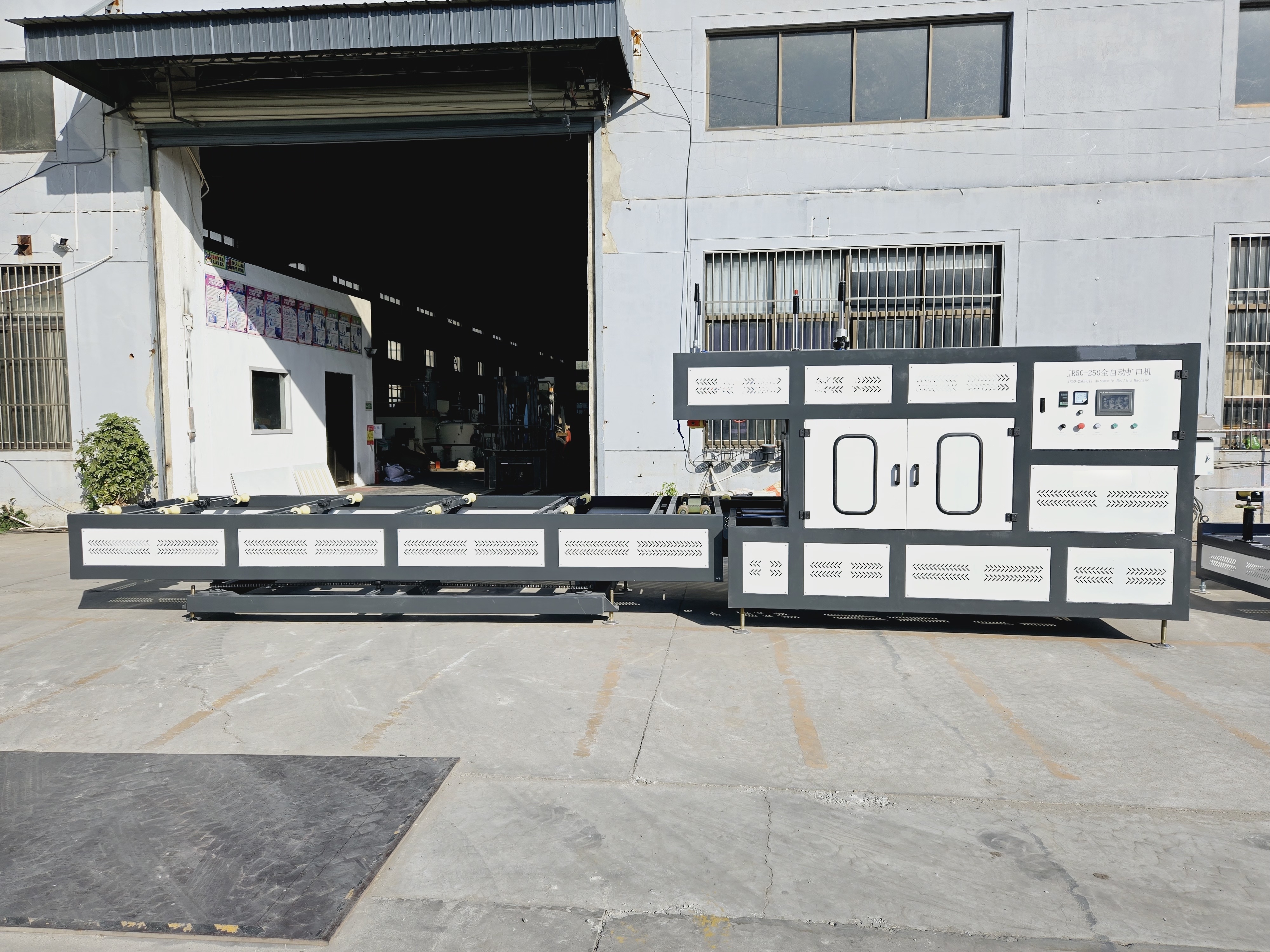

PIPE BELLING MACHINE (OPTIONAL ON REQUEST)
The automatic pipe flaring machine can cooperate with the pipe production line to expand the pipe online or expand the pipe separately.The flaring pipe is heated by an oven,and the Omron temperature control is used for precise temperature control.
