Ceiling-wall Panel Production Line

5 0 Reviews
Availability:
Quantity:

Product Description

PVC /WPC wall panel line is mainly used to produce PVC / WPC wall panel and other PVC profile product like PVC window & door profile, PVC ceiling tile, PVC skirting etc. it is a kind of high efficiency equipment for plastic extrusion, it is mainly composed by force feeder, soft plasticization screw and barrel, high precision gearbox, exhaust system, it is features of even mixing, better plasticization,stable working, high capacity, and it is suitable for produce PVC products from mixed powder, within different mold and other auxiliary equipments, it can produce plastic pipe, profile, board, sheet, granules and so on.


Advantage of PVC wall panel

Easy installation, it can be installed directly onto concrete wall

No glue, the PVC/WPC wall panel are extruded directly, no glue used. Good for environment.

Multiple color choice. The PVC / WPC wall panel apply film lamination, so you can choose design and color which you like.

Easy to change. After use several years, if you want to redecorate the house, it is easy to take off from the wall and change to another design.


Main technical parameter

Main technical specifications of machines

Maximum panel width

300mm

400mm

600mm

Profiles

Extruder model

SJZ 55

SJZ 65

SJZ 65/SJZ80

SJZ 51

Extruder motor

22kw

37kw

37kw/55kw

15kw

Production speed

2m/min

4m/min

3m/min

2m/min

Production speed

120kg/h

220kg/h

220kg/h / 400kg/h

100kg/h



PVC-board_01

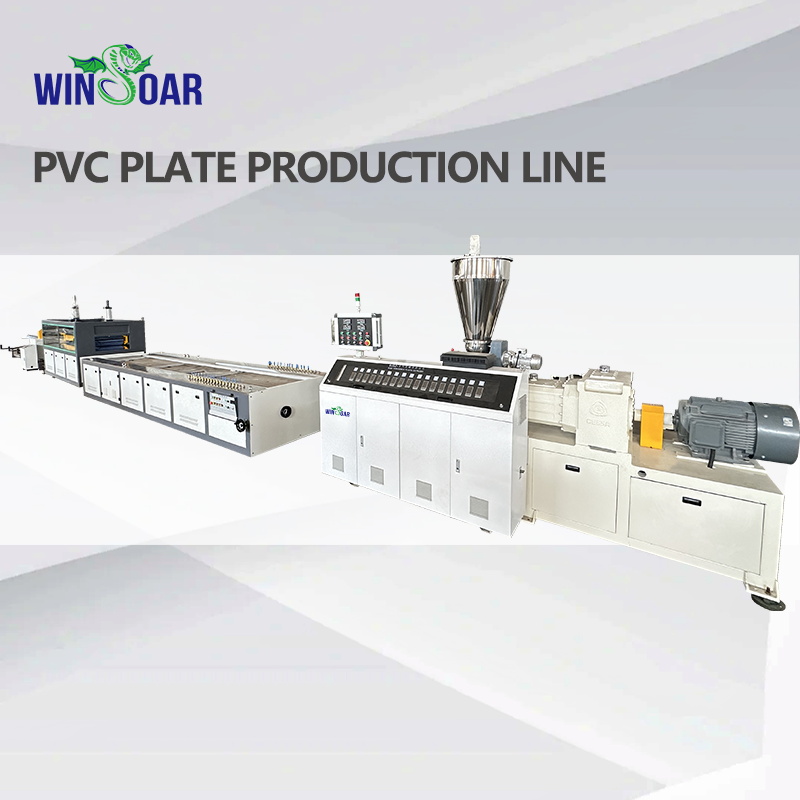

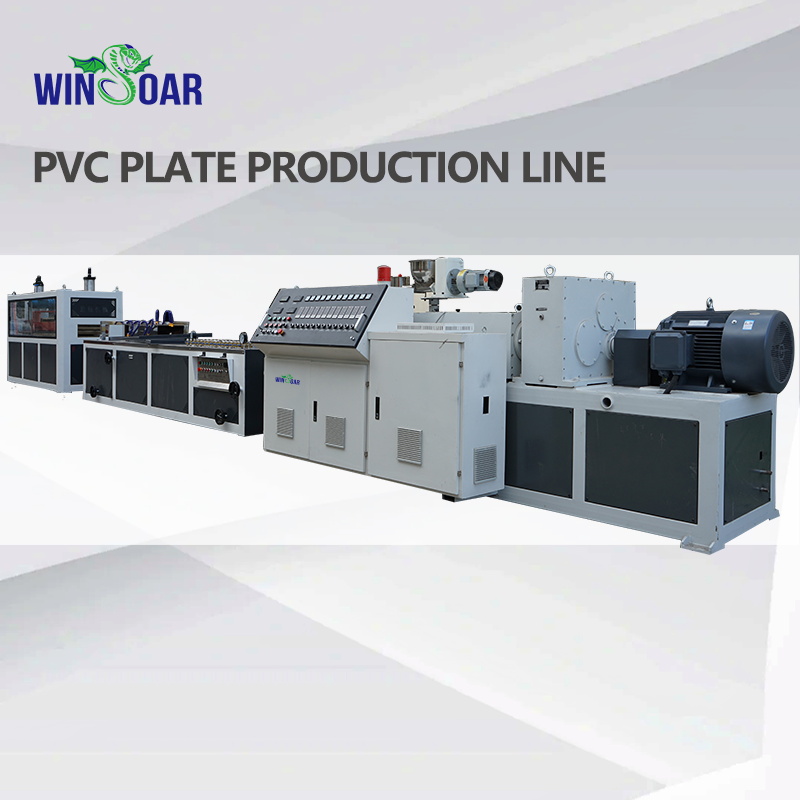

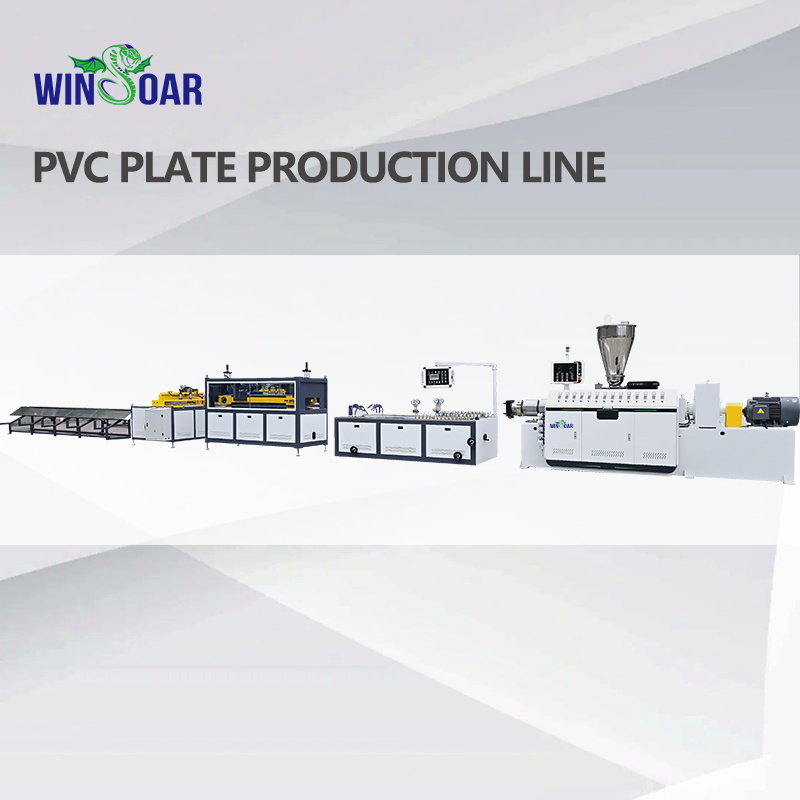

PVC PIATE PRODUCTION LINE

The production line adopts automatic control,with high degree of automation, stable equipment easy operation and high production efficiency.


p2PVC-board_04

PVC-board_05


CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-board_06


EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.


PVC-board_07


VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.


PVC-board_08


TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.


PVC-board_09


HORIZONTAL CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Automatic pressing, sawing, hidden saw blade, low noise and high safety.


PVC-board_10

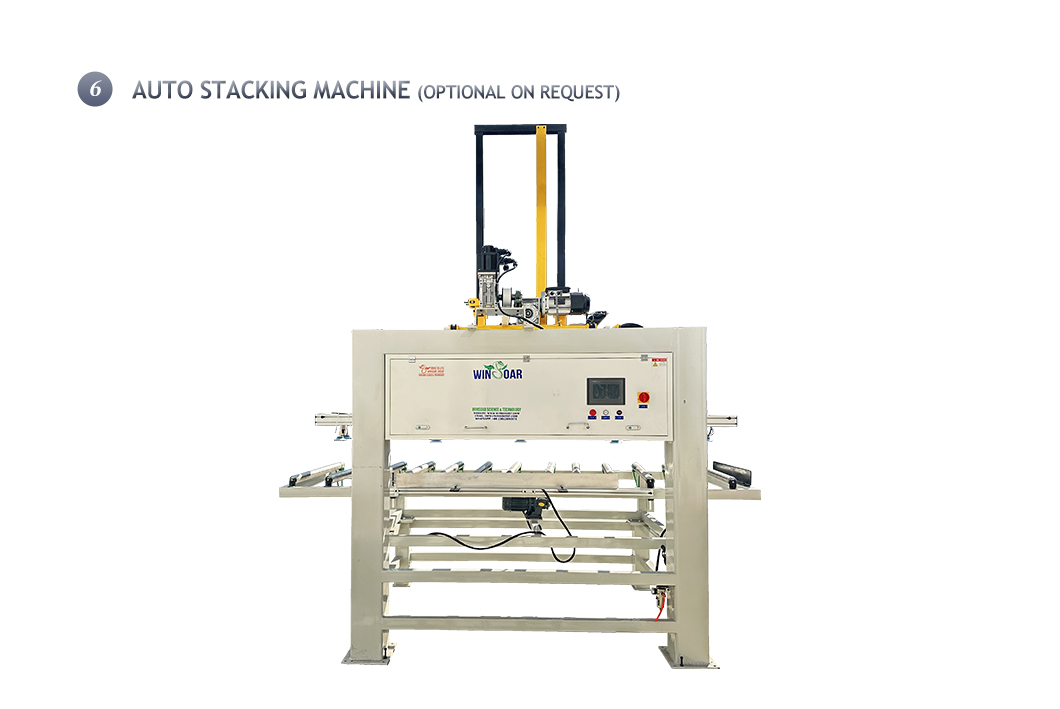

AUTO STACKING MACHINE (OPTIONAL ON REQUEST)

It can automatically receive and stack plates, saving personnel time for plate placement.


PVC-board_11


PLATE STACKER (OPTIONAL ON REQUEST)

Receive finished product and unload.


p12p13p14
