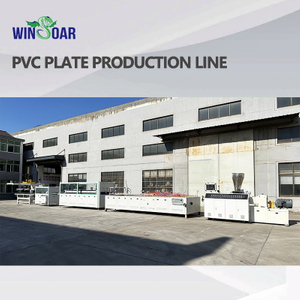

Hollow Semi-automatic Ceiling/Wall Panel Production Line

5 0 Reviews

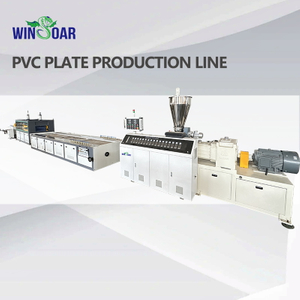

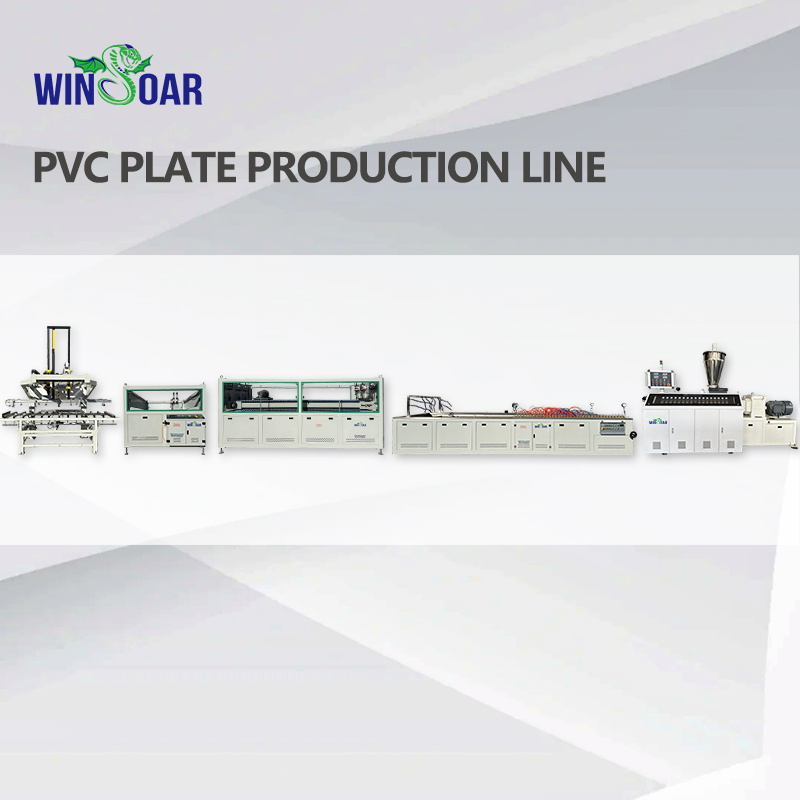

This semi-automatic production line is exclusively customized for PVC raw materials, integrating six core devices: an extruder, PVC-specific mold, cooling and shaping table, precision traction machine, automatic cutting machine, and panel suction machine.

Availability:

Quantity:



Inquire Add to Basket

Product Description

This Hollow Semi-automatic Ceiling/Wall Panel Production Line is precisely tailored to match the plasticization and molding characteristics of PVC materials. By balancing production efficiency and investment costs through a semi-automatic process, it enables accurate control over the hollow structure and dimensional precision of PVC hollow panels. The finished products boast PVC-specific advantages such as light weight, high strength, water resistance, moisture resistance, corrosion resistance, and aging resistance. Widely applicable to scenarios including residential partition walls, hotel renovations, and factory enclosure systems, it provides a stable and efficient dedicated production solution for PVC prefabricated buildings and decorative engineering projects.

Core Configuration

1、PVC-Specific Tapered Twin-Screw Extruder

The screw structure is optimized for the melting characteristics of PVC raw materials. Equipped with a high-power drive motor, it achieves uniform plasticization of PVC raw materials while avoiding local overheating and degradation. It is fitted with a PVC-specific precise variable-frequency feeding system, supporting accurate proportioning of PVC resin powder with additives such as stabilizers and plasticizers.

2、PVC Customized Molding Mold

Precisely machined from 45Cr steel, its inner surface undergoes high-gloss polishing to ensure smooth and flawless surfaces of PVC panels. It supports customization of different hollow hole diameters, panel thicknesses, and widths according to requirements, adapting to the production of various PVC products such as ceiling panels, interior wall panels, and exterior wall panels.

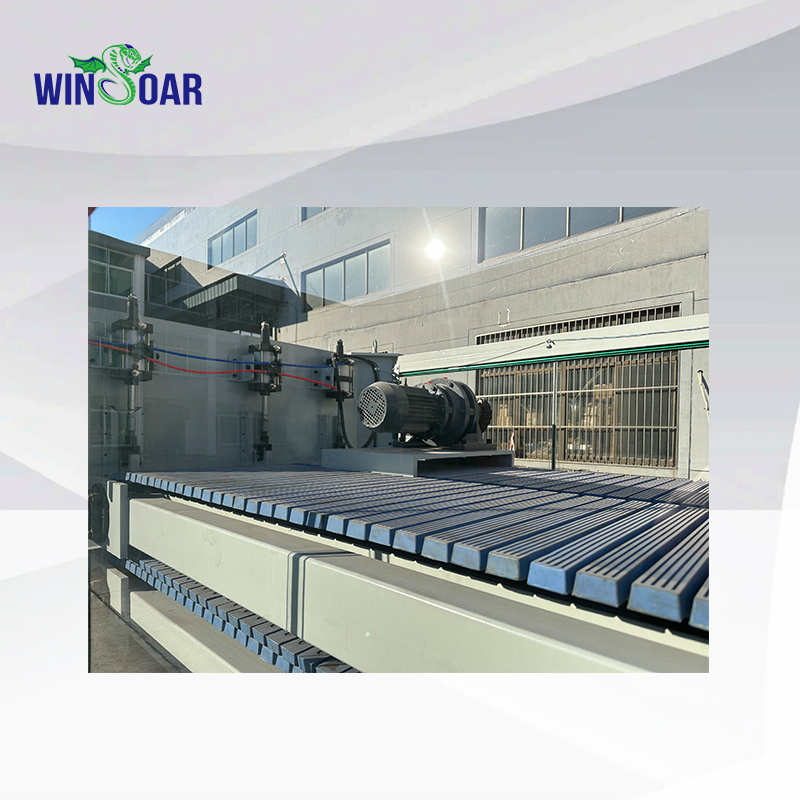

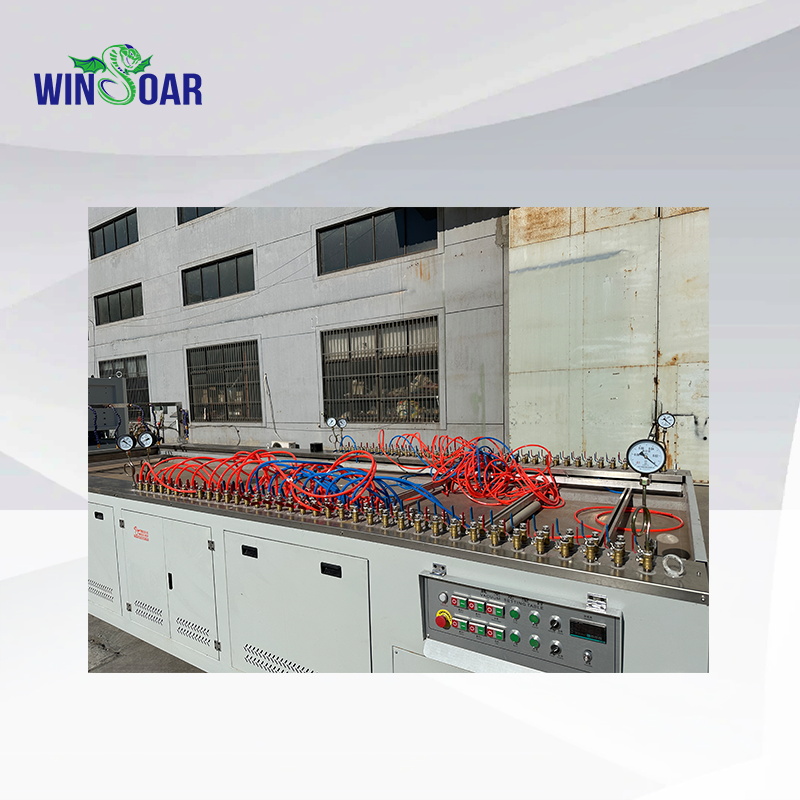

3、PVC-Specific Vacuum Cooling and Shaping Table

Through a pneumatic adjustment mechanism, it achieves precise positioning of PVC panels in vertical and horizontal directions. It effectively suppresses warping, deformation, and uneven shrinkage of PVC panels during the cooling process, ensuring the compactness of the hollow structure and flatness of the panel surface, and laying a solid foundation for subsequent PVC panel processing.

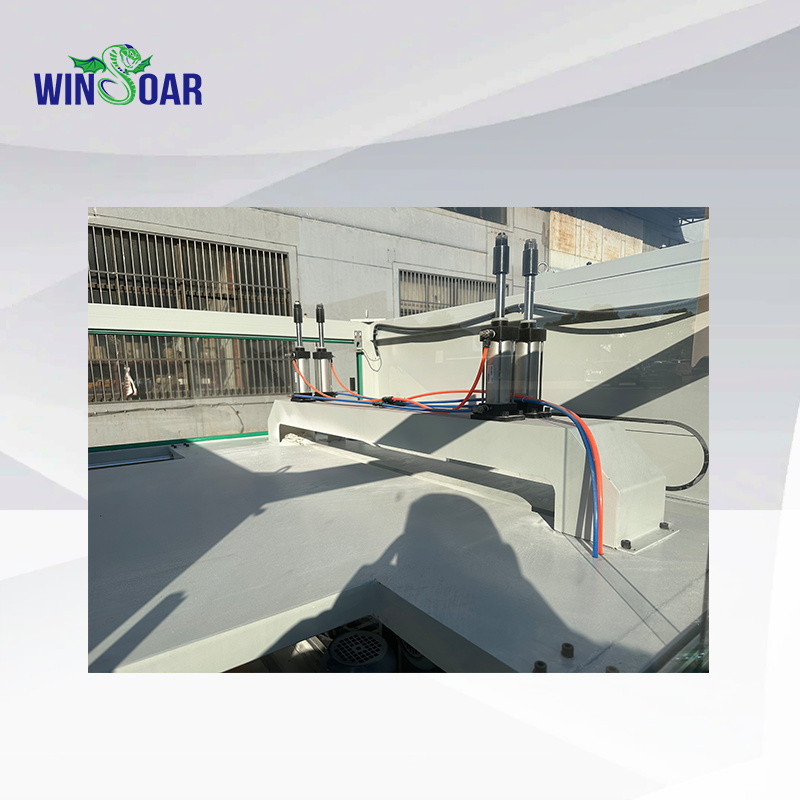

4、PVC Pneumatic Pressurization Traction Machine

Adopting a double-group rubber roller design, it realizes stable pressurization through pneumatic cylinders. The traction speed can be steplessly adjusted according to the PVC extrusion rhythm.

5、PVC Cutting Machine

Equipped with a saw blade cutting structure and a pneumatic impact system, it supports quick switching between multiple PVC panel specifications. Featuring an intelligent sensing device, it works in synergy with the traction machine to achieve uninterrupted cutting. The cut edges are smooth without burrs, reducing the subsequent processing procedures of PVC panels.

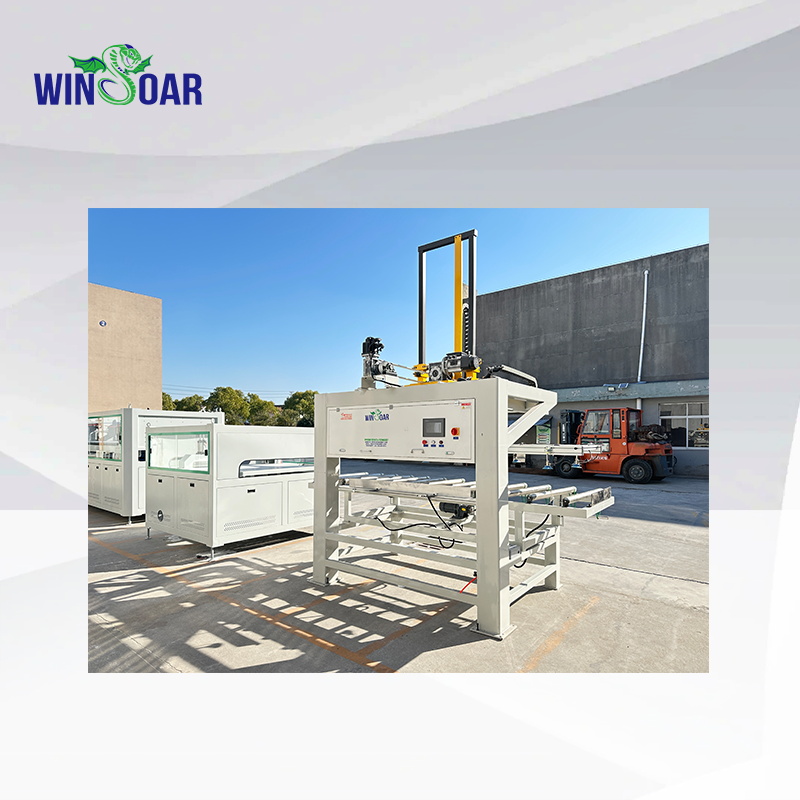

6、PVC Full-Automatic Panel Suction Machine

Targeting the characteristics of PVC panels, it adopts a soft vacuum suction cup design. Through a pneumatic system, it realizes stable grabbing and stacking of finished PVC panels. It significantly reduces manual handling intensity, prevents scratches on the PVC panel surface, and realizes linkage between cutting and stacking with limit switches, improving the operational efficiency of the end of the PVC production line.

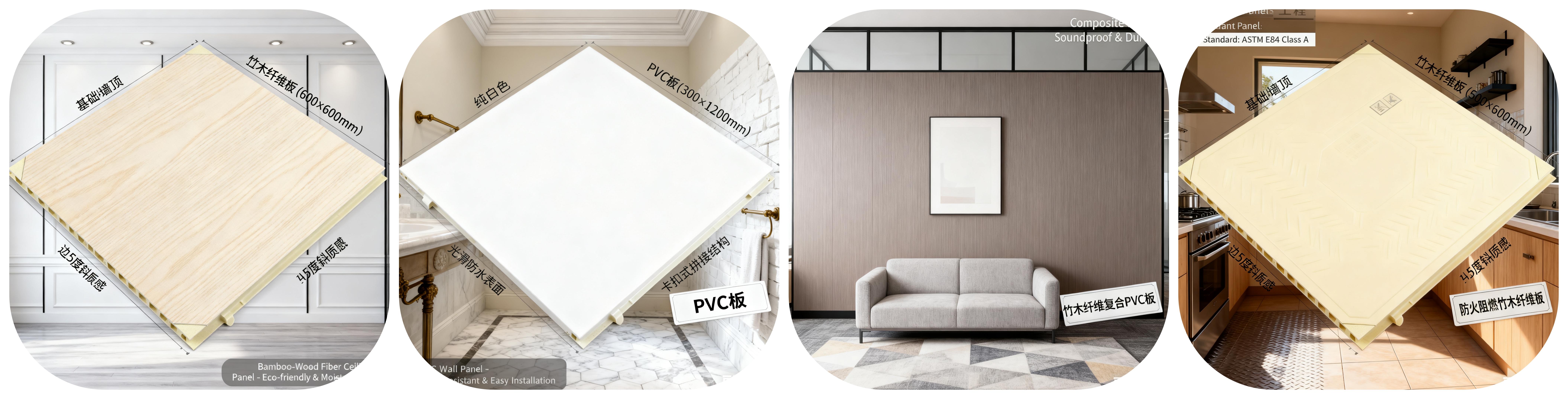

Application Scenarios

1、Residential Buildings: PVC interior partition walls for high-rise residences and quick-install PVC ceiling panels for rough houses. They reduce the building load by over 30%, and their water and moisture resistance make them suitable for use around kitchens and bathrooms.

2、Public Buildings: PVC sound-insulating walls for hospitals, PVC fire partitions for schools, and PVC decorative wall panels for hotels, meeting diverse functional needs.

3、Industrial and Renovation Projects: PVC enclosure systems for light steel factories, PVC partition walls for warehouses, and PVC renovation panels for old houses. Their easy installation shortens the construction period by 40%.
