Fully Automatic Wall-mounted PVC Corner Production Line For Corner

The PVC corner profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.

Production Line consist of conical twin screw extruder , vacuum shaping table , hauling machine and cutter, stacker...Fetching in Europe and America advanced technology and uniting with domestic condition, our company develop this production line.

Extrusion line flowing as below:

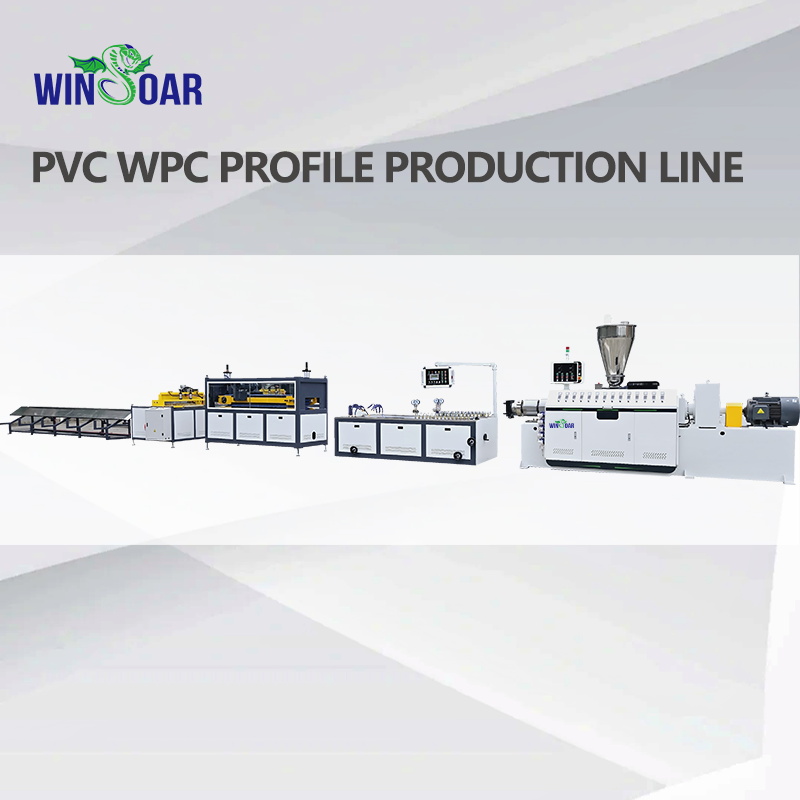

Conical Twin Screw Extruder→Die mould→Vacuum Calibration Table→Haul-offs and Cutting Machine Unite→Stacker→Control Cabinet

1. Capacity of main frame can be optionally chosen from 60-700 kg/hour.
2. With different molds, it can products different kinds of profiles.
3. The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large.
4. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.
5. Movement speed and drawing speed of cutting machine keep synchronous.

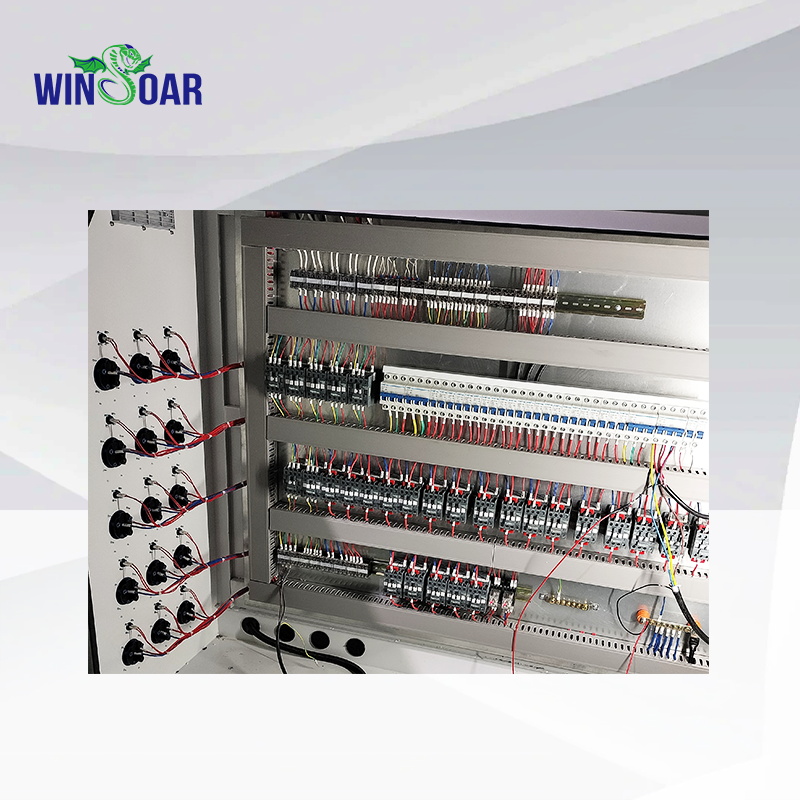

6. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.
7. Powder & dust suction device can be provided.
8. The stacker platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc.
9. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.

PVC WPC PROFILE PRODUCTION LINE

This production line is mainly used for extrusion production of PVC wood powder composite plastic profiles. It has good stability,high precision and high reliability.

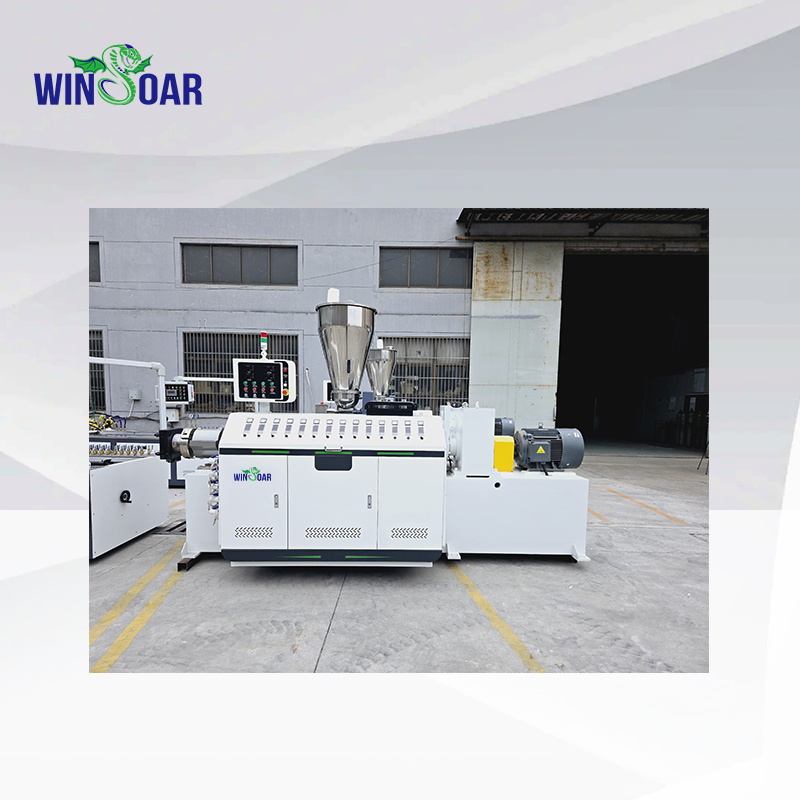

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.

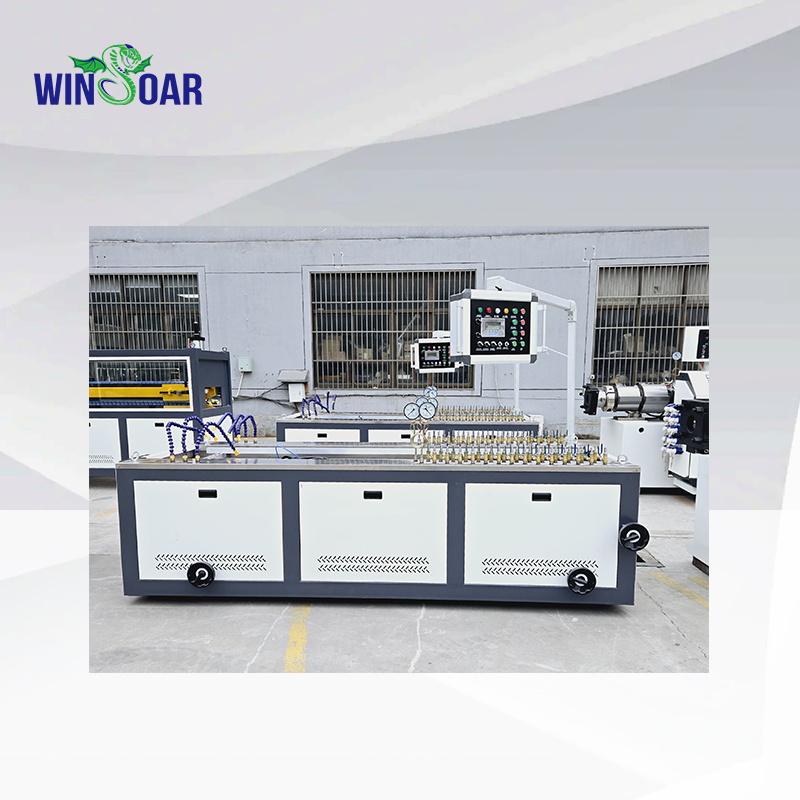

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.

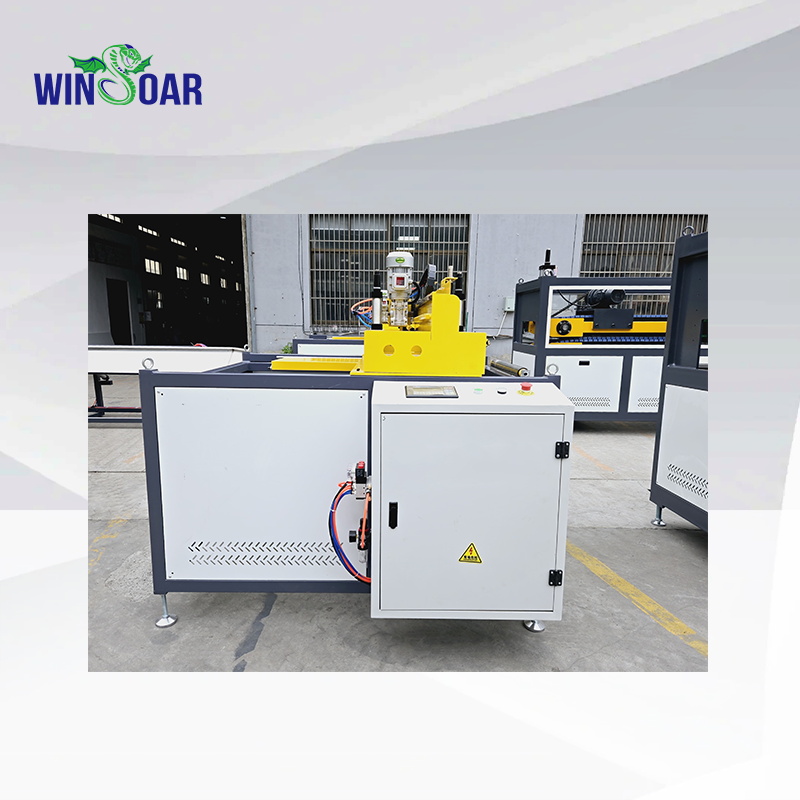

CUTTING MACHINE

After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Accept finished products and automatically turn over.
