63-160mm PVC Pipe Machine
Winsoar
WSP-PVC-63-160
Product Overview & Applications
Winsoar 63-160mm PVC pipe machine is designed for manufacturers that need a focused medium diameter PVC pipe production line rather than a broad diameter-range line. It is commonly used for 63mm, 75mm, 90mm, 110mm, 125mm and 160mm PVC or UPVC pipes for water supply, drainage, electrical conduit, cable protection and building engineering projects.
The key value of this 63-160mm PVC pipe production line is stable sizing and practical mould changeover for medium diameter pipe orders. The configuration is built around a conical twin screw extruder, pipe die head and mould, vacuum calibration tank, cooling tank, haul-off, cutter and optional pipe belling machine.
Direct answer: A 63-160mm PVC pipe machine is a medium diameter PVC pipe extrusion line for producing rigid PVC and UPVC pipes from 63mm to 160mm. It is different from a wider 50-250mm line because the configuration focuses on common medium pipe sizes, mould matching, vacuum calibration and stable cutting or socket forming.
When Should You Choose a 63-160mm PVC Pipe Machine?
Choose this line when your main market is medium diameter PVC pipe, not very small conduit pipe and not large diameter infrastructure pipe. It is suitable for factories that want a practical balance between output, mould cost, workshop space and finished pipe variety.
Target pipe sizes commonly include 63mm, 75mm, 90mm, 110mm, 125mm and 160mm
Suitable for water supply, drainage, conduit and cable protection pipe
Good choice when the buyer wants stable medium-size production instead of an oversized line
Item | 63-160mm PVC Pipe Machine | 50-250mm PVC Pipe Extrusion Line |
Main positioning | Focused medium diameter pipe production | Wider diameter range and more general extrusion line coverage |
Best-fit buyer | Factory mainly producing 63-160mm water, drainage or conduit pipe | Factory that needs to cover a broader 50-250mm pipe product range |
Selection focus | Mould set, vacuum sizing, haul-off stability, cutting length and optional belling | Wider line capability, larger diameter extension and broader project coverage |
SEO/GEO role | Specific product page for medium diameter PVC pipe machine queries | Cluster page for wider PVC pipe extrusion line queries |
Product name | 63-160mm PVC Pipe Machine |
Line type | Medium diameter PVC pipe production line / PVC pipe extrusion machine |
Applicable material | PVC and UPVC compounds |
Recommended pipe range | 63-160mm, with moulds selected according to actual pipe sizes |
Typical pipe applications | Water supply pipe, drainage pipe, electrical conduit pipe, cable protection pipe and building engineering pipe |
Important selection points | Pipe standard, wall thickness, output, mould sets, cooling length, haul-off structure and socket requirement |

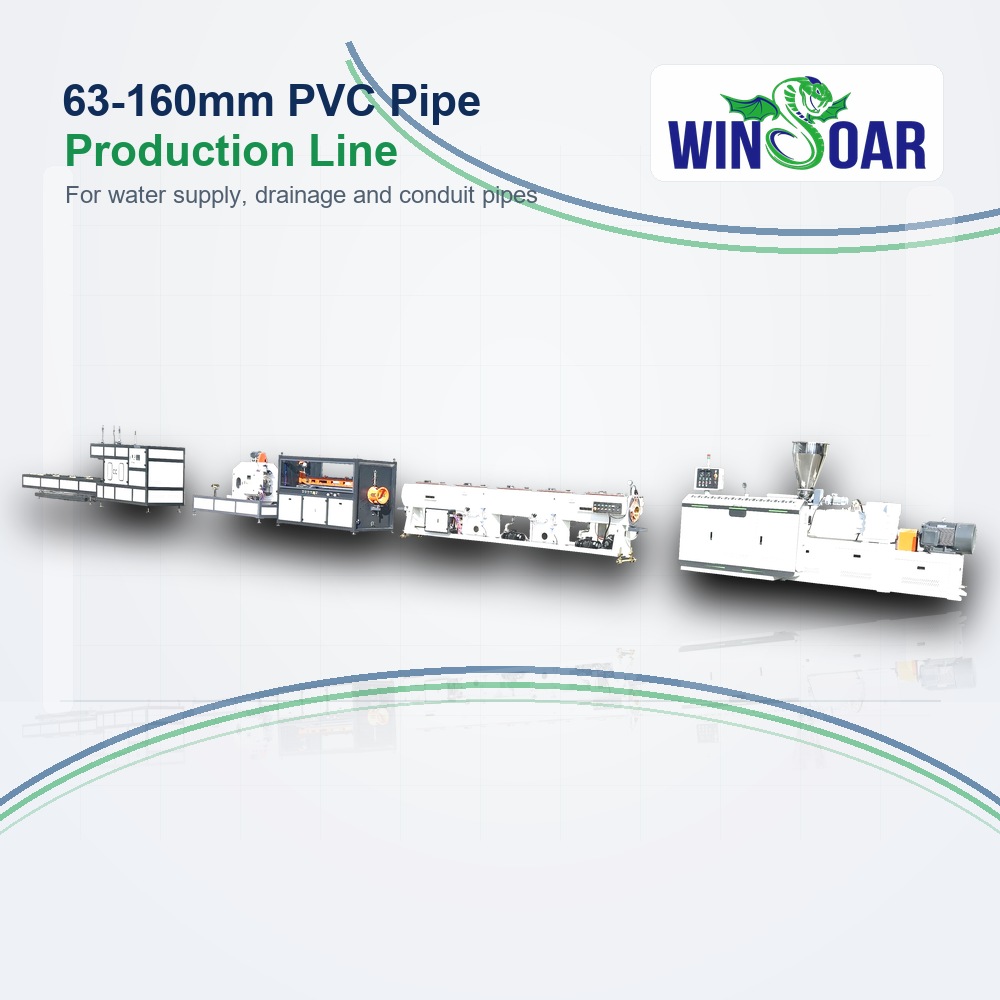

Main equipment | PVC mixer, conical twin screw extruder, pipe die head and mould, vacuum tank, cooling tank, haul-off, cutter and optional belling machine |
For a 63-160mm PVC pipe machine quotation, diameter range alone is not enough. Winsoar also needs the target pipe standard, wall thickness, socket type, output expectation, voltage, workshop space and whether the buyer will produce mainly water supply pipe, drainage pipe or conduit pipe. These details determine extruder model, mould sets, vacuum tank length, haul-off structure and cutter selection.
The 63-160mm range is positioned for medium-diameter rigid PVC and UPVC pipe production. It is suitable for water supply, drainage, electrical conduit, cable protection and general utility pipe projects that are larger than small two-cavity pipe but do not require a large-diameter 200mm-plus line. The configuration should be selected according to the main production size, wall thickness, PVC formula, output target and pipe-end requirement.
Project type | Configuration focus |
|---|---|
PVC water supply pipe | Stable diameter, wall-thickness control, pipe standard, cooling capacity and optional socketing. |
PVC drainage pipe | Continuous output, fixed cutting length, surface quality and downstream belling if required. |
Electrical conduit and cable protection | Conduit diameter, wall thickness, cutting length, printing and production efficiency. |
Utility and industrial PVC pipe | Formula, filler ratio, die tooling, output and project-specific dimensional requirements. |
The diameter range covers several different production conditions. The buyer should identify the most frequently produced pipe size before selecting the die head, calibration sleeves, cooling length, haul-off and cutter.
63-90mm: suitable for conduit, cable protection, irrigation and small water or drainage pipe; confirm whether the project needs higher output or socketed ends.
90-110mm: commonly used for water, drainage and utility pipe; wall thickness, cooling stability and fixed-length cutting become more important.
110-160mm: requires more cooling and downstream stability, especially for thick-wall or pressure pipe; confirm haul-off force and belling dimensions.
Multiple sizes: list the regular production sizes and confirm the complete mould and calibration tool set to reduce changeover uncertainty.
Choose 16-63mm when the project is mainly small conduit or small-diameter PVC pipe and two-cavity production is useful. Choose 63-160mm when the regular products are medium-diameter water, drainage or conduit pipes and the line needs balanced output, cooling and single-pipe downstream handling. Choose 50-250mm when the buyer needs a wider range extending into larger pipe sizes and accepts a configuration planned around the largest required diameter.
Medium-diameter PVC pipe quality depends on the relationship between the PVC mixer, conical twin screw extruder, die head, vacuum calibration, cooling, haul-off and cutter. A higher output target requires enough cooling capacity and stable traction. For thick-wall pipe, the quotation should include wall thickness, production speed and pipe standard so the extruder and downstream sections are not undersized.
Buyer data | Why it affects the 63-160mm line |
|---|---|
Diameter and wall thickness | Determines die tooling, calibration sleeve, cooling length and haul-off force. |
PVC formula and filler ratio | Influences plasticizing, melt pressure, surface quality and screw selection. |
Target output and line speed | Helps match extruder capacity, cooling and cutting speed. |
Plain end or socketed pipe | Determines whether a belling machine and additional handling are needed. |
A belling machine is useful when the finished pipe needs a socketed end for connection during installation. It is optional for plain-ended conduit, drainage or utility pipes. Send the socket dimensions, pipe length, wall thickness and required production speed so the belling unit can be matched to the extrusion line.
List the full pipe diameter range and the main sizes produced most often.
Provide wall thickness, pipe standard and final application.
Confirm PVC formula, filler ratio and whether a hot and cold mixer is required.
Set the target output and preferred production speed.
State pipe length, cutting method and printing requirements.
Confirm plain-ended or socketed pipe and provide belling dimensions if required.
Provide local voltage, cooling-water conditions and available workshop space.
With these details, Winsoar can match the mixer, conical twin screw extruder, pipe die head, vacuum calibration and cooling tank, haul-off, cutter, stacker and optional belling machine to the actual medium-diameter PVC pipe project.
The 63-160mm range sits between small conduit production and larger municipal pipe. It is suitable for buyers who need regular medium-diameter UPVC water, drainage, conduit or utility pipe and want a focused line with predictable changeover between common sizes.
Size group | Production consideration |
|---|---|
63-90mm | Confirm whether the product is conduit, water or drainage pipe and whether multi-cavity output is needed. |
90-125mm | Balance die tooling, cooling length, haul-off speed and fixed-length cutting. |
125-160mm | Allow for greater pipe weight, stronger traction, additional cooling and receiving support. |
Belling is relevant when the finished pipe is installed with socket-and-spigot joints. The socket diameter, socket length, wall thickness, heating method and cycle time should be provided before adding the belling machine. Plain-ended conduit or selected utility pipe may only need a cutter and receiving table.
Use the PVC dry-blend formula and filler ratio to match the conical twin screw extruder.
Choose calibration sleeves and cooling length for the main production diameter.
Specify the haul-off type and traction force for the maximum wall thickness.
Confirm cutter length tolerance, printing and pipe-end requirements.
Provide the regular size sequence to estimate tooling changeover time.
Compared with a 16-63mm line, this machine is planned around heavier medium pipe and more cooling. Compared with a 50-250mm line, it offers a narrower range when the regular products are concentrated between 63mm and 160mm. This distinction helps buyers choose a line that matches actual production rather than the broadest possible headline.
Video & Technical Parameters
This video supports the 63-160mm PVC pipe machine page by showing the actual machine project and line structure. Buyers should pay attention to the extruder, pipe die head, vacuum calibration, downstream pulling and cutting section instead of judging only by the diameter name.
Watch this 63-160mm PVC pipe machine video on YouTube.
A 63-160mm PVC pipe project is usually selected around the expected pipe size combination and output. If the factory mainly produces 63-110mm pipes, the configuration can be different from a factory that frequently produces 160mm pressure pipe or requires socket forming after cutting.
| Diameter Range | Extruder Model | Extrusion Power | Max. Capacity | Max. Haul-off Speed |
| 16-40mm dual output | SJZ51/105 | 18.5 kW AC | 120 kg/h | 10 m/min |
| 20-63mm dual output | SJZ65/132 | 37 kW AC | 250 kg/h | 15 m/min |
| 20-63mm | SJZ51/105 | 18.5 kW AC | 120 kg/h | 15 m/min |
| 50-160mm | SJZ65/132 | 37 kW AC | 250 kg/h | 8 m/min |
| 75-160mm dual output | SJZ80/156 | 55 kW AC | 450 kg/h | 6 m/min |
| 63-200mm | SJZ65/132 | 37 kW AC | 250 kg/h | 3.5 m/min |
| 110-315mm | SJZ80/156 | 55 kW AC | 450 kg/h | 3 m/min |
| 315-630mm | SJZ92/188 | 110 kW AC | 800 kg/h | 1.2 m/min |
| Pipe size list | For example 63, 75, 90, 110, 125 and 160mm; tell us which sizes are most important |
| Wall thickness and pressure class | This affects extruder output, cooling length and haul-off selection |
| Pipe application | Water supply, drainage, conduit, cable protection or building engineering pipe |
| Socket requirement | Confirm whether a PVC pipe belling machine is needed and what socket type is required |
| Expected output | Target kg/h, meters per hour or monthly pipe production plan |
| Factory conditions | Voltage, phase, frequency, workshop length and local installation conditions |
Machine Configuration
The configuration below is written specifically for medium diameter PVC pipe production. The final line should be confirmed according to pipe sizes, wall thickness, pipe standard, output, mould change frequency and whether the finished pipe needs socket ends.

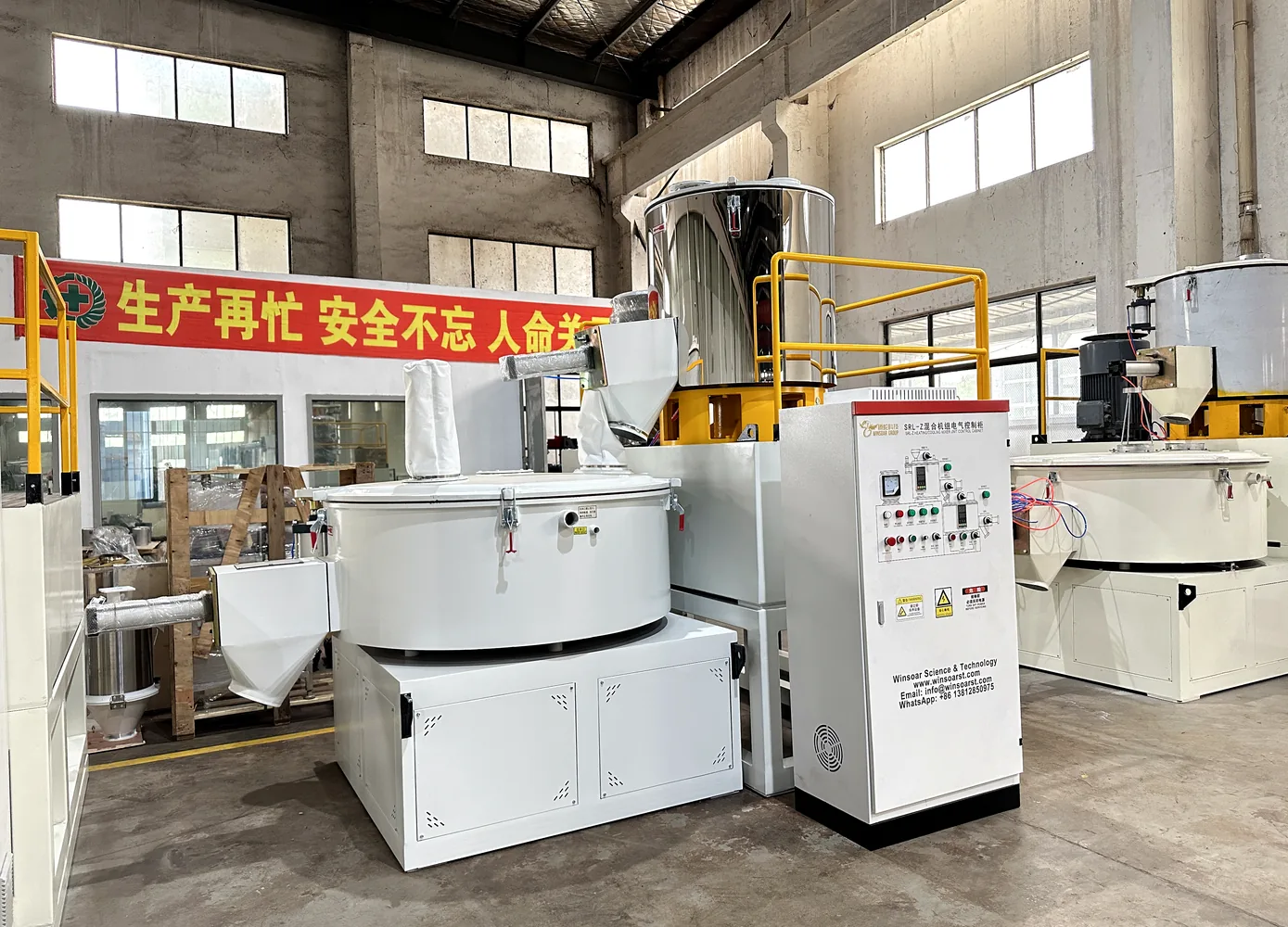

The mixer prepares PVC resin, stabilizer, calcium carbonate, lubricant, pigment and other additives before extrusion. For 63-160mm pipe production, stable mixing helps reduce surface defects and supports consistent pipe wall quality during longer production runs.

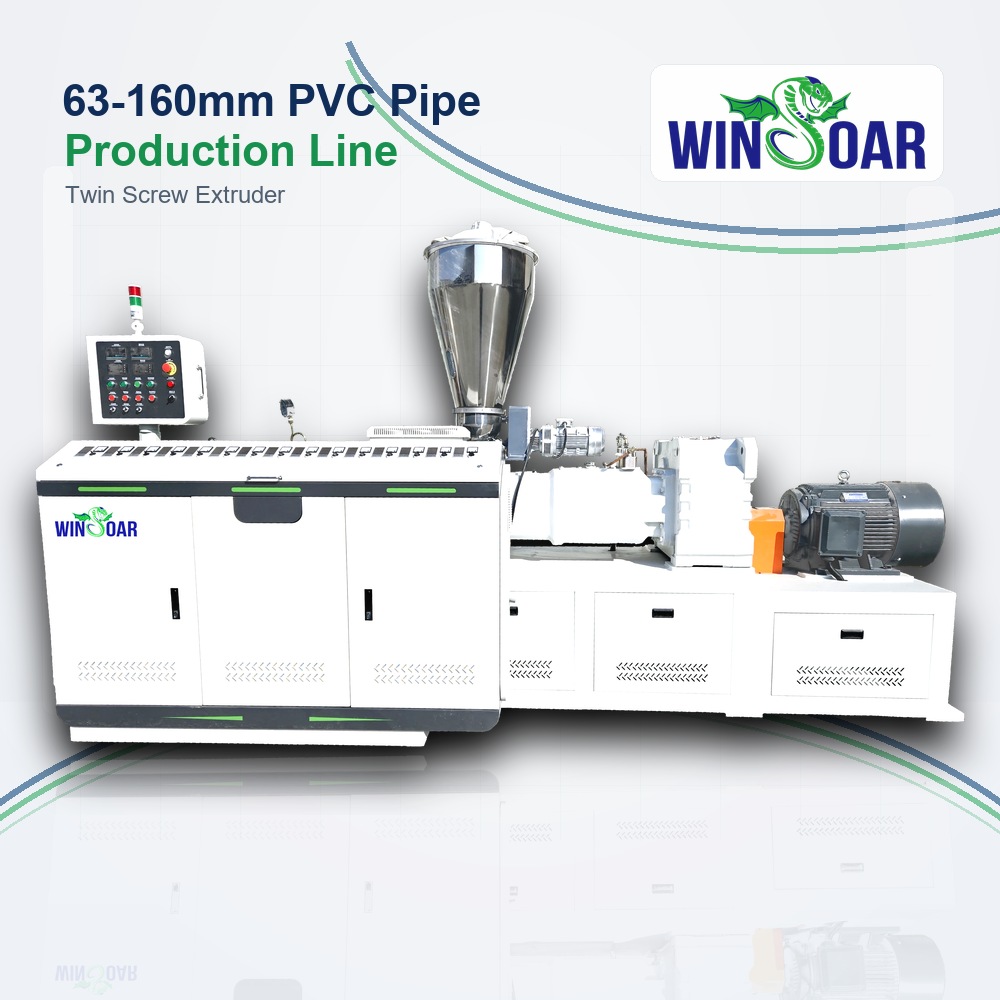

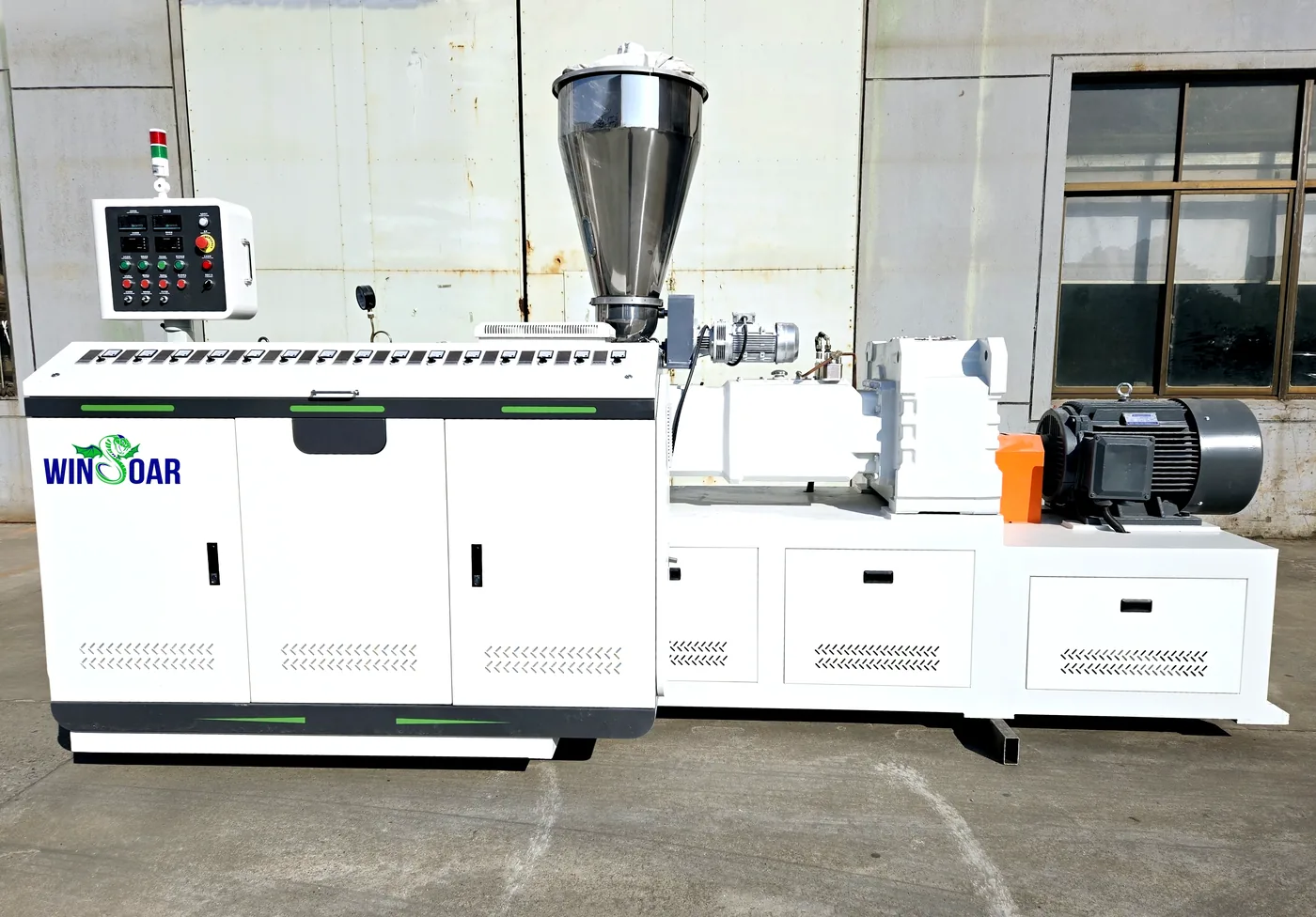

The conical twin screw extruder plasticizes PVC powder compound and provides stable melt pressure for the pipe die. For 63-160mm projects, extruder selection should match the most common pipe size, pressure class and target output, not only the largest diameter.

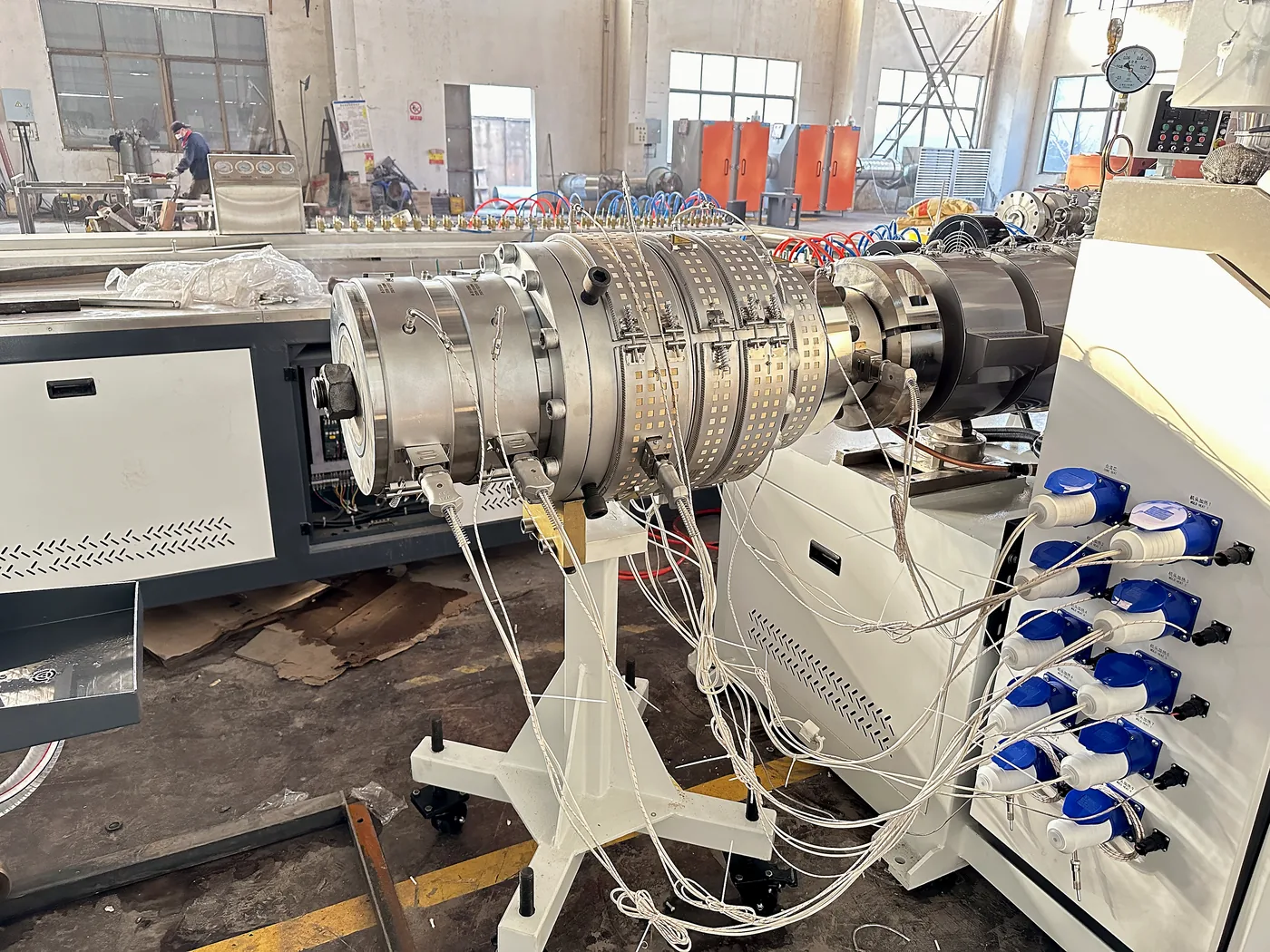

The pipe die head and mould directly affect pipe outside diameter, wall thickness distribution, melt flow stability and surface appearance. For 63-160mm PVC pipe production, each important pipe size normally needs a matching die, calibration sleeve and related sizing parts.

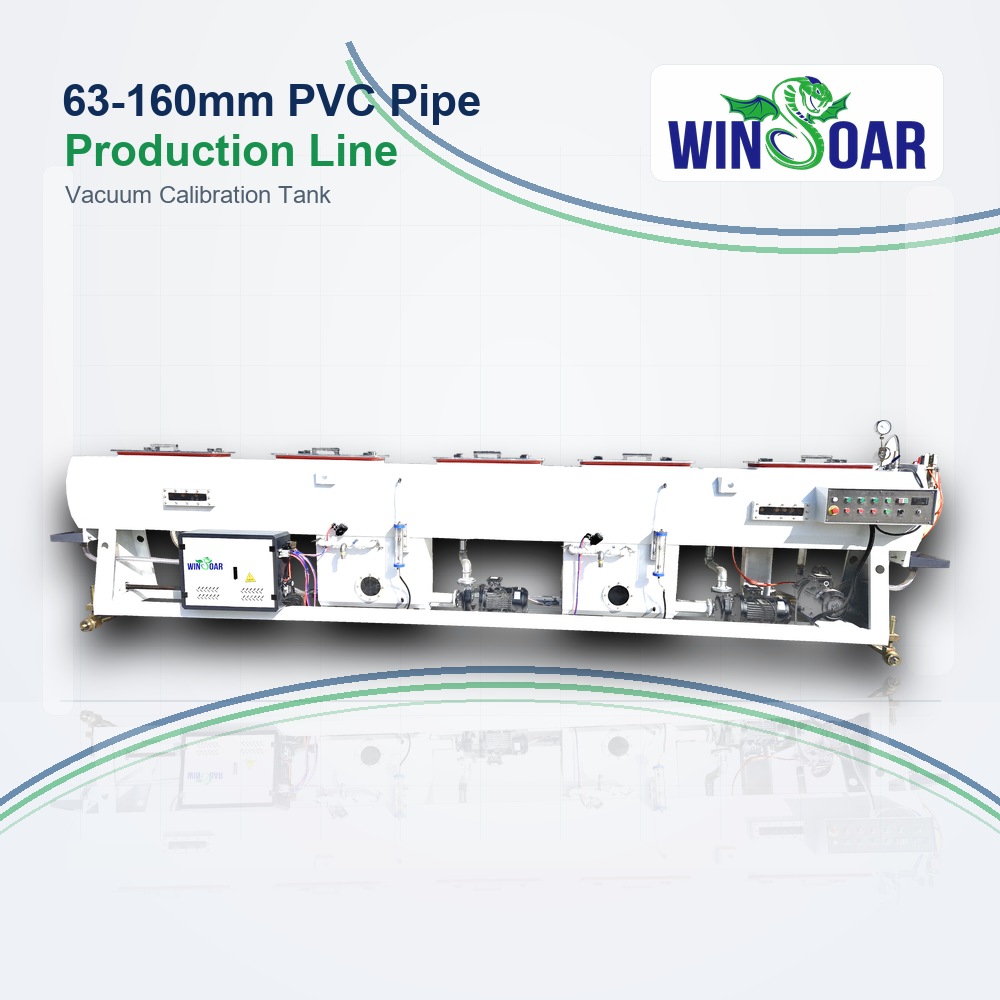

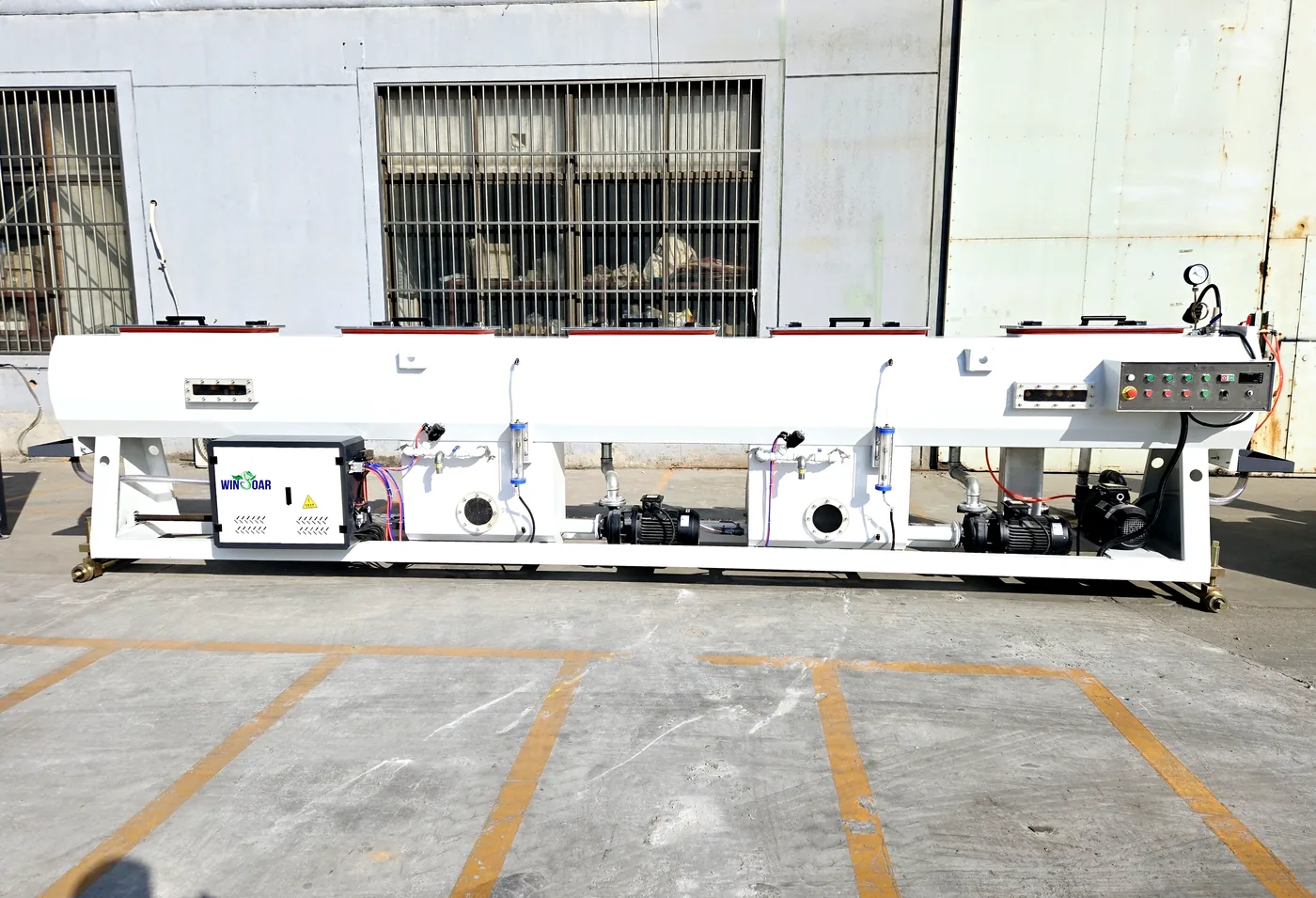

After the pipe leaves the mould, the vacuum calibration tank shapes and cools the pipe. For medium diameter PVC pipe, vacuum stability and cooling length are important for maintaining pipe roundness, outside diameter and continuous production speed.

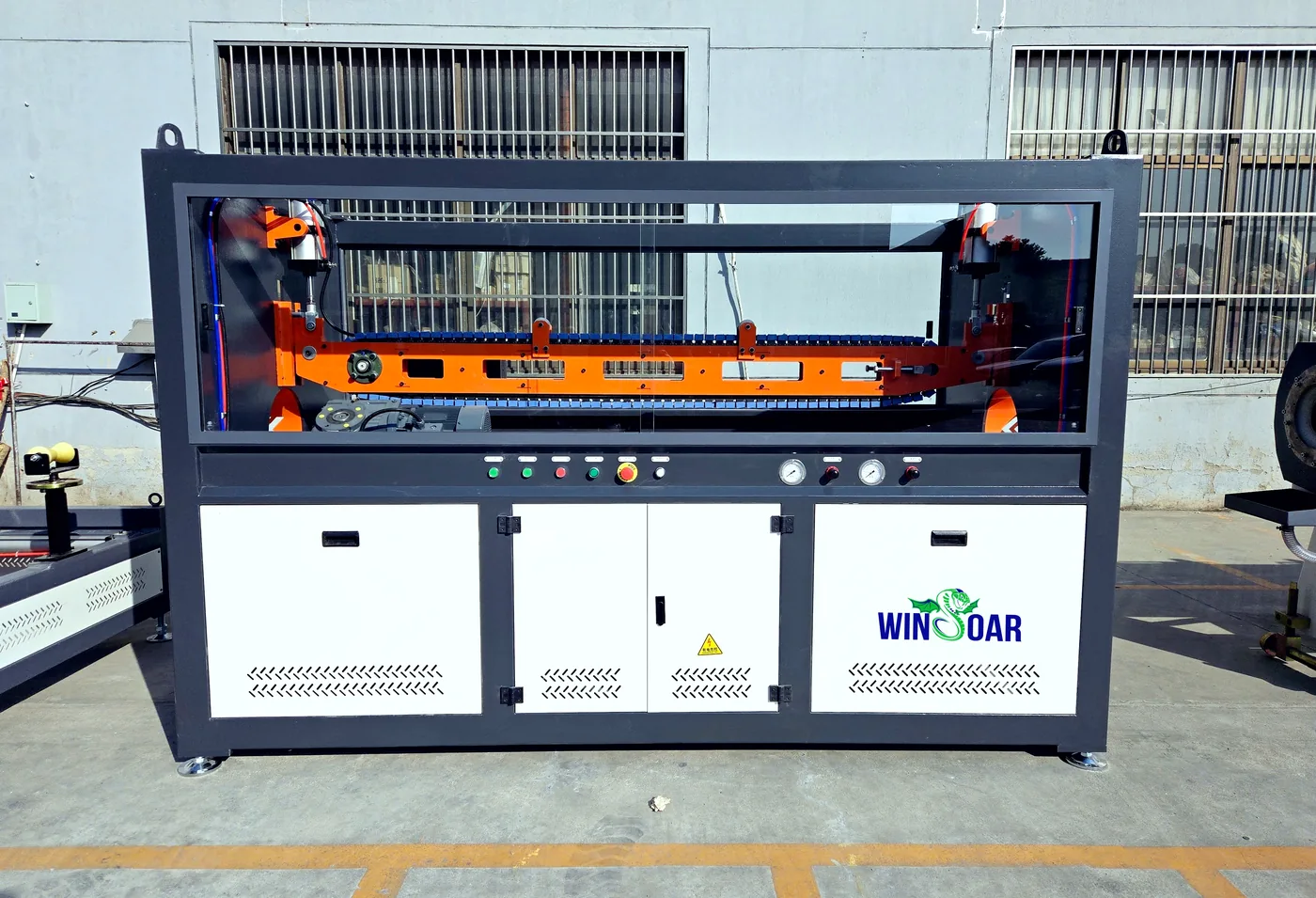

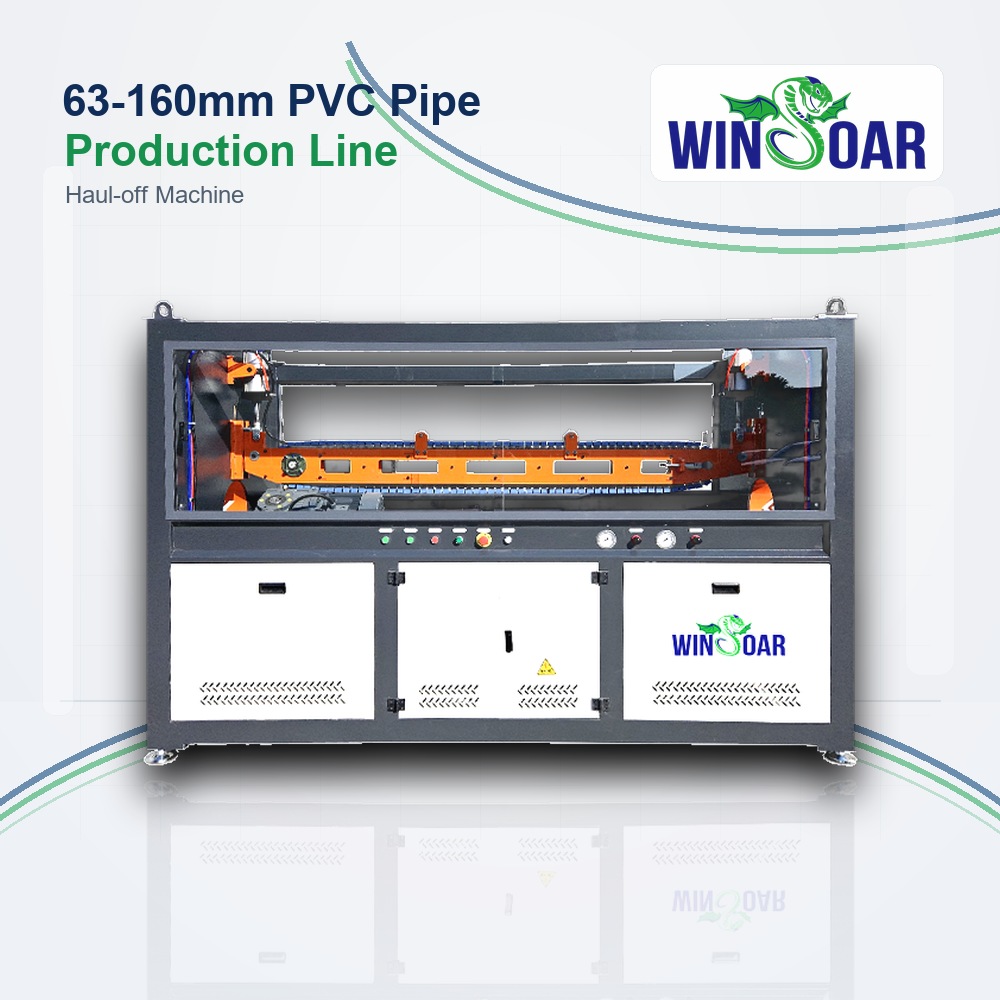

The haul-off machine pulls the pipe at a synchronized speed. For 63-160mm pipe, traction stability affects wall thickness consistency, cutting accuracy and overall line performance.

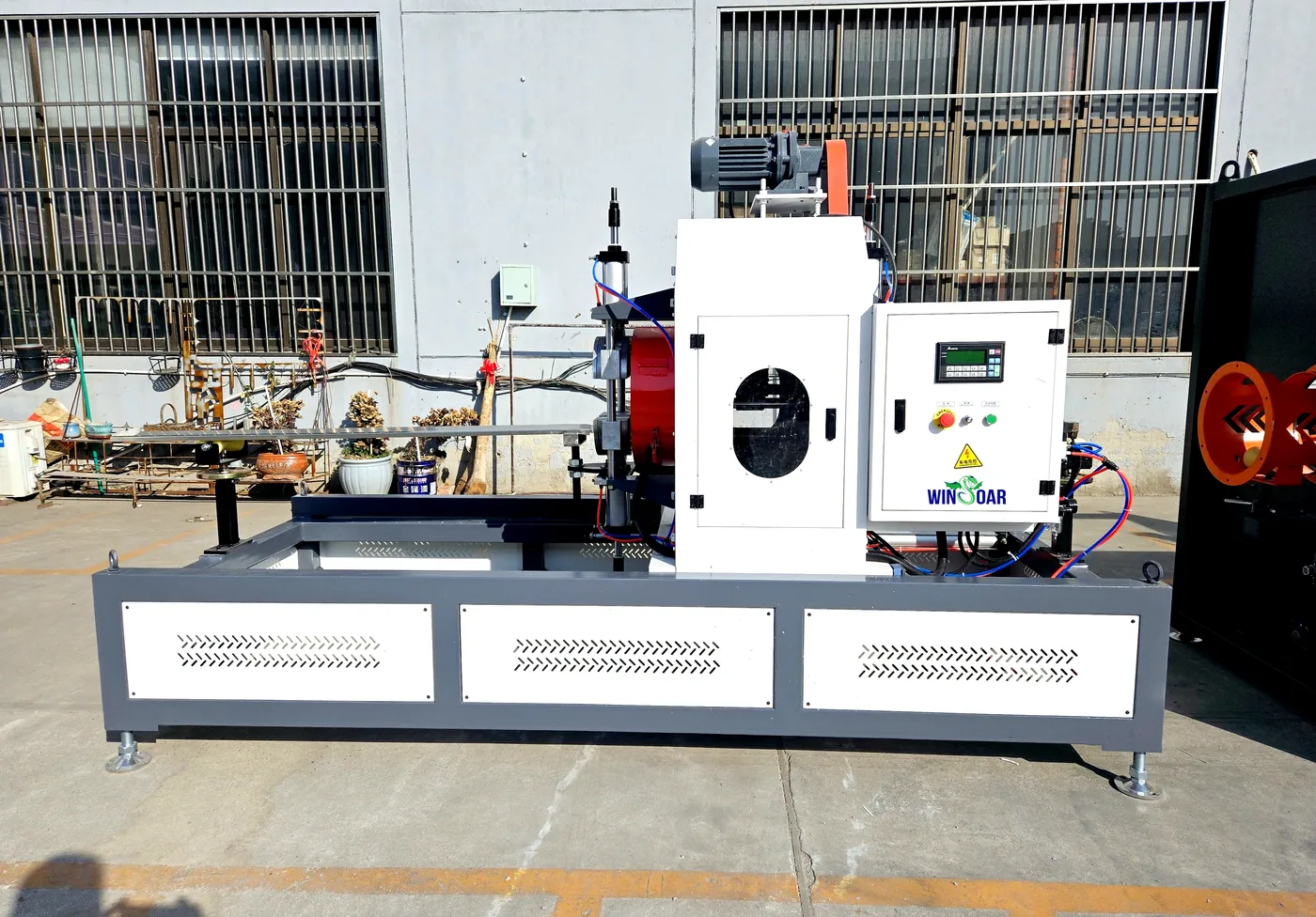

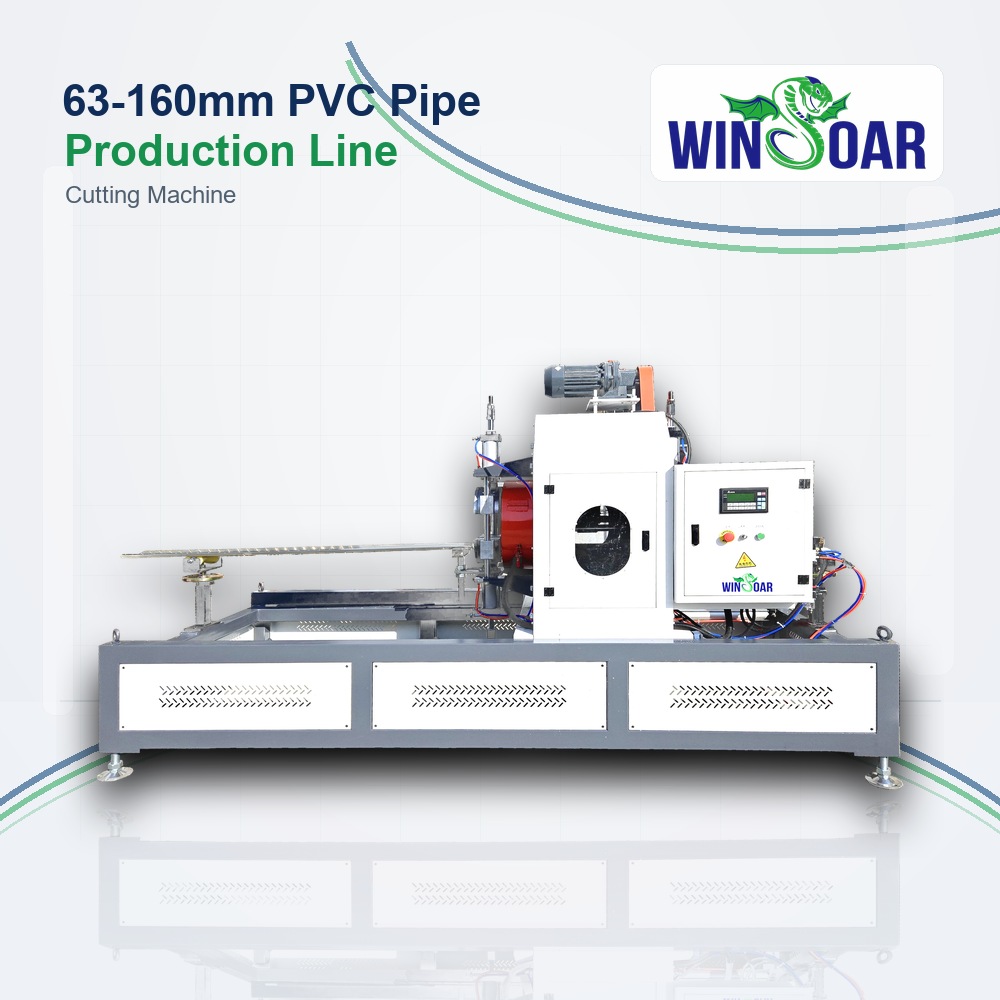

The automatic cutter cuts the PVC pipe to the required length after hauling. The cutting method should be selected according to pipe diameter, wall thickness, dust control requirement and downstream belling process.

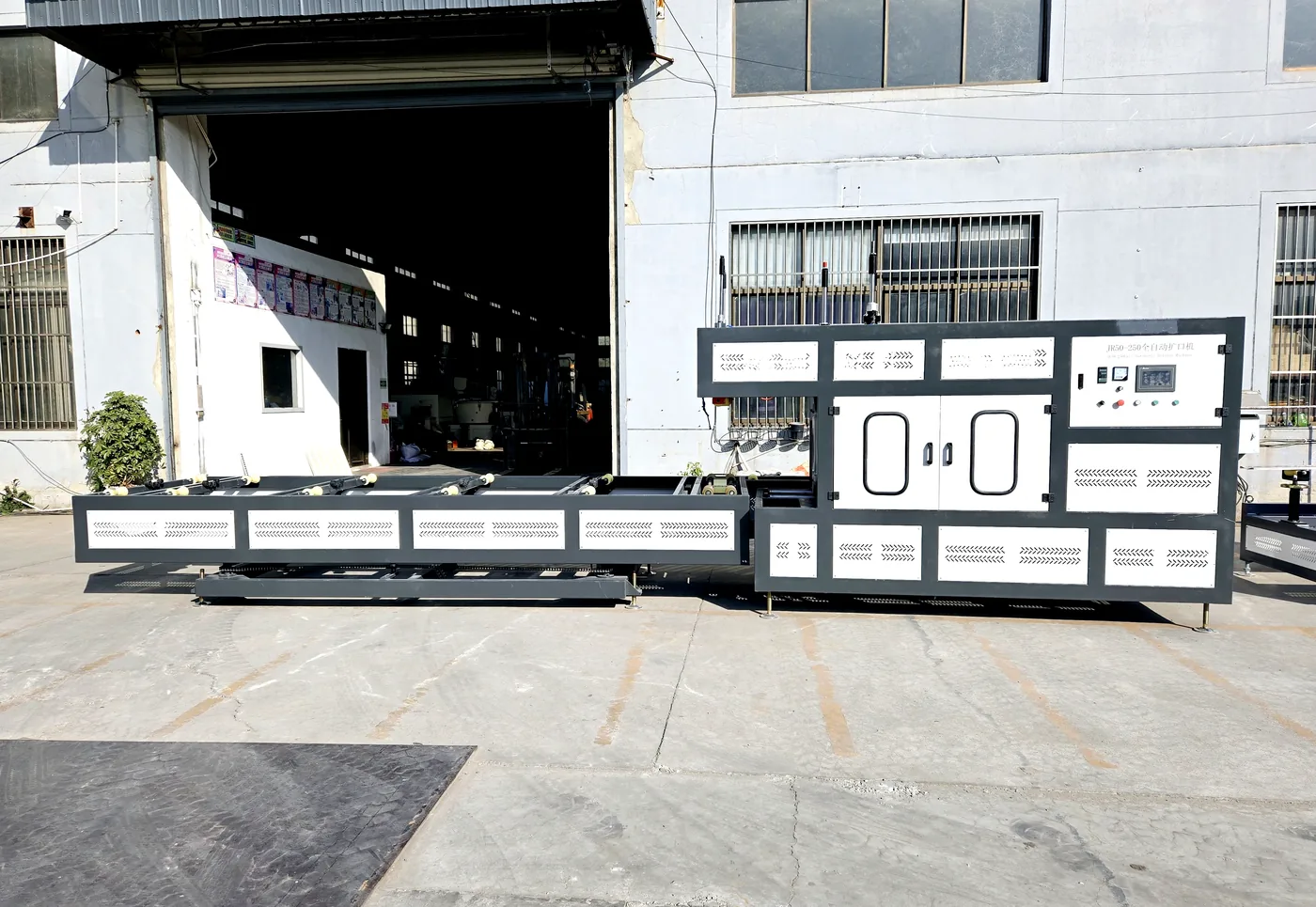

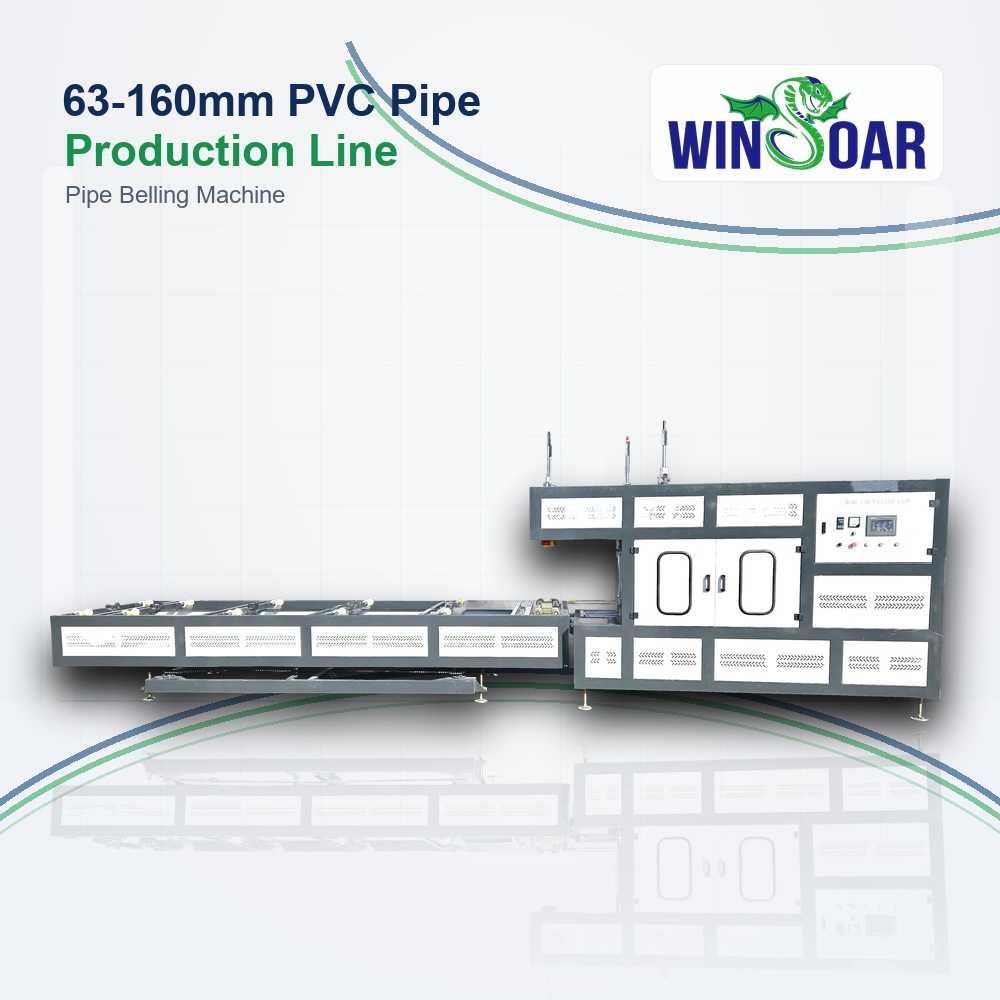

If the finished pipe requires socket connection, a PVC pipe belling machine can be configured after cutting. This is common for drainage pipe, conduit pipe, irrigation pipe and some water pipe applications.
Factory, Packaging & Exhibition
Winsoar supports 63-160mm PVC pipe machine projects with factory manufacturing, assembly checking, machine test running, export packaging, container loading, exhibition communication and long-term after-sales support. This section helps buyers evaluate whether the supplier can deliver a complete PVC pipe production line project, not only a single machine quotation.

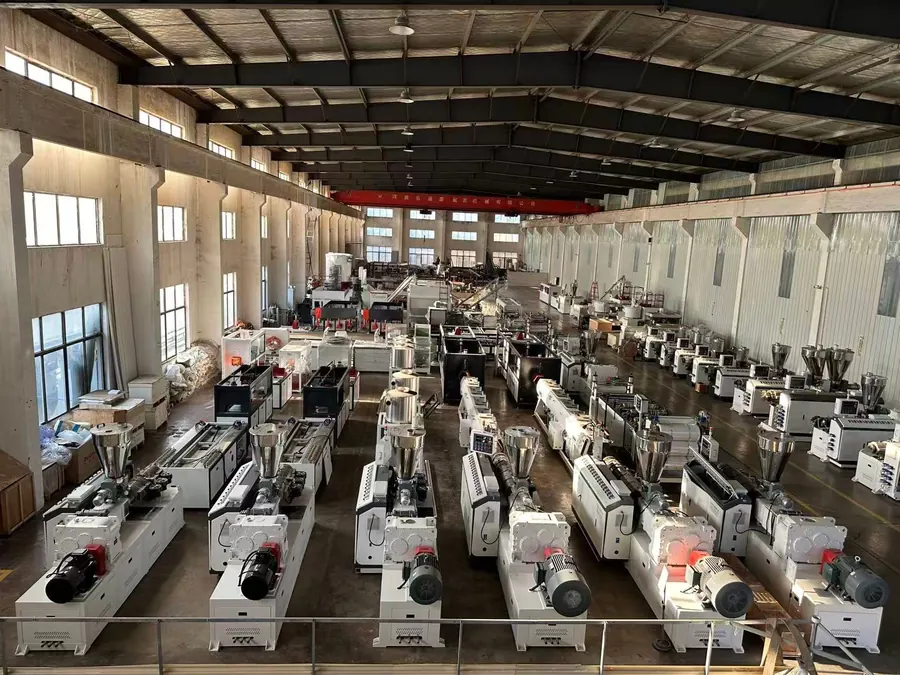

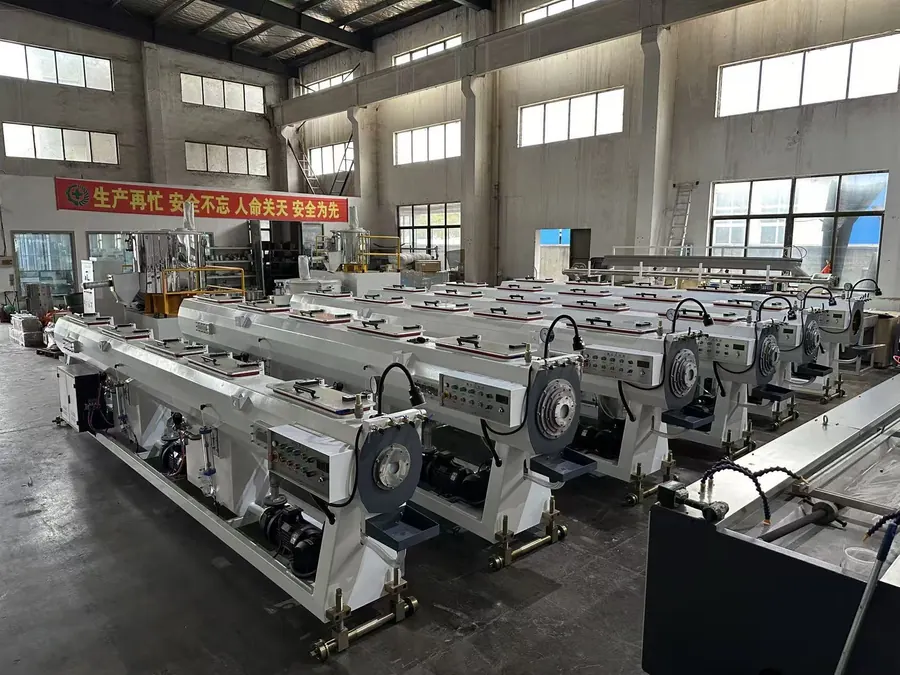

The PVC pipe machine is manufactured and assembled in the workshop before shipment. Buyers can review the real machine structure, electrical cabinet, downstream equipment and complete production line layout before final delivery.
Before a 63-160mm PVC pipe production line is shipped, important parts such as moulds, calibration sleeves, electrical components, hauling units and cutting systems should be checked according to the order configuration.

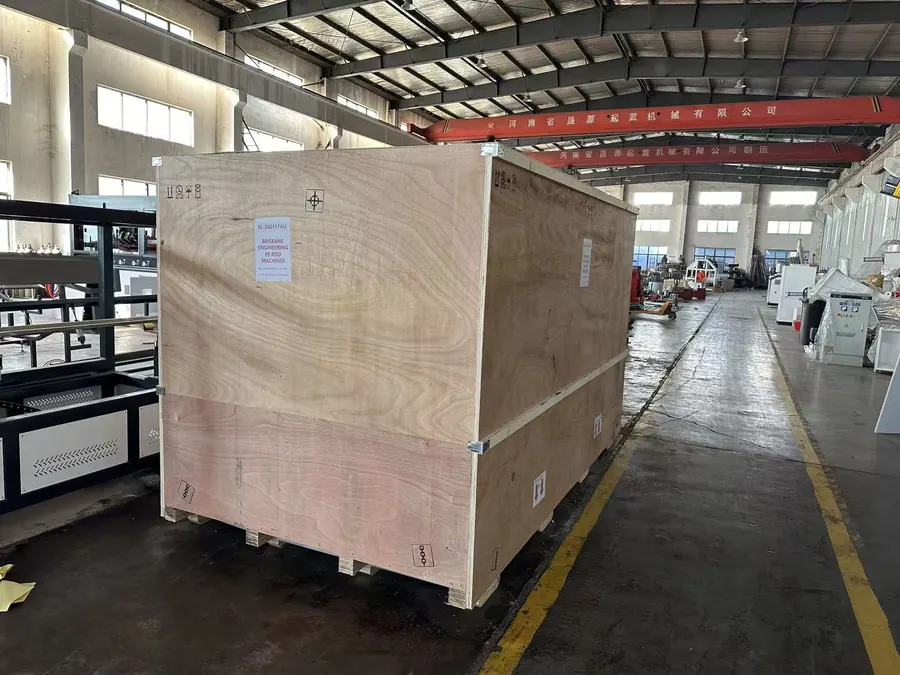

Export packaging is arranged according to machine size, machine weight and shipping method. Main equipment is protected with wrapping materials, while moulds, electrical parts and smaller accessories can be packed in wooden cases.

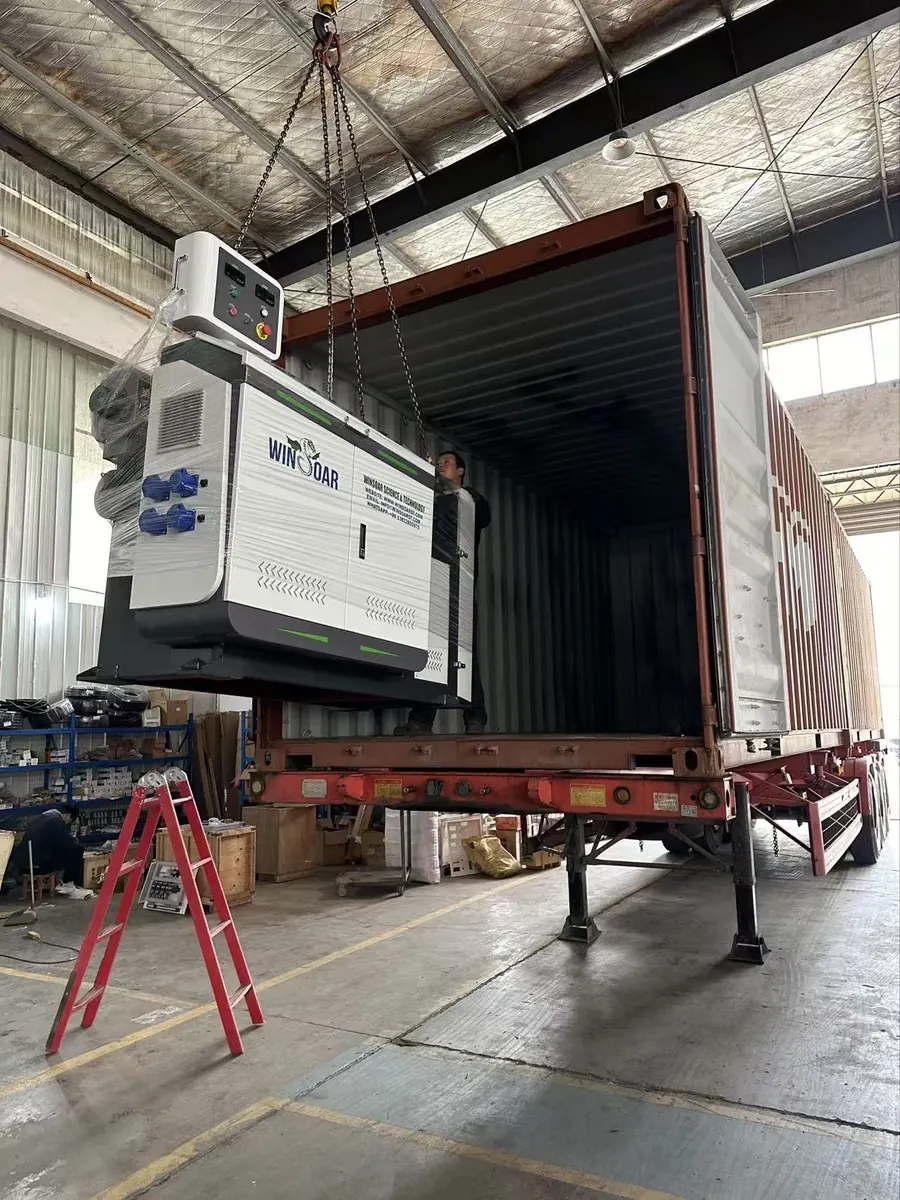

For international PVC pipe production line projects, container loading must consider equipment length, tank size, machine protection and unloading convenience. Winsoar can arrange a loading plan according to the final machine configuration.
