Product Overview & Applications
Winsoar 16-32mm PVC one out four pipe extrusion line is designed for high-efficiency small PVC pipe production. It is suitable for PVC electrical conduit, cable protection pipe, small UPVC water pipe and small drainage pipe applications.
The one out four design allows one extruder to produce four pipes at the same time. Compared with a single-output small pipe line, it improves production efficiency while keeping the workshop footprint, operation and maintenance requirements practical for small pipe factories.
This 16-32mm PVC pipe extrusion line is mainly used for small rigid PVC and UPVC pipes. Winsoar can adjust the extruder model, mould design, calibration length, haul-off structure and cutting method according to the target pipe standard and output requirement.

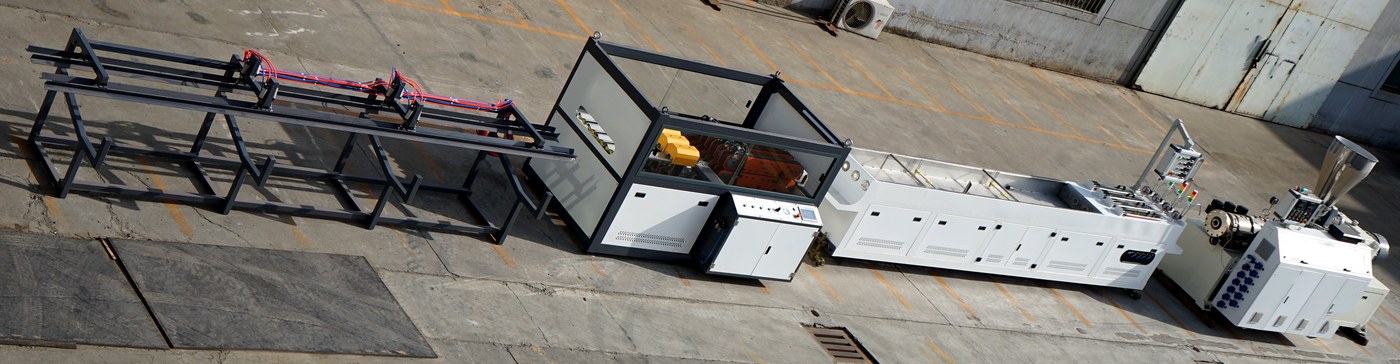

Watch the running video to review the four-output layout, downstream structure and production line condition.
| Diameter Range | 16-32mm |
| Output Type | One out four / four-cavity PVC pipe production |
| Main Extruder | SJZ65/132 conical twin screw extruder or customized equivalent |
| Typical Material | PVC / UPVC dry blend formula |
| Typical Application | PVC electrical conduit, cable protection pipe, small UPVC pipe and small drainage pipe |
| Max Capacity | Up to 250 kg/h, depending on pipe size, wall thickness and formula |
| Main Downstream | Four-line vacuum calibration, cooling, haul-off, cutter and stacker |
| Optional Upstream | PVC hot and cold mixer, automatic feeding and dosing system |
| Process | Main equipment | Purpose |
| Material preparation | PVC hot and cold mixer | Mixes PVC resin, calcium carbonate, stabilizer, lubricant and additives before extrusion. |
| Extrusion | Conical twin screw extruder | Plasticizes PVC powder formula and feeds the four-cavity mould. |
| Pipe forming | 16-32mm four-cavity pipe mould | Produces four small PVC pipes at the same time. |
| Calibration and cooling | Four-line vacuum calibration tank | Controls outside diameter, roundness and cooling stability. |
| Pulling and cutting | Four-pipe haul-off and cutter | Keeps synchronized traction and fixed-length cutting. |
| Receiving | Pipe stacker or optional belling machine | Receives straight pipes or supports socket pipe requirements. |

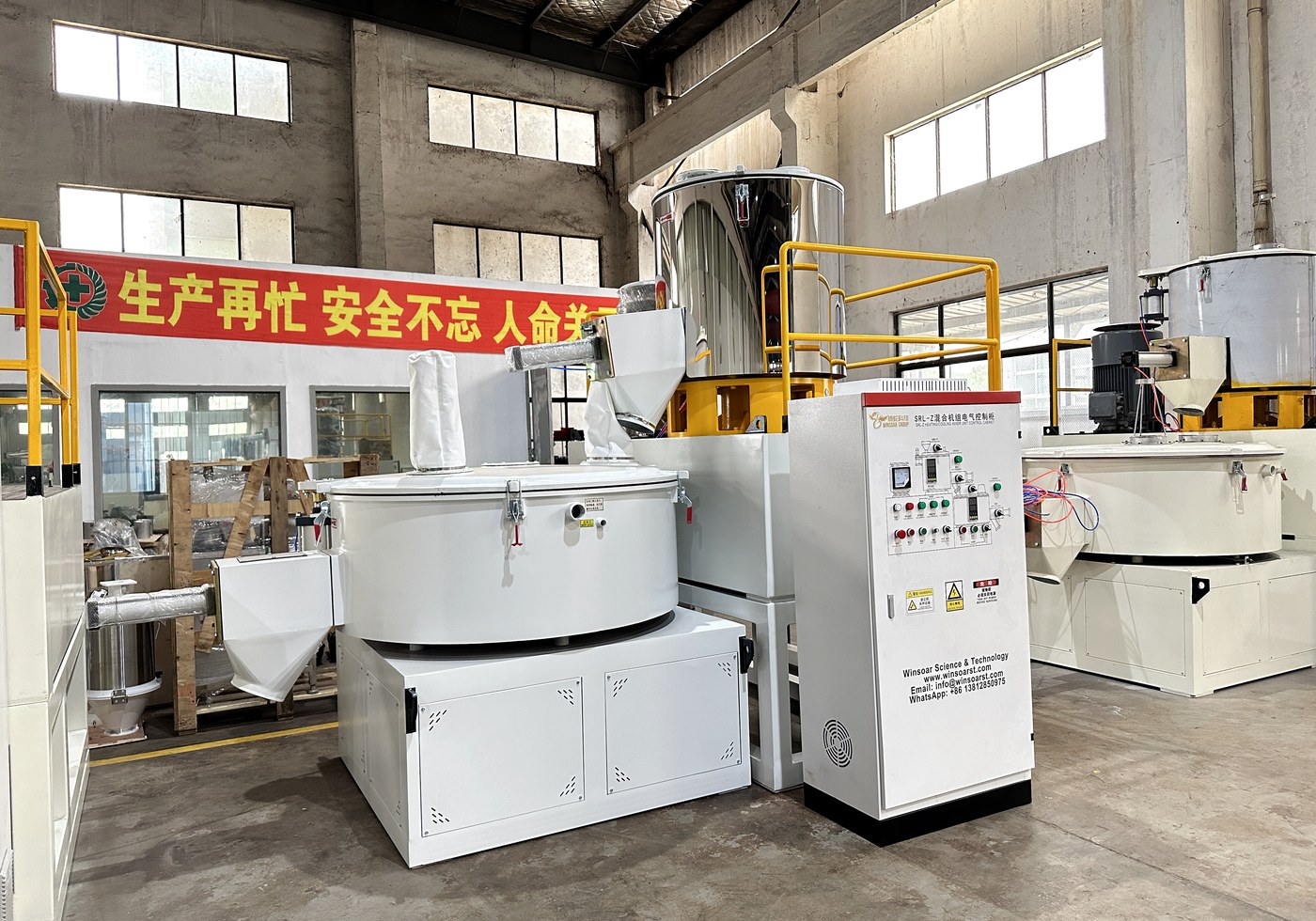

PVC pipe quality starts from stable dry blend preparation. A hot and cold mixer can be selected to mix PVC resin, calcium carbonate, stabilizer, lubricant and other additives before feeding the extruder. Related equipment: PVC/CPVC/UPVC resin high speed heat mixing machine.

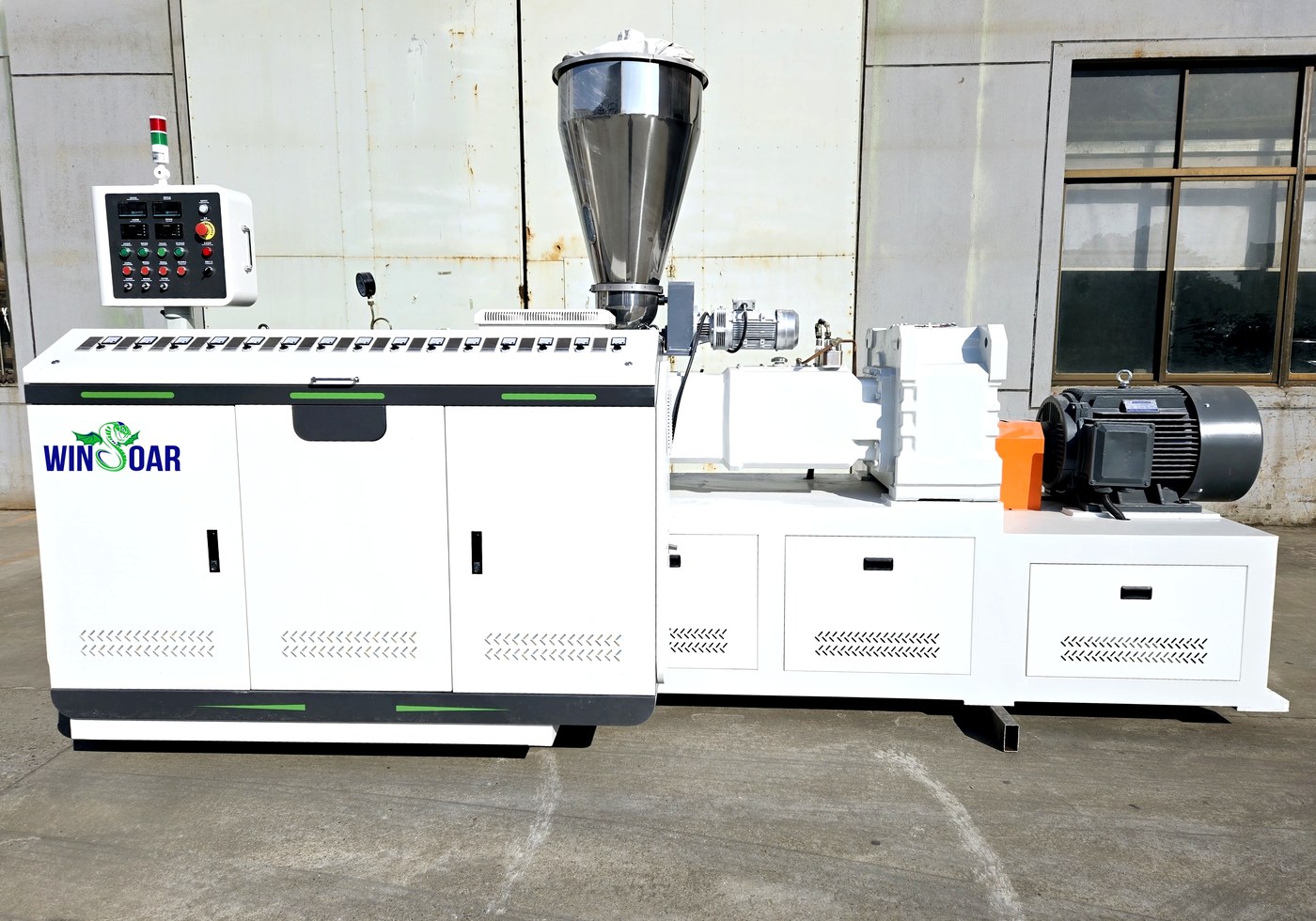

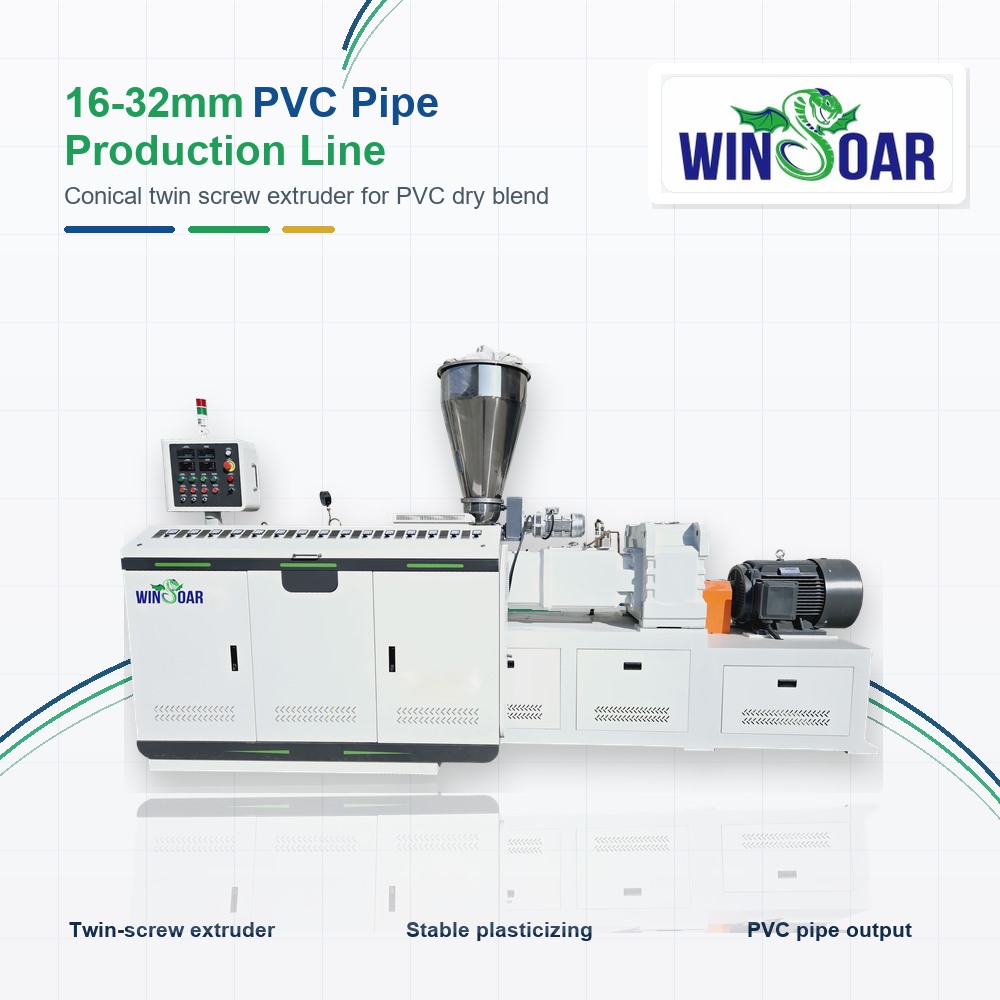

The conical twin screw extruder is used for PVC powder processing. It provides stable plasticizing and melt pressure for four small pipe outputs.

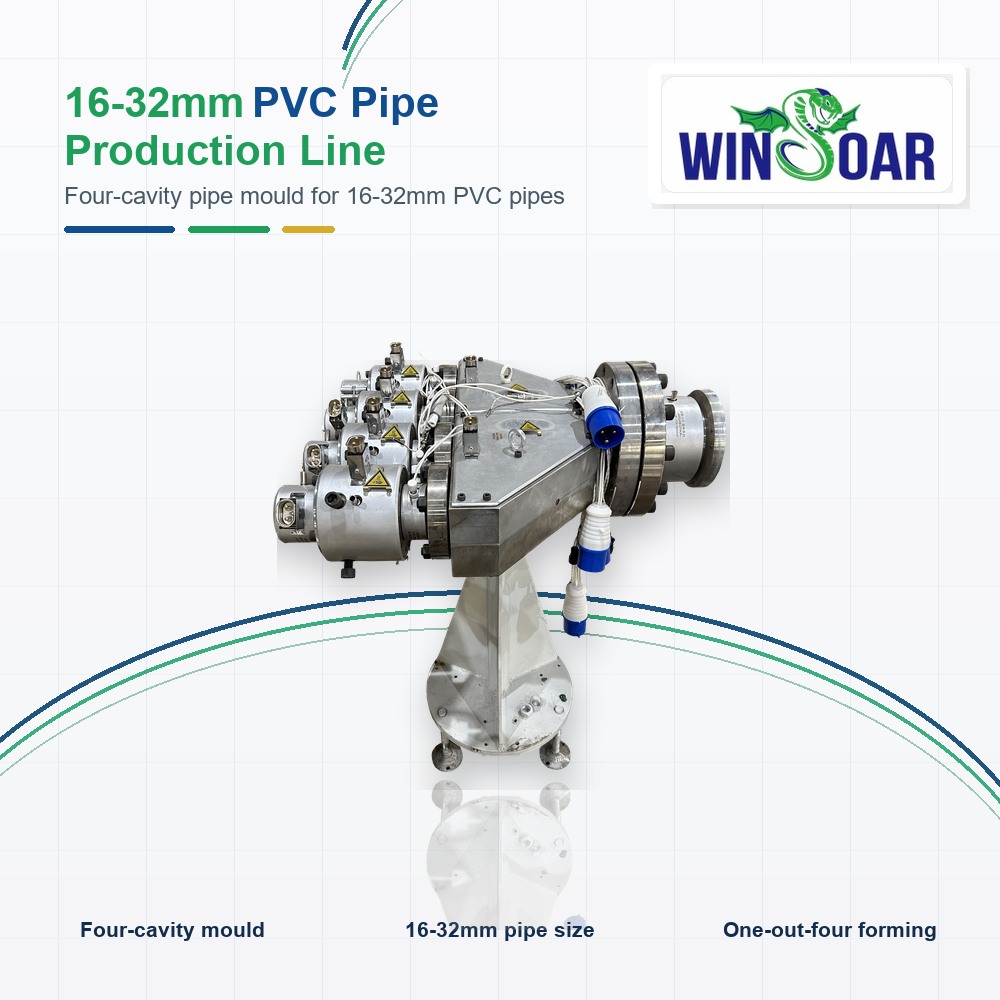

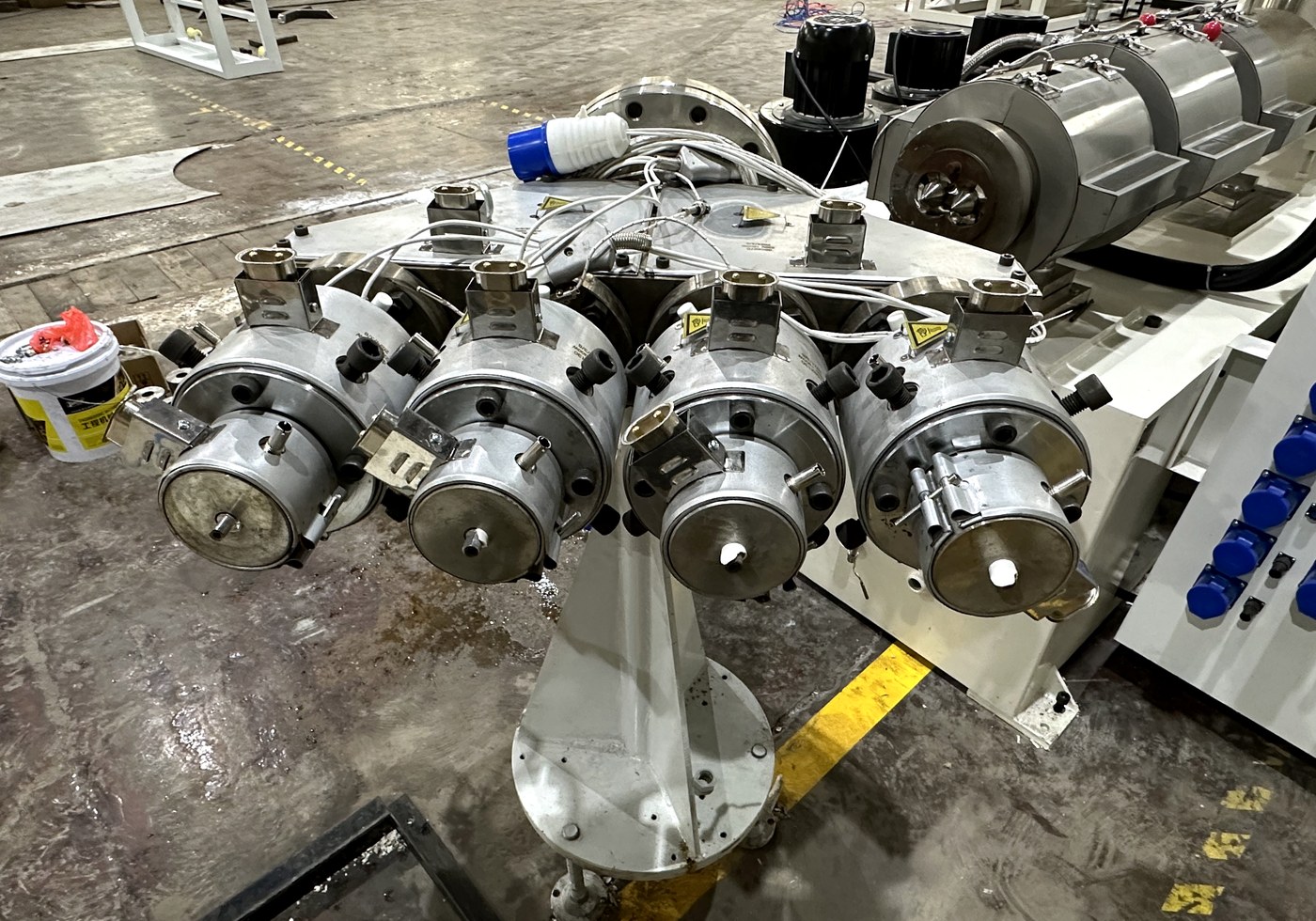

The four-cavity mould is the key part of the one out four structure. It helps factories increase output for 16-32mm small pipe production.

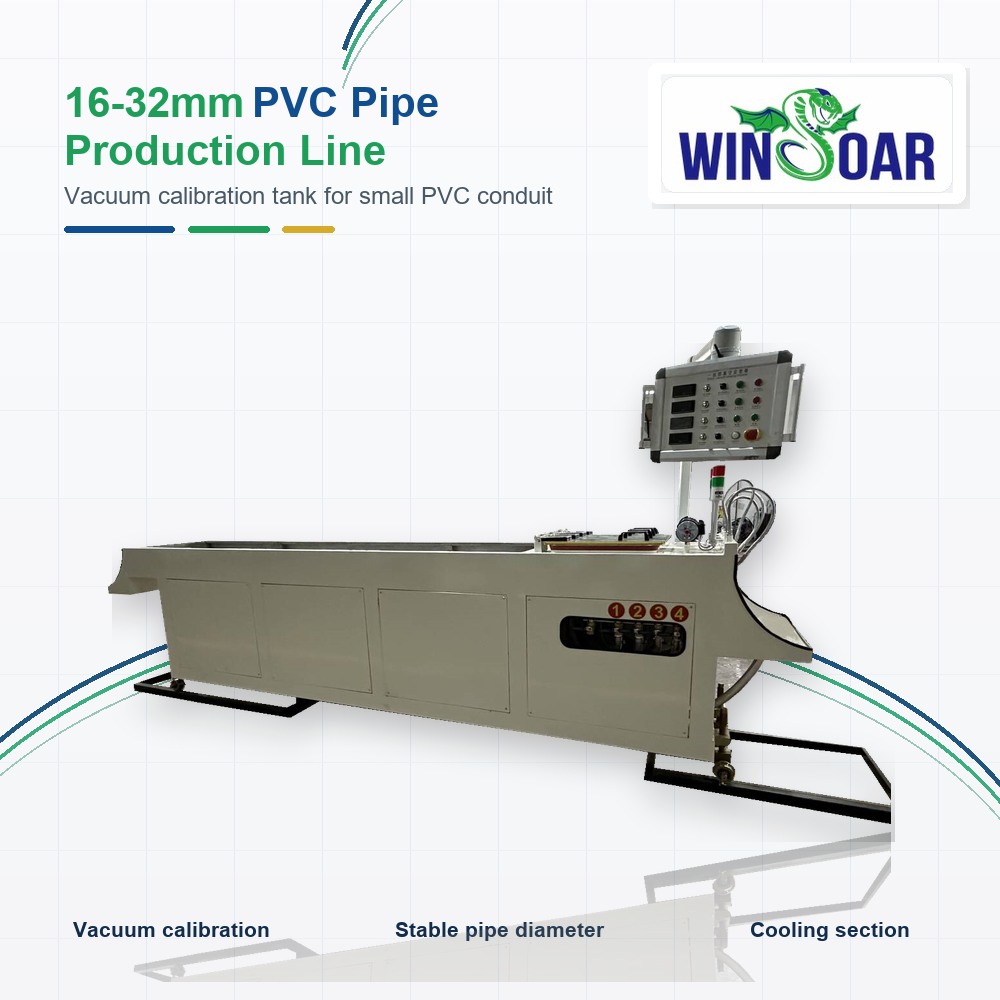

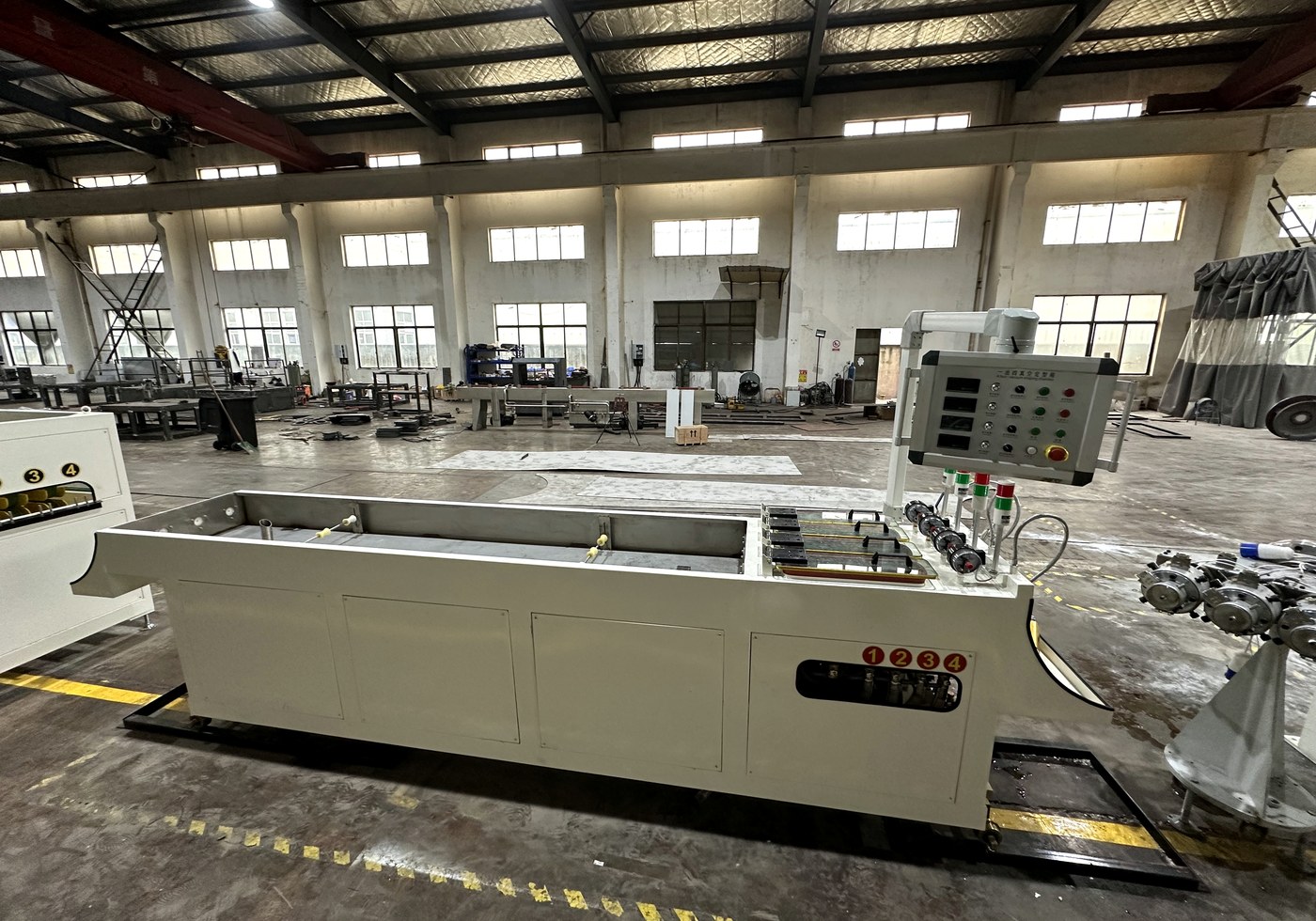

Four-line vacuum calibration controls pipe outside diameter, roundness and cooling stability. Correct sizing is important for conduit pipe appearance and installation fit.

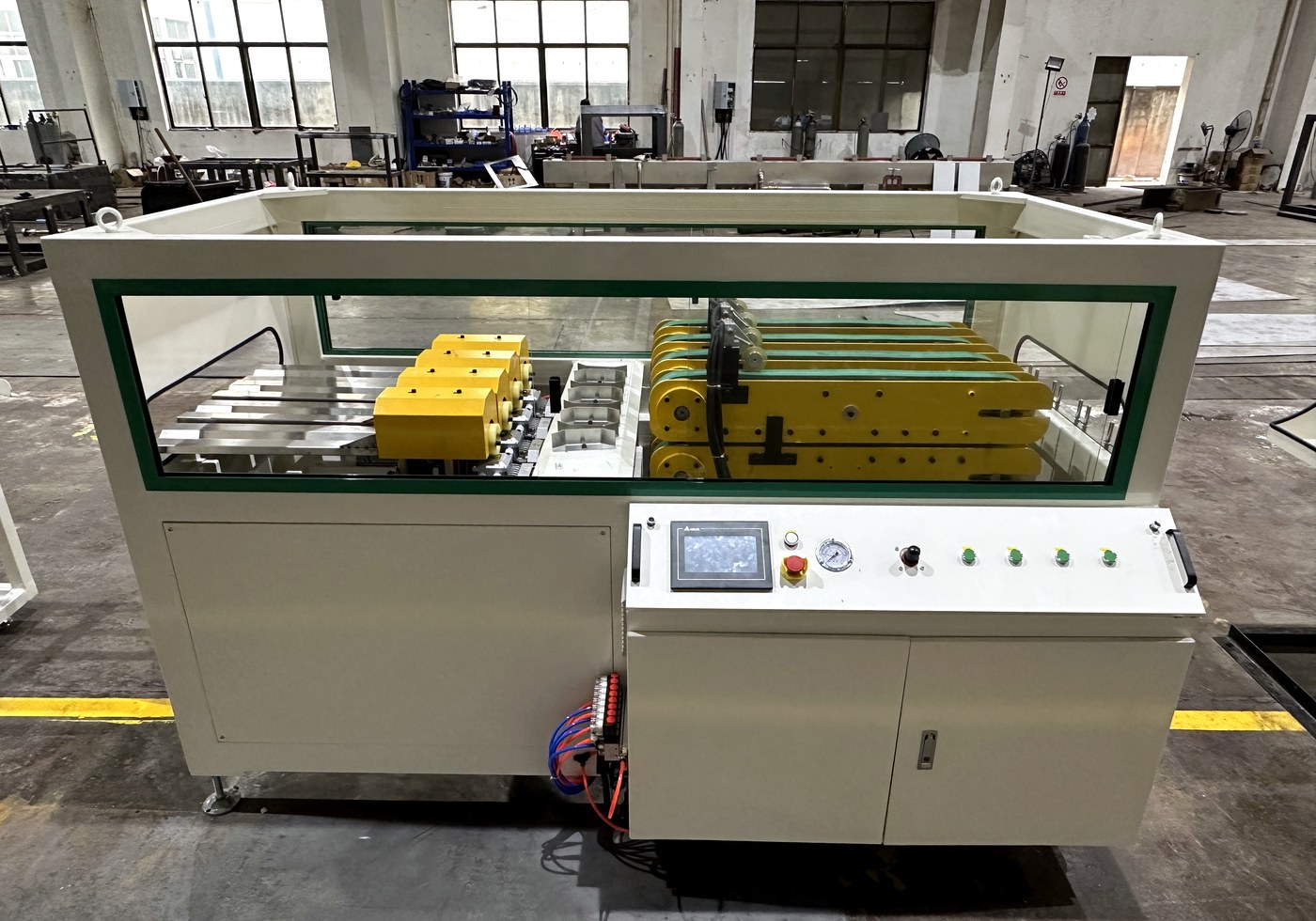

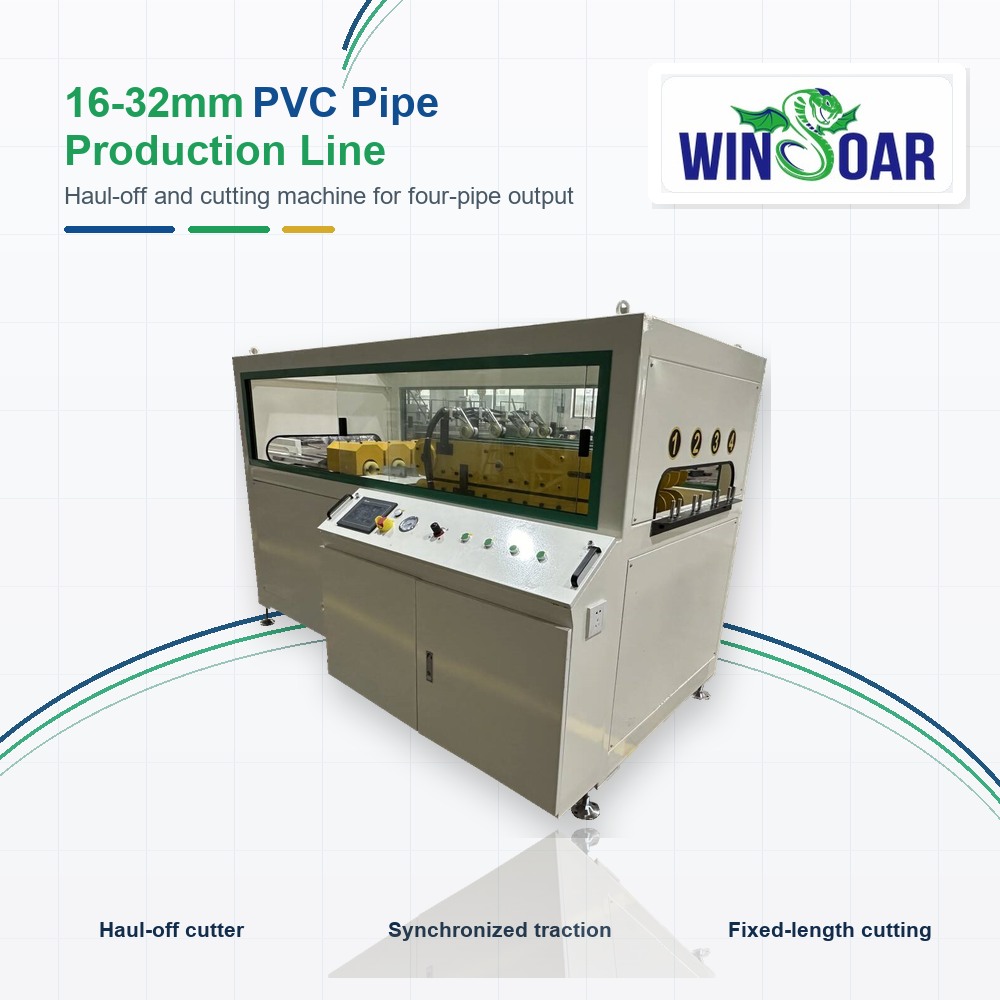

The haul-off and cutter keep synchronized traction for four pipe outputs and cut finished pipes to the required length.

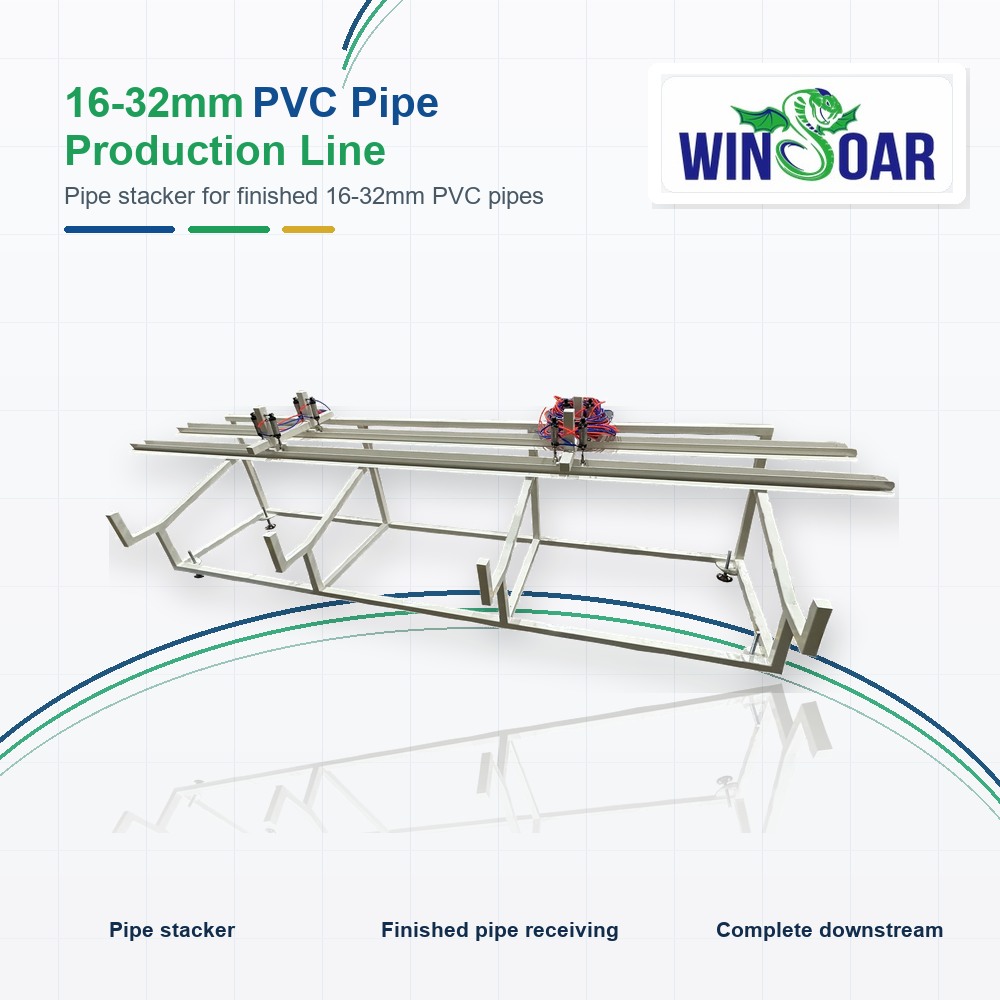

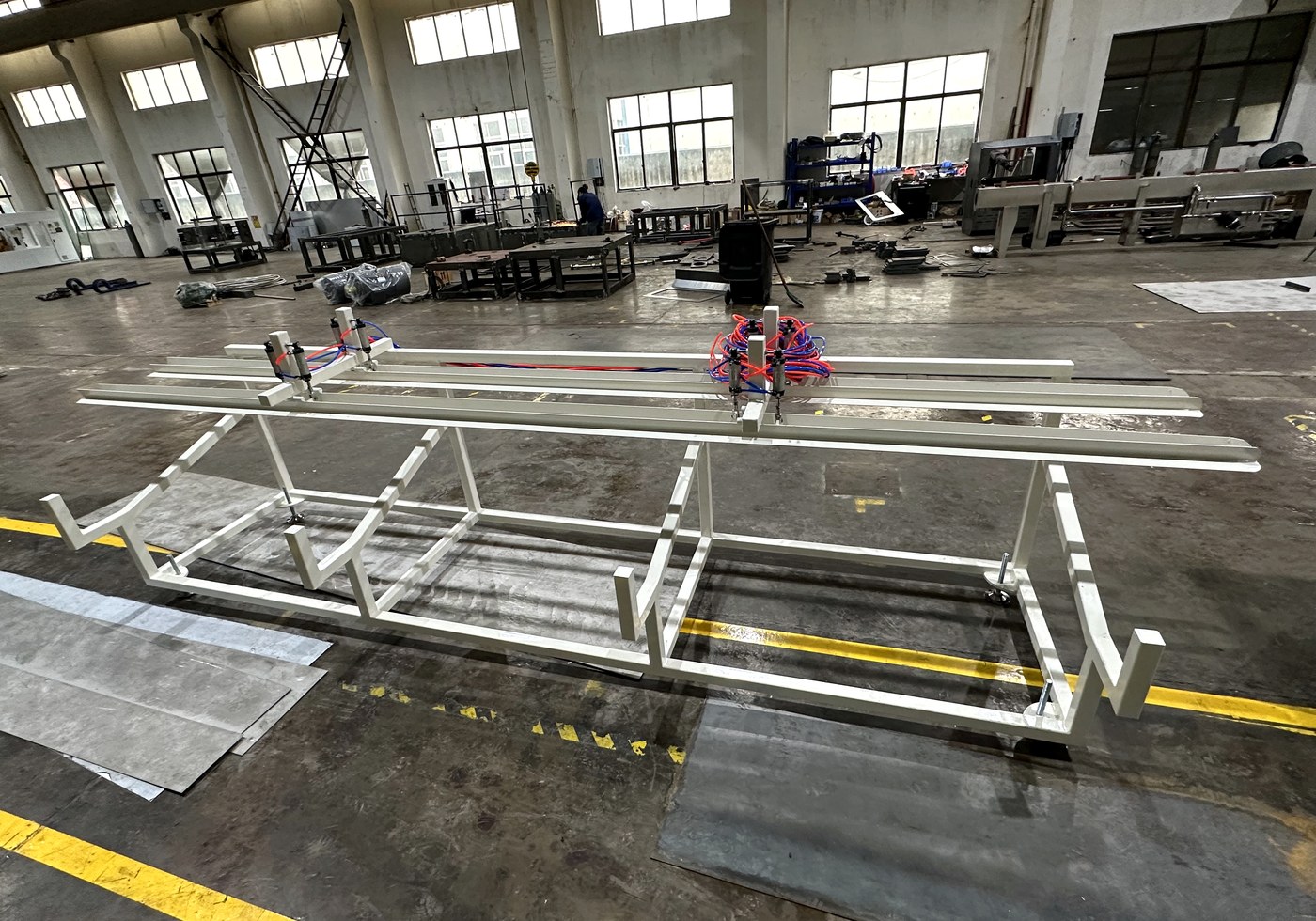

The pipe stacker receives finished straight pipes after cutting. If socket pipe is required, a belling machine can be added after the cutting system.
Winsoar manufactures plastic extrusion machines according to confirmed pipe diameter, output requirement, voltage and factory layout. Machine configuration can be discussed before production.
Before shipment, machine parts, control cabinet, downstream equipment and auxiliary systems can be checked in the workshop to reduce installation risk.
Winsoar prepares export packaging according to machine size and transportation requirements. Protective wrapping and wooden cases help protect moulds, electrical parts and auxiliary equipment.
Container loading photos help buyers confirm shipment preparation and machine delivery status. Winsoar can arrange loading plans according to equipment dimensions and destination requirements.
Before quotation, buyers can discuss pipe sample, wall thickness, local pipe standard, output target and factory layout. These details help Winsoar recommend a practical configuration.
It is a complete PVC pipe production line for producing four small PVC or UPVC pipes from 16mm to 32mm at the same time.
It is commonly used for PVC electrical conduit, cable protection pipe, small drainage pipe and small UPVC water pipe.
PVC resin and additives need stable dry blend preparation before extrusion. A suitable mixer helps improve pipe surface, output stability and long-term running performance.
Yes. Winsoar can customize extruder model, mould, calibration tank, haul-off, cutter, stacker, belling machine, voltage and layout according to the project requirement.
Tell Winsoar your target pipe diameter, wall thickness, pipe application, formula, output requirement and factory voltage. We will recommend a suitable 16-32mm PVC one out four pipe extrusion line configuration, including mixer, extruder, mould, vacuum tank, haul-off cutter, stacker, packaging plan and shipment support.
For this 16-32mm PVC One Out Four Pipe Extrusion Line, review the running video and related PVC pipe extrusion line guides before confirming configuration.
Running video: 16-32mm PVC one out four pipe extrusion line running video
Useful PVC pipe line guides: PVC Pipe Production Line Process, How to Choose a PVC Pipe Extrusion Line, PVC Pipe Extrusion Line Output Capacity Per Hour and the PVC Pipe Production Line category.
