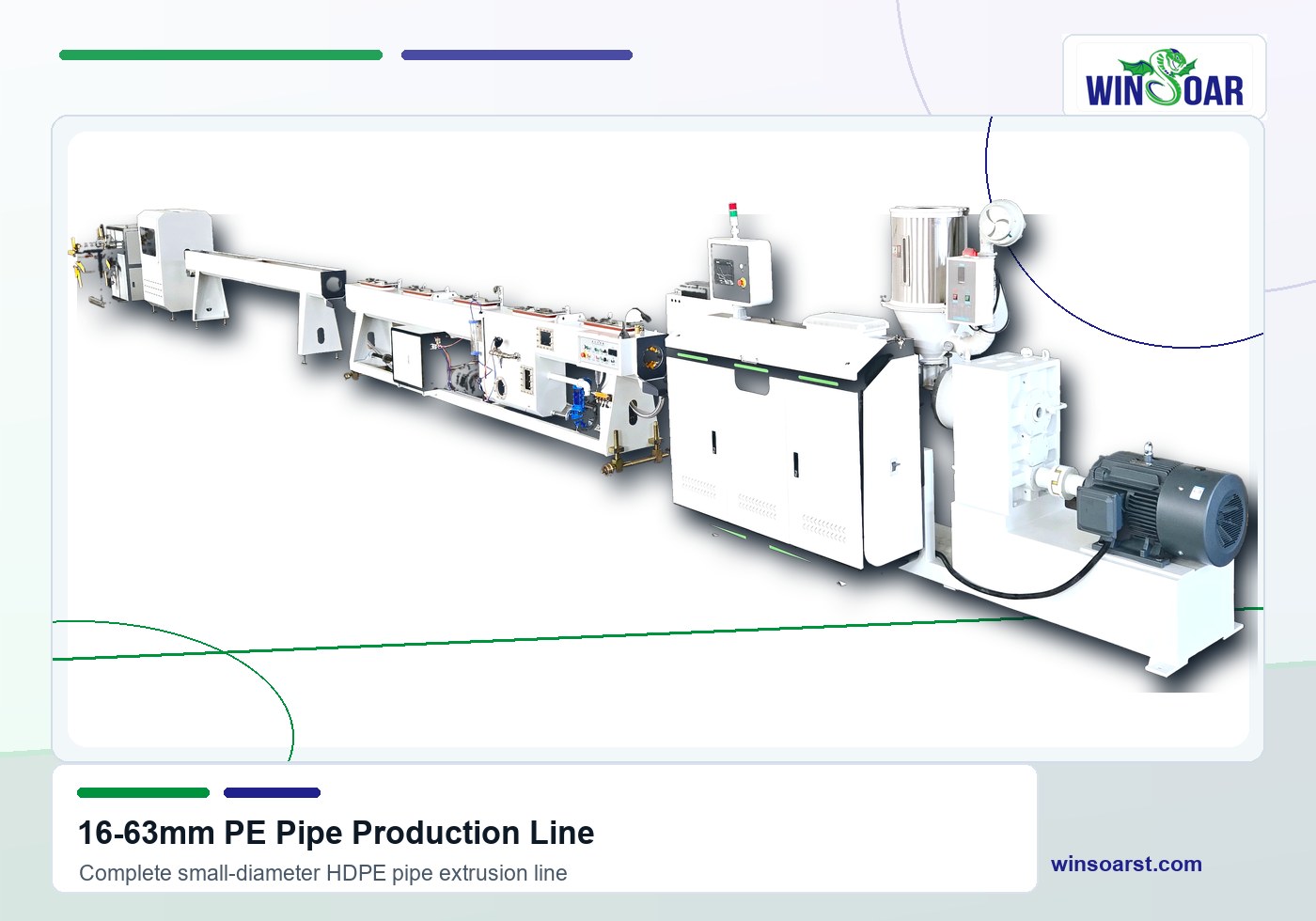

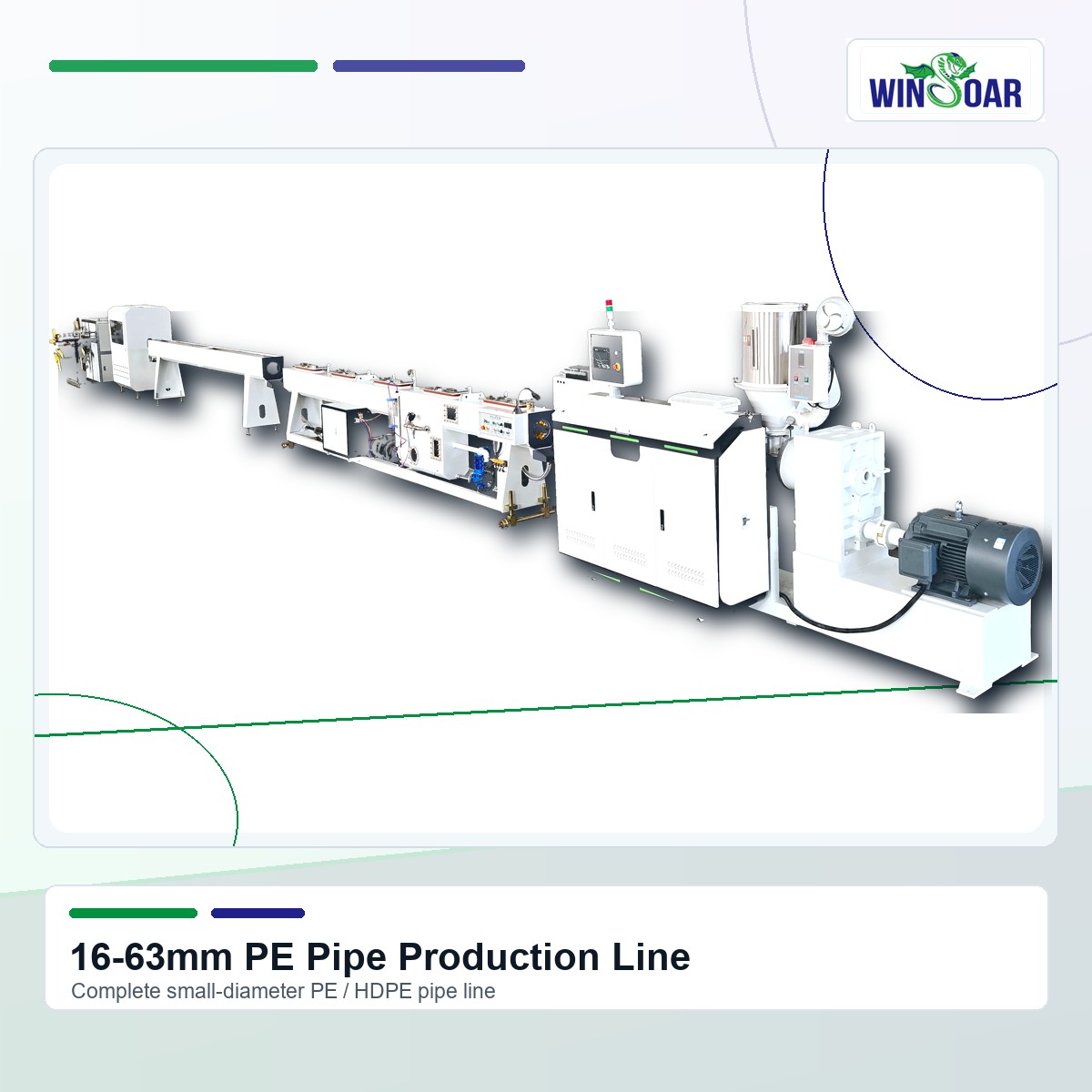

16-63mm PE Pipe Production Line
Winsoar
WSP-PE-16-63
Product Overview & Applications
Winsoar 16-63mm PE pipe production line is a small-diameter HDPE pipe extrusion line for compact pipe projects that need stable extrusion, accurate sizing, mark-line quality and continuous coiling.
Direct answer: A 16-63mm PE pipe production line is a complete HDPE pipe extrusion line used to produce small polyethylene pipes in coils or short fixed lengths. A typical line includes single screw extrusion, optional color marking co-extrusion, pipe die head, vacuum calibration, spray cooling, haul-off, chipless cutting and double-station coiling.
Compact HDPE Pipe Line for Coiled Small Pipe
The 16-63mm range is usually selected for small water pipe, gas service pipe, irrigation pipe and cable conduit projects. Compared with larger PE pipe lines, the main focus is faster small pipe extrusion, stable OD control, clean chipless cutting and efficient coiling.
Pipe range: 16-63mm, customized by project
Material: PE80, PE100, HDPE and polyethylene compounds
Downstream focus: haul-off stability, chipless cutter and double-station coiler
Application | Common Diameter Focus | Configuration Focus |
Small PE water supply pipe | 16-63mm | Stable OD, smooth surface, pressure grade and coil quality |
PE gas service pipe | 20-63mm | Material grade, SDR, yellow mark line and diameter accuracy |
Agricultural irrigation pipe | 16-63mm | High line speed, cost control, coil size and packing efficiency |
Cable conduit / duct pipe | 16-63mm | Continuous extrusion, clean cutting and consistent coiling |
Industrial small PE pipe | 16-63mm | Wall thickness, surface quality and customized layout |
Product name | 16-63mm PE Pipe Production Line |
Line type | Small diameter PE pipe production line / HDPE pipe extrusion line |
Applicable material | PE80, PE100, HDPE and polyethylene compounds |
Pipe diameter range | 16-63mm, customized according to pipe project |
Typical finished pipe | Coiled PE / HDPE pipe or short fixed-length small pipe |

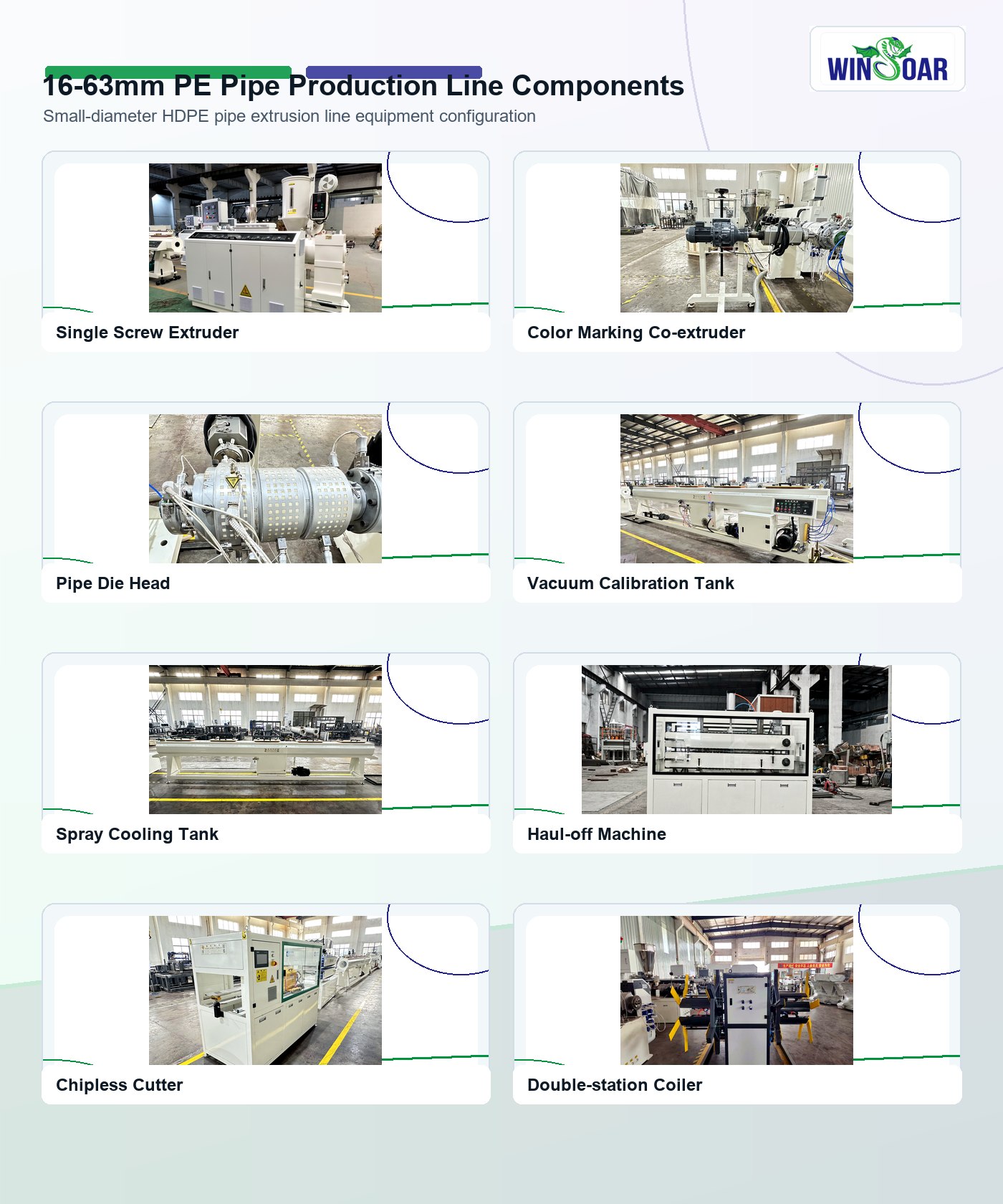

Main equipment | Single screw extruder, color marking co-extruder, die head, vacuum tank, spray cooling tank, haul-off, chipless cutter, double-station coiler |
Customization | Pipe SDR, wall thickness, output, voltage, color mark line, coil size, coiler type and line layout |
Core Machines for 16-63mm PE Pipe Extrusion
The 16-63mm range is intended for compact PE and HDPE pipe production where small diameter, flexible handling and coiled delivery are important. Typical products include irrigation branch pipe, small water supply pipe, gas pipe, conduit and cable protection pipe. Compared with a 20-110mm line, this range places more emphasis on accurate small-pipe sizing, stable low-diameter haul-off and controlled winding.
Project type | Main configuration focus |
|---|---|
Small water and irrigation pipe | Stable diameter, suitable wall thickness, coil length and winding tension. |
PE gas pipe | Material grade, SDR or pressure requirement, color marking and controlled coil handling. |
Electrical conduit and cable protection | Surface quality, fixed length or coiled delivery and required wall thickness. |
Utility and farm pipe | Output target, portability, coil diameter and installation method. |
The complete range is divided into different production priorities. The main size and wall thickness should be confirmed before selecting die tools, calibration sleeves, cooling conditions and the coiler setting.
16-20mm: requires precise small-diameter sizing and stable haul-off because small changes in speed or melt pressure can affect the final outside diameter.
20-32mm: commonly used for irrigation branches, small water pipe and conduit; buyers should confirm coil diameter and required length per coil.
32-63mm: often used for water, gas, irrigation and cable protection projects; confirm whether the pipe will be coiled or cut into straight lengths.
Multiple sizes: identify the most frequently produced diameter and confirm the complete die and calibration tool set for changeover.
A double-station coiler can improve continuity by preparing one coil while the other station is being changed or discharged, depending on the selected operating arrangement. For buyers selling flexible PE pipe in coils, the coiler should be matched to pipe diameter, wall thickness, coil outside diameter, coil weight and required coil length. Winding tension must remain stable so the finished coil is compact without flattening or damaging the pipe.
The optional color marking co-extruder can add an identification stripe for water, gas, conduit or customized utility pipe. The required color, stripe position and mark-line stability should be confirmed with the material grade and project standard. For very small pipe, the marking unit and die head must be coordinated so the stripe remains visible without disturbing pipe roundness.
Small-diameter pipe quality depends on stable melt pressure, accurate tooling, vacuum calibration, cooling, haul-off speed and winding tension. A higher output target is useful only when the downstream cooling and coiling system can maintain the required dimensions and coil quality. The quotation should include SDR or wall thickness, material grade, target kg/h, line speed and coil requirements.
Buyer data | Why it affects the 16-63mm line |
|---|---|
Diameter and wall thickness | Determines die tooling, calibration sleeve, cooling and practical line speed. |
PE80, PE100 or other compound | Influences plasticizing, pressure-pipe performance and color marking. |
Target output and speed | Helps match the extruder, haul-off, cooling and coiler capacity. |
Coil diameter, weight and length | Determines coiler layout, station changeover and finished-pipe handling. |
List the full pipe diameter range and the main size produced most often.
Provide SDR, wall thickness or pressure-class requirements.
Confirm PE material grade, application and color-marking requirements.
Set the target output and preferred line speed.
Provide coil diameter, coil weight and required length per coil.
Confirm whether straight lengths are also required and provide the fixed length.
Provide local voltage, cooling-water conditions and available workshop space.
With these details, Winsoar can match the extruder, color marking unit, die head, vacuum calibration, spray cooling, haul-off, chipless cutter and double-station coiler to the actual small-diameter PE pipe project.
This line is best evaluated as a small-diameter product system rather than only as a nominal range. The most important design inputs are the dominant pipe size, wall thickness or SDR, whether the pipe is sold in coils or straight lengths, and the required coil weight. These inputs determine the die tooling, calibration sleeve, haul-off speed, cooling capacity and winding layout.
Production decision | Recommended project input |
|---|---|
Small irrigation or farm pipe | Confirm coil length, coil diameter, winding tension and required portability. |
PE100 water or gas pipe | Confirm resin grade, SDR or wall thickness, pressure class, stripe and marking. |
Conduit and cable protection | Confirm smooth surface, fixed length or coil format, color and printing. |
Mixed-size production | List the regular sizes and allow for the complete die and calibration changeover set. |
Flexible PE pipe is not finished when it leaves the cooling tank. The haul-off, cutter and coiler must work together so that the pipe stays round, the coil remains compact and the winding tension does not flatten the pipe. For a quotation, provide the target outside diameter, wall thickness, coil outside diameter, coil weight and required length per coil. A double-station arrangement can also reduce handling interruptions when the project requires regular coil changes.
Keep melt pressure and extruder temperature stable before the die head.
Match vacuum calibration and cooling to the smallest and largest planned sizes.
Synchronize haul-off speed with wall thickness and target output.
Control marking-strip position so it remains visible without disturbing roundness.
Check coil length, coil weight, winding tension and pipe ovality before packing.
For a project covering both coiled and straight pipe, state the changeover frequency and the fixed straight length. Winsoar can then match the small-diameter die head, calibration tools, cooling, haul-off, chipless cutter, marking unit and coiler to the actual sales plan.
Video & Technical Parameters
The video shows the real 16-63mm PE pipe line structure. The parameter table keeps the full PE / HDPE model matrix so buyers can compare 16-63mm with future expansion ranges.
Watch this 16-63mm PE pipe production line video on YouTube.
| Production line | Diameter range (mm) | Extruder type | Max. capacity (kg/h) | Max. haul-off speed (m/min) | Extrusion power (kW) |
| WS-63 I | 20-63 | SJ65/33 | 220 | 12 | 55 |
| WS-110 I | 20-110 | SJ65/33 | 220 | 12 | 55 |
| WS-160 I | 50-160 | SJ75/33 | 400 | 10 | 110 |
| WS-250 I | 90-250 | SJ90/33 | 400 | 6 | 110 |
| WS-450 I | 160-450 | SJ120/33 | 500 | 4 | 160 |
| WS-630 I | 400-630 | SJ120/33 | 850 | 2 | 280 |
| WS-800 II | 500-800 | SJ120/33 | 850 | 2 | 280 |
| WS-630 I | 315-630 | SJ120/33 | 850 | 2 | 355 |
| WS-800 I | 500-800 | SJ150/33 | 1100 | 1 | 400 |
| Production line | Diameter range (mm) | Extruder type | Max. capacity (kg/h) | Max. haul-off speed (m/min) | Extrusion power (kW) |
| WS-63 II | 20-63 | WSD60/38 | 320 | 30 | 70 |
| WS-110 II | 20-110 | WSD60/38 | 380 | 20 | 90 |
| WS-160 II | 40-160 | WSD60/38 | 460 | 15 | 110 |
| WS-250 II | 50-250 | WSD75/38 | 600 | 12 | 160 |
| WS-450 II | 110-450 | WSD90/38 | 850 | 8 | 250 |
| WS-630 II | 250-630 | WSD90/38 | 1050 | 4 | 280 |
| WS-800 II | 500-800 | WSD120/38 | 1300 | 2 | 355 |
| WS-1200 II | 710-1200 | WSD75/38 + WSD90/38 | 1450 | 1 | 160/250 |
| WS-1600 II | 1000-1600 | WSD90/38 + WSD90/38 | 1900 | 0.6 | 280/280 |
| Buyer question | Practical guidance |
| Which model is most relevant to 16-63mm pipe? | WS-63 I is a classical selection. WS-63 II is selected when higher output and faster line speed are required. |
| Can this page cover 16mm pipe although the table starts at 20mm? | Yes. The actual small pipe range can be configured to 16-63mm according to mould, calibration sleeve, downstream and coiler design. |
| When should I choose a double-station coiler? | For continuous coil production, a double-station coiler reduces downtime during coil change and improves packing efficiency. |
| What data should I send for quotation? | Pipe diameter range, SDR or wall thickness, material grade, output target, mark-line requirement, coil diameter, coil weight, voltage and workshop layout. |
Before checking the final quotation, you can review the matching running video solution for this 16-63mm PE Pipe Production Line. See the compact small-diameter PE / HDPE line running test with color marking co-extruder, haul-off machine, chipless cutter and double-station coiler.
Machine Configuration
The 16-63mm line should be configured around small pipe stability, fast line speed, accurate mark-line position, clean chipless cutting and continuous coiling.

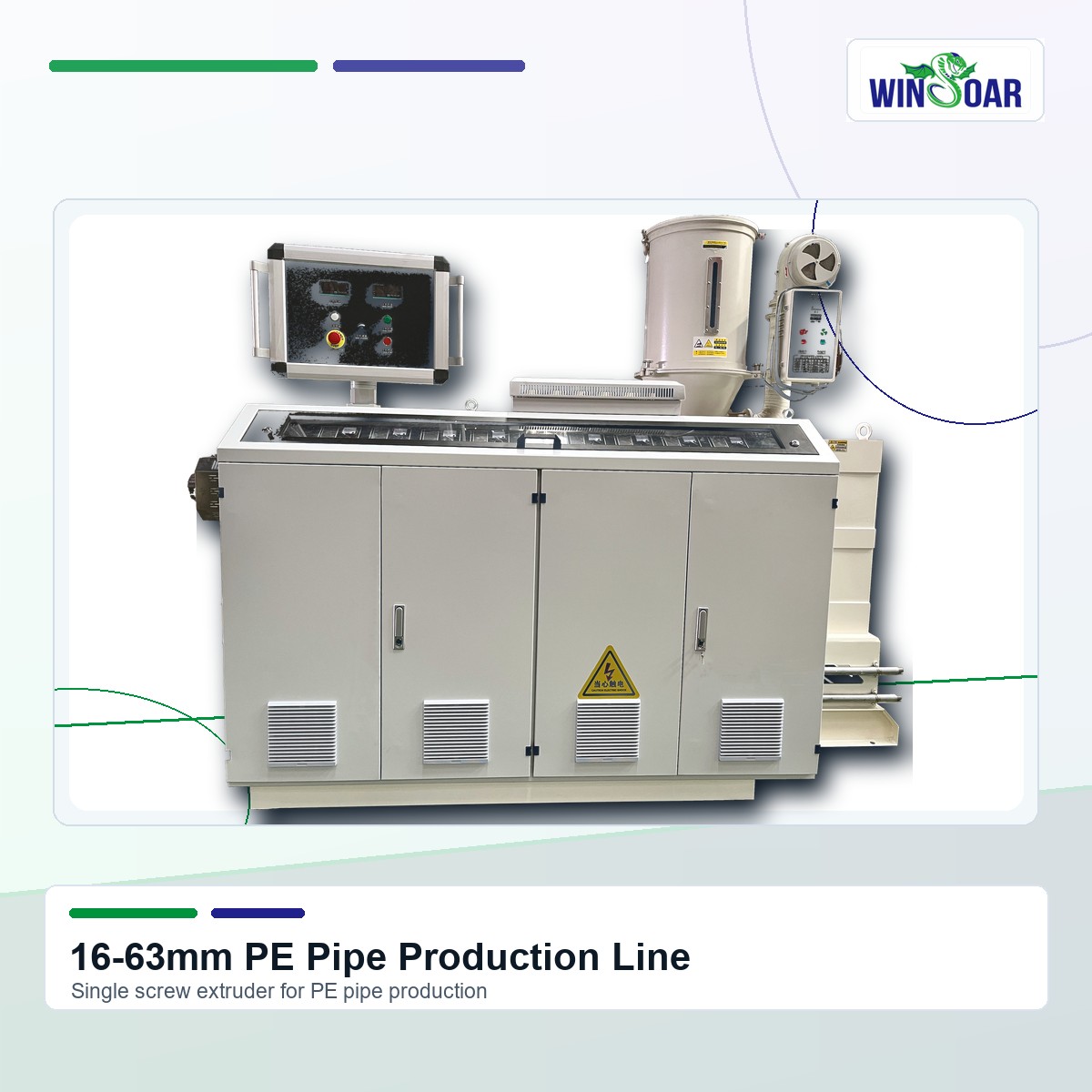

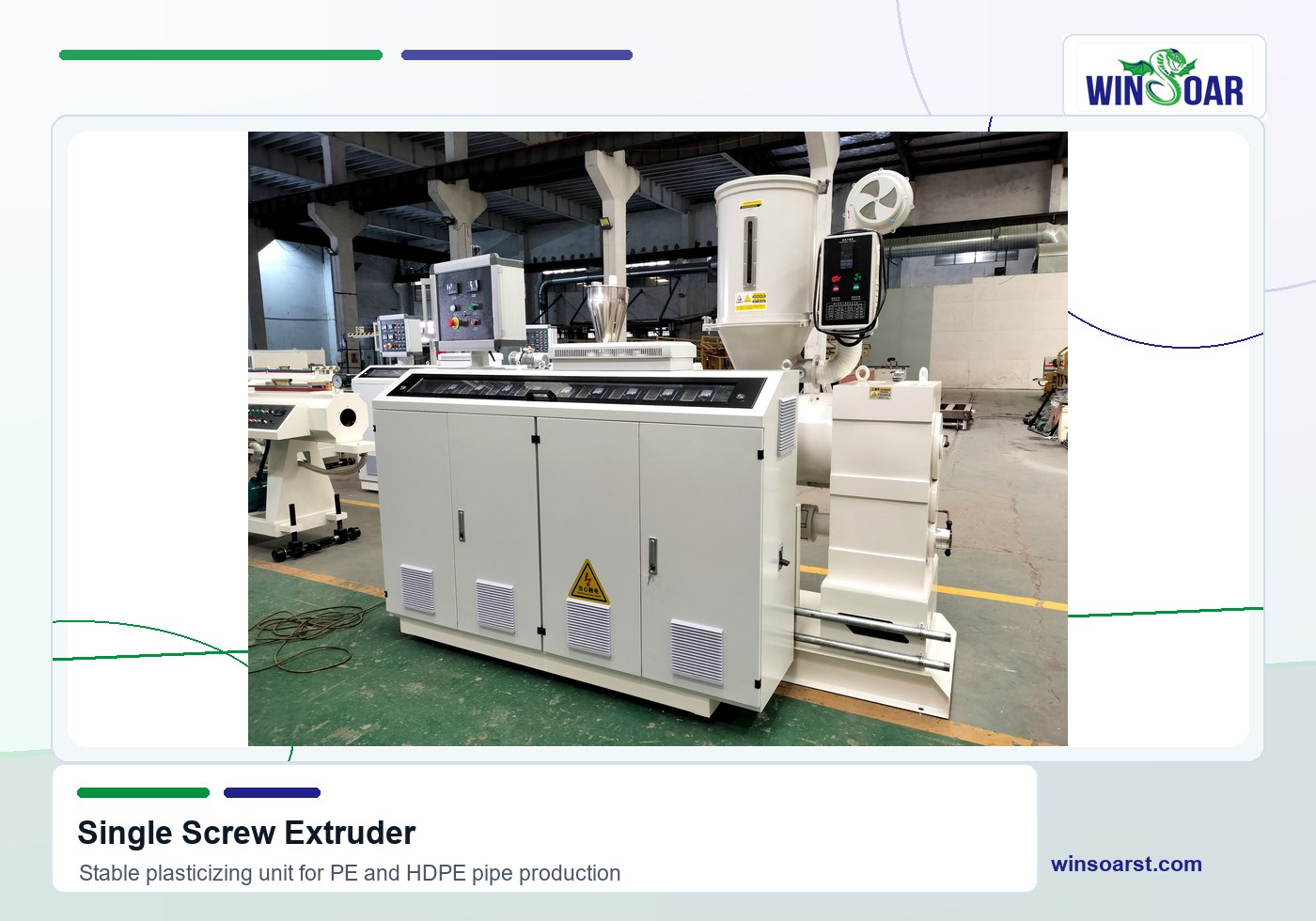

The single screw extruder provides stable PE / HDPE melt output for small pipe extrusion. Screw design, motor power and temperature control are selected according to material grade, SDR and output target.

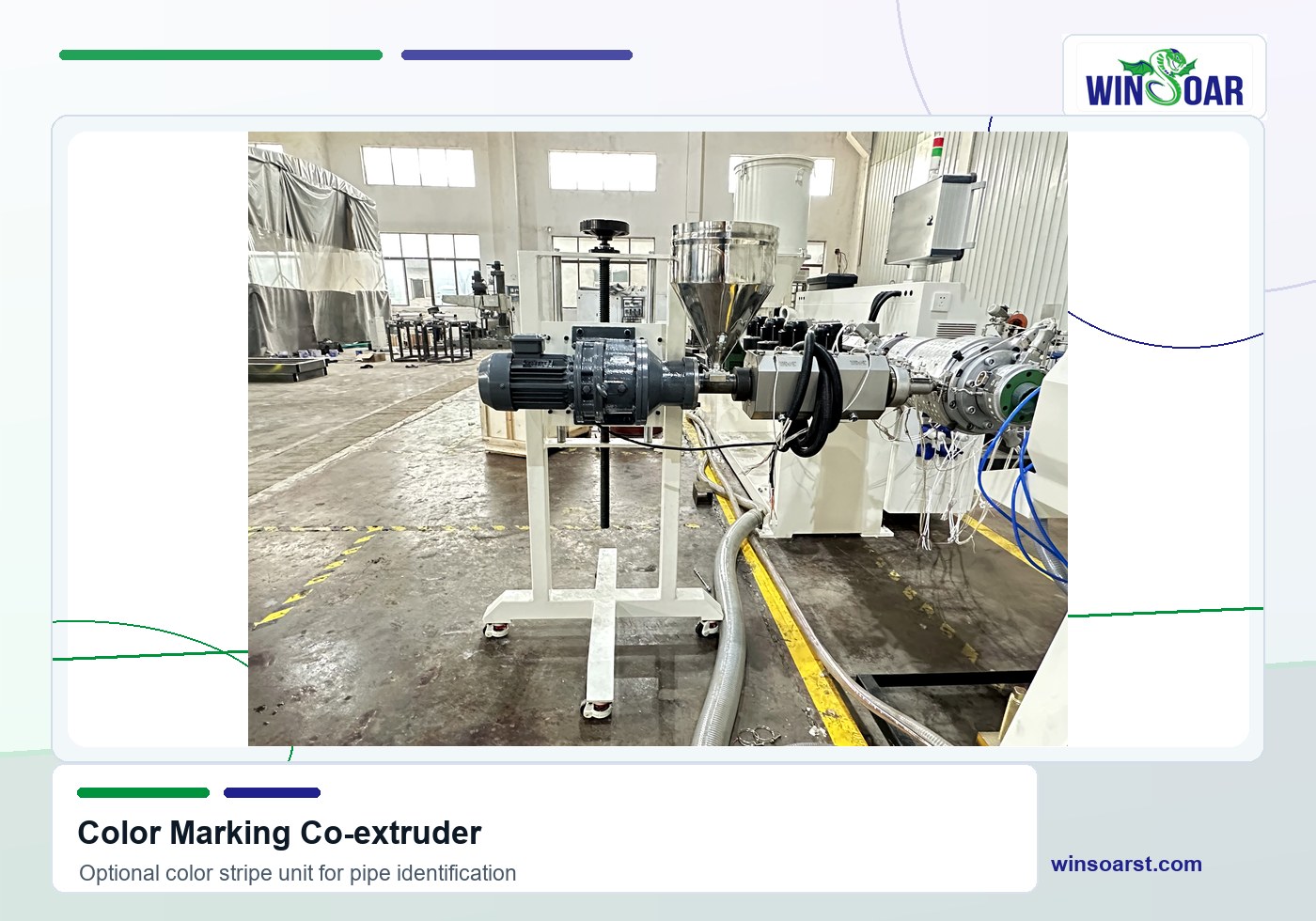

The color marking co-extruder is used when water pipe, gas pipe or project identification requires blue, yellow or customized mark lines.

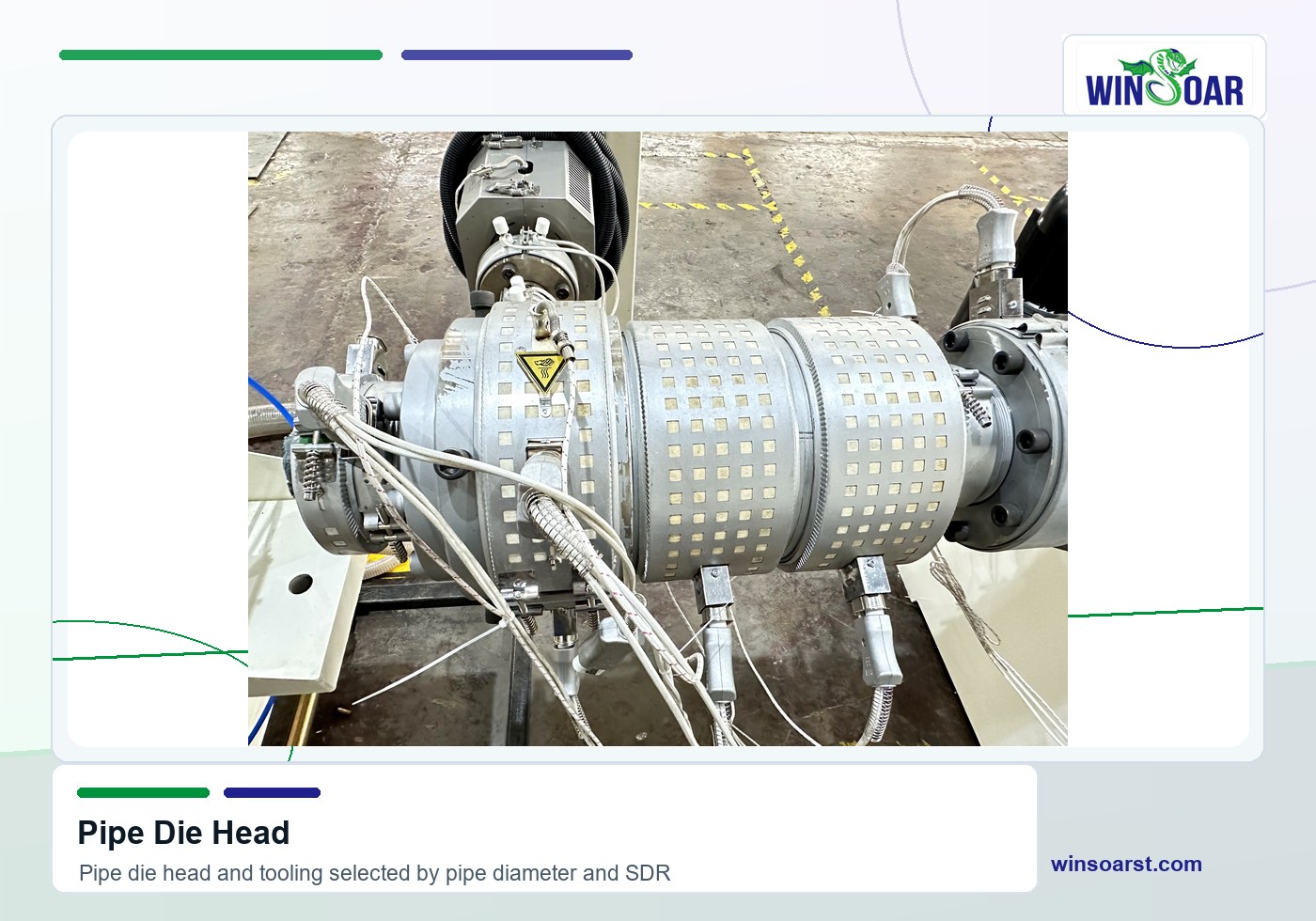

The PE pipe die head forms the pipe diameter and wall thickness. For 16-63mm production, die head and calibration matching affect pipe roundness, surface quality and mark-line position.

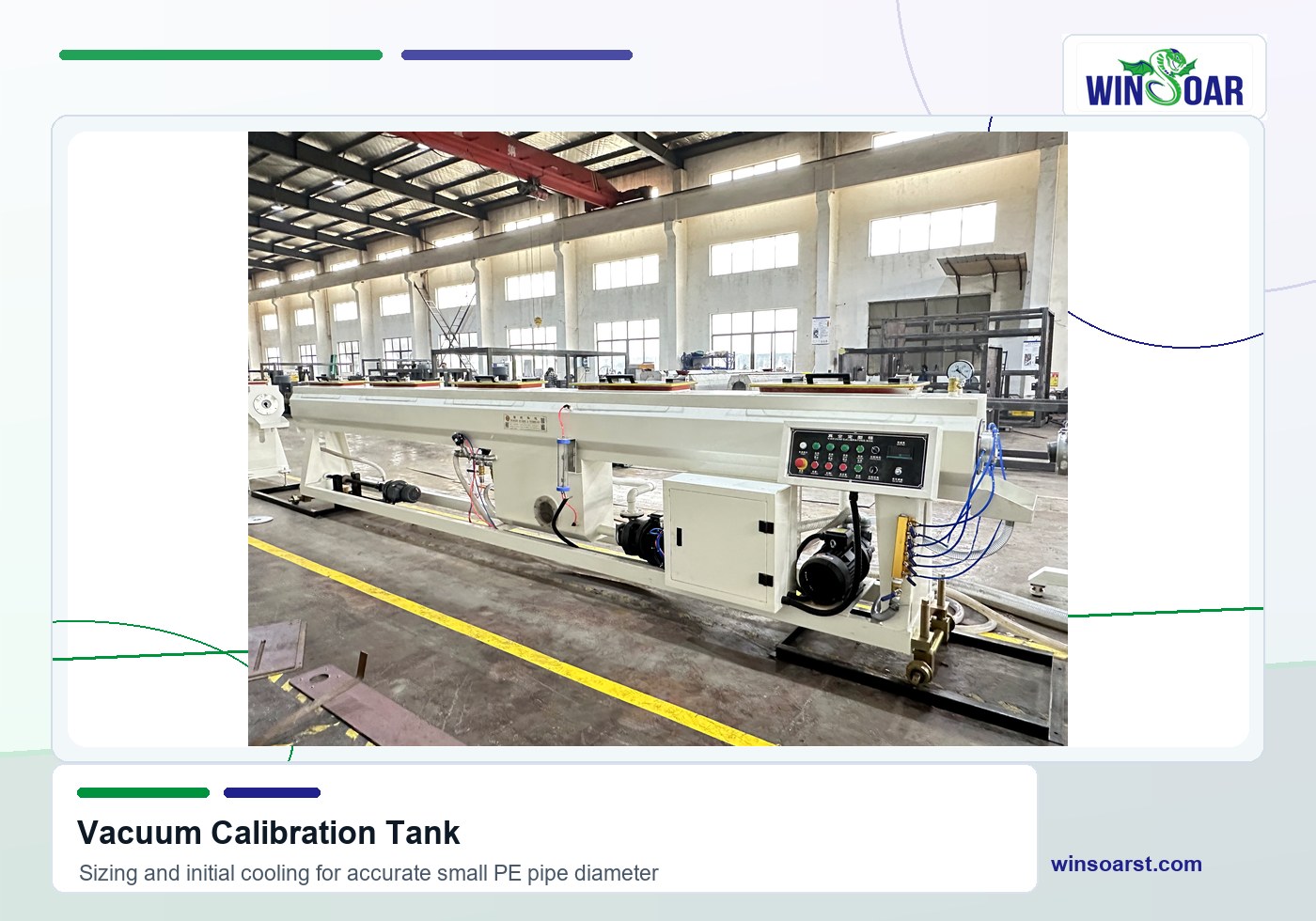

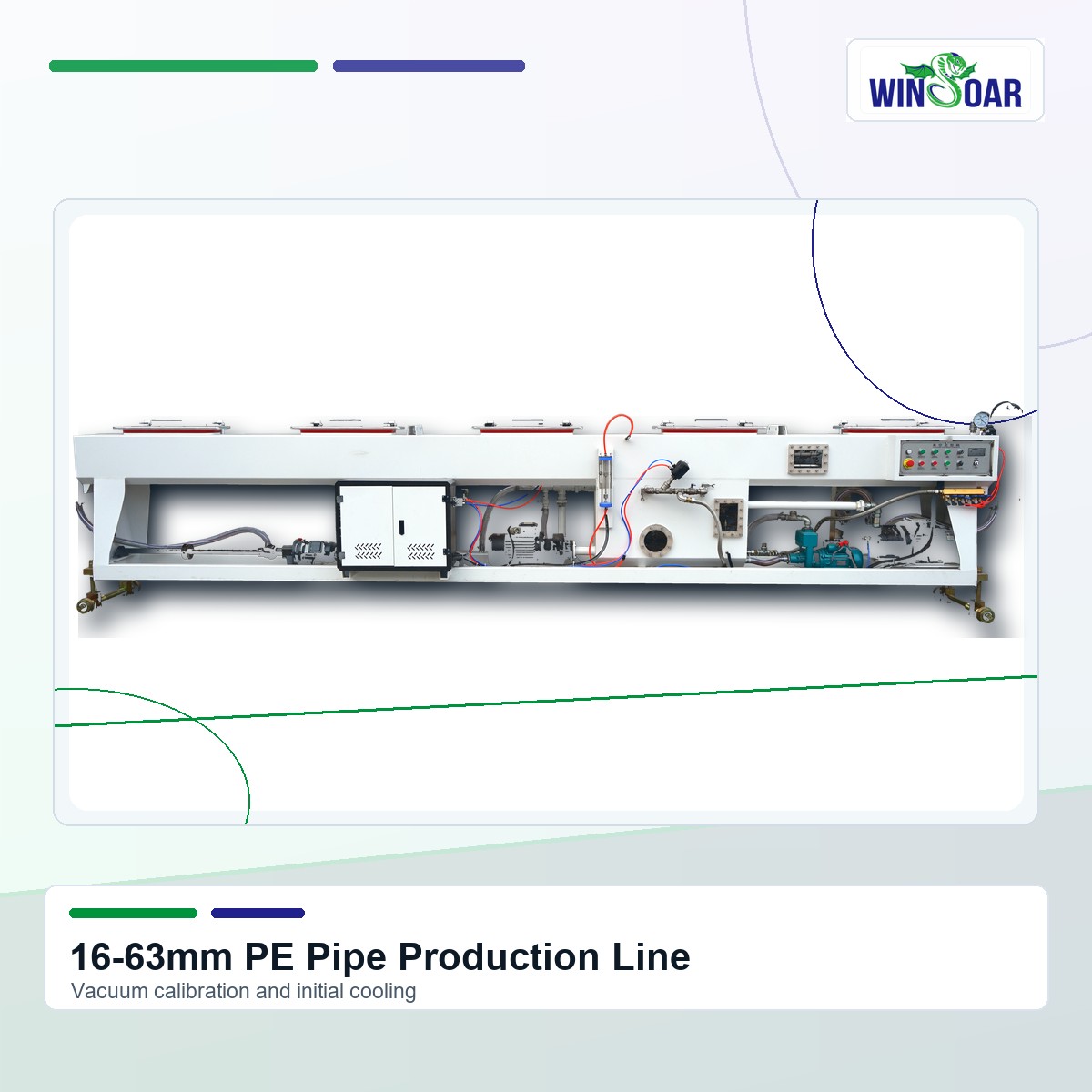

The vacuum calibration tank controls pipe outside diameter and initial cooling. Small PE pipes need stable vacuum and water temperature to keep consistent size at higher line speed.

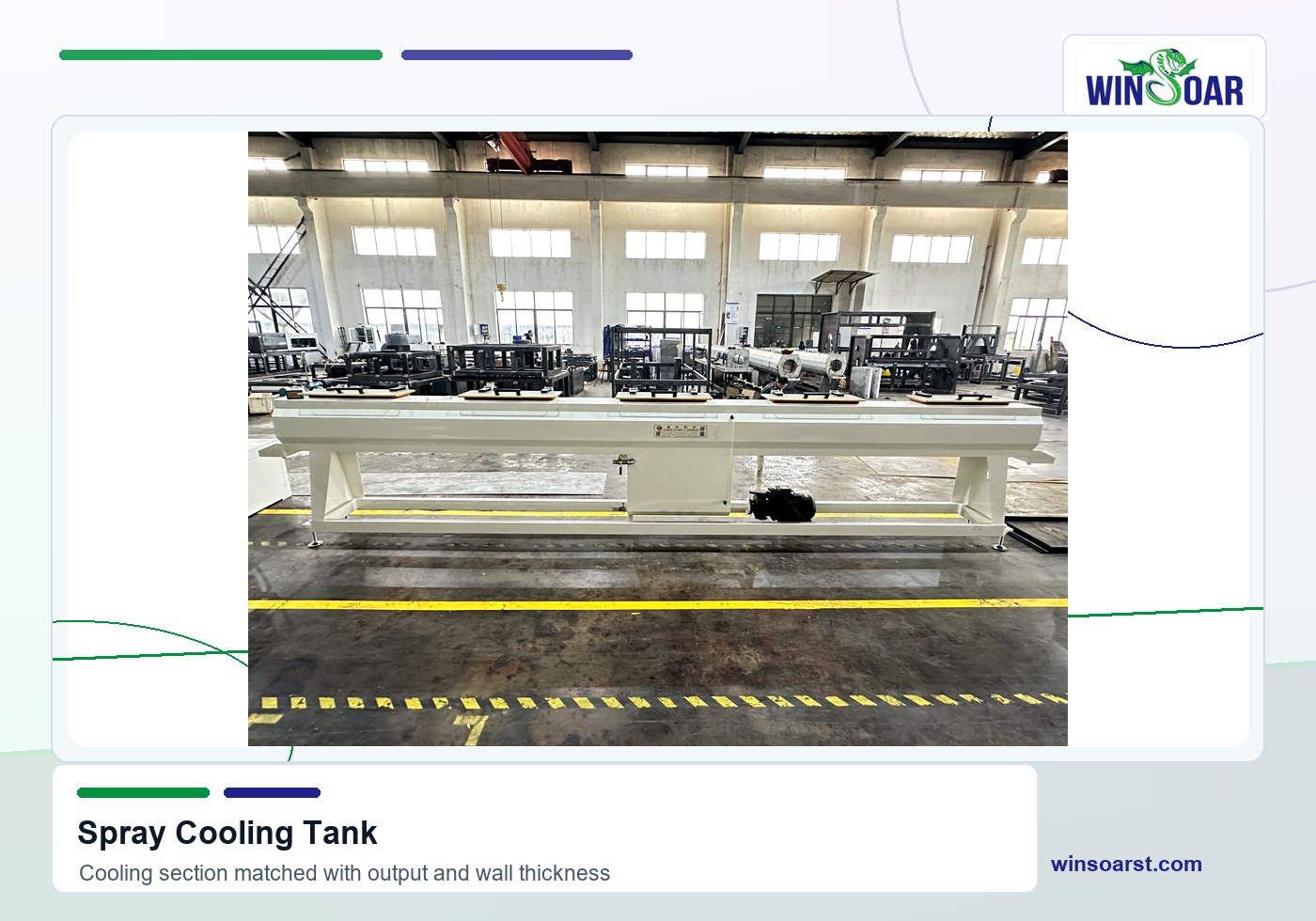

The spray cooling tank provides additional cooling before hauling and cutting. Cooling stability helps maintain pipe shape and supports clean downstream coiling.

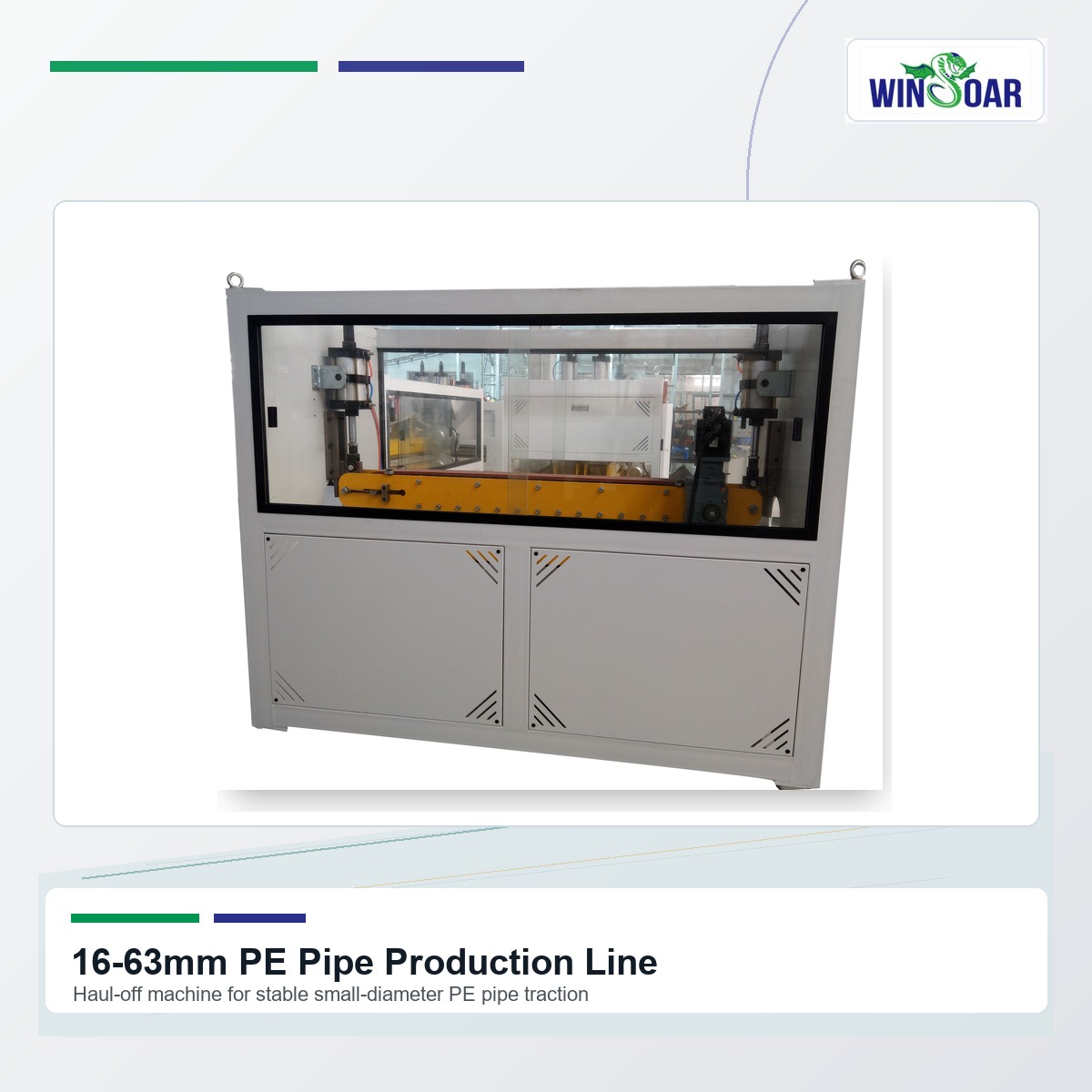

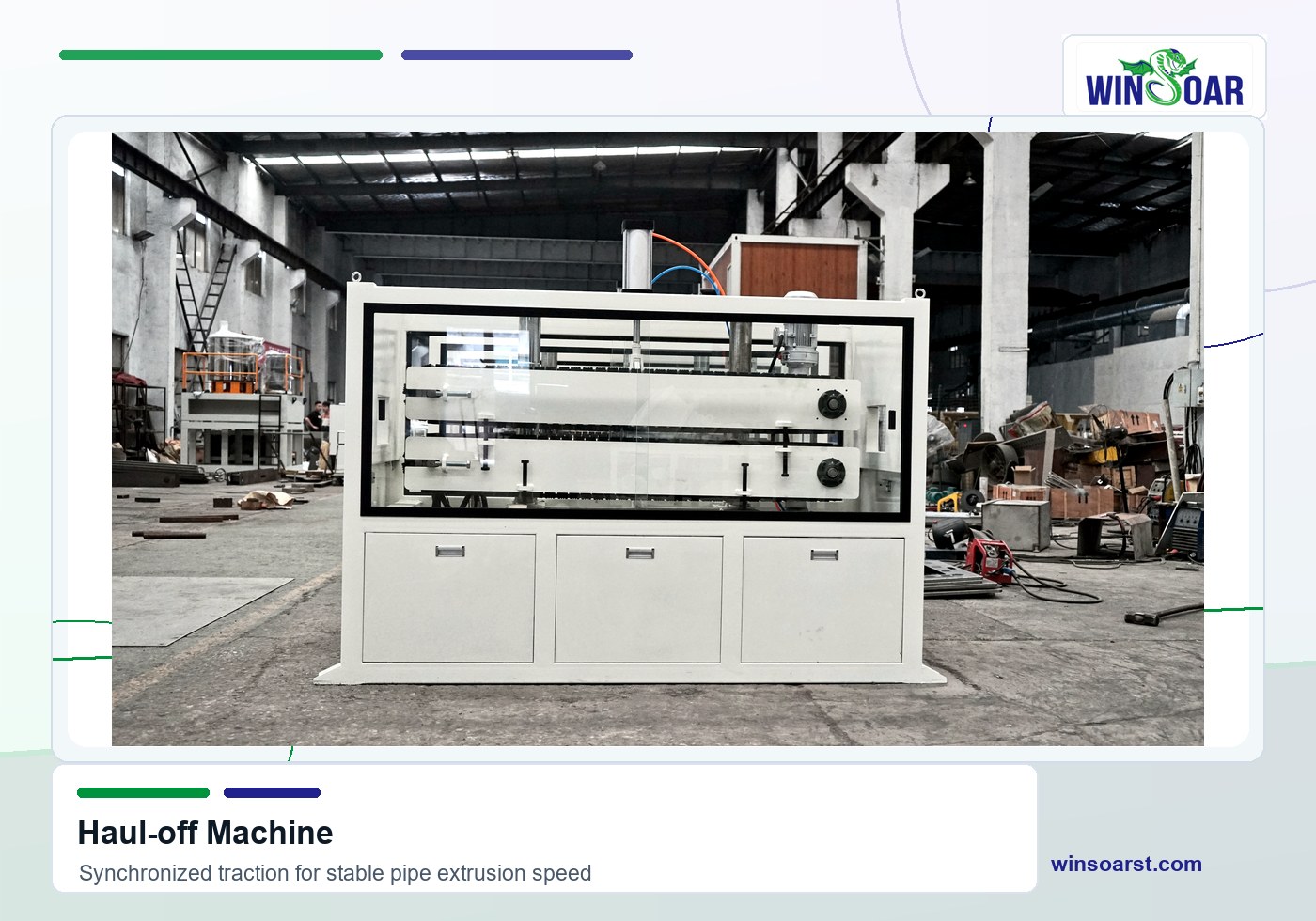

The haul-off machine pulls the pipe at synchronized speed. Stable traction is critical because small pipe wall thickness and coiling quality are sensitive to speed fluctuation.

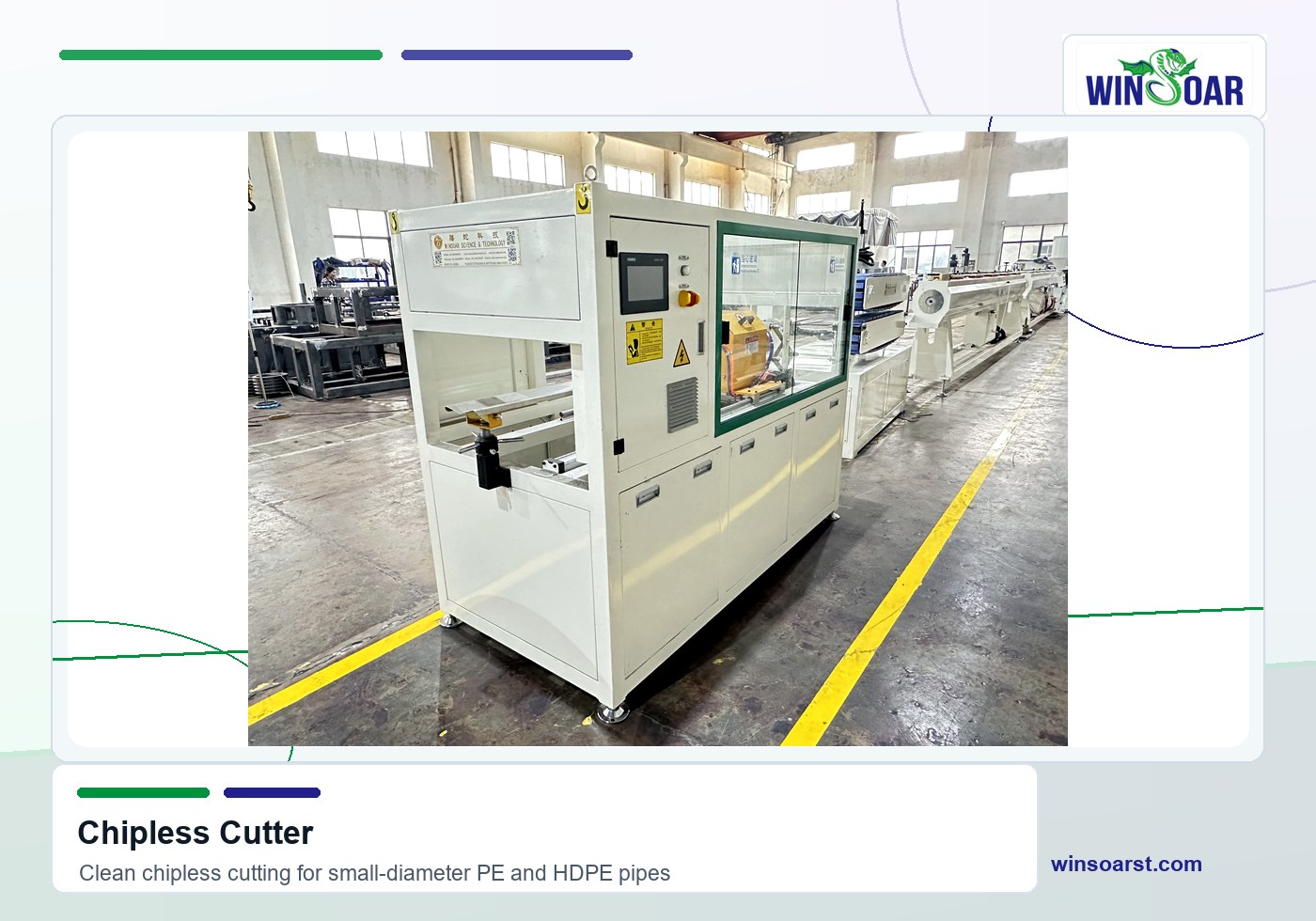

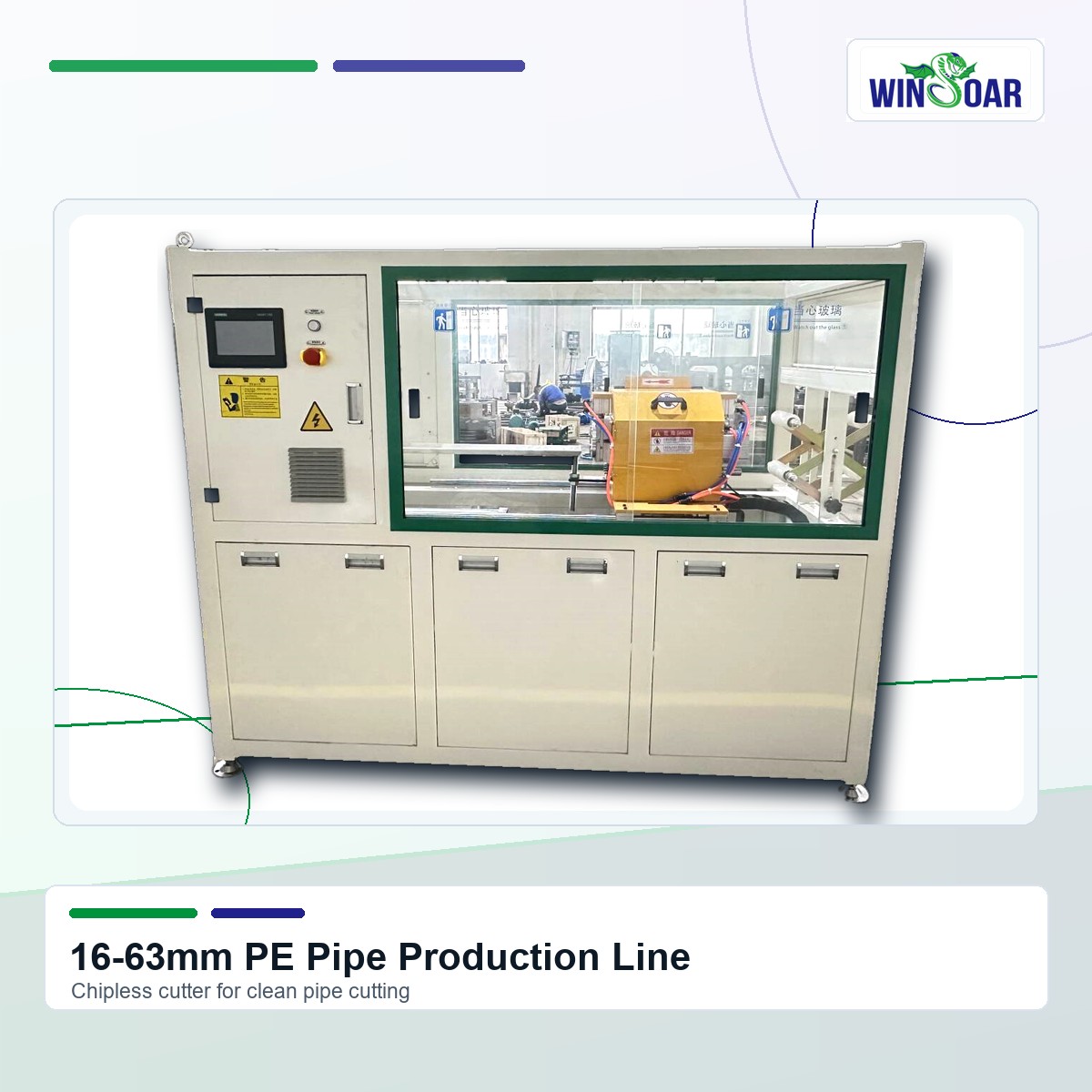

The chipless cutter is used when the line needs clean fixed-length cutting before coiling or packing. It is an independent downstream function and should be selected according to diameter, wall thickness and speed.

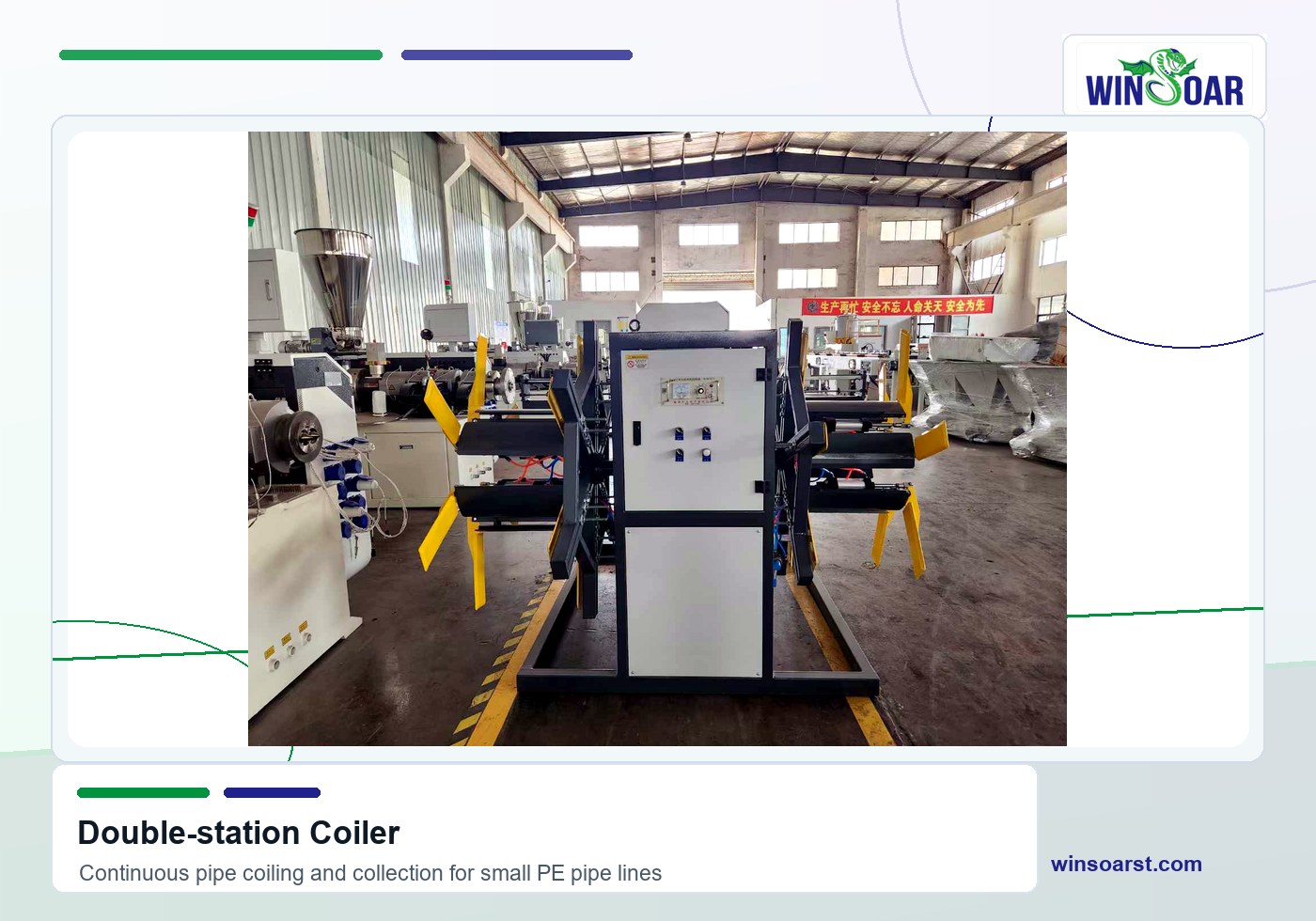

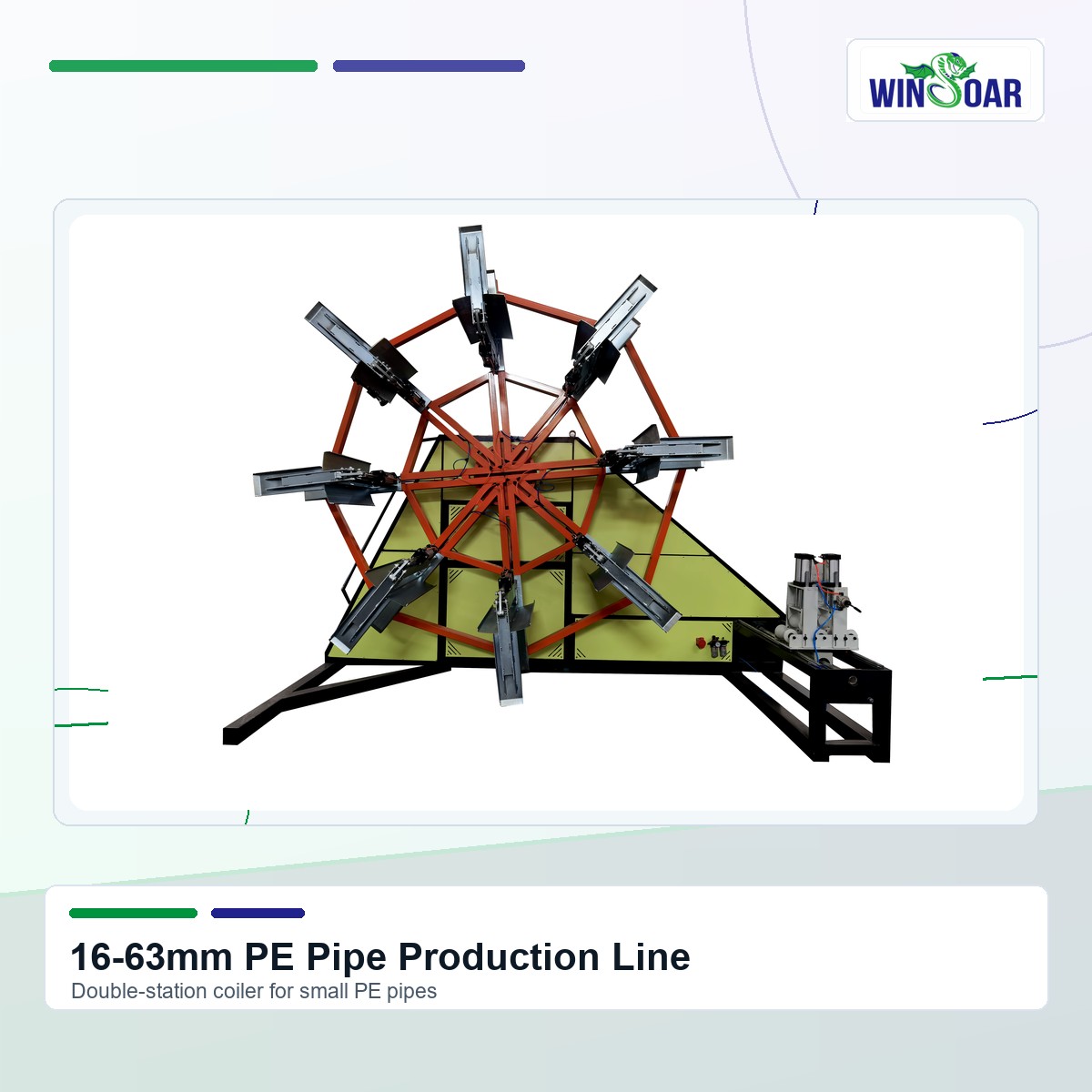

The double-station coiler receives and winds finished PE pipe. Two stations help the operator switch coils with less downtime, which is important for high-speed 16-63mm pipe production.
| Item to confirm | Why it affects the 16-63mm PE line |
| Pipe diameter range | Determines mould, calibration sleeves, haul-off, cutter and coiler selection. |
| SDR / wall thickness | Affects extrusion output, cooling length, traction and coil stiffness. |
| Pipe application | Water, gas, irrigation and conduit pipes may require different materials, colors and standards. |
| Color mark line | Confirm blue, yellow or customized stripe before selecting co-extruder and die head. |
| Coil size | Coil diameter, coil weight and packing method determine coiler design. |
| Output target | Used to decide classical 33D or high-efficiency 38D extrusion configuration. |
Factory, Guides & FAQ
Winsoar supports PE / HDPE pipe extrusion projects from configuration design to production, assembly checking, export packaging and shipment planning.
Before delivery, the extrusion system, die head, calibration, cooling, haul-off, chipless cutter and double-station coiler are checked according to the selected project configuration.
Key parts such as moulds, calibration sleeves, electrical cabinet, cutter parts, coiler parts and spare parts are checked against the confirmed pipe diameter and SDR.
Packaging and loading plans are arranged according to equipment dimensions, spare parts, shipment route and unloading conditions at the buyer's factory.
Winsoar confirms pipe diameter, SDR, material grade, color mark line, coil requirement, voltage and workshop layout before preparing a practical quotation.
| Guide | How it helps buyers |
| What Machines Are Included in a PE Pipe Production Line? | Explains the extrusion, calibration, cooling, hauling, cutting and coiling equipment in a complete PE line. |
| PE Pipe Production Line Process | Shows how raw material becomes finished PE pipe through each process step. |
| PE Pipe Production Line Cost | Helps buyers understand what affects quotation and configuration cost. |
| How to Choose an HDPE Pipe Extrusion Line | Useful when comparing diameter range, output, extruder type and downstream equipment. |
| Product | Recommended when |
| 20-110mm PE Pipe Production Line | You need a slightly wider small-diameter range and coiled pipe configuration. |
| 75-250mm PE Pipe Production Line | You need medium-diameter straight pipe with chipless cutting and stacker. |
| 200-400mm PE Pipe Production Line | You need larger PE water, gas, drainage or industrial pipe production. |
| 315-800mm PE Pipe Production Line | You need large-diameter HDPE pipe output and heavy downstream equipment. |
It is a small-diameter HDPE pipe extrusion line for producing polyethylene pipes from 16mm to 63mm, including extrusion, optional color marking, sizing, cooling, hauling, chipless cutting and double-station coiling.
Yes. The final configuration is selected according to material grade, pipe standard, SDR, mark-line requirement, output target and coil size.
A double-station coiler allows coil switching with less downtime, which is useful for continuous 16-63mm small pipe production.
Yes. This page is planned with a chipless cutter for clean small PE pipe cutting before coiling or packing.
Please provide pipe diameter range, SDR or wall thickness, material grade, application, output target, color stripe requirement, coil diameter, coil weight, voltage and workshop layout.
Send Winsoar your diameter range, SDR, material grade, pipe application, output target, color mark-line requirement, coil size and factory voltage. We will recommend a suitable HDPE pipe extrusion line configuration.
